Mitsubishi G1HCPU Service-Ready Spare Part for Industrial Maintenance

Mitsubishi G1HCPU Service-Ready Spare Part for Industrial Maintenance

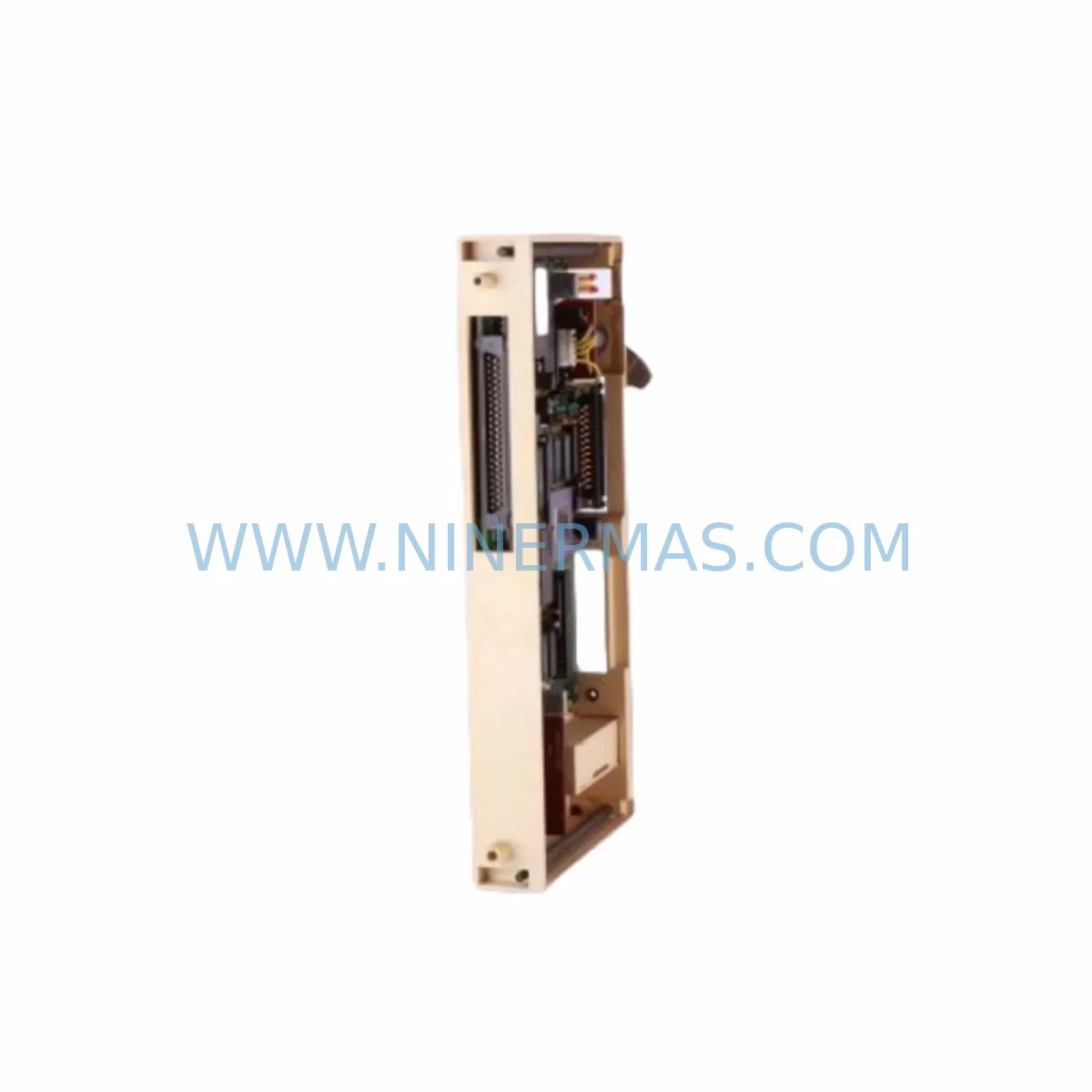

The Mitsubishi G1HCPU is a CPU module designed for the MELSEC-G Series programmable logic controller platform — a legacy industrial control architecture widely deployed across manufacturing, process automation, and discrete production environments. As original equipment reaches end-of-life or becomes increasingly difficult to source through standard distribution channels, maintaining a verified stock of the G1HCPU becomes a critical element of any plant-level spare parts strategy.

For maintenance engineers managing aging control cabinets, the G1HCPU represents a direct-fit replacement that eliminates the need for costly system redesigns or full PLC migrations. Its compatibility with the MELSEC-G backplane and I/O bus architecture means that a qualified technician can execute a swap-out procedure during a planned maintenance window — or in an emergency shutdown scenario — without reprogramming the entire control system from scratch, provided the ladder logic backup is current and accessible.

Every unit shipped by NINERMAS undergoes pre-shipment functional testing to verify power-on behavior, communication handshake, and basic I/O response. This testing protocol is part of our standard quality control process and is reflected in the 12-month warranty coverage provided with each unit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a G1HCPU failure is identified — whether through a watchdog fault, communication dropout, or complete CPU halt — the replacement procedure should be treated as part of a broader cabinet inspection rather than an isolated swap. Experienced maintenance engineers know that a CPU fault is often a symptom of upstream or downstream stress on the control system.

Before or alongside the G1HCPU replacement, the following components in the same control cabinet or electrical circuit should be inspected and, where necessary, replaced as part of the same maintenance event:

• G-Series Power Supply Module (e.g., G1HPSU or equivalent) — Verify output voltage stability under load. A degraded PSU is a common root cause of intermittent CPU faults in aging MELSEC-G installations.
• MELSEC-G Backplane / Base Unit — Inspect connector pins for oxidation or mechanical wear. A faulty backplane slot can cause repeated CPU module failures even after replacement.
• Digital Input / Output Modules (G-Series DI/DO) — Confirm I/O module status LEDs and verify field wiring continuity. Shorted field devices can stress the CPU’s I/O bus.
• Communication Module (e.g., MELSEC-G CC-Link or RS-232C interface card) — Re-seat or replace if communication errors persist after CPU swap. Communication modules are often overlooked during CPU-focused maintenance.
• Terminal Blocks and Field Wiring — Inspect for loose connections, insulation degradation, or corrosion, particularly in high-vibration or high-humidity environments.
• Relay Output Modules or Solid-State Relay (SSR) Assemblies — Check for contact wear or thermal damage, especially on high-cycle outputs controlling motors, solenoids, or heating elements.
• Signal Isolators and Analog Input Modules — Verify 4–20 mA loop integrity and signal isolation barriers, particularly if the system interfaces with field transmitters or process sensors.
• Fuse Assemblies and Circuit Protection — Replace any blown or degraded fuses in the control cabinet power distribution section. Document fuse ratings against the original panel drawing.
• HMI or Operator Panel (GOT Series or equivalent) — Confirm communication link between HMI and the replacement CPU. Re-establish the communication parameters if the CPU address or baud rate was modified.
• Battery Backup Unit — If the G1HCPU uses a lithium battery for program retention, replace the battery as a matter of course during any CPU swap to prevent data loss during the next power cycle.

Treating the G1HCPU replacement as a trigger for a broader cabinet health check reduces the probability of a secondary failure within weeks of the initial repair — a scenario that is both costly and damaging to maintenance team credibility.

Site Replacement Workflow

The following workflow is recommended for maintenance engineers executing a G1HCPU replacement in a live industrial environment:

1. Backup the PLC Program — Before powering down, use GX Developer or GX Works (whichever is applicable to the MELSEC-G installation) to upload and save the current ladder logic, parameter files, and device comments to a secure engineering workstation. Confirm the backup file integrity before proceeding.
2. Document the Current Configuration — Record I/O module slot assignments, communication settings, and any special function module parameters. Photograph the cabinet wiring if documentation is incomplete.
3. Controlled Power-Down — Follow the site’s lockout/tagout (LOTO) procedure. Isolate the control cabinet from the main power supply and verify de-energization with a calibrated voltage tester.
4. Remove the Faulty G1HCPU — Disengage the module locking mechanism and slide the CPU out of the backplane slot. Handle with ESD precautions.
5. Install the Replacement G1HCPU — Seat the new module firmly into the backplane slot. Confirm the locking tab engages correctly.
6. Power-On and Program Restore — Apply power and observe the CPU status LEDs. If the program was not retained in flash memory, download the backed-up program via the programming cable or Ethernet port.
7. I/O Verification and Functional Test — Force-test critical I/O points in a safe state before returning the system to automatic operation. Confirm HMI communication and alarm status.
8. Return to Service — Document the replacement in the maintenance log, including the date, replaced part number, and technician name. Update the spare parts inventory accordingly.

This structured approach minimizes unplanned downtime and ensures the replacement G1HCPU is fully validated before production resumes. For older MELSEC-G installations where the original system documentation is incomplete, NINERMAS technical support can assist with compatibility verification prior to shipment.

Spare Parts Support FAQ

Q1: Is the G1HCPU still in production, and how long can I expect continued supply?
The MELSEC-G series is a legacy platform and the G1HCPU is no longer in active production by Mitsubishi Electric. NINERMAS maintains stock of original units sourced through authorized industrial channels. We recommend that facilities with multiple MELSEC-G installations consider holding at least one spare G1HCPU on-site to eliminate lead time risk during an emergency. Contact our team for current stock levels and long-term supply agreements.

Q2: How do I verify compatibility between the G1HCPU and my existing MELSEC-G backplane and I/O modules?
Compatibility is determined by the backplane model, power supply rating, and the firmware version of the CPU. Provide your existing system’s base unit model number and installed module list to our technical team before ordering. We will cross-reference against known compatible configurations and confirm suitability. Pre-shipment testing on our end also validates basic hardware functionality before the unit leaves our facility.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers hardware defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with your order reference, a description of the fault, and any available diagnostic data (CPU error codes, LED status at fault). We will arrange return shipping and either repair or replace the unit at no additional cost.

Q4: Can I use the G1HCPU as a direct drop-in replacement for other MELSEC-G CPU variants?
The G1HCPU is designed for a specific position within the MELSEC-G CPU family. While it shares the same backplane form factor as other G-series CPU modules, program memory capacity, scan time performance, and special function support may differ between variants. Always verify the CPU model against your original system documentation or contact NINERMAS for a compatibility assessment before committing to a replacement order. Substituting an incorrect CPU variant can result in program execution errors or I/O mapping conflicts.
