Mitsubishi FX3U-485-BD Service-Ready Spare Part

Mitsubishi FX3U-485-BD Service-Ready Spare Part for Industrial Maintenance

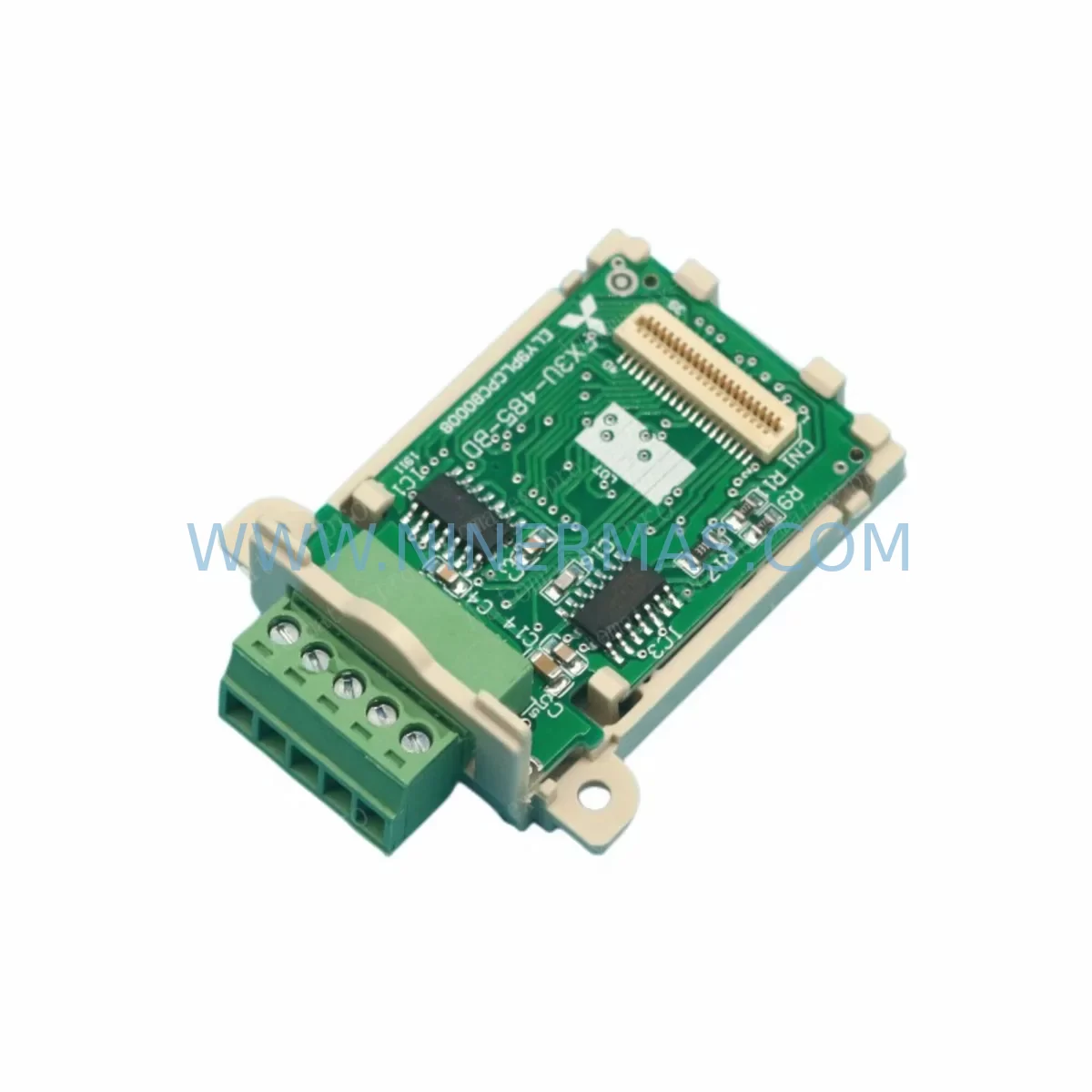

The Mitsubishi FX3U-485-BD is an RS-485 communication expansion board designed exclusively for the Mitsubishi MELSEC FX3U series programmable logic controller. As a factory-original spare part, it enables reliable half-duplex RS-485 serial communication between the FX3U CPU and external devices such as inverters, HMI panels, servo drives, and SCADA systems. For maintenance engineers managing aging automation lines or executing planned shutdowns, having a verified, service-ready FX3U-485-BD in stock is a critical element of any spare parts strategy. Downtime caused by a failed communication board can cascade across an entire production cell — halting conveyor systems, disrupting batch processes, and triggering costly emergency procurement. Stocking this module eliminates that risk.

The FX3U-485-BD mounts directly onto the FX3U main unit’s expansion connector without additional wiring harnesses, making field replacement straightforward even in confined control cabinet environments. Its compact form factor and plug-in design mean a trained technician can complete a swap in under 15 minutes, restoring RS-485 communication and resuming production with minimal disruption. This is especially valuable in multi-shift facilities where every minute of unplanned downtime translates directly to lost output and increased labor costs.

From a procurement engineering perspective, the FX3U-485-BD is a long-lifecycle component within the Mitsubishi FX3U ecosystem. However, as the FX3U series matures, sourcing original boards through standard distribution channels becomes increasingly difficult. Ninermas maintains verified stock of the FX3U-485-BD with pre-shipment functional testing, ensuring that every unit dispatched has been confirmed operational before leaving the warehouse. Each board is covered by a 12-month warranty, providing procurement teams with the confidence needed to approve purchase orders without escalation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FX3U-485-BD in the field, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should begin by verifying the FX3U series power supply module — typically the FX3U-1PSU-5V or an equivalent DIN-rail mounted 24VDC supply — since voltage irregularities are a leading cause of communication board degradation. Inspect the FX3U-CNV-BD or any installed function expansion boards for physical damage or corrosion on the connector pins before seating the replacement FX3U-485-BD.

RS-485 wiring integrity is equally critical. Check the shielded twisted-pair cable connecting the FX3U-485-BD to downstream devices such as Mitsubishi FR-A700 or FR-E700 series inverters, verifying termination resistors (typically 110Ω) are correctly installed at both ends of the bus. A missing or incorrectly valued termination resistor is a frequent source of intermittent communication errors that can be misdiagnosed as a board failure. Similarly, inspect the FX3U-232-BD if it is installed alongside the RS-485 board, as simultaneous communication board faults are not uncommon in high-vibration environments.

For systems integrating Mitsubishi GOT2000 series HMI panels (such as the GT2107 or GT2310), confirm that the HMI communication parameters — baud rate, station number, and protocol — match the replacement board’s configuration. Mismatched settings after a board swap are a common cause of post-maintenance communication failures. If the FX3U is connected to a CC-Link network via an FX3U-16CCL-M master module, verify that the CC-Link station assignments and network parameters remain intact after the replacement.

Procurement engineers building annual maintenance kits for FX3U-based control systems should also consider stocking the FX3U-ENET module for Ethernet-connected systems, FX3U-4AD analog input modules for process signal acquisition, and FX3U-32MT/ES main CPU units as long-lead-time critical spares. Terminal blocks, DIN rail fuse holders, and 24VDC surge protection devices should be included in every cabinet-level spare parts kit to address the full range of failure modes encountered during annual shutdowns.

Site Replacement Workflow

Before beginning the replacement of the FX3U-485-BD, ensure the FX3U PLC is powered down and all RS-485 connected devices are in a safe state. Document the existing wiring connections and communication parameter settings (baud rate, data bits, parity, stop bits, station number) from the current board or from the system’s maintenance logbook. This documentation is essential for restoring communication after the swap without requiring a full recommissioning cycle.

Remove the faulty FX3U-485-BD by releasing the expansion board locking tab and carefully lifting the board from the CPU connector. Inspect the connector pins on the FX3U CPU for any signs of oxidation or mechanical damage before installing the replacement unit. Seat the new FX3U-485-BD firmly until the locking tab engages, then reconnect the RS-485 wiring, observing correct polarity (SDA+, SDB-, SG). Power up the system and verify communication status via the FX3U’s built-in diagnostic LEDs and the connected HMI or SCADA system. For systems running Mitsubishi GX Works2 or GX Works3 programming software, use the communication diagnostics function to confirm the RS-485 link is active and error-free before returning the line to production.

This workflow applies equally to legacy FX3U installations being extended for additional service life, where the FX3U-485-BD replacement is part of a broader old-system life extension strategy. Replacing communication boards, refreshing I/O modules, and updating firmware where possible can extend the operational life of an FX3U system by several years, deferring the capital cost of a full PLC platform migration.

Spare Parts Support FAQ

Q1: Is the FX3U-485-BD compatible with all FX3U CPU variants?
The FX3U-485-BD is designed for use with the Mitsubishi MELSEC FX3U series CPU modules. It is not compatible with FX3G, FX3S, or FX5U CPUs, which use different expansion board connectors and communication architectures. Always verify the target CPU model before ordering.

Q2: How does Ninermas verify the condition of FX3U-485-BD units before shipment?
Every FX3U-485-BD unit undergoes pre-shipment functional testing to confirm communication interface integrity and connector condition. Units that do not pass inspection are not dispatched. A 12-month warranty is provided on all shipped units, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for FX3U-485-BD in a multi-line facility?
For facilities operating three or more FX3U-based control systems, maintaining a minimum of two FX3U-485-BD units in the on-site spare parts store is recommended. This provides immediate availability for emergency replacement while a replenishment order is processed. For facilities with longer procurement lead times or remote locations, a buffer stock of three to five units is advisable.

Q4: Can Ninermas support long-term supply of the FX3U-485-BD as the product approaches end-of-life?
Yes. Ninermas specializes in maintaining stock of mature and end-of-life industrial automation components, including the Mitsubishi FX3U series. Long-term supply agreements and blanket purchase orders are available for procurement teams requiring guaranteed availability over multi-year maintenance contracts. Contact our team to discuss your specific requirements.
