MITSUBISHI FX1S-10MR-001 Retrofit-Compatible PLC for Legacy Systems

MITSUBISHI FX1S-10MR-001 Retrofit-Compatible PLC for Legacy Systems

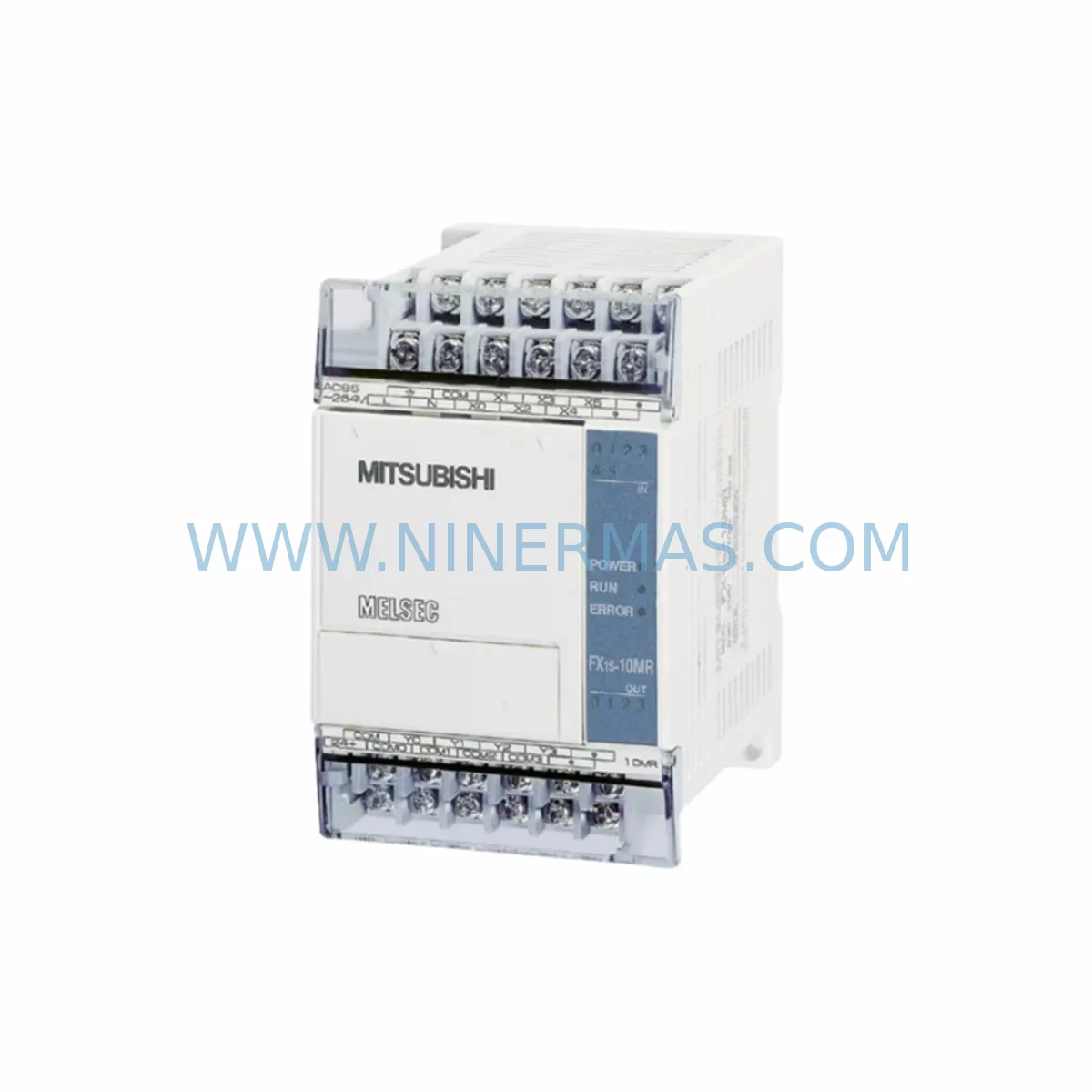

The MITSUBISHI FX1S-10MR-001 is a compact, relay-output programmable logic controller from the FX1S series — one of Mitsubishi Electric’s most widely deployed micro-PLC platforms in light manufacturing, packaging, material handling, and building automation. As the FX1S series has reached end-of-life status, procurement teams and automation engineers increasingly rely on verified retrofit-compatible units to sustain production continuity without committing to a full control system overhaul. NINERMAS maintains in-stock inventory of the FX1S-10MR-001 to support planned maintenance windows, emergency replacements, and long-term spare parts programs for facilities still operating FX1S-based control architectures.

The FX1S-10MR-001 provides 6 DC inputs and 4 relay outputs in a compact DIN-rail-mountable housing. It supports Mitsubishi’s standard FX programming instruction set, making it directly compatible with existing GX Developer and GX Works2 ladder logic programs without requiring code migration. For sites running legacy SCADA or HMI panels — including GOT1000 series terminals such as the GT1020 or GT1030 — the FX1S-10MR-001 maintains the same RS-422 communication interface, preserving existing HMI screen mappings and device address assignments without modification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a discontinued FX1S-10MR-001 in an active production environment requires a structured approach to avoid unplanned downtime and configuration errors. Before removing the original unit, engineers should document all terminal wiring assignments — particularly the 24V DC input commons, relay output load circuits, and any analog expansion modules connected via the FX1S right-side expansion bus. If the existing installation includes an FX1N-2AD-BD analog input board or an FX1N-1DA-BD analog output board mounted in the option slot, verify that the replacement unit’s firmware revision supports the same BD module addressing.

For facilities that have expanded their FX1S rack with FX2N-16EX input expansion units or FX2N-16EYR relay output expansion units, confirm that the total I/O count remains within the FX1S-10MR-001’s supported expansion limit of 128 points. Communication continuity is equally critical: if the control cabinet includes an FX1S-10MR-001 networked to an upstream MELSEC Q-series controller via RS-485 using an FX1N-485-BD communication board, the board must be transferred to the replacement unit and the network parameters re-verified in GX Works2 before restart.

Sites using Mitsubishi FR-E700 or FR-D700 series variable frequency drives linked to the FX1S via pulse output or RS-485 should confirm that the drive’s station address and baud rate settings match the PLC program parameters. Similarly, if the system includes a Mitsubishi MR-J4 servo amplifier receiving positioning commands from the FX1S high-speed output channels (Y0/Y1), the pulse output wiring and servo parameter settings must be validated against the original commissioning records before resuming automatic operation.

For control cabinets where the FX1S-10MR-001 is paired with a Mitsubishi GT1020-LBL or GT1030-LBD HMI panel, the GOT communication settings — including PLC type selection, station number, and baud rate — should be verified in GT Designer3 after the PLC swap. In most cases, no screen project changes are required, but a full I/O force test is recommended to confirm that all HMI button actions and indicator lamp mappings respond correctly on the replacement unit.

Downtime Control During System Migration

Minimizing production interruption during an FX1S-10MR-001 replacement begins with pre-staging the replacement unit off-line. Before the maintenance window opens, upload the existing PLC program from the original unit using GX Developer or GX Works2 via the SC-09 or USB-SC09-FX programming cable, and verify the program checksum against the last known backup. Write the verified program to the replacement FX1S-10MR-001 and confirm that all data registers, timer presets, and counter values are correctly initialized to match the production baseline.

During the physical swap, label all terminal wiring before disconnection using the original wiring diagram or a field-photographed reference. Disconnect the power supply first, then remove the communication cable, expansion bus connectors, and finally the terminal block wiring. Install the replacement unit on the DIN rail, reconnect in reverse order, and apply power only after a visual inspection confirms correct terminal seating. Perform a cold-start I/O check in manual mode before enabling automatic cycle operation — this step alone eliminates the majority of post-replacement faults caused by wiring transposition or address offset errors.

For systems where a brief interruption is not acceptable, consider pre-configuring the replacement FX1S-10MR-001 in a parallel test bench using the same I/O wiring configuration and running the program in simulation mode against the live process signals via a temporary breakout panel. This approach allows the maintenance team to validate program execution, HMI communication, and drive control responses before committing to the live cutover, reducing the active swap window to under 30 minutes in most installations.

Retrofit Support FAQ

Q1: Is the FX1S-10MR-001 a direct drop-in replacement for the FX1S-10MR-ES/UL?
Yes. The FX1S-10MR-001 and FX1S-10MR-ES/UL share the same I/O count, terminal layout, DIN rail footprint, and programming instruction set. Existing ladder logic programs, HMI screen projects, and communication wiring can be reused without modification in the vast majority of installations. Minor firmware revision differences may affect BD option board compatibility — confirm with your commissioning records if BD modules are installed.

Q2: What programming cable is required, and is USB connection supported?
The FX1S-10MR-001 uses an RS-422 mini-DIN 8-pin programming port. The SC-09 RS-232-to-RS-422 cable is the traditional option; the USB-SC09-FX USB-to-RS-422 adapter is the recommended modern alternative and is compatible with Windows 10/11 and GX Works2. Ensure the USB driver is installed before connecting to avoid COM port recognition errors during program upload or download.

Q3: Does NINERMAS perform pre-shipment testing, and what does the 12-month warranty cover?
Yes. Every FX1S-10MR-001 unit shipped by NINERMAS undergoes functional testing including power-on verification, I/O point cycling, and communication port validation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing damage from incorrect wiring, overvoltage, or environmental exposure beyond rated specifications are assessed on a case-by-case basis. Contact sale@ninermas.com for warranty claims or RMA requests.

Q4: Can NINERMAS support long-term spare parts programs for FX1S-series components?
Yes. NINERMAS offers stock-commitment arrangements for facilities requiring guaranteed availability of FX1S-10MR-001 and related FX1S-series components over a 12–36 month horizon. This includes coordinated procurement planning for associated items such as FX2N-16EX expansion modules, FX1N-485-BD communication boards, SC-09 programming cables, and GOT1000-series HMI panels. Contact our sales team to discuss volume requirements and lead-time commitments.
