Mitsubishi FX1N-40/60 JY331BA8402F Retrofit Power Board for Legacy PLC

Mitsubishi FX1N-40/60 JY331BA8402F Retrofit Power Board for Legacy PLC Systems

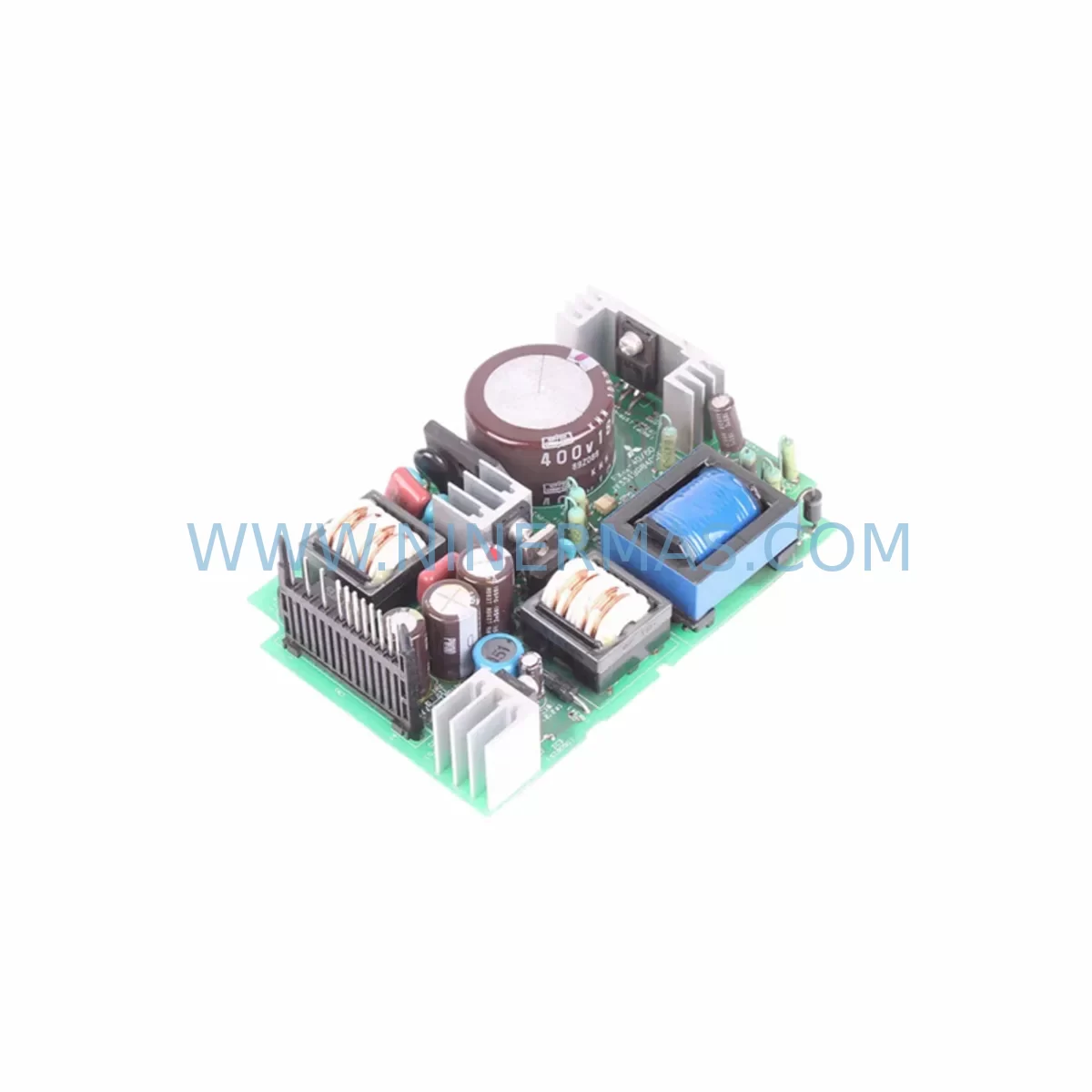

The Mitsubishi FX1N-40/60 JY331BA8402F is a retrofit-compatible internal power board designed for the FX1N series programmable logic controller platform. As legacy FX1N-40MR, FX1N-60MR, FX1N-40MT, and FX1N-60MT units reach end-of-service life, this power board provides a reliable path for system restoration, spare parts replenishment, and control cabinet refurbishment without requiring a full controller replacement. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When an FX1N-series controller experiences power supply failure, the most common symptom is a complete loss of CPU activity — the RUN indicator goes dark, I/O modules stop responding, and the HMI panel (such as a Mitsubishi GOT1000 or GOT2000 series terminal) loses communication. Before condemning the entire controller, engineers should isolate the power board as the failure source by measuring DC bus voltage at the internal connector. If the 5 VDC or 24 VDC rails are absent or out of tolerance, the JY331BA8402F is the correct replacement component.

During retrofit planning, the following items should be confirmed before ordering: available space inside the control cabinet for safe board extraction, the condition of the FX1N main CPU module (such as the FX1N-40MR-001 or FX1N-60MR-001), and whether the existing FX1N-EEPROM-8L memory cassette retains the current ladder program. If the EEPROM is intact, the program does not need to be re-downloaded after the power board swap, which significantly reduces commissioning time.

For systems that also use expansion I/O — such as the FX2N-8EX input expansion module or FX2N-8EYR relay output module — verify that the expansion bus connector on the main unit is undamaged before reinstalling. In multi-drop RS-422 configurations where the FX1N communicates with upstream SCADA or a Mitsubishi Q-series host controller via an FX-232AW or FX-USB-AW communication adapter, the communication link should be re-verified after power restoration using GX Works2 or GX Developer. Station addresses and baud rate settings are stored in the CPU, not the power board, so these parameters are preserved across the swap.

If the retrofit scope extends beyond a single power board — for example, when the control cabinet is being modernized to support additional analog I/O — consider adding an FX1N-2AD-BD analog input board or an FX1N-1DA-BD analog output board during the same maintenance window. This avoids a second planned outage and allows the engineering team to update HMI tag bindings and PLC program blocks in a single commissioning session.

Terminal wiring on the FX1N-40 and FX1N-60 I/O blocks uses M3 screw terminals. Before removing the power board, photograph or document all terminal assignments, particularly for 24 VDC sensor power outputs sourced from the controller’s internal supply. After the board replacement, verify sensor supply voltage at the terminal block before re-enabling field devices.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a power board in a running production environment. The recommended approach is to perform the swap during a scheduled maintenance window rather than under emergency conditions. Before shutdown, use GX Works2 or GX Developer to upload and verify the current ladder program from the CPU to a laptop — even if the EEPROM cassette is present — as a backup precaution.

The physical board replacement on an FX1N controller typically takes 20 to 40 minutes for a technician familiar with the platform. The main steps are: power down the controller and lock out the cabinet, discharge any residual capacitor voltage (allow 60 seconds after power-off), remove the front cover and locate the power board, disconnect the internal ribbon and power connectors, extract the failed board, install the JY331BA8402F, reconnect all internal connectors, and restore power. After power-on, confirm that the RUN LED illuminates and that all I/O modules — including any connected FX2N-8EX or FX2N-8EYR expansion units — respond correctly before releasing the line back to production.

If the system uses a Mitsubishi GOT1000 HMI, verify that the GOT communication link re-establishes automatically. In most RS-422 configurations, the GOT will reconnect within 5–10 seconds of the PLC returning to RUN mode. No HMI screen reconfiguration is required unless the PLC station address was changed during the repair.

For facilities that cannot tolerate even a brief outage, a cold-standby FX1N controller pre-loaded with the current program can be staged in advance. The JY331BA8402F can also be pre-installed in the standby unit, allowing a chassis swap rather than a board-level repair — further reducing mean time to restore (MTTR) to under 10 minutes.

Retrofit Support FAQ

Q1: Is the JY331BA8402F a direct replacement for the original Mitsubishi FX1N power board?
Yes. The JY331BA8402F is the OEM part number for the internal power supply board used in FX1N-40 and FX1N-60 series controllers. It is a direct drop-in replacement with no mechanical or electrical modification required.

Q2: Will I need to re-download the PLC program after replacing the power board?
Not if the CPU module and EEPROM memory cassette (FX1N-EEPROM-8L) are undamaged. The ladder program is stored in the CPU’s flash memory or the EEPROM cassette, not on the power board. Confirm program integrity with GX Works2 after power restoration.

Q3: What commissioning checks are required after installation?
After power-on, verify: (1) RUN LED status on the CPU, (2) 24 VDC sensor supply voltage at the terminal block, (3) I/O module response across all expansion units, (4) HMI communication link re-establishment, and (5) correct execution of the first scan cycle in the ladder program. Pre-shipment testing on this unit confirms power board output voltages are within OEM specification before dispatch.

Q4: What is the warranty and lead time?
All units are covered by a 12-month warranty from the date of shipment. In-stock units are dispatched within 1–3 business days. Contact our team for availability confirmation and bulk order lead times.
