Mitsubishi FX1N-24MT-001 Service-Ready Spare Part

Mitsubishi FX1N-24MT-001 Service-Ready Spare Part for Industrial Maintenance

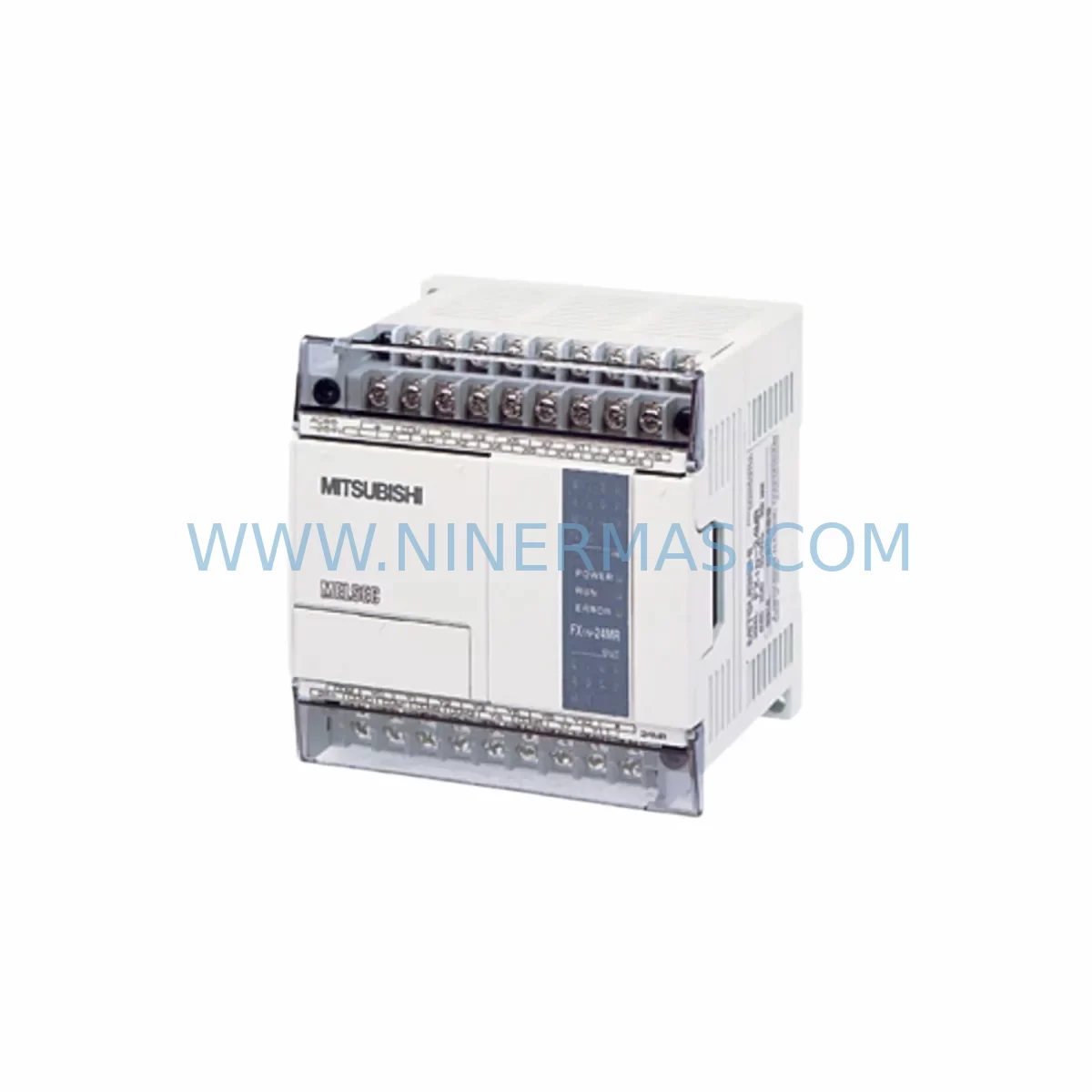

The Mitsubishi FX1N-24MT-001 is a compact, high-performance programmable logic controller (PLC) from the MELSEC FX1N series, engineered for reliable operation in discrete manufacturing, machine automation, and process control environments. As a service-ready spare part, the FX1N-24MT-001 is stocked and tested to support rapid deployment during unplanned downtime events, scheduled annual overhauls, and long-term spare parts programs for aging automation infrastructure.

With 14 DC inputs and 10 transistor (sink) outputs, the FX1N-24MT-001 delivers a compact I/O footprint suitable for standalone machine control, conveyor systems, packaging lines, and legacy retrofit projects. Its transistor output configuration supports high-speed pulse output for stepper and servo positioning applications, making it a critical component in motion-integrated control cabinets. When sourcing a replacement unit, maintenance engineers should verify the output type — transistor (MT) versus relay (MR) — to ensure compatibility with existing wiring and load characteristics.

For procurement engineers managing multi-site spare parts inventories, the FX1N-24MT-001 represents a long-lifecycle SKU with broad compatibility across the FX1N platform. NINERMAS maintains dedicated stock of this unit with pre-shipment functional testing, 12-month warranty coverage, and long-term supply commitment to support extended production lifecycles beyond OEM availability windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FX1N-24MT-001 in a live production environment, a thorough control cabinet inspection is essential to prevent repeat failures and ensure system stability. Maintenance engineers should begin by verifying the 24VDC power supply feeding the PLC input commons — a degraded or undersized power supply is a leading cause of premature PLC failure and erratic I/O behavior. Units such as the Mitsubishi FX-Series power supply module or equivalent DIN-rail industrial SMPS should be load-tested before the new PLC is commissioned.

Input wiring integrity is equally critical. Inspect all terminal blocks and I/O wiring for loose connections, insulation degradation, and incorrect polarity on DC input circuits. Faulty field wiring can damage the new unit’s input optocouplers within hours of commissioning. Where signal integrity is a concern — particularly in environments with variable-frequency drives or high-current switching loads — consider installing signal isolators on analog or high-noise digital input channels.

For cabinets that include communication-dependent control loops, verify the status of the FX1N-232-BD RS-232 communication board or FX1N-485-BD RS-485 board if installed. These expansion boards mount directly to the FX1N-24MT-001 and must be transferred or replaced alongside the base unit. Communication failures post-replacement are frequently traced to damaged board connectors or incorrect baud rate settings.

If the FX1N-24MT-001 is networked via CC-Link or PROFIBUS through a remote I/O adapter, confirm that the network master station — often a larger MELSEC Q-series or iQ-R series PLC — recognizes the restored node before returning the line to production. Spare CC-Link remote I/O modules and network termination resistors should be included in the site spare parts kit.

Relay output modules such as the FX2N-8ER or FX1N-8ER expansion units, if present in the same cabinet, should be inspected for contact wear — relay contacts in high-cycle applications typically require replacement every 12–18 months. Similarly, FX1N-2AD-BD analog input boards used for temperature or pressure monitoring should be calibrated and verified for signal accuracy during the same maintenance window.

For HMI-integrated systems, confirm that the GOT1000 or GOT2000 series HMI communication parameters match the restored PLC’s station settings. Screen navigation errors or communication timeouts after PLC replacement are common when station numbers or baud rates are inadvertently reset to factory defaults. Keeping a documented backup of the PLC program and HMI project files is a non-negotiable element of any FX1N-based maintenance plan.

Finally, inspect fuse holders and circuit breakers on the PLC power input circuit. A blown fuse that caused the original failure must be replaced with the correct rating — never uprated — and the root cause of the overcurrent event must be identified before energizing the replacement unit.

Site Replacement Workflow

Step 1 — Program Backup: Before removing the failed FX1N-24MT-001, attempt to upload the existing ladder program using GX Developer or GX Works2 via the RS-422 peripheral port. If the CPU is non-responsive, retrieve the program from your site backup archive. Never commission a replacement PLC without a verified program backup.

Step 2 — Power Isolation: Isolate the PLC power supply using the cabinet’s main isolator or dedicated MCB. Verify zero voltage on the PLC power terminals using a calibrated multimeter before proceeding with removal.

Step 3 — I/O Documentation: Photograph or document all wiring connections on input and output terminal strips before disconnection. Label each wire if not already marked. This step eliminates wiring errors during reinstallation and significantly reduces recommissioning time.

Step 4 — Module Transfer: Remove any expansion boards (FX1N-232-BD, FX1N-485-BD, FX1N-2AD-BD) from the failed unit and inspect connectors for damage. Transfer serviceable boards to the replacement FX1N-24MT-001 before installation.

Step 5 — Program Download and I/O Verification: Download the verified program to the replacement unit. Before enabling outputs, perform a forced I/O test in STOP mode to confirm all field devices respond correctly. Check input signal levels and output load continuity.

Step 6 — Commissioning and Handover: Return the PLC to RUN mode under supervised conditions. Monitor for error codes (LED indicators: POWER, RUN, ERROR, BATT) during the first 30 minutes of operation. Document the replacement in the site maintenance log and update the spare parts inventory accordingly.

This structured workflow minimizes mean time to repair (MTTR), reduces the risk of commissioning errors, and ensures the replacement FX1N-24MT-001 is fully validated before production resumes.

Spare Parts Support FAQ

Q1: Is the FX1N-24MT-001 supplied as a new original unit or a refurbished spare?
All FX1N-24MT-001 units supplied by NINERMAS are original new or service-ready tested stock. Each unit undergoes pre-shipment functional verification covering power-on self-test, I/O continuity, and communication port integrity. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: Can the FX1N-24MT-001 directly replace an FX1N-24MR-001 (relay output version)?
The FX1N-24MT-001 (transistor output) and FX1N-24MR-001 (relay output) share the same CPU, memory, and I/O count but differ in output circuit type. Direct substitution requires verification that all output loads are compatible with transistor (DC) switching. Inductive AC loads driven by relay contacts cannot be directly connected to transistor outputs without interposing relays. Confirm your output wiring and load types before ordering.

Q3: What is the long-term supply availability for the FX1N-24MT-001?
The FX1N series has reached end-of-production status with Mitsubishi Electric. NINERMAS maintains a dedicated buffer stock program for FX1N-24MT-001 and related FX1N series components to support customers with extended production lifecycles. We recommend procurement engineers establish a 12–24 month forward stock commitment to mitigate supply risk. Contact our team to discuss volume pricing and long-term supply agreements.

Q4: How do I verify compatibility before installation?
Confirm the following before installation: (1) power supply voltage matches the unit’s rated input (100–240V AC); (2) output type (MT transistor) matches your field wiring and load specifications; (3) any expansion boards or special function modules are compatible with the FX1N platform; (4) the GX Developer or GX Works2 software version supports FX1N series programming. NINERMAS technical support is available to assist with compatibility verification prior to shipment.
