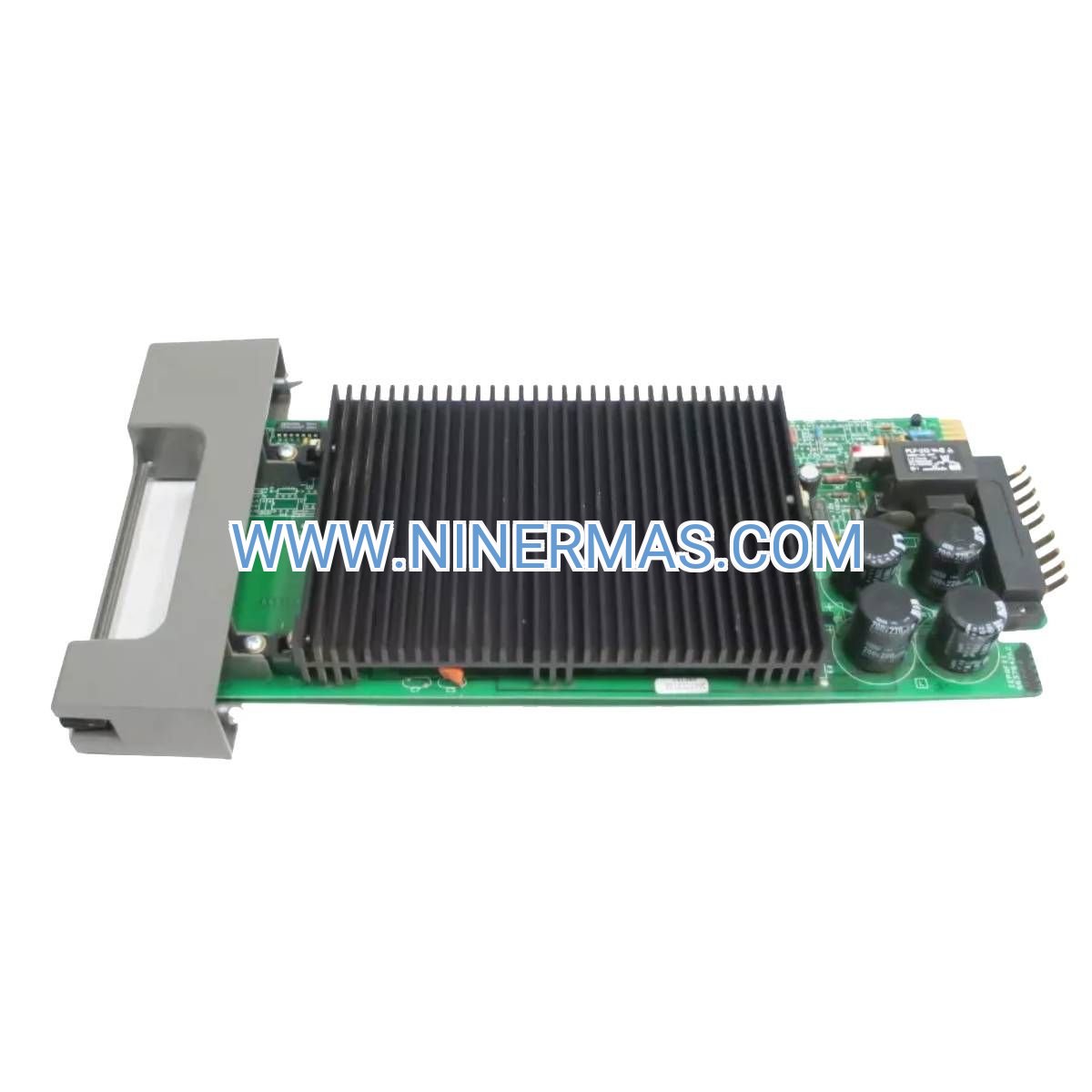

TC-RPFM01 ControlNet Fiber Optic Repeater (Industrial-Grade Network Extension)

The TC-RPFM01 is an enterprise-class fiber optic repeater engineered to overcome distance limitations in ControlNet industrial networks. Designed for Honeywell Experion PKS distributed control environments, this module converts electrical ControlNet signals into optical transmission, enabling noise-free communication across distances up to 3000 meters. Whether you're bridging control rooms in multi-building facilities or linking hazardous zones to safe areas, the TC-RPFM01 delivers deterministic, real-time data exchange with zero electromagnetic interference.

Built for mission-critical automation systems in oil & gas, power generation, chemical processing, and water treatment industries, this repeater module ensures uninterrupted network performance even in electrically noisy environments. Its compatibility with redundant ControlNet topologies makes it the preferred choice for high-availability applications where downtime is not an option.

With proven reliability exceeding 100,000 hours MTBF and certifications for global deployment (CE, UL, CSA, ATEX), the TC-RPFM01 represents a future-proof investment in your industrial communication infrastructure.

Core Features & Business Value

→ Extended Reach Without Signal Degradation
Fiber optic technology pushes ControlNet communication range from 250 meters (coaxial limit) to 3000 meters, eliminating the need for multiple intermediate repeaters and reducing infrastructure costs by up to 40%.

→ Electromagnetic Immunity for Harsh Environments
Optical transmission is inherently immune to EMI, RFI, and ground loop issues common in industrial settings with VFDs, welding equipment, and high-voltage switchgear—ensuring 99.9% uptime in electrically hostile zones.

→ Plug-and-Play Integration with Experion PKS
Seamless compatibility with Honeywell C200/C300 controllers, I/O subsystems, and HMI workstations means zero custom programming—simply install, connect fiber, and commission within 30 minutes.

✓ Redundancy-Ready Architecture
Supports dual-channel ControlNet configurations for fault-tolerant networks, automatically switching to backup path within 50 milliseconds during primary link failure—critical for continuous process industries.

✓ Wide Operating Temperature Range
Rated for -40°C to +70°C operation, this module thrives in outdoor enclosures, unheated buildings, and extreme climate installations without auxiliary cooling or heating systems.

✓ Compact DIN-Rail Mounting
Space-efficient design occupies just 35mm of DIN rail width, allowing dense panel layouts and easy retrofitting into existing control cabinets without modifications.

Typical Application Scenarios

Scenario 1: Multi-Building Manufacturing Campus
Challenge: A pharmaceutical plant needs to connect its central control room to a packaging facility 1.2 km away, but coaxial ControlNet cables cannot span this distance.
Solution: Deploy TC-RPFM01 repeaters at both ends with single-mode fiber, achieving reliable 5 Mbps ControlNet communication with <10ms latency.
Value: Eliminates need for intermediate equipment rooms, saving $25,000+ in infrastructure costs.

Scenario 2: Hazardous Area Isolation
Challenge: An offshore oil platform requires ControlNet connectivity between a Zone 2 classified area and a safe zone, but electrical cables pose explosion risks.
Solution: Fiber optic link via TC-RPFM01 provides complete electrical isolation, meeting ATEX/IECEx requirements without expensive intrinsic safety barriers.
Value: Reduces certification costs by 60% compared to IS-rated copper solutions.

Scenario 3: Refinery-Wide SCADA Integration
Challenge: A petrochemical refinery experiences frequent ControlNet dropouts due to EMI from nearby substations and motor control centers.
Solution: Replace copper segments with TC-RPFM01 fiber links in high-noise corridors, restoring network stability to 99.95% availability.
Value: Prevents production losses averaging $50,000/hour during unplanned shutdowns.

Scenario 4: Water Treatment Plant Expansion
Challenge: A municipal water facility adds a new filtration building 800 meters from the existing control house, requiring ControlNet extension.
Solution: Install TC-RPFM01 with multi-mode fiber through existing underground conduit, avoiding costly trenching for new cable runs.
Value: Completes network expansion in 2 days vs. 3 weeks for traditional methods.

Scenario 5: Power Plant Distributed I/O
Challenge: A coal-fired power station needs to connect remote I/O racks in the turbine hall (2.5 km from DCS room) for boiler monitoring.
Solution: Utilize TC-RPFM01 with single-mode fiber to span the distance while maintaining deterministic scan times for critical safety interlocks.
Value: Enables real-time control with <5ms update rates, meeting NERC CIP compliance requirements.

Technical Parameters & Selection Guide

Selection Criteria:

• For distances <1 km in indoor environments → Multi-mode fiber (lower cost)
• For distances 1-3 km or outdoor runs → Single-mode fiber (better performance)
• For redundant networks → Order in pairs with separate fiber paths
• For hazardous areas → Verify ATEX/IECEx zone ratings match installation requirements
• For extreme temperatures → Confirm ambient conditions within -40°C to +70°C range

Extended Functions

IoT & Industry 4.0 Integration
When paired with Honeywell's Experion PKS R500 series controllers, the TC-RPFM01 enables secure OPC UA data bridging to cloud analytics platforms, supporting predictive maintenance and digital twin applications without compromising real-time control performance.

Advanced Diagnostics
Built-in LED indicators provide instant visual feedback on power status, fiber link quality, and ControlNet activity. Remote diagnostics via Experion Station software allow proactive troubleshooting before network failures occur.

Customization Options
For specialized applications, NINERMAS offers factory-configured variants with:

• Extended temperature ratings (-55°C to +85°C for Arctic/desert deployments)
• Conformal coating for high-humidity or corrosive environments
• Custom fiber connector types (FC, SC, MPO for high-density installations)
• Pre-terminated fiber assemblies with factory testing reports

Delivery & Service Assurance

Lead Time

• Standard Stock Items: 3-5 business days (express shipping available)
• Custom Configurations: 2-3 weeks from order confirmation
• Bulk Orders (>10 units): Contact for expedited production scheduling

Warranty Coverage
Every TC-RPFM01 module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans (up to 5 years) available for critical infrastructure projects.

Technical Support

• Pre-sales application engineering (network design, fiber budget calculations)
• Installation guidance (fiber termination best practices, grounding requirements)
• Commissioning assistance (ControlNet configuration, redundancy testing)
• Lifetime troubleshooting support via email/phone

Documentation Package
Each shipment includes:

• Quick Start Guide with wiring diagrams
• Full Technical Manual (PDF + printed)
• Compliance Certificates (CE, UL, ATEX)
• Factory Test Report with serial number traceability

Frequently Asked Questions

What is the maximum ControlNet network distance I can achieve with TC-RPFM01 repeaters?
Using single-mode fiber, each TC-RPFM01 segment supports up to 3 km. ControlNet specifications allow up to 48 repeaters per network, theoretically enabling 144 km total span—though practical deployments rarely exceed 20-30 km due to latency considerations. For ultra-long distances, consider segmenting into multiple ControlNet networks bridged via Experion controllers.

Can I mix multi-mode and single-mode fiber in the same ControlNet network?
Yes, but each fiber segment must use consistent fiber type between its two endpoints. For example, you can have one 500m multi-mode link and another 2.5 km single-mode link on the same ControlNet, as long as each TC-RPFM01 pair uses matching fiber. Use media converters only when absolutely necessary, as they introduce additional latency.

How do I configure redundant ControlNet with fiber optic repeaters?
Deploy two TC-RPFM01 modules at each location (one for Channel A, one for Channel B), connected to separate fiber paths. Configure your Experion controllers for redundant ControlNet mode—the system automatically fails over to the backup channel within 50 milliseconds if the primary link degrades. Always route fiber cables through physically separate conduits to avoid single-point-of-failure scenarios.

What fiber optic cable specifications are required for industrial installations?
Use industrial-grade fiber rated for -40°C to +85°C with aramid strength members and LSZH (Low Smoke Zero Halogen) jacketing for indoor runs. Outdoor cables should have UV-resistant PE jackets and moisture barriers. Minimum bend radius: 10× cable diameter during installation, 5× during operation. For vibration-prone areas (near rotating equipment), specify armored fiber with corrugated stainless steel sheathing.

Is the TC-RPFM01 compatible with Allen-Bradley or Rockwell Automation ControlNet devices?
Yes—ControlNet is an open standard (ODVA specification), so the TC-RPFM01 interoperates with Allen-Bradley 1756-CNB, 1788-CNF, and other ControlNet adapters. However, Honeywell provides technical support only for Experion PKS configurations. For multi-vendor networks, ensure all devices run compatible ControlNet firmware revisions (consult ODVA compatibility matrices).

What power supply is recommended for the TC-RPFM01 in remote installations?
The module requires 24V DC ±20% at 3.5W typical draw. For reliable operation, use industrial DIN-rail power supplies with >90% efficiency and <50mV ripple, such as Phoenix Contact QUINT series or Mean Well DR-series. In solar-powered remote sites, size battery banks for 72-hour autonomy assuming 5W continuous load per repeater pair (including safety margin).

How do I troubleshoot fiber link issues with the TC-RPFM01?
Start by checking LED indicators: solid green = good link, flashing amber = marginal signal, red = no connection. Use an optical power meter to verify fiber budget—received power should be between -3 dBm and -25 dBm for multi-mode, -3 dBm to -30 dBm for single-mode. Common issues include dirty connectors (clean with isopropyl alcohol and lint-free wipes), excessive bend radius (<5× cable diameter), or mismatched fiber types. For persistent problems, perform OTDR testing to locate breaks or high-loss splices.
