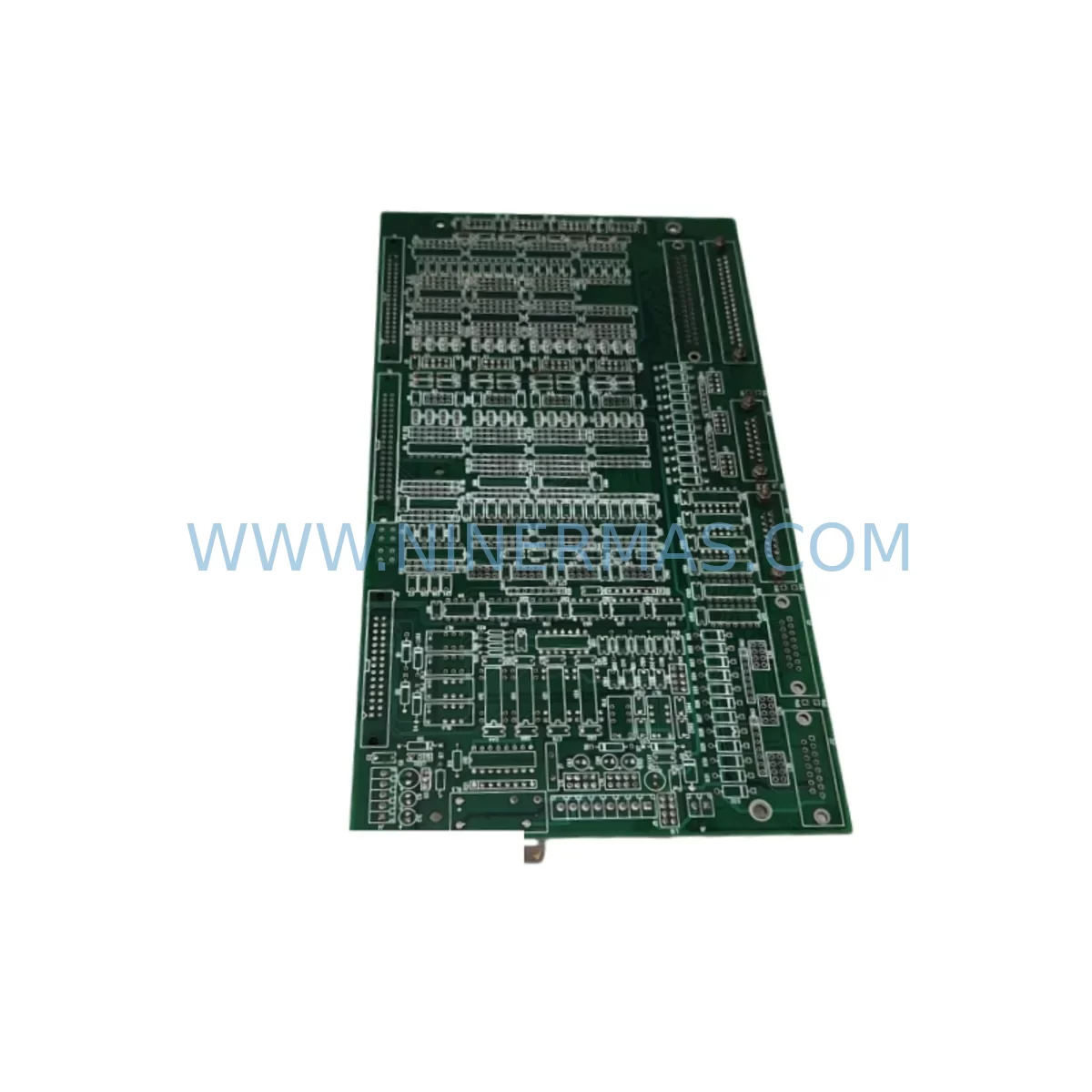

The Hypertherm PCBS-0057 Rev A is an original printed circuit board (PCB) designed for the Hypertherm H1 Series plasma cutting systems. As a critical control board within the plasma power supply architecture, this component governs key signal processing and interface functions that directly affect arc stability, torch ignition reliability, and system-level fault detection. For maintenance engineers managing plasma cutting lines, CNC fabrication cells, or automated metal processing stations, maintaining a service-ready PCBS-0057 Rev A in your spare parts inventory is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

Hypertherm’s H1 Series plasma systems are widely deployed across heavy fabrication, shipbuilding, structural steel processing, and precision sheet metal operations. When the PCBS-0057 Rev A fails — whether due to voltage transients, thermal cycling fatigue, or component aging — the entire cutting system is rendered inoperable. A pre-tested, service-ready replacement board allows maintenance teams to restore full system operation within hours rather than days, avoiding costly production halts and emergency procurement delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PCBS-0057 Rev A in an H1 Series plasma system, experienced maintenance engineers treat the board swap as an opportunity for a broader cabinet inspection. The PCBS-0057 Rev A does not operate in isolation — it interfaces with multiple upstream and downstream components whose condition directly affects the longevity and reliability of the replacement board.

Begin by inspecting the main power supply board (commonly referenced as PCBS-0058 or equivalent power stage PCB in the H1 Series) for signs of capacitor bulging, burnt traces, or relay contact wear. A degraded power board can subject the new control board to irregular voltage spikes that accelerate failure. Similarly, the arc voltage divider board — responsible for scaling the torch arc voltage signal to a safe level for the control electronics — should be checked for resistor drift or connector oxidation, as inaccurate voltage feedback can cause the PCBS-0057 Rev A to generate false fault codes.

The torch height control (THC) interface module, often a separate PCB or integrated card within the H1 cabinet, communicates directly with the control board. If the THC module shows erratic height correction behavior or communication dropouts, replace it in the same maintenance window to avoid a repeat service call. Inspect the CNC interface board — which handles start/stop signals, motion interlock, and status outputs to the CNC controller — for connector pin corrosion and signal integrity issues.

Check all terminal blocks and wiring harnesses within the power supply cabinet. Loose or corroded terminals on the 24VDC control power rail, the torch lead connector, and the work cable return are common root causes of PCB failure that are frequently overlooked during board-level replacements. Replace any inline fuses and fuse holders on the control power circuit — these are low-cost consumables that protect the PCBS-0057 Rev A from overcurrent events.

For systems integrated with a gas console (automated gas control unit for multi-gas plasma processes), verify that the gas console communication board and its associated solenoid driver PCB are functioning correctly. A faulty gas console board can generate erroneous interlock signals that appear as PCBS-0057 Rev A faults. Additionally, inspect the HMI panel or operator interface for display anomalies or unresponsive inputs, as HMI communication faults can mask or mimic control board failures.

Finally, review the condition of the cooling system components — coolant flow sensors, pump relay boards, and thermal protection switches — that feed status signals into the control board. Overtemperature events are a leading cause of PCB degradation in high-duty-cycle plasma systems. A proactive replacement of worn cooling relay boards alongside the PCBS-0057 Rev A significantly reduces the risk of repeat failures within the same maintenance cycle.

Site Replacement Workflow

Step 1 — System Isolation: De-energize the H1 Series plasma power supply at the main disconnect. Verify zero-energy state using a calibrated multimeter before opening the cabinet. Allow the internal capacitor bank a minimum of 5 minutes to discharge.

Step 2 — Documentation: Photograph the existing PCBS-0057 Rev A installation, including all connector positions, cable routing, and any jumper or DIP switch settings. Record the board revision marking and any visible fault indicators (burnt components, discoloration).

Step 3 — Board Removal: Disconnect all ribbon cables, harness connectors, and any grounding straps attached to the PCBS-0057 Rev A. Remove the board using appropriate ESD precautions — use a grounded wrist strap and anti-static mat throughout the procedure.

Step 4 — Compatibility Verification: Before installing the replacement board, confirm that the PCBS-0057 Rev A revision level matches the system’s firmware and hardware revision. Cross-reference the H1 Series service manual or contact Hypertherm technical support if revision compatibility is uncertain.

Step 5 — Installation and Reconnection: Install the replacement board, reconnect all connectors in the documented sequence, and verify that all locking tabs are fully engaged. Restore any jumper or DIP switch settings to match the original configuration.

Step 6 — Functional Test: Re-energize the system and perform a controlled test cut on scrap material. Verify arc ignition, stable cutting arc, correct fault code behavior, and THC response before returning the system to production.

Step 7 — Spare Parts Replenishment: Log the replacement event in your maintenance management system and initiate a procurement order to replenish the PCBS-0057 Rev A in your spare parts inventory. Maintaining at least one service-ready board on-site is the recommended minimum for continuous production environments.

Spare Parts Support FAQ

Q1: How do I confirm that the PCBS-0057 Rev A is compatible with my specific H1 Series model?
Compatibility depends on the H1 Series model number and the system’s hardware revision level. Locate the system serial number and model designation on the power supply cabinet nameplate, then cross-reference with the Hypertherm H1 Series parts manual or contact our technical team at sale@ninermas.com with your system details. We will confirm compatibility before shipment to eliminate installation risk.

Q2: What pre-shipment testing is performed on the PCBS-0057 Rev A before dispatch?
Each PCBS-0057 Rev A unit undergoes functional verification testing prior to shipment. Testing covers power-on initialization, signal interface continuity, and basic operational checks consistent with the board’s design function. A test report summary is available upon request. All units are shipped with 12-month warranty coverage from the date of dispatch.

Q3: What is the recommended spare parts inventory strategy for H1 Series plasma systems in high-duty-cycle environments?
For production environments operating H1 Series plasma systems on two or three shifts, we recommend maintaining a minimum of one PCBS-0057 Rev A on-site as an immediate-swap spare. For multi-machine installations or remote sites with extended lead times, a two-unit buffer is advisable. Pair the control board with a spare arc voltage divider board and a set of inline fuses to cover the most common failure modes in a single maintenance kit.

Q4: Can NINERMAS support long-term supply of the PCBS-0057 Rev A for end-of-life H1 Series systems?
Yes. NINERMAS specializes in sourcing and stocking original spare parts for legacy and end-of-life industrial automation systems, including discontinued Hypertherm H1 Series components. We maintain reserved inventory agreements with our supply network to support long-term procurement needs. Contact our team to discuss annual supply agreements, reserved stock arrangements, or multi-unit procurement pricing.
