GE DS200TCQBG1BCB Spare Part for Mark V DS200 Series

GE DS200TCQBG1BCB Spare Part for Mark V DS200 Series: Spare Replacement and Downtime Risk Control

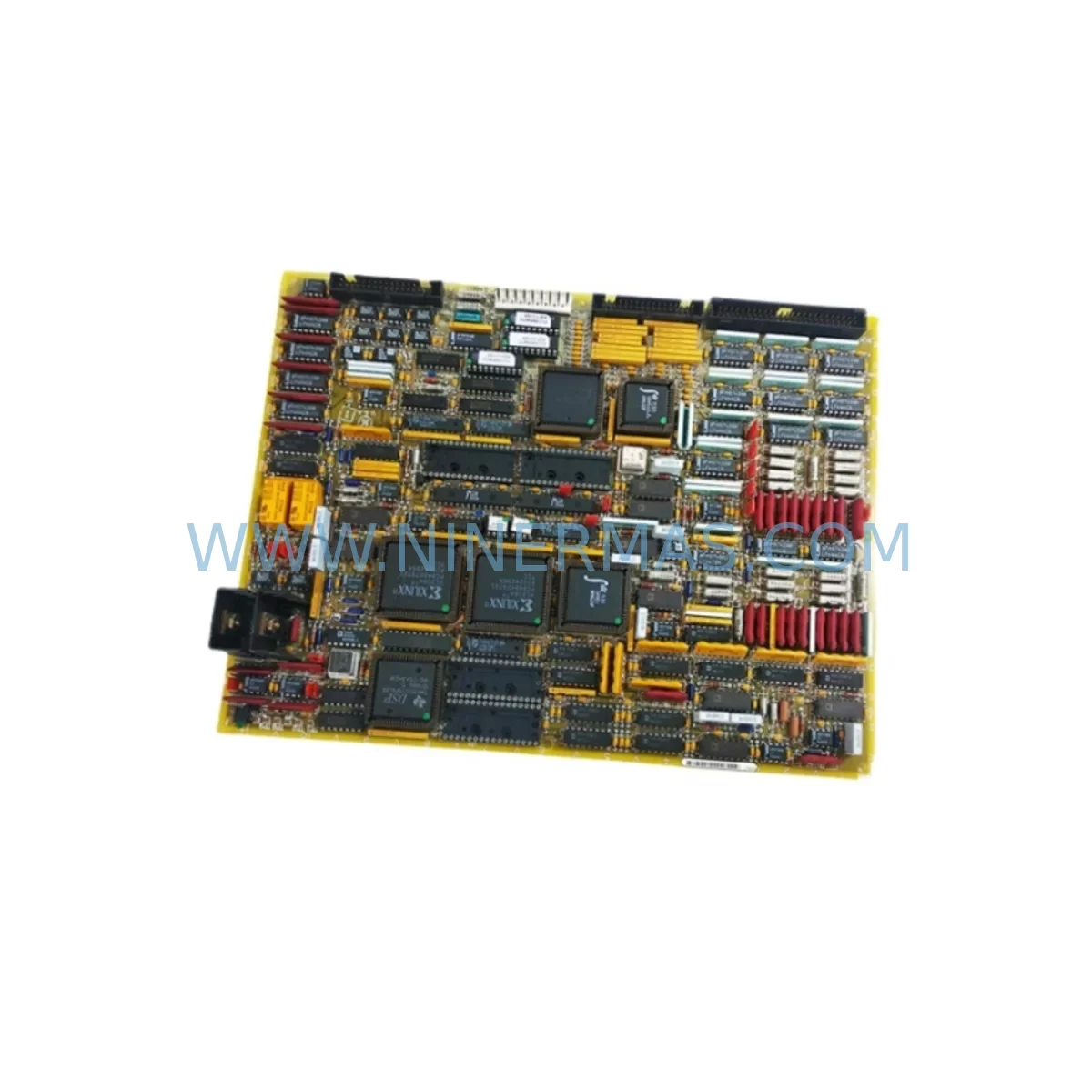

The GE DS200TCQBG1BCB (also referenced as DS215TCQBG1BZZ01A) is a Turbine Control Q (TCQ) board designed for the GE Mark V turbine control system within the DS200 series platform. This board serves as a critical I/O and signal processing component within the Mark V control cabinet, managing analog and digital I/O channels that interface directly with turbine sensors, actuators, and protective relay circuits. Sourced as a service-ready spare, this unit is pre-tested prior to shipment and backed by a 12-month warranty, making it a reliable choice for maintenance engineers managing aging turbine control infrastructure.

Whether you are responding to an unplanned trip event, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a gas or steam turbine installation, the DS200TCQBG1BCB is a high-priority line item. Its role in the Mark V architecture means that failure of this board can result in complete turbine shutdown, making rapid replacement availability essential for any site operating on tight availability targets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DS200TCQBG1BCB failure is identified — whether through a diagnostic alarm, a failed self-test during startup, or a confirmed I/O channel fault — the replacement workflow should extend beyond the board itself. Maintenance engineers and procurement teams should treat this event as a trigger for a broader cabinet inspection and spare parts review.

Begin by verifying the integrity of the DS200 series backplane that the TCQ board seats into. Backplane connector wear or corrosion can cause intermittent faults that mimic board-level failures. Simultaneously, inspect the DS200TCDAG1A (TCDA) power distribution board, which supplies regulated DC voltages to the TCQ and adjacent boards — a degraded power rail is a common root cause of I/O board failures in aging Mark V cabinets.

The DS200TCEAG1B (TCEA) analog I/O board and DS200TCDAG1A boards share the same backplane segment in many Mark V configurations. If the TCQ board has failed due to an overvoltage or transient event, these adjacent boards should be inspected for latent damage. Similarly, the DS200TCPSG1A (TCPS) power supply board should be checked for output stability — an unstable TCPS is a known contributor to cascading board failures across the DS200 rack.

For sites running GE Mark V with active turbine protection schemes, the DS200TCTSG1A (TCTS) trip solenoid output board and associated protective relay modules should be verified for correct operation after any TCQ replacement, as the TCQ interfaces with trip logic circuits. Wiring harnesses connecting the TCQ to field terminal blocks should be inspected for insulation degradation, particularly in high-temperature turbine enclosures.

From a procurement perspective, sites with multiple Mark V units should maintain at minimum one DS200TCQBG1BCB as a cold spare. Pairing this with a spare DS200TCPSG1A power supply board, a set of Mark V I/O terminal block assemblies, and a spare DS200TCEAG1B analog board creates a resilient spare parts kit capable of addressing the most common Mark V cabinet failure modes. For sites with HMI integration, ensuring availability of the Mark V CIMPLICITY interface card or equivalent serial communication module is also advisable, as communication faults often accompany I/O board replacements during system restart sequences.

Signal isolation barriers installed between the Mark V I/O and field instruments should also be reviewed during any TCQ replacement outage — degraded signal isolators or Zener barriers in the field wiring loop can introduce noise that accelerates board wear. Fuse holders and miniature circuit breakers on the 24VDC and 48VDC distribution rails within the control cabinet should be tested for continuity and replaced if showing signs of thermal stress.

Site Replacement Workflow

Step 1 — Confirm Compatibility: Verify the exact Mark V panel ID and DS200 backplane revision against the DS200TCQBG1BCB part number. Cross-reference with the DS215TCQBG1BZZ01A alternate designation if your site documentation uses the DS215 prefix. Both references are functionally equivalent for standard Mark V DS200 installations.

Step 2 — Safe Isolation: Follow your site’s Lockout/Tagout (LOTO) procedure for the Mark V control cabinet. De-energize the relevant backplane segment before board extraction. Document the existing board’s slot position and any jumper or DIP switch settings visible on the DS200TCQBG1BCB prior to removal.

Step 3 — Board Extraction and Inspection: Remove the faulty board using the extraction handles. Inspect the backplane connector pins for damage or contamination. Clean the connector area with appropriate electronics-grade contact cleaner if required.

Step 4 — Replacement Installation: Insert the service-ready DS200TCQBG1BCB into the correct slot, ensuring full backplane engagement. Replicate any jumper or switch settings from the removed board. Re-energize the backplane segment and observe the Mark V diagnostic display for fault codes.

Step 5 — Functional Verification: Execute the Mark V self-test sequence and verify all I/O channels associated with the TCQ board are reporting correctly. Confirm turbine protection logic is active and all trip circuits are armed before returning the unit to service.

This workflow minimizes downtime by ensuring the replacement is performed systematically, reducing the risk of secondary faults caused by incorrect installation or overlooked configuration settings. Sites that maintain a pre-tested spare DS200TCQBG1BCB on-site can typically complete this replacement within a single shift, compared to multi-day outages when waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the DS200TCQBG1BCB compatible with all GE Mark V DS200 series panels?
The DS200TCQBG1BCB is designed for the GE Mark V turbine control system using the DS200 series backplane architecture. Compatibility should be confirmed against your specific panel revision and backplane slot assignment. The DS215TCQBG1BZZ01A designation refers to the same functional board under an alternate GE part numbering convention. Contact our technical team with your panel ID for confirmation before ordering.

Q2: What pre-shipment testing is performed on this board?
Each DS200TCQBG1BCB unit undergoes functional verification prior to dispatch. Testing covers power-up integrity, I/O channel response, and communication handshake with the Mark V backplane interface. Units that do not pass functional verification are not shipped. A 12-month warranty is provided from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: Can this board be used as a long-term replacement for discontinued GE Mark V components?
Yes. The DS200TCQBG1BCB is a direct replacement for the original GE factory part and is suitable for long-term use in Mark V installations where the control system will remain in service beyond the OEM support window. Many industrial sites operating legacy Mark V systems rely on service-ready spare parts to extend system life by 10–20 years beyond the original design horizon. We maintain ongoing stock to support long-term supply continuity for Mark V operators.

Q4: What is the recommended spare parts inventory strategy for Mark V DS200 sites?
For sites with a single Mark V unit, a minimum of one DS200TCQBG1BCB cold spare is recommended. Sites with multiple turbines or high-availability requirements should consider holding two units. Pairing the TCQ board spare with a TCPS power supply board spare and a TCEA analog board spare provides coverage for the three most common Mark V cabinet failure scenarios. Annual inspection of all DS200 boards during scheduled outages is recommended to identify early signs of capacitor aging, connector wear, or thermal stress before in-service failure occurs.
