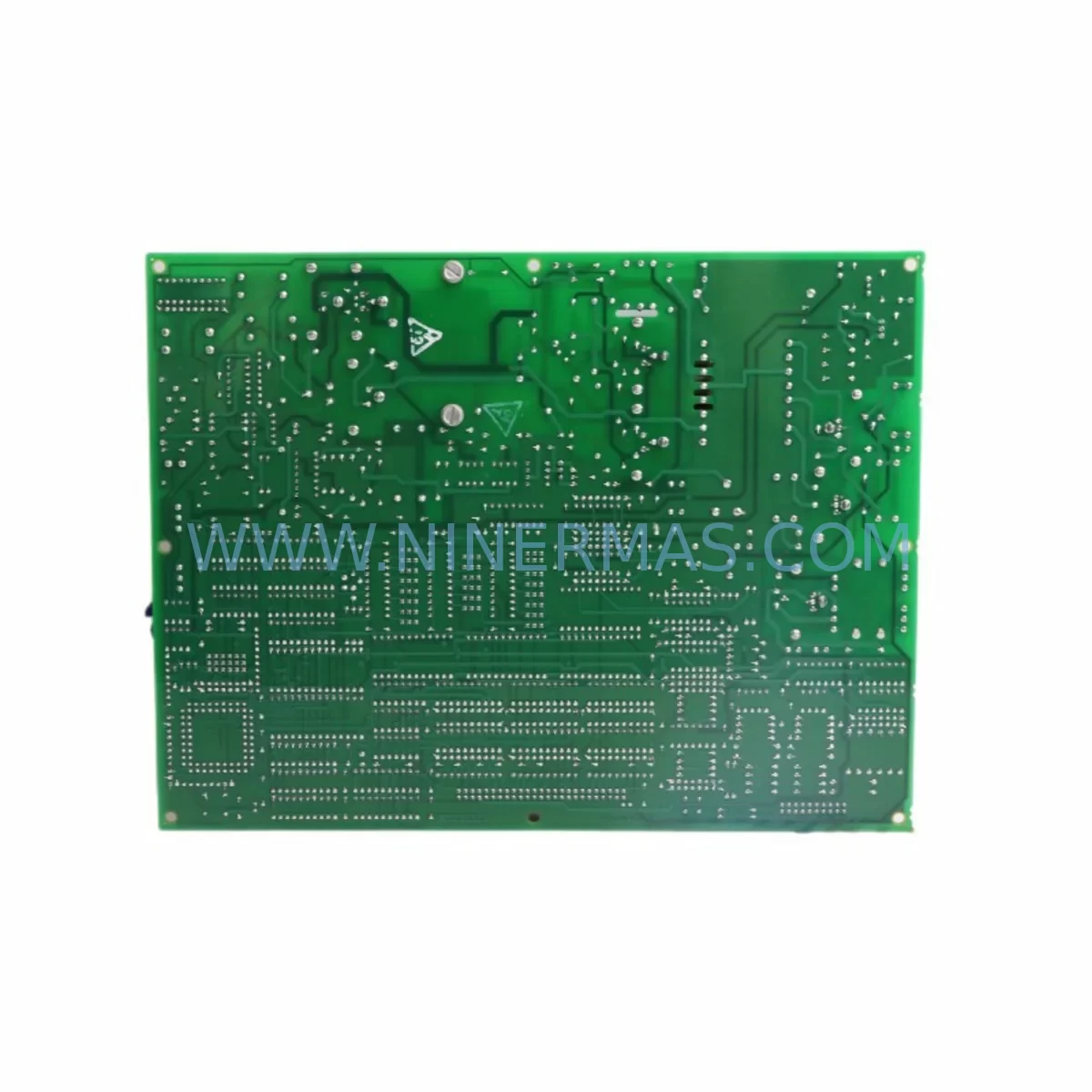

GE DS200TCQBG1AGB Retrofit-Compatible Analog I/O Module

GE DS200TCQBG1AGB Retrofit-Compatible Analog I/O Module for Legacy Turbine Control Systems

The GE DS200TCQBG1AGB is a ruggedized analog input/output module designed for the GE Mark V Speedtronic turbine control platform. As original GE Mark V hardware reaches end-of-life and spare parts become increasingly scarce, the DS200TCQBG1AGB has become a critical component in retrofit programs, legacy system stabilization projects, and planned control system upgrades across gas turbine, steam turbine, and combined-cycle power generation facilities.

NINERMAS maintains verified in-stock inventory of the DS200TCQBG1AGB to support emergency replacements, scheduled outage spares, and long-term spare parts programs. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring your retrofit or replacement project proceeds with confidence and minimal operational risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200TCQBG1AGB within an operational Mark V turbine control system requires careful pre-engineering to avoid unplanned downtime and signal integrity issues. The module interfaces directly with the turbine’s analog measurement and control loop infrastructure — including thermocouple inputs, RTD sensors, pressure transmitters, and valve positioner feedback — making accurate terminal wiring documentation essential before any swap is attempted.

During retrofit planning, engineers should first retrieve the existing I/O assignment sheets and cross-reference them against the DS200TCQBG1AGB channel map. Terminal block wiring on the associated DS200TCTG1A terminal board must be photographed and labeled before disconnection. In systems where the Mark V communicates with a plant DCS via the DS200SDCIG2A serial data communications interface, signal continuity across the analog loop must be verified post-installation to confirm no address conflicts have been introduced.

Power supply capacity is a frequent oversight in analog I/O module replacements. The Mark V panel’s DS200PTBAG1A power distribution board must be confirmed to supply adequate regulated DC voltage to the new module, particularly in panels where additional I/O expansion has been performed over the years. Panels running near capacity may require load balancing or replacement of the DS200PDBAG1A power supply module before the analog I/O retrofit can proceed safely.

For facilities migrating from Mark V to GE Mark VIe architecture, the DS200TCQBG1AGB is commonly used as an interim stabilization module — maintaining analog loop integrity while the new IS420ESWAH1A Ethernet switch module and IS420UCSBH3A controller infrastructure is staged and commissioned in parallel. This phased approach allows engineering teams to validate new I/O mappings in the Mark VIe ToolboxST environment without interrupting live turbine control.

In combined-cycle plants where the Mark V governs both gas turbine and HRSG control, the analog I/O module replacement scope often extends to adjacent DS200TCDAG1A digital I/O modules and DS200TCEAG1A excitation control boards, which share the same backplane and may exhibit related degradation symptoms. A comprehensive audit of all DS200-series boards in the affected panel is recommended before finalizing the retrofit bill of materials.

Where HMI systems such as GE Cimplicity or third-party SCADA platforms are connected to the Mark V via the DS200SDCIG2A communications board, analog signal tag mappings must be re-validated after module replacement. Any changes to channel addressing or scaling will require corresponding updates to HMI faceplates and historian configurations to maintain data integrity across the control network.

Downtime Control During System Migration

Minimizing turbine downtime during a DS200TCQBG1AGB replacement requires a structured outage plan that protects existing program logic, preserves analog loop calibration data, and maintains field control continuity throughout the swap window.

Before initiating the replacement, the full Mark V application program — including sequence logic, analog scaling constants, alarm setpoints, and protection trip thresholds — should be backed up using the Mark V programming terminal or ToolboxST export function. This backup serves as the recovery baseline if commissioning reveals unexpected behavior after the new module is installed.

During the physical swap, all analog field wiring should remain connected to the terminal board rather than the module itself, allowing the DS200TCQBG1AGB to be removed and reinserted without disturbing field instrument connections. Once the replacement module is seated and the backplane connector is secured, power should be restored incrementally — first verifying DC rail voltages at the DS200PTBAG1A distribution board before enabling the I/O bus.

Post-installation commissioning should include a channel-by-channel analog loop check: each input channel should be stimulated with a calibrated signal source and the Mark V display verified to show the correct engineering unit value. Output channels should be exercised through the Mark V manual output test function, confirming actuator and valve positioner response before returning the turbine to automatic control. For facilities with redundant Mark V controllers (R, S, and T panels), the replacement module should be validated in the offline panel first before being promoted to the active control path.

Typical replacement and commissioning time for a DS200TCQBG1AGB in a well-documented Mark V system is 4–8 hours, assuming all pre-engineering steps have been completed and a tested spare is available on-site. NINERMAS recommends maintaining at least one pre-tested DS200TCQBG1AGB in the site spare parts inventory to eliminate procurement lead time from the critical path of any unplanned outage response.

Retrofit Support FAQ

Q1: Is the DS200TCQBG1AGB a direct replacement for earlier DS200TCQBG1A and DS200TCQBG1AGA revisions?
In most cases, yes. The GGB revision is backward-compatible with earlier AGA and A revisions within the same Mark V panel configuration. However, firmware revision differences may affect channel behavior in some applications. NINERMAS recommends confirming the existing module’s revision label and consulting your Mark V system documentation before ordering. Our technical team can assist with revision compatibility verification.

Q2: What wiring and terminal documentation do I need before replacing the DS200TCQBG1AGB?
You will need the Mark V I/O assignment sheets, the terminal board wiring diagram for the associated DS200TCTG1A or equivalent terminal board, and the analog channel scaling records from the Mark V configuration database. Photographs of the existing terminal block wiring are strongly recommended as a field reference during reinstallation.

Q3: Does NINERMAS perform pre-shipment testing on the DS200TCQBG1AGB?
Yes. Every DS200TCQBG1AGB unit shipped by NINERMAS undergoes functional I/O channel verification prior to dispatch. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability for the DS200TCQBG1AGB?
NINERMAS maintains in-stock inventory of the DS200TCQBG1AGB to support both emergency and planned procurement requirements. Standard orders are dispatched within 1–3 business days. For long-term spare parts programs or bulk procurement, contact our sales team to discuss reserved stock arrangements and volume pricing.
