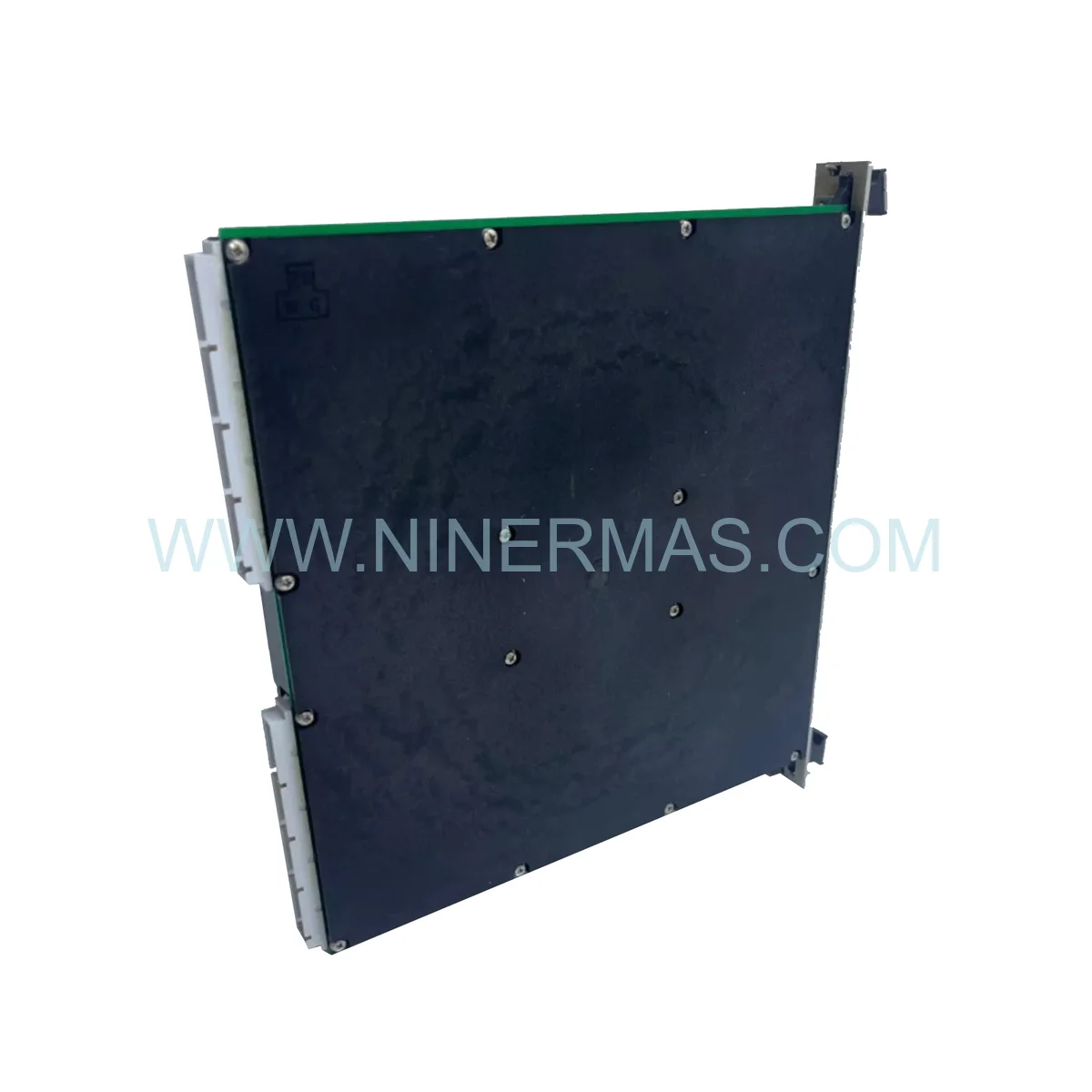

Woodward 5464-648 Analog Combo Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, the Woodward 5464-648 occupies a mission-critical position within Distributed Control System (DCS) architectures — specifically as the analog signal bridge between field instrumentation and the MicroNet control platform. In petrochemical refineries, offshore platforms, and power generation facilities, this module governs the real-time acquisition and output of process variables such as pressure, temperature, flow, and level. Without a functioning Woodward 5464-648, entire control loops can become blind, triggering unplanned shutdowns that cost operators tens of thousands of dollars per hour.

What distinguishes this component from generic Fieldbus alternatives is its native compatibility with both MicroNet and MicroNet TMR redundant architectures. Legacy Components of this caliber are rarely interchangeable with third-party substitutes — the firmware handshake, signal resolution, and channel mapping are tightly coupled to Woodward’s proprietary DCS Hardware ecosystem. Sourcing an original replacement, rather than an untested clone, is not merely a preference; it is an engineering imperative for systems operating under SIS (Safety Instrumented System) mandates.

Stock of this module is finite and diminishing. As Woodward transitions its product roadmap, the 5464-648 has entered end-of-life (EOL) supply territory, making each Factory Sealed unit an increasingly scarce asset for maintenance engineers worldwide.

Key Technical Highlights

High-Resolution Analog Conversion: Supports 4-20mA, 0-10VDC, and RTD inputs with configurable channel scaling for precise Process Control loop management.
Dual-Function I/O Architecture: Combines analog input and output on a single module, reducing rack space and wiring complexity in DCS Hardware cabinets.
Redundancy-Ready Design: Fully compatible with MicroNet TMR triple-redundant configurations, ensuring Stability in Safety Instrumented System (SIS) environments.
Wide Operating Temperature Range: Rated from -40°C to +70°C, engineered for harsh industrial environments including offshore and desert installations.
Hot-Swap Capability: Allows module replacement in redundant systems without full process shutdown, minimizing maintenance windows.
Integrated Diagnostics: Built-in channel health monitoring, wire-break detection, and out-of-range alarms with LED status indicators for rapid fault isolation.

Vertical Industry Applications

Petrochemical & Refining: The 5464-648 manages analog feedback loops for distillation column temperature control and reactor pressure regulation. A single module failure in this environment can trigger emergency shutdowns — having a Factory Sealed spare on-site is standard practice for tier-1 operators.

Power Generation (Gas & Steam Turbines): Integrated into Woodward MicroNet governor systems, this module processes turbine speed, exhaust temperature, and fuel valve position signals. Its high-speed analog conversion ensures sub-millisecond response times critical for grid-frequency stability.

Mining & Mineral Processing: Used in conveyor drive control and crusher automation, where vibration and dust exposure demand the ruggedized build quality that Woodward’s DCS Hardware platform delivers.

Marine Propulsion Systems: Installed aboard LNG carriers and offshore supply vessels, the module monitors diesel engine parameters and manages fuel injection analog outputs, reducing unplanned downtime at sea where spare part logistics are most challenging.

Pulp & Paper Manufacturing: Controls steam pressure and chemical dosing loops via Fieldbus-integrated process networks, where analog signal integrity directly impacts product quality and yield consistency.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Woodward 5464-648 supplied through our channel is 100% Original — sourced directly from authorized distributors or verified OEM surplus inventories. Each module undergoes pre-shipment inspection to confirm Factory Sealed Condition, intact labeling, and undamaged connector pins. We do not supply refurbished, reconditioned, or counterfeit components.

Our 12-Month Comprehensive Warranty covers manufacturing defects, firmware anomalies, and material failures under normal operating conditions. Should a unit fail within the warranty period, we provide advance replacement to minimize your system downtime.

For Emergency Repair scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express — with same-day shipping available for in-stock units. Our global logistics network ensures delivery to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific within 24-72 hours.

This is a Critical Part for Industry Safety. Delays in sourcing the correct analog I/O module can cascade into process upsets, regulatory non-compliance, and catastrophic equipment damage. We maintain strategic buffer stock precisely to serve clients facing unplanned outages.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a Woodward 5464-648 unit is genuinely original and not a counterfeit?
A: Authentic units carry a Woodward holographic label with a traceable serial number on the module housing. The PCB silkscreen should display the part number 5464-648 alongside Woodward’s internal revision code. Request a photo of the label and connector side before purchase. We provide full photographic documentation upon request.

Q2: Where can I obtain the official Datasheet and wiring diagram for the 5464-648?
A: The official Woodward technical manual (Application Note or Product Specification Sheet) is available through Woodward’s MyWoodward portal. We can also provide the relevant documentation package — including wiring diagrams and configuration guides — to qualified buyers upon order confirmation.

Q3: Is the 5464-648 compatible with all MicroNet system versions, including older firmware revisions?
A: The module maintains backward compatibility with MicroNet platforms running firmware versions from the early 2000s through current releases. However, certain advanced diagnostic features require MicroNet firmware v4.x or later. We recommend cross-referencing your system’s Bill of Materials (BOM) revision with Woodward’s compatibility matrix before ordering.

Q4: Can this module be used as a direct replacement in a MicroNet TMR (Triple Modular Redundancy) system?
A: Yes. The 5464-648 is designed for TMR slot compatibility. When replacing a module in a live TMR system, follow Woodward’s hot-swap procedure: confirm the replacement module’s firmware revision matches the active chassis, insert into the target slot, and allow the system’s self-test routine to complete before returning the channel to service.

Q5: What is the typical lead time for emergency orders?
A: For in-stock units, same-day dispatch is available with DHL/FedEx/UPS Express services. Delivery to most global destinations occurs within 24-72 hours. For out-of-stock scenarios, our global sourcing network typically locates verified original units within 3-7 business days.

Q6: Is this part suitable for Maintenance Stock (long-term storage as a critical spare)?
A: Absolutely. The 5464-648 is one of the most recommended Maintenance Stock items for any facility running Woodward MicroNet-based Process Control or DCS Hardware. Given its EOL trajectory, procurement teams are advised to secure buffer quantities now. Factory Sealed units stored in climate-controlled environments maintain full functionality for 10+ years.
