Bently Nevada 330104-00-03-50-02-05 Safety-Reliable Proximity Transducer

Bently Nevada 330104-00-03-50-02-05 Safety-Reliable Proximity Transducer for Critical Control Sites

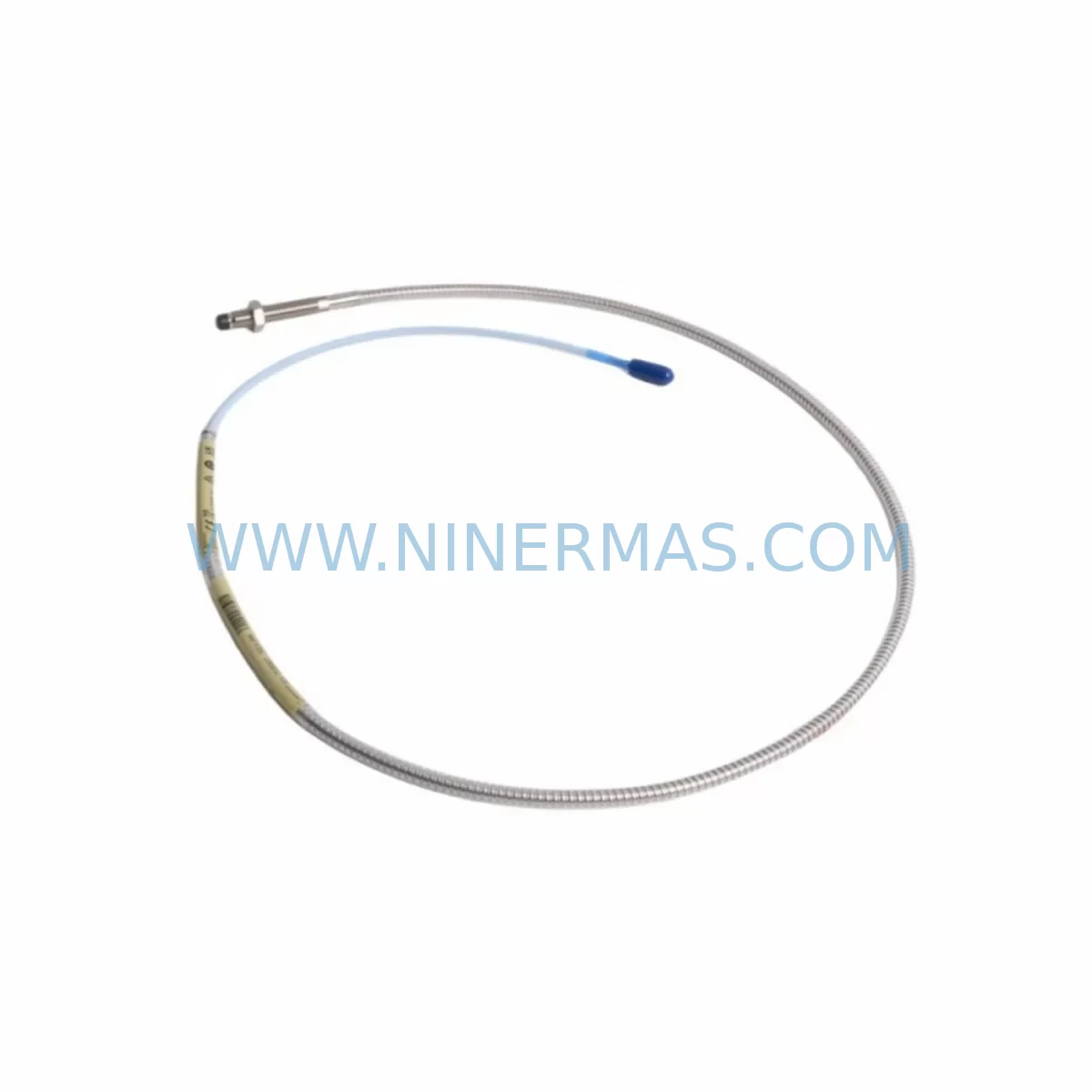

The Bently Nevada 330104-00-03-50-02-05 is a high-performance proximity transducer from the renowned 3300 Series, engineered to deliver uncompromising safety and reliability in the most demanding industrial environments. Designed for continuous operation in critical machinery protection systems, this transducer provides precise, real-time radial vibration and position measurement for rotating equipment — forming the backbone of plant-wide condition monitoring and safety interlock architectures.

In industries where unplanned downtime carries catastrophic consequences — petrochemical complexes, power generation stations, mining operations, water treatment facilities, metallurgical plants, port machinery, marine propulsion systems, and continuous process manufacturing — the 330104-00-03-50-02-05 delivers the signal integrity and environmental resilience that safety engineers demand. Its eddy-current sensing principle ensures non-contact, wear-free measurement, eliminating mechanical degradation as a failure mode and guaranteeing long-term measurement stability across the full service life of the monitored asset.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the 330104-00-03-50-02-05 as part of a comprehensive machinery protection architecture significantly reduces the risk of undetected bearing failure, rotor rub, and shaft instability — all of which can escalate into catastrophic equipment loss or personnel injury. In a typical critical control cabinet or machinery protection rack, this transducer works in concert with the Bently Nevada 3300/16-02-01-01-00-00 proximitor/oscillator, which conditions the raw eddy-current signal into a calibrated DC voltage suitable for the monitoring system’s input cards.

The conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed within a 3500 Series rack, where configurable alarm and danger setpoints trigger protective relay outputs. These relay outputs interface with the plant’s Safety Instrumented System (SIS) or emergency shutdown (ESD) logic, ensuring that a confirmed high-vibration event initiates a controlled, safe machine trip before mechanical damage propagates. To protect the entire monitoring loop from power-line transients and surge events — particularly in heavy industrial environments with large motor starts and arc flash risks — a dedicated Bently Nevada 3500/15 Power Supply module with built-in surge suppression is recommended within the same rack.

For installations in high electromagnetic interference environments such as variable frequency drive (VFD) motor control centers, arc furnace bays, or high-voltage switchgear rooms, the coaxial cable assembly of the 330104-00-03-50-02-05 should be routed in dedicated metallic conduit, segregated from power cables, and terminated with proper EMC cable glands at the junction box. Pairing this transducer with a Bently Nevada 3300 XL 8mm Proximity Transducer System on adjacent bearing positions provides redundant vibration coverage, enabling a 1oo2 (one-out-of-two) voting logic configuration for enhanced safety integrity.

In control cabinets serving continuous process lines — such as compressor trains in LNG facilities or boiler feed pump sets in power plants — the 330104-00-03-50-02-05 is frequently installed alongside Bently Nevada 330180-X0-05 thrust position transducers to monitor both radial and axial machine health simultaneously. This dual-parameter approach, combined with a Bently Nevada 3500/40M Proximitor Monitor for thrust position, provides a complete picture of rotor dynamic behavior, enabling early detection of coupling misalignment, thermal growth anomalies, and thrust bearing wear before they develop into forced outages. Communication of all monitored parameters to the plant DCS or SCADA system is achieved via the 3500/92 Communication Gateway module, supporting Modbus TCP/IP and OPC-DA protocols for seamless integration with existing control architectures.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-03-50-02-05 proximity transducer is deployed across the full spectrum of safety-critical rotating machinery applications:

Petrochemical & Refining: Installed on centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors, where API 670 machinery protection requirements mandate continuous vibration monitoring. The transducer’s ability to operate reliably in hydrocarbon-laden, high-temperature atmospheres makes it the preferred choice for Zone 1 and Zone 2 hazardous area installations when housed in appropriate Ex-rated junction boxes.

Power Generation: Used on steam turbine-generator sets, boiler feed pumps, and induced draft fans in coal, gas, and nuclear power stations. The non-contact measurement principle eliminates sensor-induced rotor loading, preserving the mechanical integrity of high-speed turbine shafts operating at 3,000 or 3,600 RPM. Trip signals derived from this transducer feed directly into the turbine’s overspeed protection and emergency stop systems.

Mining & Mineral Processing: Applied to SAG mill pinion bearings, slurry pump drive trains, and conveyor head pulley shafts in open-pit and underground mining operations. The robust construction withstands the extreme dust loading, moisture ingress, and mechanical shock characteristic of mining environments, ensuring continuous protection of high-value drive equipment.

Water & Wastewater Treatment: Monitors large vertical turbine pumps, blower trains, and centrifuge drives in municipal and industrial water treatment plants. Early detection of bearing degradation prevents unplanned pump failures that could interrupt water supply or cause environmental compliance violations.

Metallurgy & Steel: Protects rolling mill main drives, continuous caster withdrawal rolls, and blast furnace top gas compressors in integrated steel plants, where the combination of high ambient temperature, intense electromagnetic interference from arc furnaces, and heavy mechanical vibration demands the highest level of sensor robustness and signal integrity.

Port & Marine: Installed on ship propulsion shaft lines, bow thruster motors, and crane hoist gearboxes, providing real-time condition monitoring in salt-spray, high-humidity marine environments. The transducer’s sealed construction and corrosion-resistant materials ensure reliable long-term operation without maintenance intervention.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330104-00-03-50-02-05?
Every unit supplied by NINERMAS is backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize your equipment downtime. Our warranty support team is reachable at sale@ninermas.com.

Q2: How is the unit tested before shipment?
All 330104-00-03-50-02-05 units undergo a comprehensive pre-shipment functional test that verifies output signal linearity, scale factor accuracy, and cable/connector integrity against Bently Nevada factory specifications. Units that do not meet the full acceptance criteria are quarantined and not dispatched. A test report is available upon request for critical safety applications.

Q3: Is this transducer compatible with existing 3300 Series and 3500 Series monitoring systems?
Yes. The 330104-00-03-50-02-05 is fully compatible with all Bently Nevada 3300 Series proximitor/oscillators and, when used with the appropriate 3300 XL to 3500 Series adapter, integrates seamlessly with 3500 Series rack-based monitoring systems. It is also recognized by Bently Nevada System 1 condition monitoring software for automated alarm management and trend analysis.

Q4: Can NINERMAS guarantee long-term supply and replacement support?
NINERMAS maintains a dedicated inventory of Bently Nevada 3300 Series components, including the 330104-00-03-50-02-05, to support both planned maintenance shutdowns and emergency replacement requirements. We provide long-term supply continuity for obsolete and hard-to-source industrial automation components, ensuring that your machinery protection systems remain fully operational throughout the asset lifecycle. Contact us at +0086 187 5021 5667 for stock availability and lead time confirmation.
