VIBRO-METER IQS450 204-450-000-001 Service-Ready Spare Part

VIBRO-METER IQS450 204-450-000-001 Service-Ready Spare Part for Industrial Maintenance

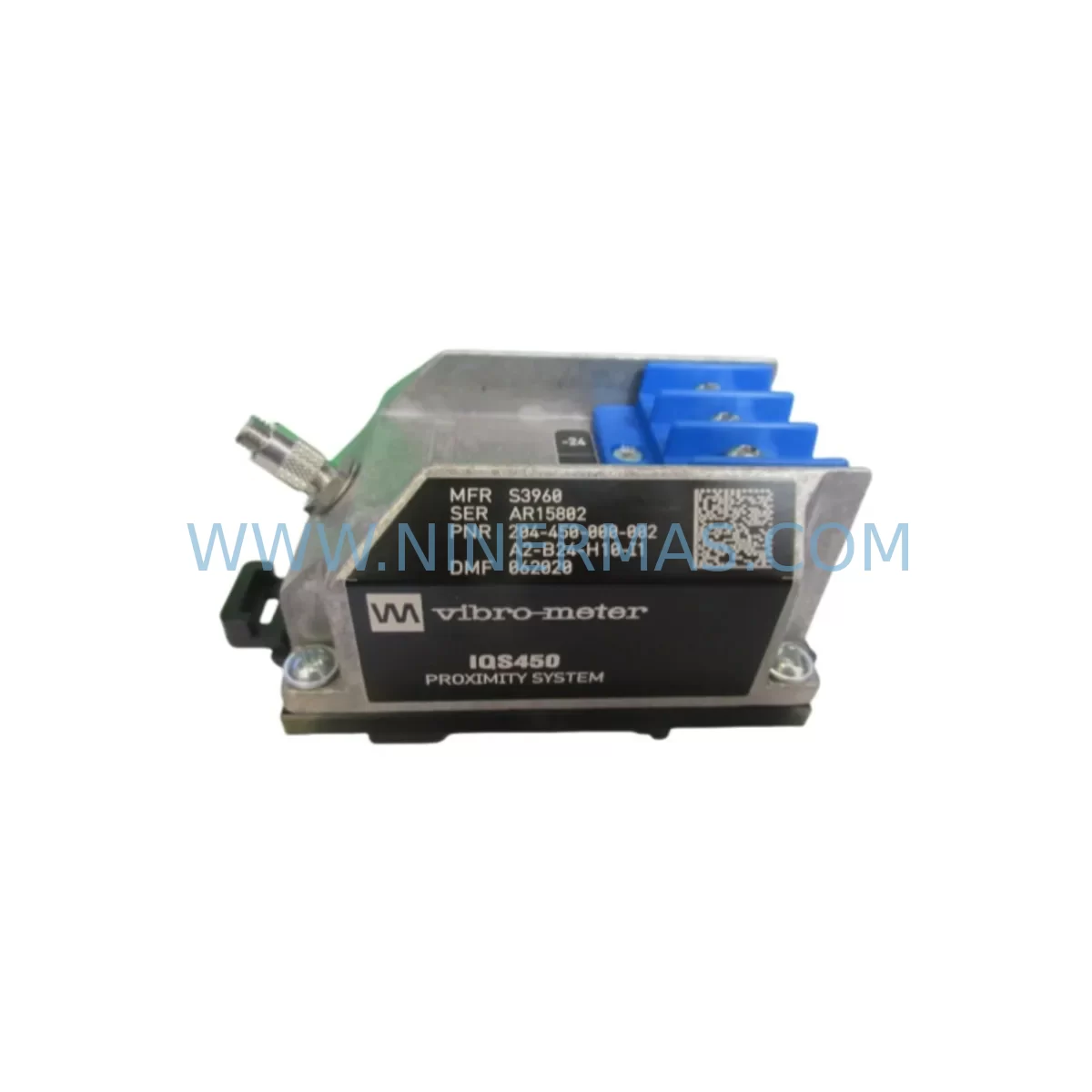

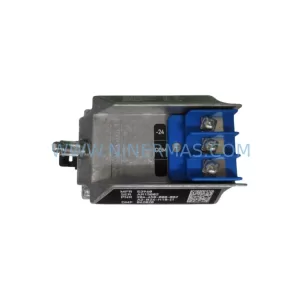

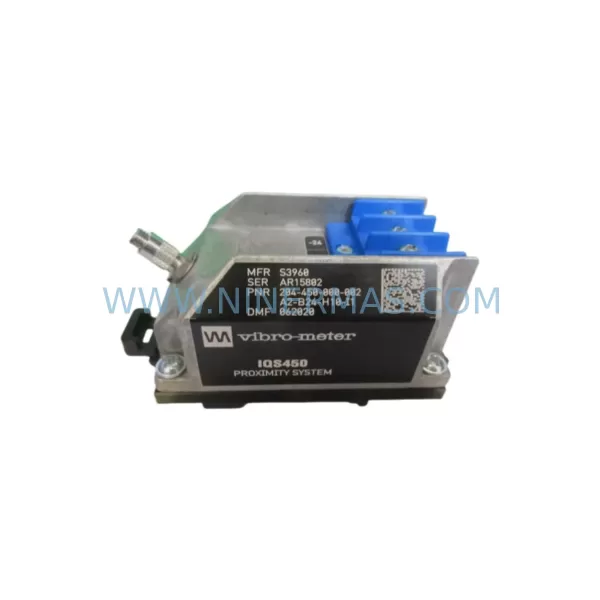

The VIBRO-METER IQS450 (P/N: 204-450-000-001) is a precision vibration monitoring module engineered for continuous condition monitoring in demanding industrial environments. As a critical component within the IQS Series platform, this unit provides real-time vibration signal acquisition and processing for rotating machinery protection — including turbines, compressors, pumps, and generators. Sourced as an original spare, the IQS450 204-450-000-001 is fully tested prior to shipment and backed by a 12-month warranty, making it the preferred choice for maintenance engineers and MRO procurement teams seeking reliable, fast-turnaround replacement parts.

Unplanned downtime caused by vibration monitoring failures can cascade rapidly across a production line. When the IQS450 module fails or degrades, the entire machinery protection loop is compromised — leaving rotating assets unprotected and triggering emergency shutdowns. Stocking a verified replacement unit of the VIBRO-METER IQS450 204-450-000-001 in your spare parts inventory is a proven strategy to minimize mean time to repair (MTTR) and restore system integrity within hours rather than days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IQS450 204-450-000-001 in the field, a thorough inspection of the surrounding system is essential to prevent repeat failures and ensure the monitoring loop is fully restored. Maintenance engineers should treat this replacement as an opportunity for a broader control cabinet audit.

Power Supply Integrity: Verify the IQS rack’s 24 VDC backplane power supply — typically a dedicated VIBRO-METER CM-Series power supply module or equivalent DIN-rail industrial PSU. Voltage ripple or transient spikes are a leading cause of premature module failure. Inspect fuse holders and terminal blocks on the power distribution rail for signs of overheating or loose connections.

Sensor and Cabling: The IQS450 interfaces directly with piezoelectric vibration sensors (accelerometers or velocity probes). Inspect the ICP/IEPE sensor cables, BNC or M12 connectors, and cable shielding continuity. A degraded sensor cable can produce false alarms or mask genuine vibration events. If the IQS450 was replaced due to apparent signal anomalies, always verify the sensor itself — such as a VIBRO-METER CA-Series accelerometer — before returning the system to service.

Backplane and Rack Chassis: Inspect the IQS Series backplane for bent connector pins, corrosion, or contamination. A damaged backplane can cause intermittent communication faults across multiple modules simultaneously. Check adjacent modules — including IQS430 keyphasor modules and IQS440 proximity probe interface modules — for alarm status and correct configuration.

I/O and Relay Outputs: The IQS450’s analogue outputs feed downstream systems — DCS analogue input cards, PLC I/O modules, or safety relay modules. Verify that the 4–20 mA signal loop is intact and that receiving end terminals are correctly wired. Inspect any associated signal isolators or loop-powered barriers in the circuit, as these components are often overlooked during module replacement.

Communication and System Integration: If the IQS system is integrated with a plant DCS or SCADA via Modbus RTU, PROFIBUS, or OPC, confirm that the replacement module is correctly addressed and that communication is re-established after installation. Check the IQS system configuration software to ensure alarm setpoints, measurement ranges, and channel assignments are correctly restored.

HMI and Operator Interface: Confirm that the plant HMI or condition monitoring display correctly reflects the restored channel data. A module swap without HMI verification can leave operators with stale or missing vibration trend data, undermining the value of the monitoring system.

Annual Inspection Checklist: During scheduled shutdowns, consider proactively replacing aging IQS modules alongside associated terminal blocks, DIN-rail fuse holders, and cable ferules. Maintaining a minimum stock of one IQS450 204-450-000-001 per critical machine train is a widely adopted best practice in turbomachinery maintenance programs.

Site Replacement Workflow

The IQS450 204-450-000-001 is designed for straightforward field replacement within the IQS rack system, minimizing downtime during emergency or planned maintenance events:

1. Isolate and de-energize the IQS rack following site LOTO procedures. Document current alarm setpoints and channel configuration from the system software before removal.
2. Remove the faulty module by releasing the front-panel locking mechanism and sliding the IQS450 out of the backplane slot. Inspect the backplane connector for damage.
3. Insert the replacement IQS450 204-450-000-001 into the correct slot. Ensure the module is fully seated on the backplane before re-energizing.
4. Restore configuration using the VIBRO-METER IQS configuration tool. Reload saved channel parameters, measurement ranges, and alarm thresholds. Verify sensor bias voltage and signal levels are within specification.
5. Functional verification: Apply a known vibration reference or use the built-in self-test function to confirm the module is acquiring and processing signals correctly before returning the machine to service.
6. Update maintenance records with the replacement date, new module serial number, and post-installation test results. This supports warranty claims and future lifecycle planning.

This workflow is compatible with both emergency breakdown replacements and planned annual overhaul scenarios. The IQS450’s hot-swap capability (where supported by the rack configuration) can further reduce downtime in critical applications.

Spare Parts Support FAQ

Q1: Is the VIBRO-METER IQS450 204-450-000-001 an original part, and what does the 12-month warranty cover?
Yes. All units supplied by NINERMAS are original VIBRO-METER spare parts, not aftermarket substitutes. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported with full documentation.

Q2: How do I confirm compatibility before ordering?
The IQS450 204-450-000-001 is designed for use within the VIBRO-METER IQS Series rack platform. Compatibility is determined by your existing rack chassis model and backplane revision. Please provide your rack model number and system configuration when enquiring — our technical team will confirm fit before shipment to eliminate procurement risk.

Q3: What is the recommended inventory strategy for the IQS450 in a critical machinery protection system?
For facilities operating turbines, compressors, or other critical rotating assets monitored by the IQS system, we recommend maintaining a minimum of one IQS450 module per machine train as a cold standby spare. For plants with multiple IQS racks, a pooled inventory of 2–3 units is typically sufficient to cover emergency replacement needs while awaiting replenishment. Long-term supply agreements are available.

Q4: Can NINERMAS support long-term supply for obsolete or discontinued IQS Series modules?
Yes. NINERMAS specializes in sourcing and supplying original spare parts for legacy and current-generation industrial automation and condition monitoring systems, including discontinued VIBRO-METER IQS Series components. Contact our team to discuss long-term supply contracts, consignment stock arrangements, or bulk procurement pricing.
