VIBRO-METER MPC4 200-510-078-115 Service-Ready Spare Part

VIBRO-METER MPC4 200-510-078-115 Service-Ready Spare Part for Industrial Maintenance

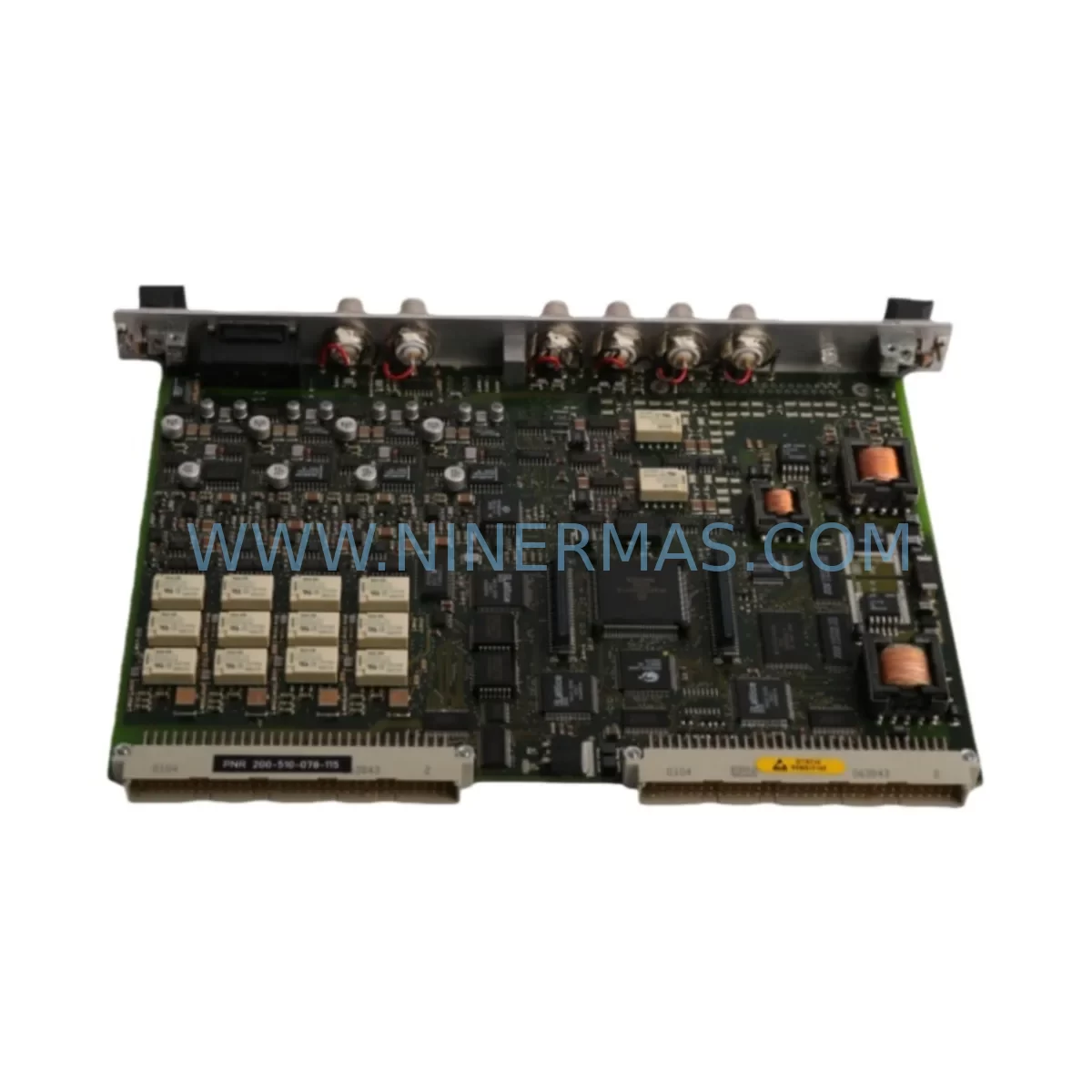

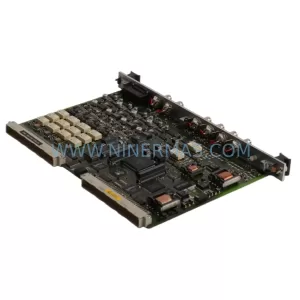

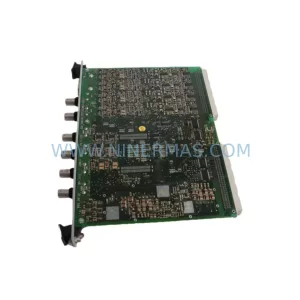

The VIBRO-METER MPC4 200-510-078-115 is an original mechanical protection card engineered for continuous vibration monitoring and machine protection in critical industrial environments. Designed for integration within VIBRO-METER’s VM600 series protection and monitoring systems, this card delivers reliable signal conditioning, threshold detection, and trip output functions essential for safeguarding rotating machinery such as turbines, compressors, pumps, and generators. For maintenance engineers managing aging control infrastructure or executing planned shutdowns, having a verified service-ready spare on hand is the single most effective strategy to minimize unplanned downtime and accelerate system restoration.

At NINERMAS, every MPC4 200-510-078-115 unit is sourced from authorized supply channels, inspected prior to dispatch, and shipped with full traceability documentation. Our 12-month warranty covers functional defects under normal operating conditions, giving procurement engineers the confidence to stock this card as a long-term inventory asset rather than a reactive emergency purchase.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a mechanical protection card such as the MPC4 200-510-078-115 is flagged for replacement during a scheduled outage or emergency fault isolation, experienced maintenance engineers know that the card itself is rarely the only component requiring attention. A thorough inspection of the surrounding VM600 system architecture is essential to prevent repeat failures and ensure the restored system meets its original protection integrity.

Begin by verifying the VM600 rack power supply module — an aging or under-spec power supply is a leading cause of card-level faults that are misdiagnosed as card failures. Inspect the VM600 backplane for corrosion, bent connector pins, or intermittent contact issues that could compromise the new card’s signal integrity from day one. If the system uses IOC4T or IOC4 I/O cards in adjacent slots, confirm their firmware versions are compatible with the replacement MPC4 revision to avoid communication mismatches.

On the field wiring side, inspect all eddy-current probe extension cables and proximitor/driver units connected to the MPC4’s input channels. Degraded cable shielding or a failing proximitor will generate false vibration readings that can mask real machinery faults or trigger nuisance trips. Verify that terminal blocks and field junction boxes are clean, torqued to specification, and free of moisture ingress — particularly in outdoor or high-humidity installations.

For systems where the MPC4 feeds trip signals into a safety relay module or SIL-rated trip amplifier, test the relay output continuity and response time after card replacement. If the plant uses a DCS or PLC integration layer — such as a Modbus RTU or PROFIBUS interface card within the VM600 rack — confirm that the new card’s channel mapping and scaling parameters are correctly re-entered in the system configuration software. Overlooking this step is a common source of post-maintenance alarm floods.

Procurement engineers building annual maintenance budgets should consider stocking the MPC4 200-510-078-115 alongside complementary VM600 series components: RPS6 rack power supply units, AMC8 absolute measurement cards, and TM16 tachometer cards are frequently replaced in the same maintenance cycle on multi-shaft turbine protection panels. A pre-positioned spare kit covering these items reduces mean-time-to-repair (MTTR) from days to hours during critical outage windows.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed card’s part number and revision against the system’s as-built documentation. Cross-reference the MPC4 200-510-078-115 with the VM600 system’s channel assignment list to ensure the replacement card is configured for the correct measurement type (displacement, velocity, or acceleration) before installation.

Step 2 — Safe isolation: Follow the plant’s lock-out/tag-out (LOTO) procedure. For hot-swap capable VM600 racks, verify whether the specific slot supports live replacement without triggering a system-wide trip. If not, coordinate with the control room to place the protection channel in bypass mode before card extraction.

Step 3 — Physical replacement: Remove the faulty MPC4 card using the front-panel ejector levers. Inspect the backplane connector for damage before seating the new MPC4 200-510-078-115. Secure the card with the front-panel locking screws and restore field wiring connections to the card’s terminal interface.

Step 4 — Configuration restore: Using VIBRO-METER’s VM600 configuration software, upload the saved channel configuration file to the new card. Verify all setpoint values, time delays, and relay assignments match the pre-failure baseline. This step is critical for maintaining system certification and avoiding false trips during restart.

Step 5 — Functional test and return to service: Perform a channel-by-channel functional test using a calibrated signal simulator. Confirm OK/Alert/Danger relay outputs respond correctly at programmed thresholds. Document the replacement in the plant’s maintenance management system (CMMS) and update the spare parts inventory accordingly.

This structured workflow ensures that replacing the MPC4 200-510-078-115 restores full protection system integrity, maintains compatibility with the existing VM600 architecture, and reduces the risk of repeat failures caused by overlooked peripheral issues.

Spare Parts Support FAQ

Q1: Is the MPC4 200-510-078-115 compatible with all VM600 rack configurations?
The MPC4 200-510-078-115 is designed for use within the VIBRO-METER VM600 series rack system. Compatibility depends on the specific rack chassis revision and the firmware version of adjacent I/O and communication cards. We recommend providing your VM600 system’s rack configuration and software version when placing an order so our technical team can confirm full compatibility before shipment.

Q2: What testing is performed before the unit is shipped?
Every MPC4 200-510-078-115 unit dispatched by NINERMAS undergoes a pre-shipment functional inspection covering power-up verification, output relay continuity, and visual inspection for physical damage. Units are packaged in anti-static protective materials with full traceability documentation. Our 12-month warranty covers functional defects identified under normal operating conditions from the date of receipt.

Q3: Can NINERMAS support long-term or repeat supply of this part?
Yes. NINERMAS maintains ongoing sourcing relationships to support long-term supply of the MPC4 200-510-078-115 and related VM600 series components. For customers managing multi-site maintenance programs or annual shutdown schedules, we offer blanket order arrangements and reserved stock agreements to ensure availability when needed. Contact our team at sale@ninermas.com to discuss your supply requirements.

Q4: What should I do if the replacement card does not resolve the original fault?
If installing the MPC4 200-510-078-115 does not clear the original fault condition, the issue is most likely upstream in the field wiring, transducer, or proximitor circuit — or downstream in the relay output or DCS integration layer. Our technical support team can assist with fault isolation guidance. If the supplied card is confirmed defective upon arrival, our 12-month warranty covers full replacement or refund under our standard returns process.
