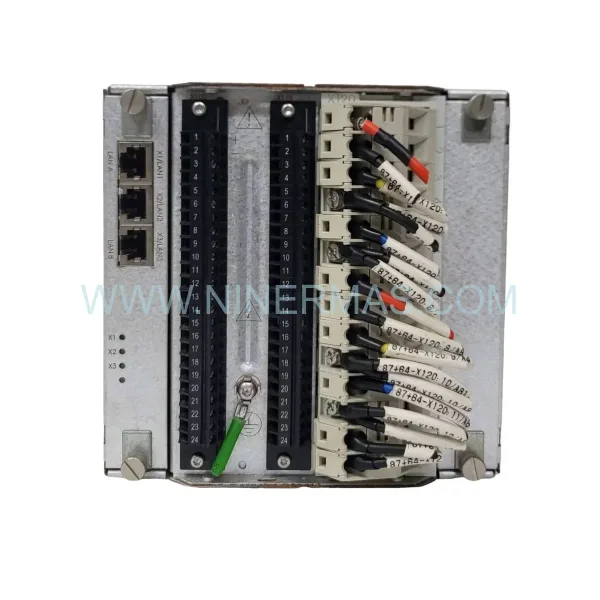

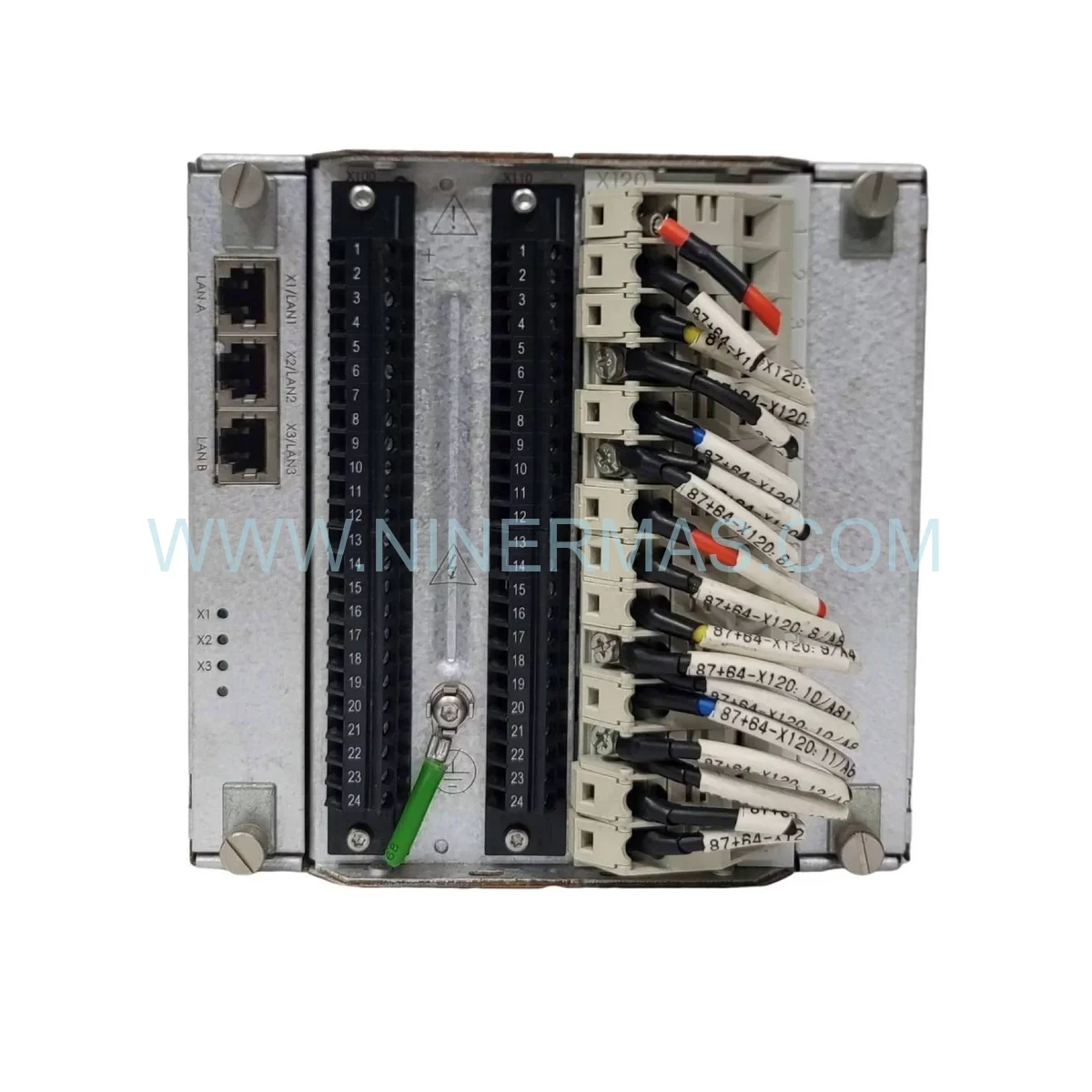

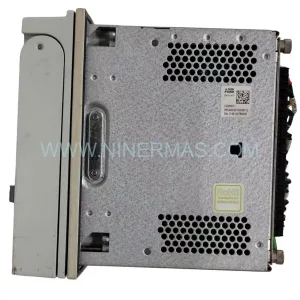

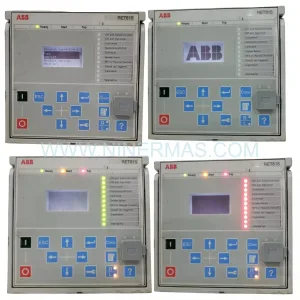

ABB RET615E E Transformer Protection Relay – Original

ABB RET615E E Transformer Protection Relay (Industrial-Grade IED)

The ABB RET615E E is a dedicated transformer protection Intelligent Electronic Device (IED) from ABB’s renowned 615 Series. Engineered for power utilities, industrial substations, and critical infrastructure, this relay delivers comprehensive protection, monitoring, and control for two-winding power transformers. Whether you’re safeguarding distribution networks or managing complex substation automation, the RET615E E provides the reliability and precision your operations demand.

Designed to meet both ANSI and IEC standards, the RET615E E integrates seamlessly into modern digital substations, supporting IEC 61850 GOOSE messaging, MODBUS, and DNP3 protocols — making it a future-proof investment for grid modernization projects.

Core Features & Benefits

• ✅ Comprehensive Transformer Protection: Differential (87T), overcurrent (50/51), earth fault (50N/51N), restricted earth fault (64REF), and thermal overload (49) protection in a single IED
• ✅ IEC 61850 Edition 2 Compliant: Supports GOOSE messaging and MMS for seamless substation automation integration
• ✅ Dual-Rated Voltage Inputs: Flexible configuration for various transformer winding ratios and system voltages
• ✅ Advanced Disturbance Recording: Built-in fault recorder with up to 100 disturbance records for post-event analysis
• ✅ Compact Panel-Mount Design: 4U rack-mount form factor minimizes panel space while maximizing functionality
• ✅ Wide Operating Temperature Range: -10°C to +55°C continuous operation for harsh industrial environments

Application Scenarios

The RET615E E addresses real-world protection challenges across multiple industries:

• Power Utilities & Grid Operators: Protects distribution and sub-transmission transformers (11kV–110kV) against internal faults, overloads, and external disturbances — reducing unplanned outages and SAIDI/SAIFI penalties
• Industrial Plants (Oil & Gas, Mining, Petrochemical): Safeguards critical process transformers where downtime costs exceed equipment value; integrates with DCS/SCADA via MODBUS RTU/TCP
• Renewable Energy Substations: Protects step-up transformers in wind and solar farms, with fast differential protection to minimize fault clearing time and protect inverter equipment
• Data Centers & Critical Facilities: Ensures continuous power supply by providing redundant protection for main and tie transformers in N+1 configurations
• Railway Traction Substations: Handles asymmetric loading and harmonic-rich environments typical of traction power systems

Technical Parameters & Specifications

Selection Guide

The RET615 series offers multiple variants. The E E suffix denotes the standard protection configuration with Ethernet communication and English HMI. For applications requiring additional I/O expansion, arc flash detection, or IEC 61850 GOOSE-based busbar protection, consult our technical team for variant selection guidance.

Extended Functions & Integration

• PCM600 Configuration Tool: Full parameter setting, signal matrix configuration, and disturbance record analysis via ABB’s PCM600 engineering tool
• IEC 61850 GOOSE: Enables peer-to-peer communication with other IEDs for fast busbar protection and interlocking without hardwiring
• Synchrophasor (PMU) Support: Optional IEEE C37.118 phasor measurement for wide-area monitoring applications
• Cybersecurity: Role-based access control (RBAC) and encrypted communication in line with NERC CIP and IEC 62351 requirements

Related Products You May Need

Complete your protection scheme with these verified in-stock products from NINERMAS:

• ABB CM-MSE Thermistor Motor Protection Relay 1SVR550800R9300 — thermal protection for motor-transformer combinations
• ABB CM-MPS.43 Three-Phase Monitoring Relay — upstream voltage quality monitoring
• ABB CT-APS.21S Time Relay — auxiliary timing functions for protection coordination
• ABB CI830 Profibus DP Communication Module — SCADA integration for AC800M systems
• ABB SD822 Power Supply Module 24V DC 5A — reliable auxiliary power for relay panels
• Bently Nevada 3500/33 16-Channel Relay Module — machinery protection relay output modules
• Bently Nevada 3500/32 4-Channel Relay Output Module — compact relay output for vibration monitoring systems
• ABB PHCBRCPBA20000 Processor Bus Adapter — Symphony Plus integration for substation control
• ABB UFC762 AE101 PCB Module — drive control boards for transformer-fed motor drives
• ABB 3BHE004573R0143 Interface Board — interface modules for ABB drive systems

Delivery & Service

• ? Lead Time: In-stock units ship within 3–5 business days; special configurations 2–4 weeks
• ? Warranty: 12 months from date of shipment against manufacturing defects
• ? Documentation: Full technical manual, wiring diagrams, and PCM600 configuration files available upon request
• ? Technical Support: Pre-sales engineering consultation and post-sales commissioning support available
• ? Shipping: Worldwide DHL/FedEx express; export documentation and customs support included

Frequently Asked Questions

Q: What is the difference between ABB RET615E E and RET615C?
A: The RET615E E includes Ethernet communication (IEC 61850 Ed.2) and an expanded protection function set compared to the RET615C, which uses serial communication only. The E E variant is recommended for new digital substation projects.

Q: Can the RET615E E protect autotransformers or three-winding transformers?
A: The RET615 is optimized for two-winding transformers. For three-winding or autotransformer applications, ABB’s RET670 series is recommended. Contact our team for application-specific guidance.

Q: Is the ABB RET615E E compatible with IEC 61850 Edition 2?
A: Yes. The RET615E E fully supports IEC 61850 Edition 2, including GOOSE messaging, MMS reporting, and SCL-based configuration via PCM600.

Q: What auxiliary power supply voltage does the RET615E E require?
A: The relay accepts a wide range of auxiliary voltages: 24–250V DC or 100–240V AC, making it compatible with most substation battery systems and UPS supplies.

Q: How do I configure the RET615E E for my specific transformer ratio?
A: Configuration is performed using ABB’s PCM600 tool. Our technical team can provide pre-configured parameter files based on your transformer nameplate data — simply share your transformer datasheet when placing your order.

Q: Does NINERMAS offer testing or calibration services for the RET615E E?
A: We supply factory-tested units with full functional verification. On-site commissioning support and relay testing coordination can be arranged upon request.
