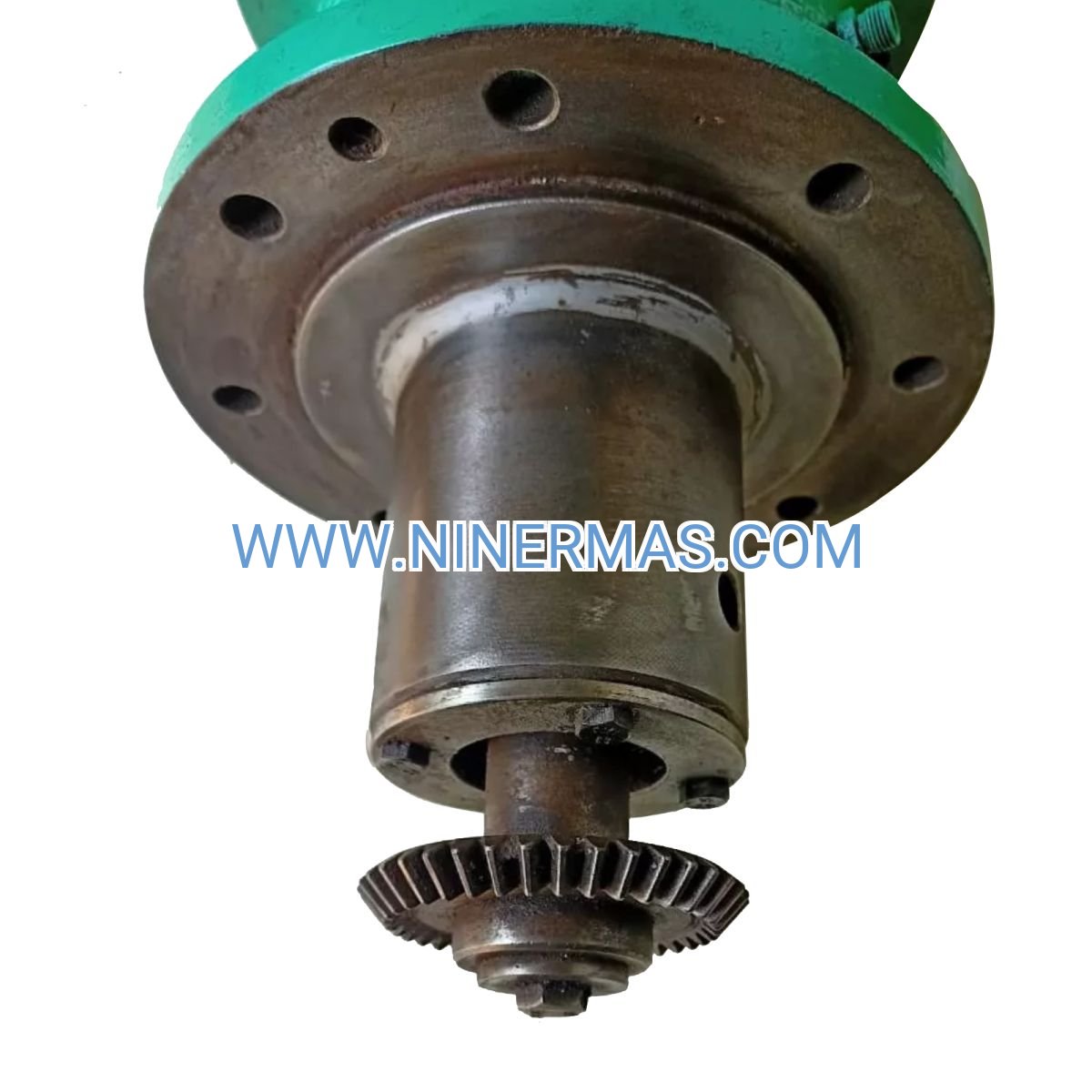

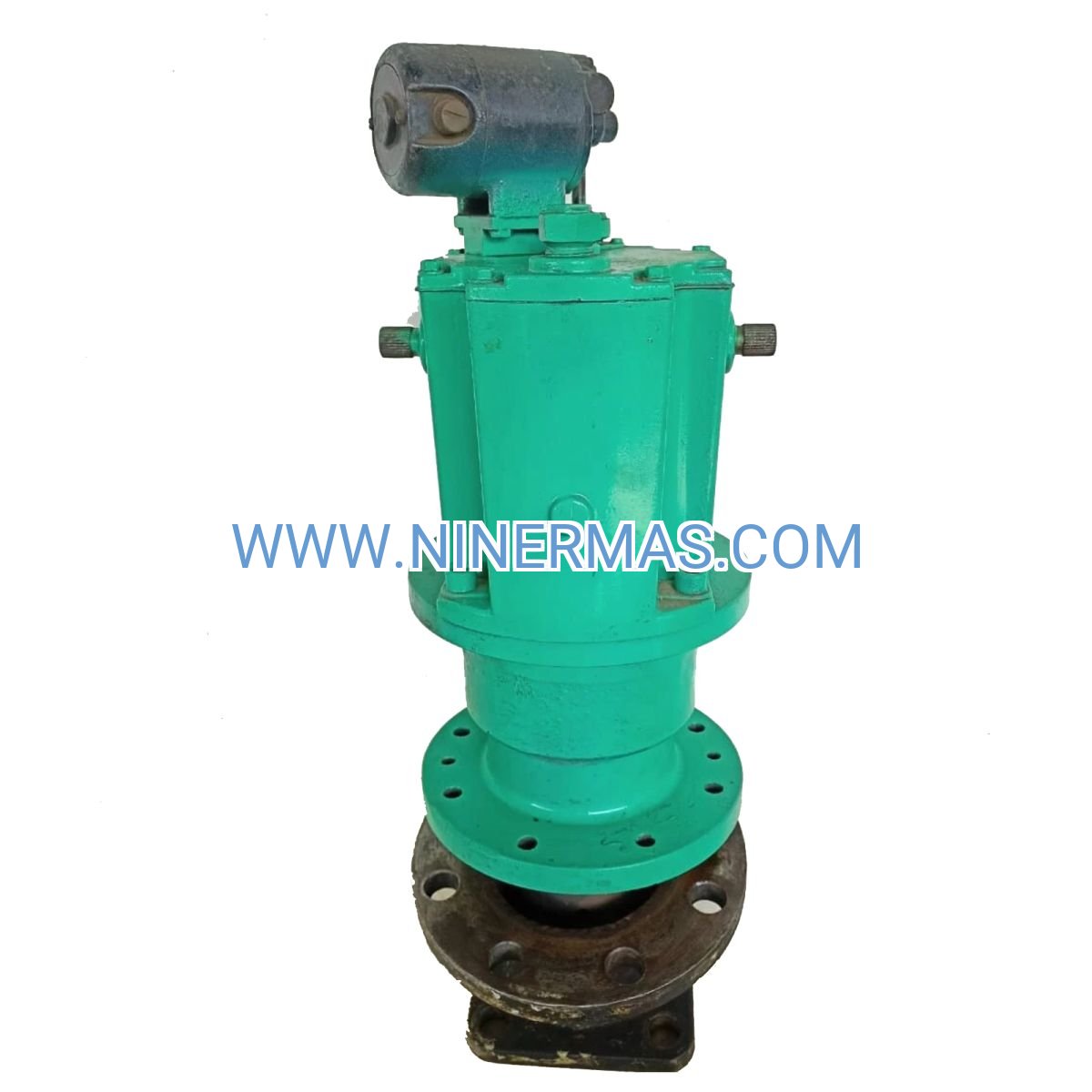

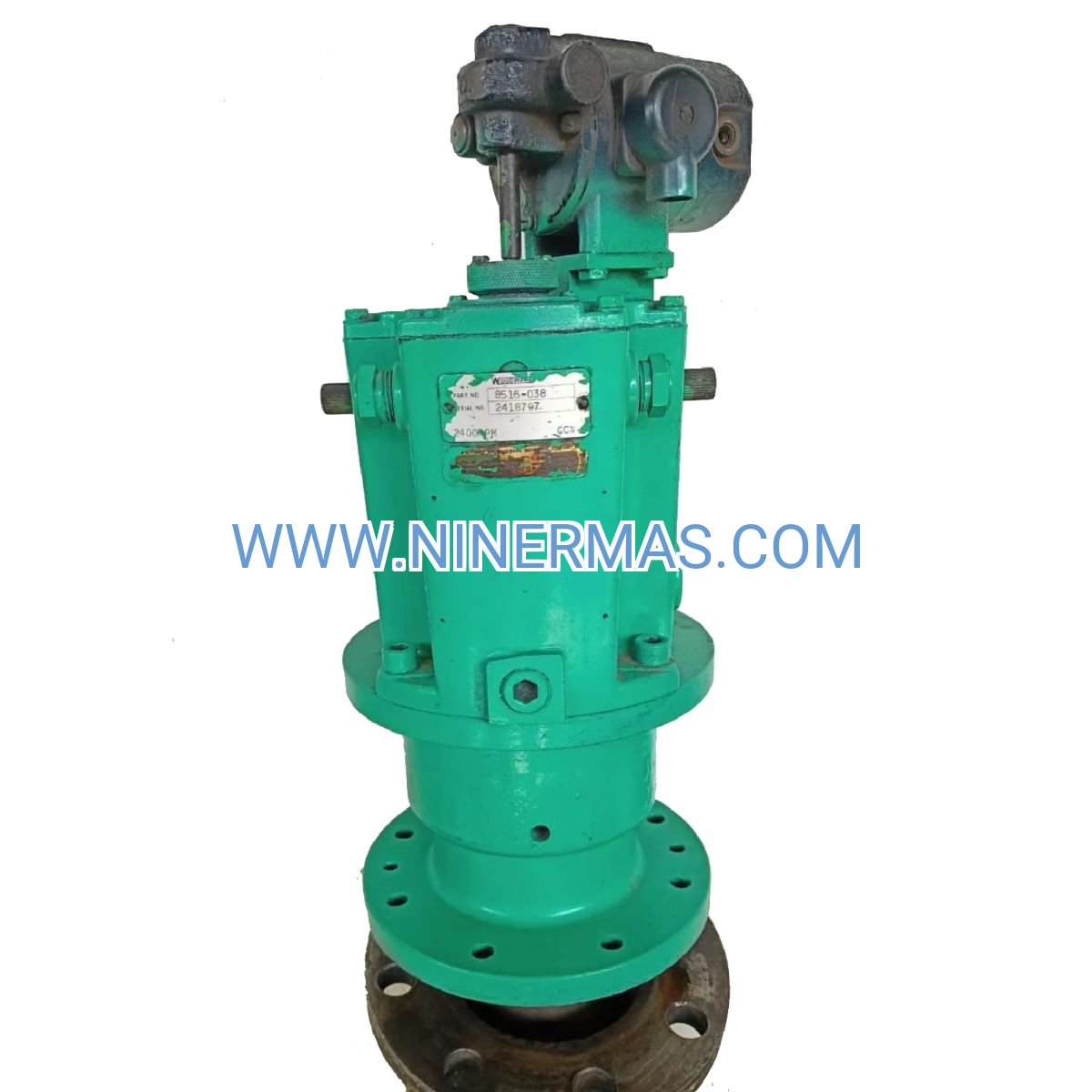

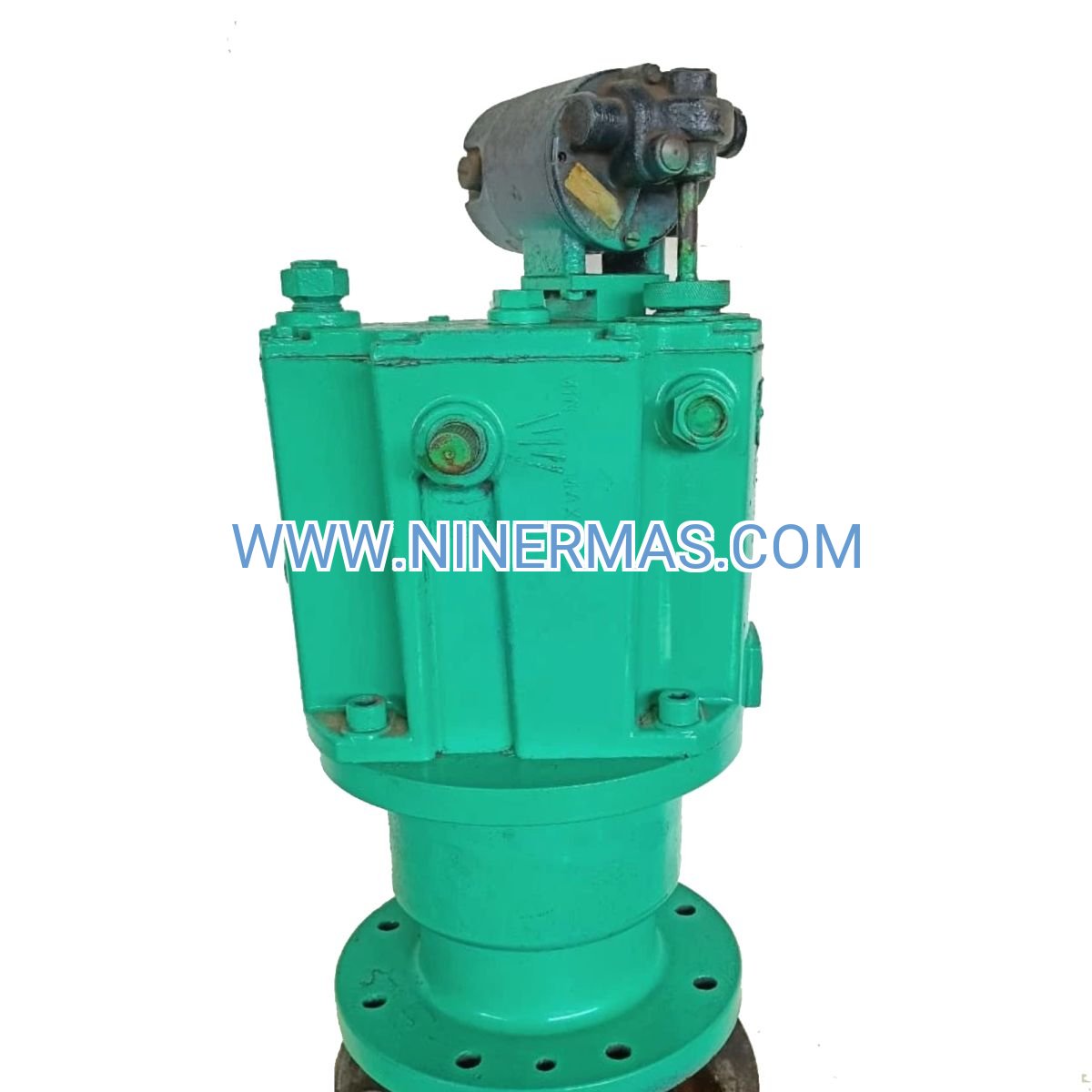

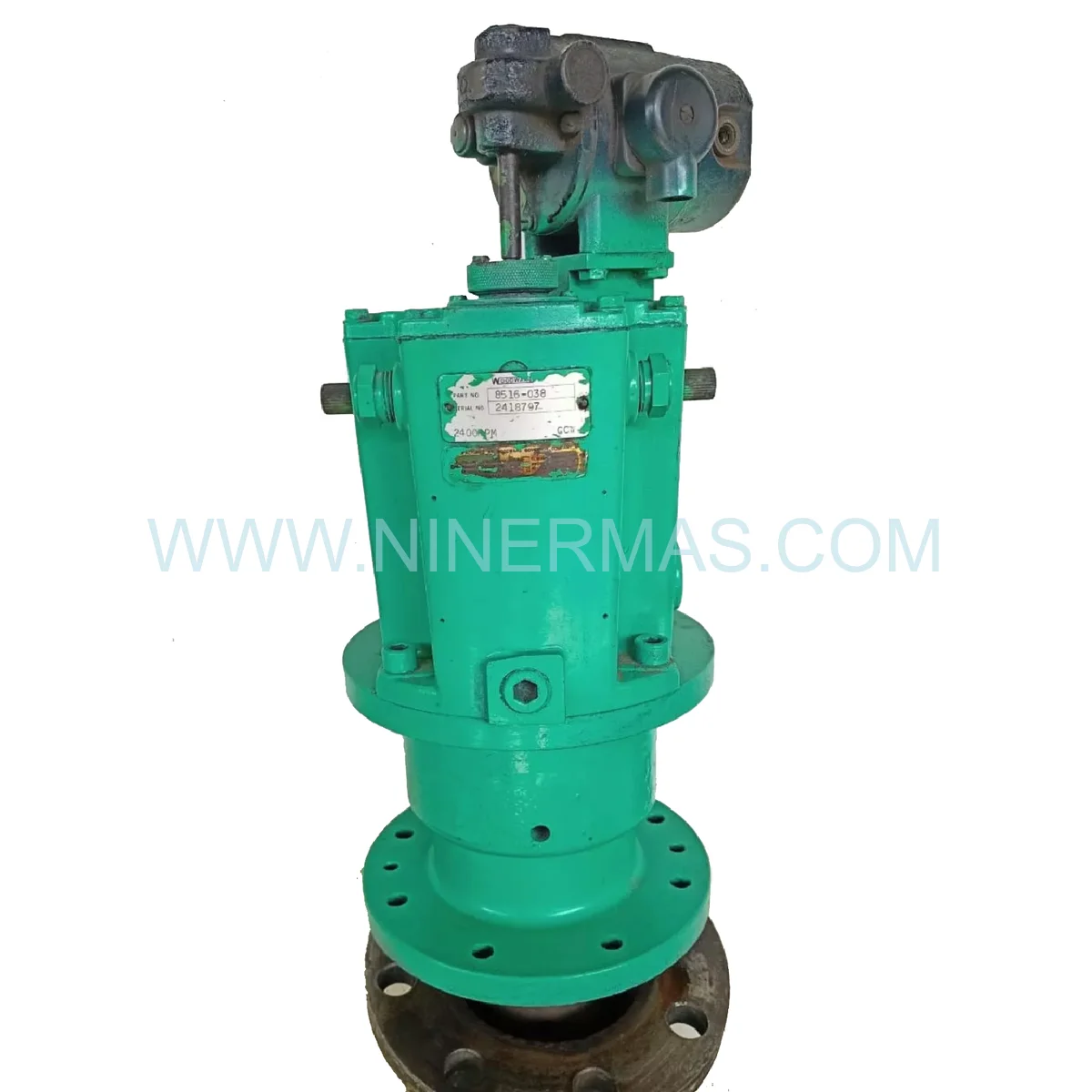

Woodward 8516-038 TG-13 Turbine Governor – Precision Speed Control for Steam Turbines

The Woodward 8516-038 TG-13 Turbine Governor is a mechanical-hydraulic speed droop governor engineered for reliable speed regulation in API 611 compliant steam turbines. This proven control solution combines robust mechanical design with hydraulic actuation to deliver consistent performance across demanding industrial applications.

Technical Specifications

• Model Number: 8516-038
• Governor Type: Mechanical-Hydraulic Speed Droop
• Speed Range: 1200-2400 RPM
• Speed Droop: 3-5% (adjustable)
• Compliance: API 611 Standard
• Operating Temperature: -20 °C to +70 °C
• Hydraulic Pressure: 150-300 PSI
• Weight: 12.7 kg
• Mounting: Flange or bracket configuration

Key Features & Benefits

• Proven Reliability: Field-tested mechanical-hydraulic design ensures decades of dependable operation in critical turbine applications
• API 611 Compliance: Meets stringent petroleum and natural gas industry standards for general-purpose steam turbines
• Precise Speed Regulation: Maintains stable turbine speed within ±0.5% under steady-state conditions
• Adjustable Droop: 3-5% speed droop range allows customization for load-sharing or isochronous operation
• Wide Speed Range: 1200-2400 RPM capability accommodates various turbine configurations and applications
• Rugged Construction: Industrial-grade materials withstand harsh environments including high vibration and temperature extremes

Industrial Applications

The TG-13 governor excels in process industries requiring dependable turbine speed control:

• Petrochemical Plants: Drives compressors, pumps, and generators in refining and chemical processing facilities
• Power Generation: Controls mechanical-drive turbines in cogeneration and combined-cycle power plants
• Oil & Gas Production: Regulates turbine-driven equipment in upstream, midstream, and downstream operations
• Marine Propulsion: Provides speed control for auxiliary steam turbines on vessels and offshore platforms
• Manufacturing: Manages turbine speed in paper mills, steel plants, and other heavy industrial facilities

How It Works – Control Solution

The Woodward 8516-038 employs a time-tested mechanical-hydraulic control architecture. A centrifugal flyweight mechanism senses turbine speed and positions a pilot valve that modulates hydraulic pressure to the steam valve actuator. This direct mechanical linkage ensures fail-safe operation independent of electrical power, making it ideal for critical safety applications and emergency shutdown systems.

The adjustable speed droop feature enables parallel operation of multiple turbines with automatic load sharing. When configured for isochronous mode (zero droop), the governor maintains constant speed regardless of load variations, perfect for isolated power generation applications.

Common Questions & Answers

Q: What is the difference between the TG-13 and electronic governors?
A: The TG-13 is a mechanical-hydraulic governor that operates without electrical power, offering inherent reliability and fail-safe operation. Electronic governors like the 505 series provide more features and precision but require electrical power and are more complex.

Q: Can the 8516-038 be used for load sharing applications?
A: Yes, the adjustable 3-5% speed droop allows multiple turbines to share load proportionally when operating in parallel on a common steam header or electrical bus.

Q: What maintenance is required for the TG-13 governor?
A: Routine maintenance includes periodic inspection of hydraulic fluid level and quality, checking for oil leaks, verifying speed droop calibration, and inspecting mechanical linkages for wear. Typical service intervals are 6-12 months depending on operating conditions.

Q: Is the 8516-038 compatible with existing TG-13 installations?
A: Yes, the 8516-038 maintains dimensional and functional compatibility with earlier TG-13 models, facilitating straightforward retrofits and upgrades.

Q: What hydraulic fluid is recommended?
A: Use high-quality turbine oil meeting ISO VG 32 or VG 46 specifications. Consult Woodward documentation for approved fluid brands and viscosity grades for your operating temperature range.

Warranty & Support

Every Woodward 8516-038 TG-13 Turbine Governor includes a comprehensive 12-month warranty covering materials and workmanship defects. Our technical support team provides application assistance, troubleshooting guidance, and replacement part identification to maximize uptime and performance.
