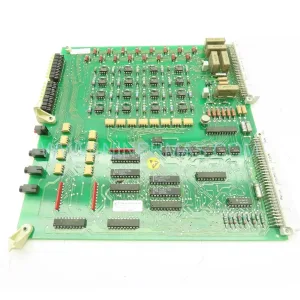

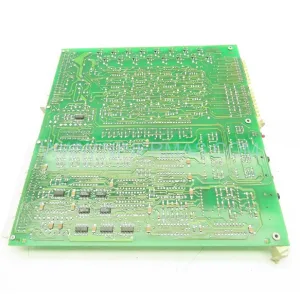

ABB DSQC 224 YB560103BE/2 Analog I/O Module | Original Spare Part

ABB DSQC 224 YB560103BE/2 Analog I/O Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect with decades of experience in distributed control systems, the ABB DSQC 224 YB560103BE/2 represents a cornerstone component in legacy robot controller architectures. This analog I/O board serves as the critical bridge between the ABB S4C/S4C+/IRC5 controller’s computational core and the physical world of sensors, actuators, and process instrumentation — a role that is irreplaceable in any facility where Process Control precision is non-negotiable. Without a functioning ABB DSQC 224 YB560103BE/2, the entire robot cell loses its ability to interpret real-world analog feedback, effectively halting production.

In terms of technical compatibility, this module integrates natively within ABB’s proprietary Fieldbus architecture, communicating over the internal backplane without requiring additional gateway hardware. Its 8-channel differential analog input design — operating at 16-bit resolution — makes it a superior alternative to generic third-party I/O boards that lack native firmware support. For facilities managing Legacy Components across aging S4-generation robot fleets, sourcing an original YB560103BE/2 board eliminates the risk of firmware incompatibility and recalibration downtime that third-party substitutes inevitably introduce.

What makes this particular unit exceptionally valuable is its scarcity. As ABB has transitioned its robotics platform toward the IRC5 and OmniCore generations, the DSQC 224 series has entered End-of-Life (EOL) status through official channels. Factory Sealed original units — untouched, fully tested, and preserved in original packaging — are increasingly difficult to source globally. This is not a refurbished board. It is a genuine, original ABB component held in controlled-environment storage, ready for immediate deployment.

Key Technical Highlights

16-Bit Analog Input Resolution — 8 differential input channels delivering ±0.1% full-scale accuracy at 25°C for high-fidelity Process Control feedback.
12-Bit Analog Output — 4 output channels supporting ±10V DC and 0-10V selectable ranges for precise actuator command signals.
100 µs Per-Channel Conversion Speed — Enables real-time closed-loop control in high-speed welding, dispensing, and force-torque applications.
Fieldbus-Native Integration — Communicates directly over ABB’s internal backplane Fieldbus; no external gateway or protocol converter required.
Redundancy-Ready Architecture — Supports hot-swap replacement procedures in S4C+ dual-controller configurations, minimizing unplanned downtime.
High Common-Mode Rejection — Differential input design suppresses electromagnetic interference from adjacent drive units and welding power sources.
DIN Rail & Panel Mount Compatible — Flexible installation in standard controller cabinets; IP20 rated for enclosed industrial environments.
Non-Volatile Calibration Storage — Channel scaling, offset, and linearization data stored on-board; survives power cycles without reconfiguration.

Vertical Industry Applications

Petrochemical & Refinery Automation: In hazardous process environments, the DSQC 224 interfaces with pressure transmitters, flow meters, and temperature sensors across robot-assisted valve manipulation and inspection systems. Its high-accuracy analog acquisition reduces the risk of process deviation that could trigger safety shutdowns — directly cutting unplanned downtime in facilities where every hour of lost production carries six-figure costs.

Automotive Body & Welding Assembly: Spot welding robots rely on real-time weld current and voltage feedback to maintain joint quality across thousands of cycles per shift. The module’s 100 µs conversion speed supports adaptive weld schedule control, ensuring consistent metallurgical results even as electrode wear progresses — a capability that generic I/O boards cannot reliably replicate.

Mining & Heavy Material Handling: Load cell and strain gauge signals from heavy-duty grippers and conveyor systems are processed through the DSQC 224’s differential inputs, enabling dynamic payload compensation. In underground mining operations where DCS Hardware reliability is a safety imperative, using original Legacy Components eliminates the uncertainty of untested substitutes.

Marine & Offshore Fabrication: Shipyard robotic welding and cutting systems operating in high-humidity, salt-laden environments depend on sealed controller cabinets housing original I/O boards. The DSQC 224’s proven compatibility with ABB’s Distributed Control System architecture ensures that marine fabrication lines maintain certification compliance without costly re-validation of substitute hardware.

Pharmaceutical & Food Processing: Precision dispensing and filling lines use analog pressure and flow feedback to guarantee regulatory-compliant fill volumes. The module’s ±0.1% accuracy supports the tight process tolerances required by FDA and EU GMP standards, where analog signal drift from inferior boards can trigger batch rejection and regulatory audit risk.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every ABB DSQC 224 YB560103BE/2 unit shipped from our inventory is 100% original ABB manufacture — not refurbished, not remanufactured, and not a third-party clone. Each board undergoes pre-shipment functional verification against ABB’s original test specifications before dispatch. Units are stored in climate-controlled, ESD-protected facilities to preserve component integrity across extended storage periods.

Our supply chain is built for industrial emergencies. When a robot cell goes down and production losses are mounting by the hour, we offer Emergency Delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express — with same-day dispatch available for in-stock units ordered before 14:00 CST. Global coverage spans North America, Europe, Southeast Asia, the Middle East, and beyond.

A 12-Month Comprehensive Warranty covers all units against defects in materials and workmanship under normal operating conditions. Warranty claims are processed with priority handling, including advance replacement options for critical production environments. Full technical documentation — including original ABB datasheet, wiring diagrams, and RobotStudio configuration guides — is provided with every shipment upon request.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the DSQC 224 YB560103BE/2 I receive is a genuine original ABB component and not a counterfeit?
A: Authentic ABB DSQC 224 YB560103BE/2 boards carry laser-etched part numbers on the PCB substrate that match the label on the outer packaging. The board’s component layout, conformal coating pattern, and ABB holographic quality seal are consistent across genuine units. We provide a Certificate of Authenticity and original ABB packaging with every shipment. If you have concerns, we can provide pre-shipment photos of the specific unit’s serial number and board markings for your verification.

Q2: Where can I obtain the official ABB datasheet and wiring diagrams for the YB560103BE/2?
A: The complete ABB DSQC 224 technical manual, including wiring diagrams, channel configuration tables, and RobotStudio integration guides, is available upon request after purchase. We maintain a library of original ABB documentation for all DSQC-series components. Contact our technical team at sale@ninermas.com with your order reference to receive the documentation package.

Q3: Is the DSQC 224 YB560103BE/2 compatible with both S4C and IRC5 controller generations?
A: Yes. The DSQC 224 was designed for ABB’s S4C and S4C+ platforms and is also compatible with certain IRC5 configurations using the legacy I/O expansion chassis. Compatibility depends on your specific controller software version and cabinet configuration. We recommend providing your controller’s software version number and cabinet type when inquiring, so our technical team can confirm compatibility before shipment.

Q4: What is the lead time for emergency orders, and which shipping carriers do you use?
A: In-stock units are dispatched same-day for orders confirmed before 14:00 CST. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express. Typical transit times are 2-5 business days to most global destinations. For ultra-urgent requirements — such as active production line shutdowns — contact us directly at +0086 187 5021 5667 for expedited handling and real-time tracking coordination.

Q5: Can this module be used as a direct drop-in replacement for a failed DSQC 224 without reconfiguration?
A: In most cases, yes. Because the DSQC 224 YB560103BE/2 stores channel configuration in the robot controller’s system parameters rather than on the board itself, a replacement board will adopt the existing configuration upon installation. However, if the original board’s firmware version differs from the replacement, a RobotStudio firmware update may be required. Our technical team can advise on version matching based on your controller’s current software revision.

Q6: Do you offer long-term maintenance stock agreements for facilities managing multiple ABB robot systems?
A: Yes. For facilities operating large ABB robot fleets — particularly those relying on S4-generation Legacy Components that are no longer available through ABB’s official channels — we offer Maintenance Stock reservation agreements. These programs guarantee unit availability, lock in pricing against market scarcity, and include priority emergency dispatch. Contact sale@ninermas.com to discuss a customized supply agreement for your facility’s critical spare parts inventory.
