Allen-Bradley 2711-K6C10 Retrofit HMI for Legacy Systems

Allen-Bradley 2711-K6C10 Retrofit HMI for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

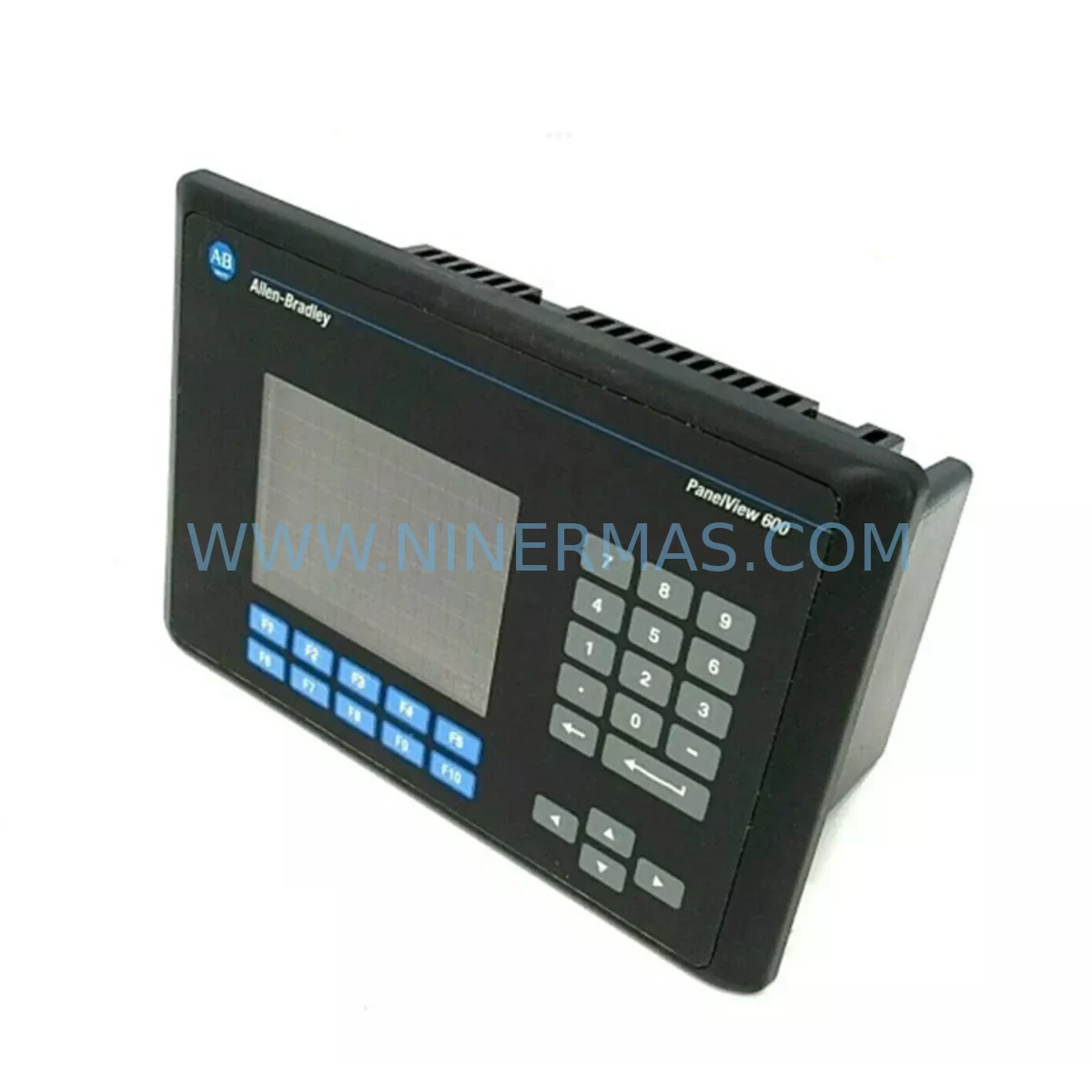

The Allen-Bradley 2711-K6C10 is a PanelView 600 Series C operator terminal designed for industrial human-machine interface (HMI) applications across manufacturing, process control, and discrete automation environments. As legacy control systems age and original equipment manufacturers discontinue support for older platforms, the 2711-K6C10 remains a critical retrofit and replacement component for facilities that need to extend the operational life of their existing control architecture without committing to a full system overhaul.

Whether you are replacing a failed unit on a running production line, upgrading a control cabinet that still relies on DH-485 or RS-232 communication, or sourcing a verified spare to reduce unplanned downtime risk, the 2711-K6C10 provides a direct form-fit-function replacement path. NINERMAS maintains verified inventory of this unit, fully tested prior to shipment and backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 2711-K6C10 into an existing control system requires a structured approach to avoid configuration mismatches and extended downtime. Before removing the failed or obsolete unit, engineers should document the existing terminal address settings, node number on the DH-485 network, and the communication baud rate configured in the original PLC — typically a MicroLogix 1000, MicroLogix 1100, or SLC 500 series controller. These parameters must be replicated exactly in the replacement unit to restore communication without reprogramming the controller side.

Power wiring should be verified against the cabinet’s 24VDC power supply, such as a 1606-XLP or equivalent Allen-Bradley power supply module. Confirm that the supply has sufficient current headroom for the HMI terminal in addition to other loads on the same rail. Terminal block connections — typically a 3-wire arrangement for DC power and chassis ground — should be inspected and re-torqued during the swap to eliminate intermittent faults caused by loose connections on aging wiring.

For facilities running DH-485 networks, the 2711-K6C10 connects directly using a standard 1747-CP3 or equivalent RS-232 to DH-485 cable. If the existing network also includes a 1747-AIC Advanced Interface Converter or a 1761-NET-AIC network interface module, these components should be inspected for wear and replaced proactively during the same maintenance window. Replacing the HMI while leaving degraded network interface hardware in place is a common cause of post-retrofit communication instability.

Where the control system has been partially upgraded and now includes an EtherNet/IP backbone — for example, through a 1756-ENBT or 1756-EN2T communication module in a ControlLogix rack — a protocol gateway may be required to bridge the legacy DH-485 segment to the modern network. In these hybrid environments, the 2711-K6C10 continues to serve as a reliable local operator interface while the broader network migration proceeds in phases.

Application files should be backed up from the original terminal using PanelBuilder32 before the unit is removed. If the original terminal is non-functional and no backup exists, the application may need to be reconstructed from HMI screen printouts, I/O tag lists, and PLC data table documentation. NINERMAS recommends verifying all alarm setpoints, recipe parameters, and screen navigation logic during commissioning before returning the line to production.

For installations where the 2711-K6C10 is being used to replace a monochrome PanelView 600 unit such as the 2711-K6C1, screen color assignments and contrast settings will need to be adjusted in the application file to take advantage of the color display. This is a software-only change and does not affect the underlying tag or communication configuration.

Downtime Control During System Migration

Minimizing production interruption during an HMI replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure the replacement 2711-K6C10 off-line: load the application file, set the node address and baud rate, and verify screen navigation in a bench test environment before the unit reaches the plant floor. When the replacement unit arrives pre-configured, the physical swap — disconnecting power, removing the old terminal, installing the new unit, and reconnecting wiring — can typically be completed in under 30 minutes for a standard panel-mount installation.

Protecting the original program logic in the connected PLC is equally important. The SLC 500 or MicroLogix controller should remain in Run mode throughout the HMI swap wherever process safety permits, since the PLC ladder logic operates independently of the HMI terminal. Loss of the HMI does not interrupt PLC execution, which means the controlled process can continue running in automatic mode while the operator interface is being replaced. This is a key advantage of the distributed architecture used in Allen-Bradley legacy systems and should be communicated clearly to operations personnel before the work begins.

After the replacement unit is installed and powered, the first verification step is confirming that the DH-485 communication link is active and that the HMI is reading live data from the PLC data table. Tag values on the first screen should be compared against known process values or PLC online monitoring to confirm correct address mapping. Any discrepancy in tag values at this stage typically indicates a node address conflict or baud rate mismatch rather than a hardware fault, and can be resolved through the terminal’s configuration menu without removing the unit from the panel.

NINERMAS ships all units with pre-shipment functional testing documentation. This record confirms that the unit powered up correctly, that the display and keypad are fully operational, and that communication ports responded normally during bench testing. This documentation supports your internal commissioning records and quality audit requirements.

Retrofit Support FAQ

Q: Is the 2711-K6C10 a direct drop-in replacement for other PanelView 600 Series C models?
A: The 2711-K6C10 shares the same physical form factor and panel cutout dimensions as other PanelView 600 Series C terminals, including the 2711-K6C1, 2711-K6C2, and 2711-K6C5. The primary difference is the display type (color vs. monochrome). Application files created for monochrome terminals can be loaded onto the 2711-K6C10 with minor color configuration adjustments in PanelBuilder32.

Q: What programming cable and software are required to load an application onto the 2711-K6C10?
A: Application transfer is performed using PanelBuilder32 software and a 2711-NC13 or equivalent serial programming cable connected to the terminal’s RS-232 port. The application file (.PBD format) is downloaded directly from a PC. Ensure the PC has a compatible RS-232 port or use a USB-to-serial adapter with verified driver support.

Q: Does NINERMAS test units before shipment, and what warranty is provided?
A: Yes. Every 2711-K6C10 unit is functionally tested prior to shipment, covering power-on, display operation, keypad response, and communication port functionality. All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly by NINERMAS with priority turnaround to minimize your production impact.

Q: What should I verify on-site before installing the replacement unit?
A: Before installation, confirm the cabinet power supply output voltage (24VDC nominal), available current capacity, terminal block wiring condition, DH-485 node address of the original unit, network baud rate, and the version of the application file to be loaded. Also verify that the panel cutout dimensions match and that the mounting gasket is in good condition to maintain the NEMA 4/12 environmental rating.
