YORK YCAG-003 Retrofit-Compatible Control Board for Legacy Systems

YORK YCAG-003 Retrofit-Compatible Control Board: Legacy System Compatibility and Smooth Upgrade Path

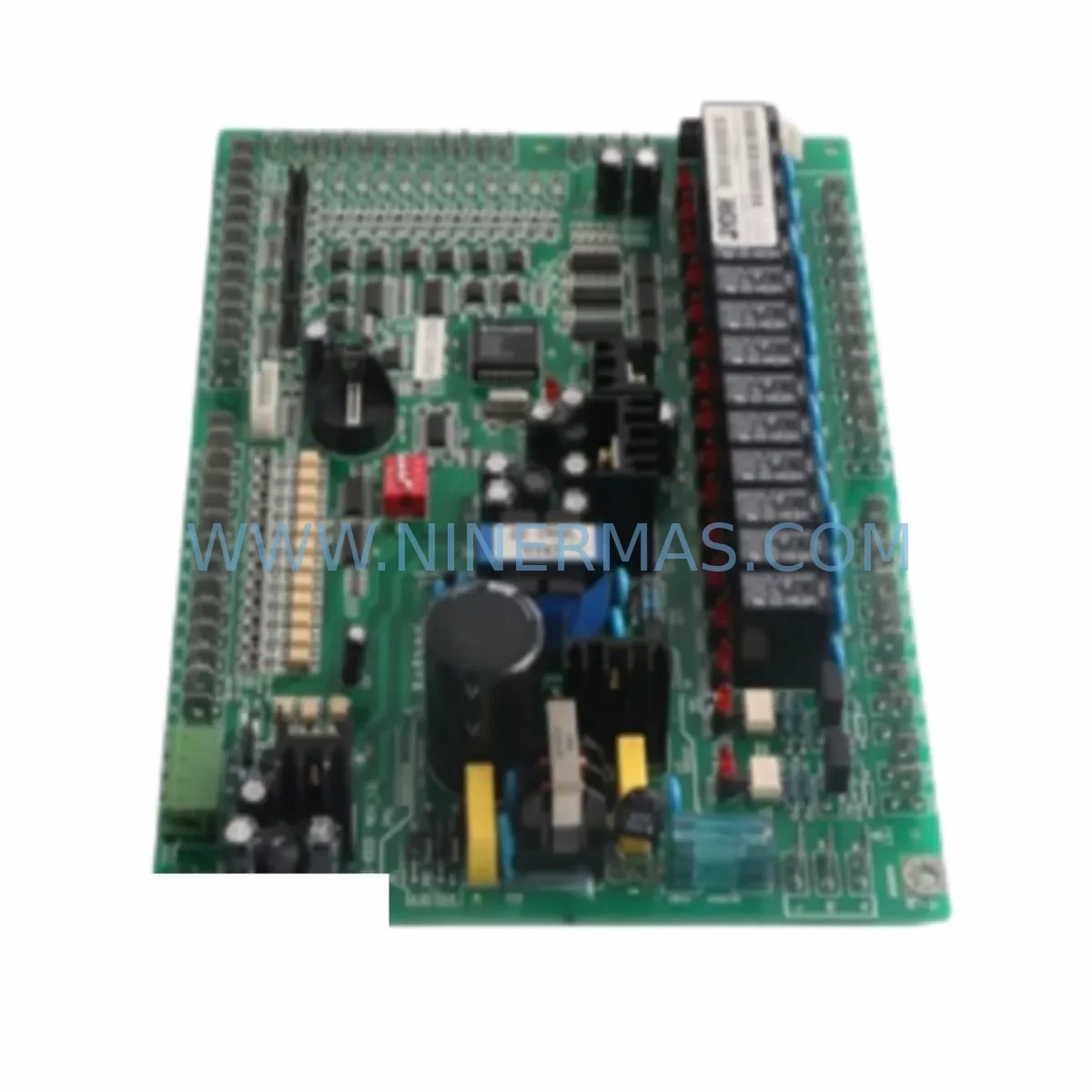

The YORK YCAG-003 is a retrofit-compatible control board engineered to serve as a direct replacement for aging and discontinued YORK HVAC and industrial control systems. As original equipment manufacturers phase out legacy components, facilities managers and maintenance engineers face mounting pressure to source reliable spare parts that preserve existing control logic, wiring infrastructure, and operational continuity. The YCAG-003 addresses this challenge by offering a verified drop-in replacement solution backed by pre-shipment functional testing, a 12-month warranty, and dedicated retrofit support.

Whether you are managing a chiller plant, air handling unit, or a centralized building automation system built on legacy YORK control architecture, the YCAG-003 control board is designed to restore full system functionality without requiring a complete control panel overhaul. This makes it an ideal solution for facilities operating on extended asset lifecycles, where capital expenditure on full system replacement is not justified by operational requirements.

Procurement teams sourcing discontinued YORK spare parts will find the YCAG-003 available from verified inventory, with lead times suitable for both planned maintenance windows and emergency breakdown scenarios. Each unit undergoes bench testing prior to dispatch to confirm signal integrity, power rail stability, and communication link functionality.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the YORK YCAG-003 into an existing control cabinet requires a structured pre-installation assessment. Engineers should begin by auditing the existing control panel layout to confirm available mounting space, backplane slot compatibility, and terminal wiring configuration. In many legacy YORK installations, the control board interfaces directly with a dedicated power supply module that provides regulated 24VDC or 5VDC rails to the logic circuitry. Confirming that the existing power supply module can sustain the load requirements of the replacement board is a critical first step before any physical swap-out is attempted.

Terminal block wiring should be documented in full before disconnecting the original board. In systems where the YCAG-003 interfaces with analog input modules or digital I/O expansion modules, each signal wire must be tagged and its corresponding I/O address recorded. This is particularly important in installations where the control logic references specific channel addresses for temperature sensors, pressure transducers, or actuator feedback signals.

For sites running legacy YORK control systems integrated into a broader building automation network via BACnet MS/TP or Modbus RTU communication links, the communication module configuration must be preserved during the board replacement. Device instance numbers, baud rate settings, and network node addresses should be noted prior to removal of the original board. In some configurations, a dedicated communication gateway or protocol converter may be present between the YORK controller and the supervisory SCADA or BMS platform — these upstream links must remain undisturbed during the retrofit.

Where the existing system includes a local HMI panel or operator interface terminal, screen tag bindings and alarm setpoint configurations should be exported or photographed before the board is replaced. After installation of the YCAG-003, re-commissioning should include a full I/O loop check, verification of all analog signal scaling, and confirmation that the HMI displays are reading correctly from the new board. In systems where a programming cable or USB-to-serial adapter is required to access the controller configuration, ensure the appropriate interface tool is available on-site before the maintenance window begins.

Facilities managing multiple YORK units across a chiller plant or air handling system may also need to coordinate the replacement of related components such as expansion I/O modules, signal isolators, or relay output modules that share the same control cabinet. Sourcing these components in advance as part of a planned spare parts program reduces the risk of secondary failures extending the downtime window beyond the planned maintenance period.

Downtime Control During System Migration

Minimizing downtime during a control board replacement on a live YORK system requires careful pre-planning and a disciplined execution sequence. The most effective approach is to complete all documentation, component verification, and pre-staging activities before the system is taken offline. This includes confirming that the replacement YCAG-003 board has passed pre-shipment testing, that all required tools and interface cables are on-site, and that the engineering team has a current backup of the control program and parameter set.

Where the process or facility cannot tolerate an extended outage, a phased migration strategy may be appropriate. In multi-unit installations, one controller can be taken offline for board replacement while adjacent units maintain process coverage. This approach is particularly effective in chiller plants with redundant cooling capacity or in air handling systems with bypass damper arrangements.

During the physical swap-out, the original control logic should be preserved in its existing form wherever possible. Avoid making parameter changes or setpoint adjustments during the initial commissioning phase — the priority is to restore the system to its pre-failure operating state as quickly as possible. Once the system is confirmed stable, any planned optimizations or setpoint revisions can be implemented during a subsequent scheduled maintenance window.

Post-installation, a structured commissioning checklist should be completed before the system is returned to automatic operation. This includes verifying all I/O signal readings, confirming communication link status with the BMS or SCADA platform, checking alarm and interlock logic, and running the system through a short manual control sequence to confirm actuator response. Documenting the completed commissioning record provides a baseline for future maintenance reference and supports the 12-month warranty claim process if required.

Retrofit Support FAQ

Q1: Is the YORK YCAG-003 a direct drop-in replacement for the original board in my system?
The YCAG-003 is designed as a retrofit-compatible replacement for legacy YORK control systems in the YCAG series. Before installation, confirm that the connector layout, terminal block configuration, and mounting dimensions match your existing panel. If you can provide your system model number or existing board part number, our technical team can assist with compatibility verification prior to order.

Q2: What pre-shipment testing is performed on each unit?
Every YCAG-003 unit undergoes a functional bench test before dispatch. This includes power-on verification, signal rail checks, and communication interface testing where applicable. A test record is available upon request. All units are covered by a 12-month warranty from the date of delivery.

Q3: How do I handle the wiring and I/O address configuration during the board swap?
Document all terminal wiring connections and I/O channel assignments before removing the original board. Photograph or export the HMI tag configuration and record all communication parameters including device address, baud rate, and protocol settings. After installing the YCAG-003, perform a full I/O loop check and verify all signal readings before returning the system to automatic operation.

Q4: What is the lead time and do you hold stock for emergency orders?
We maintain inventory of the YCAG-003 to support both planned maintenance programs and emergency breakdown scenarios. Standard lead times and expedited shipping options are available — contact our team directly for current stock status and delivery timelines to your location.
