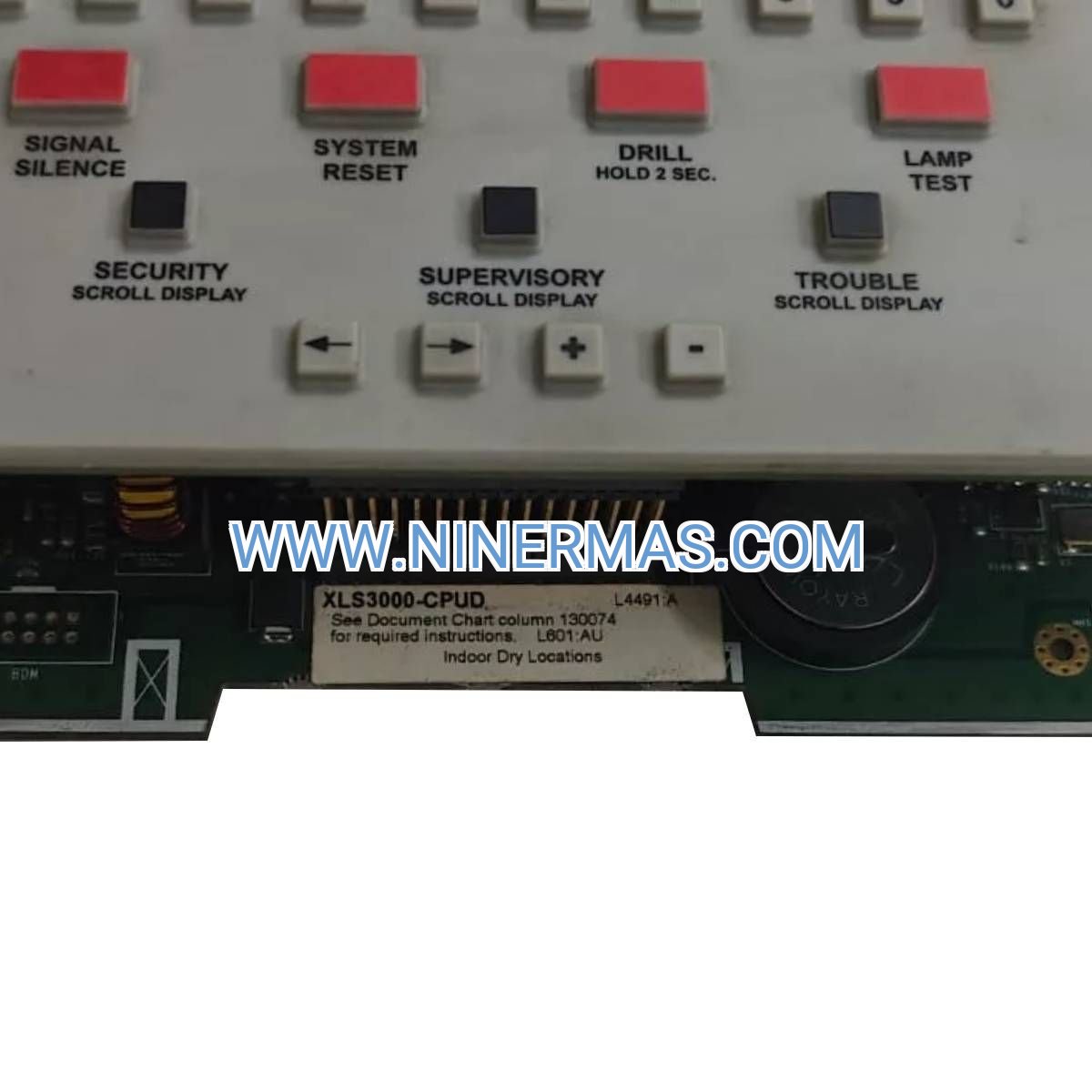

XLS3000-CPUD Addressable Fire Alarm Control Panel (Industrial-Grade Life Safety Platform)

The Honeywell XLS3000-CPUD delivers enterprise-class fire detection and alarm management for facilities demanding maximum scalability and reliability. Engineered as a single-loop foundation that expands to ten independent circuits, this intelligent control platform adapts to evolving safety requirements across commercial towers, manufacturing complexes, and multi-structure campuses.

Designed for safety managers and facility engineers who refuse to compromise on code compliance or operational uptime, the XLS3000-CPUD combines analog sensing intelligence with field-proven hardware architecture. Whether protecting a 50,000 sq ft warehouse today or a 500,000 sq ft campus tomorrow, this panel scales without forklift upgrades.

From initial commissioning through decades of service, the system's self-diagnostic capabilities and network integration options ensure your life safety infrastructure remains audit-ready, maintenance-efficient, and fully coordinated with building automation ecosystems.

Core Capabilities & Business Value

→ Modular Loop Expansion Architecture
Ships as a single-loop controller supporting 159 addressable points; field-upgrade to ten loops (1,590 total devices) without panel replacement. Protects capital investment while accommodating phased construction, tenant build-outs, or facility expansions—eliminating costly rip-and-replace cycles.

✓ Intelligent Analog Sensing Technology
Continuous environmental monitoring distinguishes smoke density, heat rise rates, and combustion signatures from dust, steam, or cooking vapors. Reduces nuisance alarms by 80-90% compared to conventional zones, minimizing evacuation disruptions and maintaining occupant confidence in system integrity.

✓ Predictive Maintenance Diagnostics
Real-time monitoring of detector sensitivity drift, wiring faults, battery health, and communication integrity. Automated alerts flag degrading components before failure, ensuring 24/7 code compliance and reducing emergency service calls by up to 60%.

✓ Multi-Protocol Network Integration
Native support for BACnet IP/MSTP, Modbus RTU/TCP, and proprietary building management protocols. Enables centralized event logging, automated HVAC shutdown sequences, elevator recall coordination, and mass notification system triggering—transforming isolated fire alarm into integrated emergency response.

✓ Distributed Annunciator Network
Supports multiple remote LCD annunciators and graphic workstations across campus environments. Security personnel, facility managers, and first responders access real-time alarm status, device locations, and system health from strategic command points without returning to main panel.

✓ Regulatory Compliance Foundation
UL 864 (10th Edition), UL 2572, FM 3210, NFPA 72 listed and approved. Meets International Building Code (IBC), International Fire Code (IFC), and local AHJ requirements for high-rise, healthcare, educational, and industrial occupancies—simplifying plan review and final inspection processes.

Industry Applications & Problem Resolution

High-Rise Commercial Towers
Office buildings, hotels, and mixed-use developments benefit from floor-by-floor zoning with elevator recall integration and stairwell pressurization coordination. Intelligent detection prevents false alarms during construction punch-list activities while maintaining full protection for occupied floors.

Manufacturing & Warehouse Operations
Industrial facilities with high ceilings, dust generation, or temperature extremes require specialized detection strategies. Multi-criteria sensors and heat detectors interface seamlessly with the XLS3000-CPUD, providing early warning without production-halting false trips. Integration with material handling systems enables automated conveyor shutdown and fire door release.

Healthcare & Institutional Campuses
Hospitals, universities, and government complexes demand 24/7 reliability and coordinated emergency response across multiple buildings. Network-linked XLS3000-CPUD panels create unified monitoring ecosystems where security operations centers track all facilities from centralized workstations, accelerating incident response and simplifying compliance documentation.

Retrofit & Modernization Projects
Aging conventional systems with maintenance backlogs and parts obsolescence transition smoothly to addressable technology. The XLS3000-CPUD's single-loop starting point minimizes initial investment while its expansion capability supports phased migration—critical for occupied facilities unable to sustain full system outages.

Mission-Critical Data Centers
Server farms and telecom facilities require VESDA-compatible inputs, pre-action sprinkler interfaces, and redundant communication paths. The panel's flexible I/O architecture and dual-network capability ensure fire detection integrates with suppression systems, environmental monitoring, and remote NOC alerting without single points of failure.

Technical Parameters & Selection Criteria

Selection Guidance: For facilities under 20,000 sq ft with fewer than 100 detection points, consider conventional zone panels for lower initial cost. The XLS3000-CPUD becomes cost-effective at 150+ devices where addressable technology's reduced wiring labor, pinpoint fault location, and intelligent sensing offset higher equipment pricing. Multi-building campuses benefit immediately from network integration capabilities regardless of device count.

Advanced Integration & Customization

Building Management System Connectivity: Bi-directional communication with Honeywell Enterprise Buildings Integrator (EBI), Tridium Niagara, Johnson Controls Metasys, and Siemens Desigo platforms. Fire alarm events trigger HVAC smoke control sequences, access control lockdowns, and digital signage emergency messaging without custom programming.

Mass Notification Integration: Interface with IP-based emergency communication systems for voice evacuation, outdoor warning sirens, and desktop alerting. Supports NFPA 72 Chapter 24 requirements for combination fire alarm and emergency communications systems in high-occupancy venues.

Custom Reporting & Analytics: Export alarm history, maintenance logs, and system health metrics to facility management databases. Trend analysis identifies high-nuisance zones, predicts component replacement cycles, and documents AHJ inspection compliance for insurance and regulatory audits.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for stock configurations; 10-15 business days for factory-configured multi-loop systems with custom programming.

Comprehensive Warranty: 12-month coverage on all components, including loop cards, power supplies, and communication modules. Advance replacement program minimizes downtime during warranty claims.

Technical Assistance: Pre-sale application engineering reviews system architecture, device placement strategies, and network integration requirements. Post-sale commissioning support includes remote programming assistance, diagnostic troubleshooting, and AHJ inspection preparation.

Documentation Package: Installation manual, programming guide, device compatibility matrix, AutoCAD riser diagrams, and UL/FM certification letters ship with every panel.

Frequently Asked Questions

How does loop expansion work without replacing the main control panel?
The XLS3000-CPUD's modular backplane accepts up to nine additional loop driver cards installed in the field. Each card operates independently, allowing you to add 159-device circuits as building phases complete or tenant spaces activate—protecting your initial investment while avoiding system-wide shutdowns during upgrades.

Which addressable devices are compatible with this fire alarm control system?
All Honeywell FAAST, FlashScan, and legacy XLS-series detectors, pull stations, and modules integrate seamlessly. This includes photoelectric smoke sensors, ionization detectors, multi-criteria (smoke + heat + CO) devices, thermal detectors, manual stations, and monitor/control modules for conventional device interfacing.

Can the panel integrate with our existing building automation platform?
Yes—the XLS3000-CPUD includes Modbus RTU/TCP and BACnet IP/MSTP gateways as standard features. Most major BMS platforms (Honeywell, Johnson Controls, Siemens, Tridium) recognize the panel as a native object, enabling alarm monitoring, system status queries, and coordinated emergency response without middleware servers.

What ongoing maintenance does an addressable fire control panel require?
NFPA 72 mandates annual sensitivity testing, semi-annual battery load tests, and quarterly visual inspections. The XLS3000-CPUD's automated diagnostics streamline compliance by tracking detector drift, logging communication errors, and scheduling preventive maintenance—reducing technician site visits by 40-50% compared to conventional systems requiring manual zone testing.

Is the system suitable for retrofit installations in occupied buildings?
Absolutely—addressable technology reduces wiring by 60-70% versus conventional systems, minimizing ceiling disruption and tenant impact. The single-loop starting configuration allows phased migration where new addressable devices coexist with legacy zones during transition periods, critical for hospitals, data centers, and 24/7 operations unable to sustain full fire alarm outages.

What training is required for facility staff to operate the control panel?
Basic alarm acknowledgment and system reset functions require minimal training (typically 1-2 hours). Advanced programming, device addressing, and network configuration should be performed by NICET-certified fire alarm technicians. We provide operator training documentation and can recommend factory-authorized service providers for ongoing support contracts.

Partner with Industrial Control Hub

Every XLS3000-CPUD system ships factory-tested with complete compliance documentation, installation guides, and technical support access. Our engineering team assists with pre-bid system design, device selection optimization, and integration planning to ensure your life safety infrastructure meets performance requirements and budget constraints.

Whether you're specifying a new construction project, modernizing aging infrastructure, or expanding existing addressable systems, we provide the technical expertise and product availability to keep your project on schedule and code-compliant.

Ready to discuss your fire alarm control requirements? Contact our life safety specialists for application-specific recommendations, system architecture reviews, and competitive project pricing.
