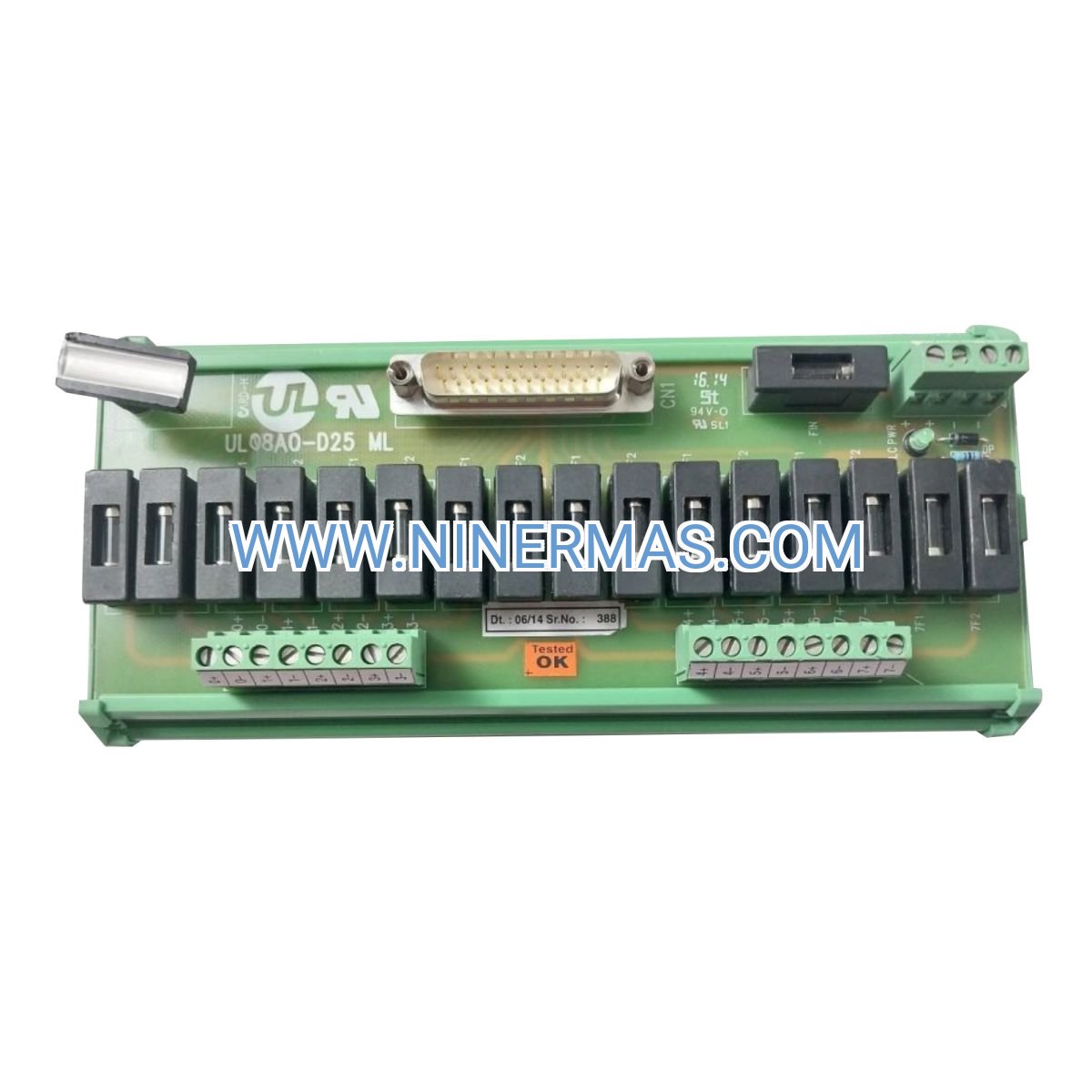

UL08AO-D25-ML 8-Channel Analog Output Module (Industrial-Grade Process Control)

The UL08AO-D25-ML represents Honeywell's advanced solution for multi-channel analog signal distribution in mission-critical industrial environments. This 8-channel current loop transmitter delivers factory-calibrated 4-20 mA outputs with ±0.1% accuracy, purpose-built for Experion PKS and Series C DCS architectures. Engineered to withstand harsh plant conditions while maintaining signal integrity, this module serves as the critical interface between digital control strategies and field instrumentation across process industries.

Designed for automation engineers managing complex distributed control systems, the UL08AO-D25-ML addresses the fundamental challenge of reliable analog signal transmission in electrically noisy industrial settings. Whether you're commissioning new installations or upgrading legacy systems, this module provides the precision and diagnostics required for regulatory compliance and operational excellence.

Key differentiators include hot-swappable architecture for zero-downtime maintenance, channel-to-channel isolation preventing cross-talk, and comprehensive fault diagnostics that accelerate troubleshooting. With CE/UL/CSA certifications and proven compatibility across Honeywell's control platform ecosystem, this module reduces integration risk while future-proofing your automation infrastructure.

Core Features & Benefits

→ Eight Independent 4-20 mA Outputs: Control multiple field devices simultaneously—valves, VFDs, positioners—from a single module slot, reducing cabinet footprint by 60% compared to single-channel solutions while lowering installation costs.

→ ±0.1% Span Accuracy with 12-Bit Resolution: Achieve precise setpoint tracking for critical loops such as reactor temperature control, distillation column reflux ratios, and blending proportions where ±0.5°C stability directly impacts product quality and yield.

→ Galvanic Isolation (Channel-to-Channel & Backplane): Eliminate ground loop interference and protect against voltage transients up to 1500V, ensuring signal reliability in high-EMI environments like motor control centers and switchgear rooms.

→ Hot-Swap Capability: Replace failed modules during operation without halting production—critical for continuous processes in refineries, chemical plants, and power stations where unplanned shutdowns cost $50K-$500K per hour.

✓ Real-Time Diagnostics: LED indicators and DCS-integrated alarms detect open circuits, shorts, and out-of-range conditions within 100ms, reducing mean time to repair (MTTR) from hours to minutes during commissioning and routine maintenance.

✓ Universal I/O Chassis Integration: Mix analog outputs with digital I/O, temperature inputs, and communication modules in the same chassis, optimizing panel space utilization and simplifying spare parts inventory management.

Application Scenarios

Chemical Processing – Batch Reactor Control: In pharmaceutical and specialty chemical manufacturing, the UL08AO-D25-ML drives precision metering pumps and control valves during multi-stage synthesis reactions. The module's fast 100ms update rate enables tight pH control (±0.05 units) and reagent dosing accuracy, preventing batch rejection due to off-spec product while maintaining FDA 21 CFR Part 11 audit trails through DCS integration.

Oil & Gas – Compressor Station Automation: Natural gas pipeline operators deploy this module to regulate anti-surge valves, fuel gas control valves, and lube oil cooler bypasses on centrifugal compressors. Isolated outputs prevent electrical noise from VFD drives from corrupting control signals, ensuring compressor protection systems respond within API 617 safety margins during surge events.

Power Generation – Boiler Combustion Optimization: Coal-fired and combined-cycle plants use the UL08AO-D25-ML to modulate forced draft fans, induced draft fans, and fuel flow control valves. Precise air-fuel ratio control (±2% O₂ setpoint) reduces NOₓ emissions by 15-20% while improving thermal efficiency by 1.5-2%, translating to $200K+ annual fuel savings for a 500MW unit.

Water Treatment – Chlorination & pH Adjustment: Municipal water utilities control chemical feed pumps for disinfection and corrosion control with this module. The 4-20 mA outputs maintain residual chlorine levels between 0.2-0.8 ppm as mandated by EPA regulations, while pH control (6.5-8.5 range) prevents distribution system corrosion and lead leaching.

Food & Beverage – Pasteurization Temperature Control: Dairy and juice processors regulate steam control valves in HTST pasteurizers using the module's accurate outputs. Maintaining ±0.5°C temperature uniformity ensures pathogen destruction (5-log reduction) while preserving nutritional quality and flavor profiles, meeting USDA and FDA safety standards.

Technical Parameters & Selection Guide

Selection Criteria: Choose the UL08AO-D25-ML when your application requires multiple analog outputs within a compact footprint and your DCS platform is Honeywell Experion PKS (R400/R500/R511) or Series C. For applications needing voltage outputs (0-10V) or HART communication, consider the UL08AO-D25-VL or HART-enabled variants. Verify loop impedance calculations using Honeywell's Loop Design Tool to ensure cable distances remain within the 750Ω load limit—typically 1000 meters with 18 AWG shielded twisted pair.

Extended Functions

Advanced Diagnostics Integration: The module reports channel health status to the DCS via backplane communication, enabling predictive maintenance strategies. Trend deviations in output current versus commanded setpoint to detect valve stiction, positioner drift, or wiring degradation before process upsets occur.

Redundancy Support: Deploy in fault-tolerant configurations with redundant controllers and I/O chassis for SIL 2/3 safety instrumented systems. Automatic failover occurs within 50ms when primary controller or module fails, maintaining process control continuity.

Calibration Management: Factory calibration certificates traceable to NIST standards are included. Field recalibration intervals extend to 24-36 months due to stable DAC technology, reducing maintenance costs compared to 12-month intervals typical of older analog output cards.

Delivery & Service

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations (special voltage ranges, conformal coating for harsh environments) require 4-6 weeks manufacturing lead time.

Warranty: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranties (24/36 months) available for critical applications.

Technical Support: Access to Honeywell-certified application engineers for configuration assistance, loop troubleshooting, and system integration guidance. Remote diagnostic support available via secure VPN connections.

Documentation Package: Each module includes installation manual, wiring diagrams, calibration certificate, and configuration files for Experion Control Builder. CAD drawings (DWG/PDF) and 3D STEP models available for panel design.

Frequently Asked Questions

Q: What is the maximum cable distance for 4-20 mA loops with this analog output module?
A: The UL08AO-D25-ML supports cable runs up to 1000 meters (3280 feet) when using 18 AWG shielded twisted pair cable, provided total loop resistance (cable + field device) remains below 750Ω. For longer distances, use 16 AWG cable or consider HART-enabled variants with built-in loop diagnostics.

Q: Can I hot-swap this module during live operation without disrupting other I/O channels?
A: Yes, the Universal I/O chassis design allows hot-swapping of the UL08AO-D25-ML without powering down the chassis or affecting adjacent modules. The DCS automatically detects module removal/insertion and resumes control within 2 seconds. Ensure proper ESD precautions during handling.

Q: How does this module handle open circuit or short circuit fault conditions?
A: Built-in diagnostics detect open circuits (>22 mA), short circuits (<3.6 mA), and out-of-range conditions within 100ms. Configurable alarms in the DCS trigger operator notifications or automatic control strategy transitions (e.g., valve fail-safe positioning). LED indicators on the module faceplate provide local fault indication.

Q: Is the UL08AO-D25-ML compatible with third-party DCS platforms or only Honeywell systems?
A: This module is specifically designed for Honeywell Experion PKS and Series C DCS platforms, utilizing proprietary backplane communication protocols. For integration with third-party DCS (ABB, Emerson, Siemens), consider Honeywell's Universal I/O Gateway or standalone analog output modules with Modbus/Profibus interfaces.

Q: What energy efficiency improvements can I expect compared to older analog output cards?
A: The UL08AO-D25-ML consumes 5W versus 8-12W for legacy modules, reducing cabinet heat load by 40-60%. Lower power dissipation extends module lifespan and reduces HVAC requirements in control rooms—a 100-module system saves approximately 500W continuous load, equivalent to $400-600 annual energy cost reduction.

Q: Does this module support remote configuration and firmware updates?
A: Yes, configuration changes and firmware updates deploy through Experion Control Builder software via the DCS network. No physical access to the module required for parameter adjustments, enabling centralized management of distributed I/O across multiple plant locations.

Take the Next Step

Ready to enhance your process control reliability with precision analog outputs? Contact our industrial automation specialists for application-specific guidance, system integration support, and competitive pricing on the UL08AO-D25-ML. Request a detailed quotation including recommended accessories, spare parts, and commissioning services tailored to your project requirements.
