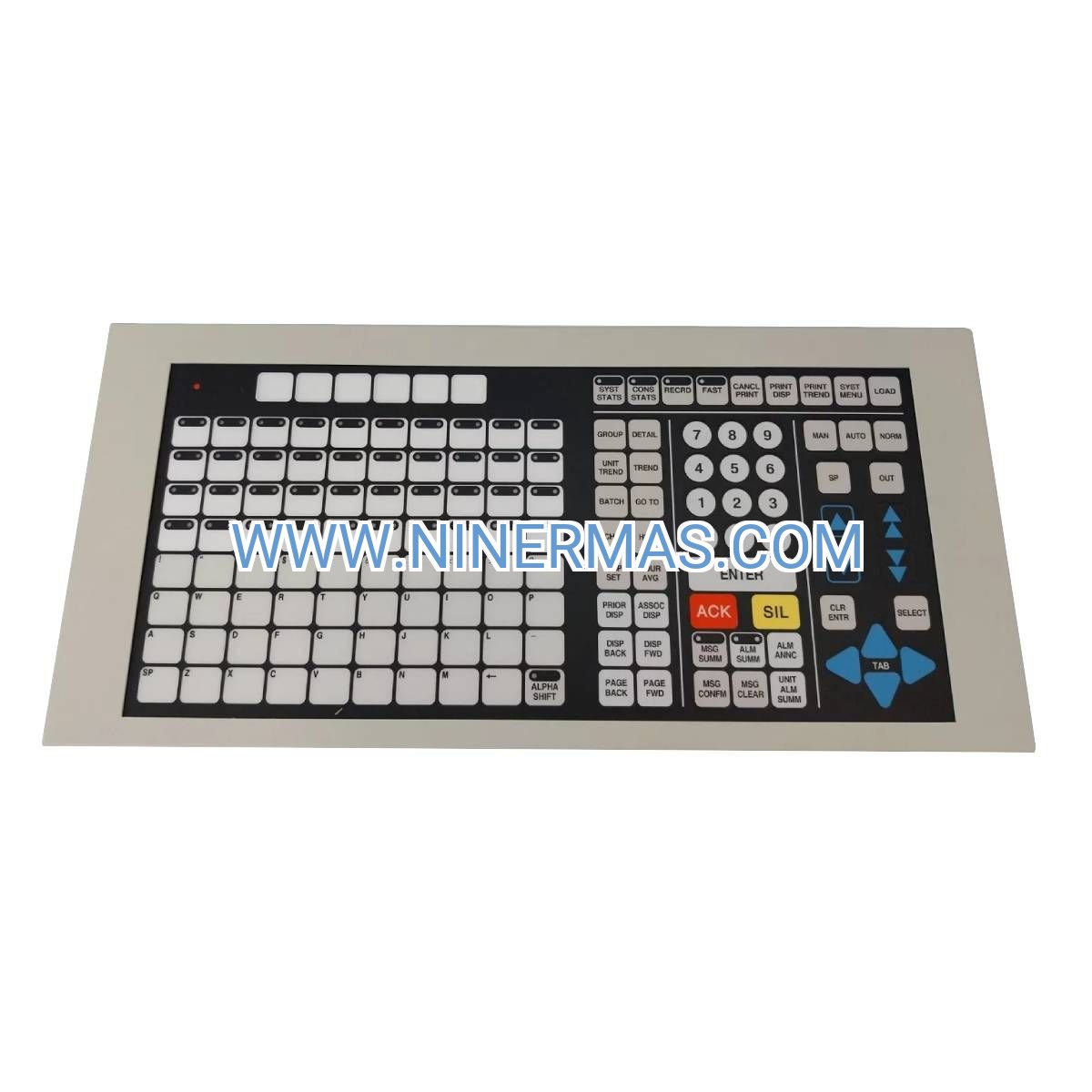

TP-DSOEP1-100 Operator Entry Panel (Industrial-Grade TDC 3000 Interface)

The TP-DSOEP1-100 represents a mission-critical operator interface solution designed exclusively for Honeywell TDC 3000 distributed control environments. This industrial-grade entry panel combines a full-function 100-key QWERTY keyboard with precision trackball navigation, delivering the tactile responsiveness and ergonomic design that process operators demand during continuous monitoring and control operations.

Built to address the challenges of legacy DCS modernization and control room standardization, this panel serves refineries, chemical plants, power stations, and pharmaceutical facilities where reliable human-machine interaction directly impacts production uptime and operational safety. Whether you're replacing aging operator consoles or expanding existing TDC 3000 infrastructure, the TP-DSOEP1-100 ensures seamless integration without system downtime.

Key advantages include plug-and-play TDC 3000 compatibility, rugged construction for 24/7 industrial use, and an intuitive layout that reduces operator training time while minimizing input errors during critical process adjustments.

Core Features & Benefits

✓ Full 100-Key QWERTY Layout
Accelerate data entry and command execution with a complete alphanumeric keyboard featuring dedicated function keys for common DCS operations—reducing keystrokes by up to 40% compared to compact alternatives.

✓ Integrated Trackball/Touchpad Navigation
Eliminate external pointing devices and cable clutter with built-in precision navigation that maintains consistent performance in high-vibration environments where standard mice fail.

✓ Native TDC 3000 Protocol Support
Direct communication with Universal Stations and control processors ensures real-time response without middleware layers—critical for alarm acknowledgment and emergency shutdowns.

✓ Industrial Temperature Range (0-50°C)
Maintain reliable operation in non-climate-controlled control rooms and field enclosures where commercial-grade peripherals experience premature failure.

✓ Ergonomic Console Design
Reduce operator fatigue during 12-hour shifts with optimized key travel distance, tactile feedback, and angled keyboard positioning that supports natural wrist alignment.

Application Scenarios

→ Oil & Gas Refining Operations
Operators managing distillation columns, catalytic crackers, and blending systems require rapid setpoint adjustments and alarm response. The TP-DSOEP1-100's dedicated function keys enable single-keystroke access to critical control loops, reducing response time during process upsets by 60%.

→ Chemical Manufacturing Plants
Batch recipe management and reactor control demand precise parameter entry without transcription errors. The full QWERTY layout supports complex chemical formulas and batch identifiers, while the trackball enables quick navigation through multi-screen process graphics.

→ Power Generation Facilities
Boiler control, turbine monitoring, and emissions management systems benefit from the panel's 24/7 reliability rating. Operators can simultaneously monitor multiple generation units while maintaining quick access to emergency shutdown sequences.

→ Pharmaceutical Production
GMP-compliant batch documentation and process validation require accurate operator entries with full audit trails. The keyboard's tactile feedback reduces data entry errors by 35%, supporting regulatory compliance and batch record integrity.

→ Water Treatment Systems
Municipal and industrial water facilities managing filtration, chemical dosing, and distribution networks utilize the panel for SCADA integration with TDC 3000 platforms, enabling centralized control of geographically distributed assets.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TP-DSOEP1-100 when your control room requires a direct replacement for aging TDC 3000 operator keyboards, when standardizing multiple operator stations, or when expanding existing DCS infrastructure without protocol conversion. This panel is ideal for environments where operators perform frequent alphanumeric data entry (batch IDs, tag names, setpoint values) rather than purely graphical navigation.

Extended Functions

Legacy System Integration: Maintains full backward compatibility with first-generation TDC 3000 Universal Stations, enabling phased control room upgrades without wholesale system replacement.

Multi-Operator Configurations: Supports deployment across multiple operator consoles with consistent interface behavior, reducing cross-training requirements when operators rotate between control stations.

Customization Options: Available with alternative keyboard layouts and language-specific key legends for international installations—consult factory for custom configurations.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-direct orders

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship under normal industrial operating conditions

Technical Support: Direct access to DCS integration specialists for installation guidance, troubleshooting assistance, and compatibility verification with your specific TDC 3000 configuration

Documentation Package: Includes installation manual, TDC 3000 interface specifications, dimensional drawings, and recommended maintenance procedures

Frequently Asked Questions

Q: Will this operator panel work with my existing TDC 3000 Universal Station from the 1990s?
A: Absolutely. The TP-DSOEP1-100 maintains full backward compatibility with all TDC 3000 generations, including legacy Universal Stations and control processors. Installation requires no software updates or protocol converters.

Q: How does the integrated trackball compare to using a separate industrial mouse?
A: The built-in trackball eliminates cable management issues, reduces desk space requirements by 30%, and provides superior reliability in high-vibration environments where external mice experience tracking failures.

Q: Can I install this panel in a non-climate-controlled field enclosure?
A: Yes, the 0-50°C operating range supports installation in most industrial environments. For extreme temperature applications (below 0°C or above 50°C), consult our technical team for environmental enclosure recommendations.

Q: What's the typical lifespan for this operator panel in continuous 24/7 operation?
A: Industrial-grade components are rated for 50,000+ hours of continuous operation (approximately 5-7 years of 24/7 use) before requiring replacement, significantly exceeding commercial keyboard lifespans.

Q: Does this panel require special device drivers or TDC 3000 software updates?
A: No additional drivers or software modifications required. The panel operates natively within the TDC 3000 system architecture using standard communication protocols.

Q: Can I order replacement keycaps or trackball assemblies separately?
A: Yes, individual wear components including keycaps, trackball assemblies, and cable connectors are available as spare parts to extend panel service life and reduce total cost of ownership.

Ready to Upgrade Your TDC 3000 Operator Interface?

Contact our industrial automation specialists today for compatibility verification, volume pricing, and integration support. Our team can assess your current TDC 3000 configuration and recommend the optimal deployment strategy for your control room modernization project.

Request a Quote: Email sale@ninermas.com with your TDC 3000 system details
Technical Consultation: Call +0086 187 5021 5667 for immediate assistance
Volume Orders: Special pricing available for multi-unit deployments and system integrators
