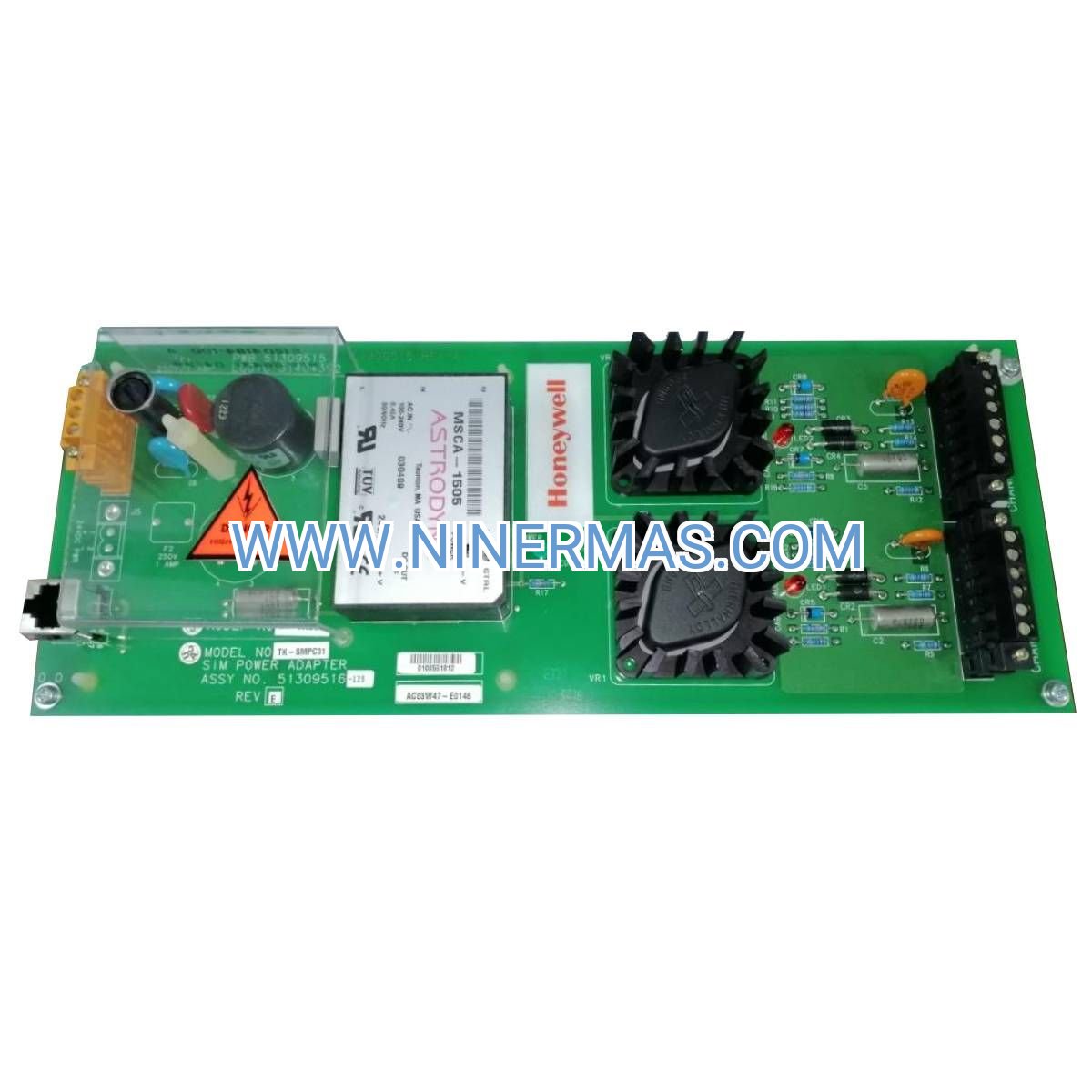

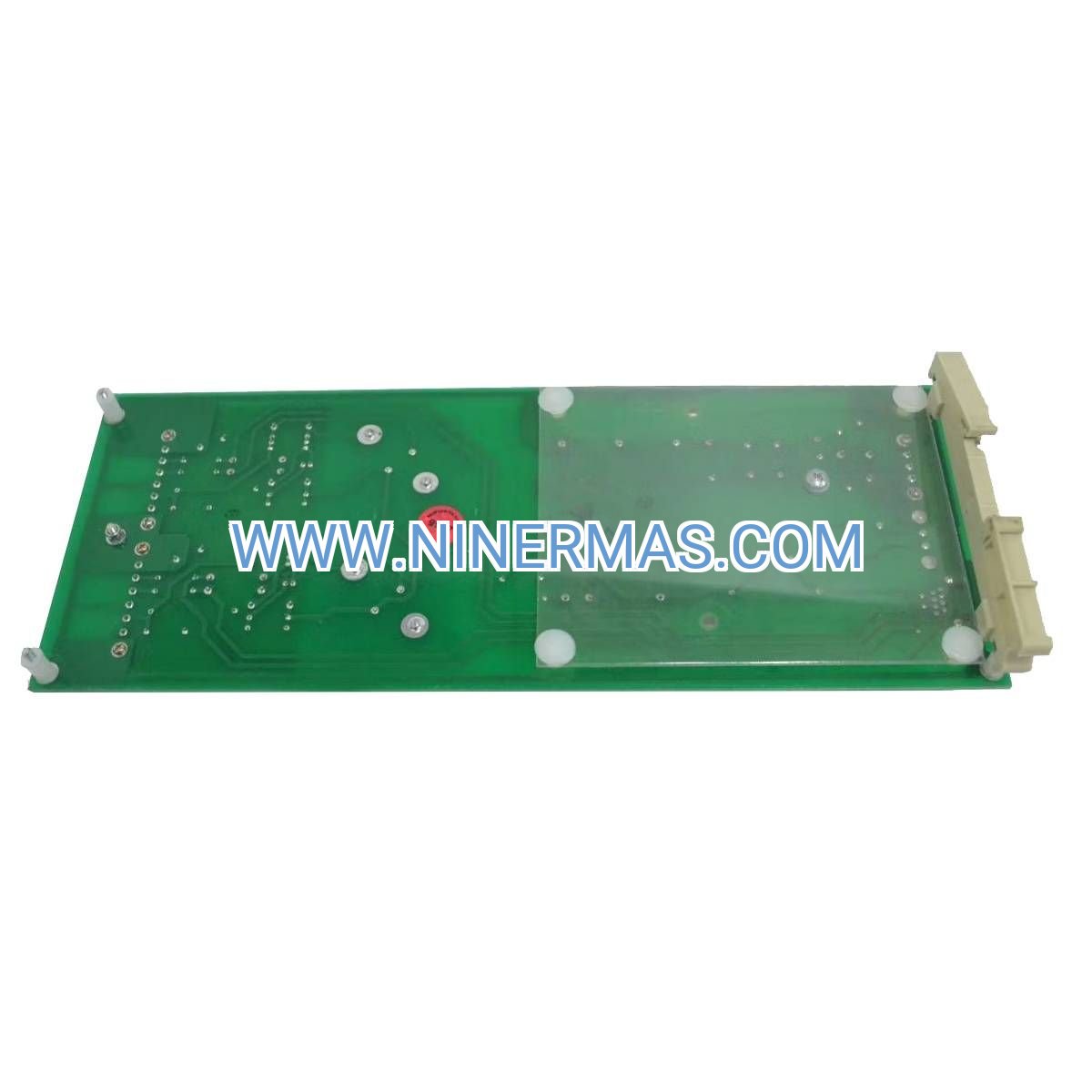

TK-SMPC01 Industrial-Grade Power Supply Module

The TK-SMPC01 represents a critical infrastructure component for mission-critical distributed control environments. Engineered to deliver unwavering 24VDC regulated power from universal AC mains, this compact DIN-rail adapter ensures your Experion PKS and TDC 3000 automation networks maintain operational continuity across voltage fluctuations, temperature extremes, and demanding industrial conditions.

Designed for system integrators and plant engineers who demand zero-compromise reliability, the TK-SMPC01 combines wide-range input acceptance (85-265VAC) with intelligent protection circuitry. Whether you're powering field I/O racks, controller modules, or safety-rated barriers, this power adapter provides the stable, noise-free DC foundation your automation architecture requires.

With proven compatibility across Honeywell's C200, C300, and legacy TDC platforms, the TK-SMPC01 simplifies retrofit projects while future-proofing new installations. Its industrial-grade construction withstands harsh environments from Arctic facilities to tropical processing plants, delivering consistent performance where commercial-grade supplies fail.

Core Features & Benefits

→ Universal Input Voltage Range (85-265VAC)
Eliminates the need for voltage-specific models across global installations. Automatically adapts to regional power grids while maintaining stable output during brownouts and voltage sags—reducing unplanned shutdowns by up to 40% compared to narrow-range supplies.

→ Regulated 24VDC Output at 2.5A
Provides clean, ripple-free DC power essential for precision analog I/O and sensitive controller logic. The tight voltage regulation (±2%) prevents measurement drift and ensures consistent PLC operation across varying load conditions.

→ Extended Temperature Performance (-40°C to +70°C)
Operates reliably in unheated control cabinets, outdoor enclosures, and high-ambient process areas without derating. This 110°C operational window eliminates costly climate control requirements in remote installations.

✓ Multi-Layer Protection Architecture
Integrated overvoltage, overcurrent, and short-circuit protection safeguards downstream equipment during fault conditions. Automatic recovery reduces maintenance calls and extends system lifespan by preventing cascade failures.

✓ High Efficiency Design (≥85%)
Minimizes heat generation and energy waste, reducing cooling loads in densely packed control panels. Lower operating temperatures translate to extended component life and improved MTBF ratings.

✓ Tool-Free DIN Rail Mounting
Snap-on installation accelerates commissioning and simplifies hot-swap replacements during maintenance windows. Standard 35mm DIN rail compatibility ensures drop-in integration with existing infrastructure.

Application Scenarios

Oil & Gas Production Facilities
In offshore platforms and remote wellhead installations, the TK-SMPC01 powers distributed I/O modules monitoring flow rates, pressure transmitters, and emergency shutdown systems. Its wide voltage tolerance handles generator-sourced power with frequent fluctuations, while the extended temperature rating supports unheated analyzer shelters in Arctic climates. Result: 99.7% uptime for critical safety instrumented systems.

Chemical Process Automation
Batch control systems require stable power for recipe management controllers and precision dosing modules. The TK-SMPC01 supplies clean DC to analog input cards measuring pH, conductivity, and temperature—eliminating noise-induced measurement errors that compromise product quality. Facilities report 15% reduction in off-spec batches after upgrading to regulated power supplies.

Power Generation & Substations
Turbine control systems and SCADA networks depend on uninterrupted power for real-time monitoring and protective relay coordination. The TK-SMPC01's overvoltage protection shields sensitive electronics during grid transients, while its compact footprint maximizes space in crowded relay panels. Utilities achieve 30% faster commissioning versus traditional rack-mount supplies.

Water Treatment Plants
Municipal and industrial wastewater systems use the TK-SMPC01 to power PLC-based SCADA networks controlling pumps, valves, and chemical feed systems. The adapter's corrosion-resistant construction and sealed design withstand high-humidity environments, reducing replacement frequency by 50% compared to commercial-grade units.

Manufacturing & Assembly Lines
Automated production lines integrate the TK-SMPC01 to power motion controllers, vision systems, and safety light curtains. Its fast transient response maintains stable voltage during motor start-up surges, preventing nuisance faults that halt production. Manufacturers document 8-12 hours of additional uptime monthly after implementing regulated power distribution.

Technical Parameters & Selection Guide

Selection Criteria:

• Calculate total DC load: Sum current draw of all connected modules (I/O cards, controllers, barriers)
• Apply 20% derating factor: For 2.5A supply, limit continuous load to 2.0A maximum
• Consider redundancy: Deploy dual TK-SMPC01 units with diode-OR configuration for critical systems
• Verify ambient temperature: Ensure panel cooling maintains <60°C for optimal lifespan
• Check input voltage stability: If mains voltage varies >±15%, consider upstream UPS or voltage regulator

Extended Functions

Redundant Power Architectures
Pair two TK-SMPC01 modules with diode isolation for N+1 redundancy in safety-critical applications. Each supply operates at 50% capacity, providing automatic failover if one unit fails. This configuration is standard practice for SIL 2/3 safety instrumented systems.

Remote Monitoring Integration
While the TK-SMPC01 lacks built-in diagnostics, integrate with external power monitors (e.g., Phoenix Contact EMpro series) to track voltage, current, and temperature via Modbus RTU. This enables predictive maintenance alerts before supply degradation impacts operations.

Customization Options
For OEM applications requiring modified output voltages (12VDC, 48VDC) or conformal coating for marine/offshore use, contact our engineering team. Minimum order quantities apply for custom configurations.

Delivery & Service Assurance

Lead Times:

• Standard Stock Items: 3-5 business days via express courier
• Bulk Orders (10+ units): 7-10 business days with volume pricing
• Custom Configurations: 4-6 weeks depending on specification complexity

Warranty Coverage:
Every TK-SMPC01 includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs (24/36 months) available for critical infrastructure projects.

Technical Support:
Our certified automation engineers provide complimentary pre-sales consultation for system design, load calculations, and compatibility verification. Post-purchase support includes installation guidance, troubleshooting assistance, and rapid-response RMA processing.

Documentation Package:
Each unit ships with installation manual, wiring diagrams, CE/UL certificates, and calibration test reports. CAD drawings (DWG/STEP formats) and 3D models available for panel design integration.

Frequently Asked Questions

What is the maximum cable length between the TK-SMPC01 and powered devices?
For 24VDC distribution, limit cable runs to 50 meters using 18 AWG wire to maintain voltage drop below 5%. For longer distances, use 16 AWG or 14 AWG conductors, or deploy additional power supplies closer to the load.

Can this power adapter handle inrush current from capacitive loads?
Yes, the TK-SMPC01 tolerates brief inrush currents up to 150% of rated output (3.75A) for 5 seconds during system startup. For loads with sustained high inrush (contactors, solenoids), add external inrush limiters or stagger power-up sequences.

How does the TK-SMPC01 perform in high-vibration environments?
The unit is tested to IEC 60068-2-6 vibration standards (10-150Hz, 2G acceleration) suitable for most industrial applications. For severe vibration (mobile equipment, reciprocating compressors), specify shock-mount DIN rail or potted electronics versions.

Is the output isolated from the input?
Yes, the TK-SMPC01 features galvanic isolation rated at 3kVAC between input and output circuits. This isolation prevents ground loops and protects sensitive DC circuits from AC-side transients and noise.

What happens during a short circuit on the output?
The integrated short-circuit protection limits output current to safe levels and automatically attempts to restart every 2-3 seconds. Once the fault is cleared, normal operation resumes without manual intervention. For permanent faults, the supply enters hiccup mode to prevent thermal damage.

Can I parallel multiple TK-SMPC01 units to increase current capacity?
Direct paralleling is not recommended due to potential current-sharing imbalances. For loads exceeding 2.5A, specify higher-capacity models or implement diode-OR redundant configurations where each supply operates independently.

Ready to Secure Your Power Infrastructure?

Don't let unreliable power compromise your automation uptime. The TK-SMPC01 delivers industrial-grade performance at a competitive price point, backed by expert technical support and fast global shipping.

Next Steps:

• Add to cart for immediate checkout with volume discounts on 5+ units
• Contact our engineering team at sale@ninermas.com for system design consultation
• Request a formal quotation for project-specific quantities and delivery schedules
• Download technical datasheets and CAD models from our resource library
