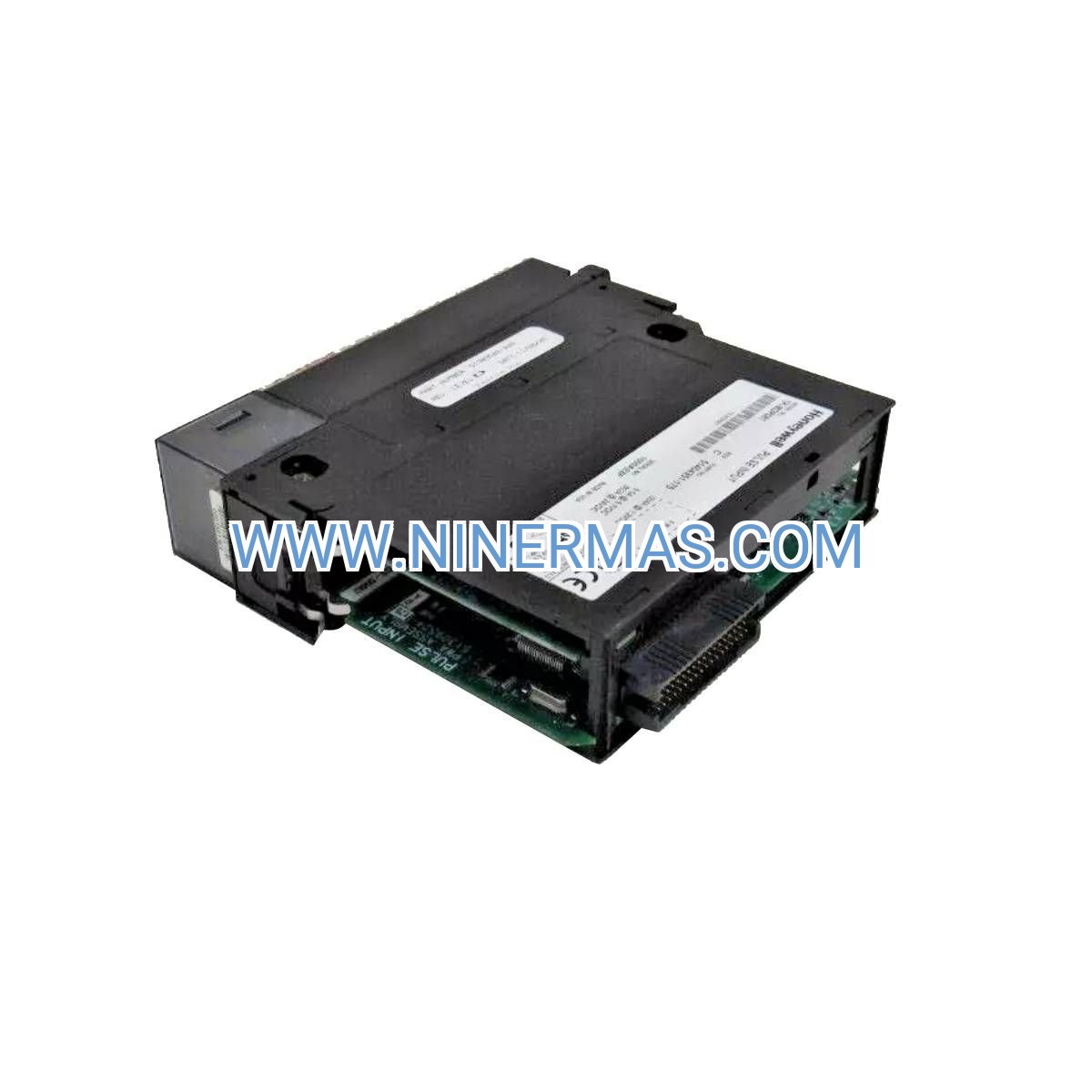

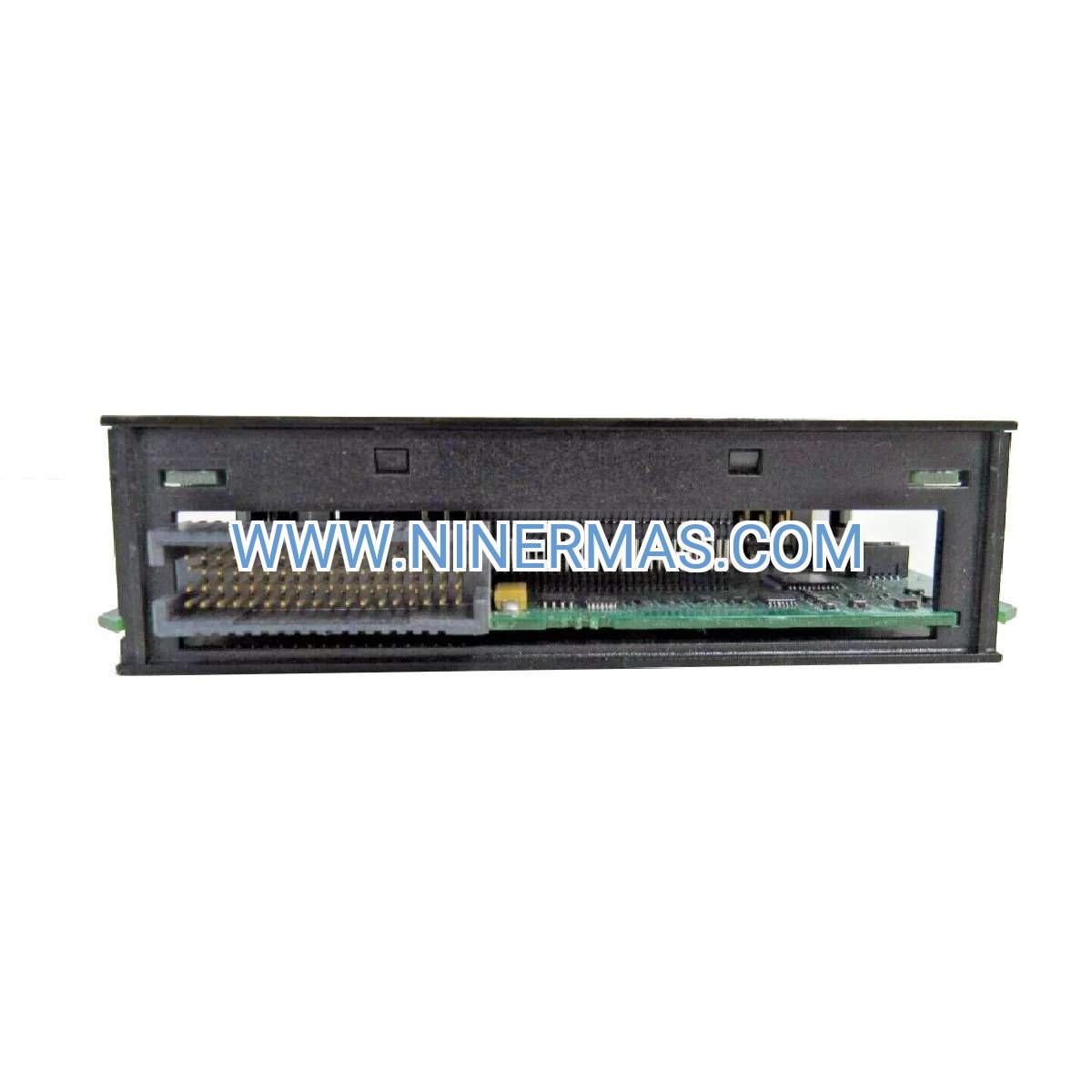

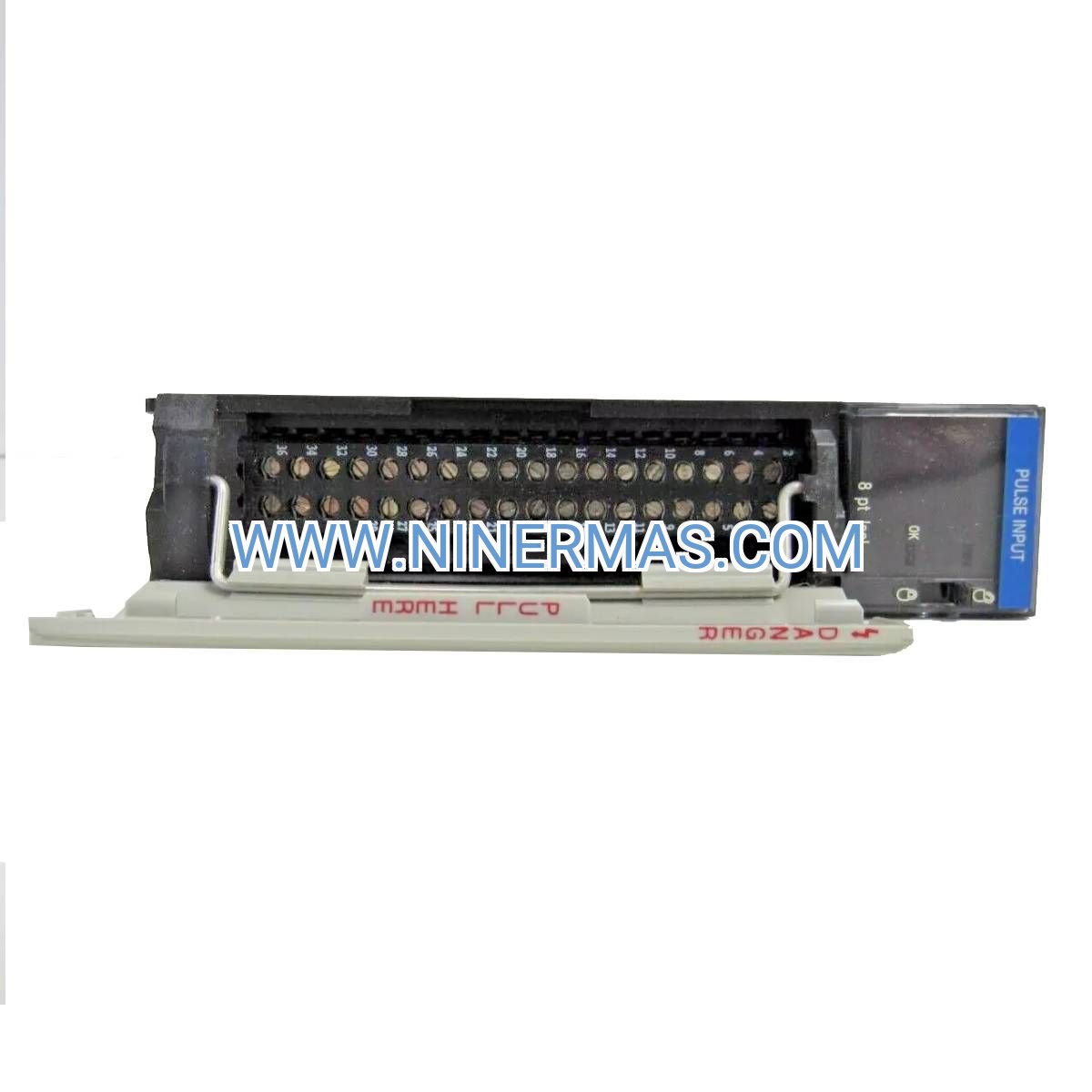

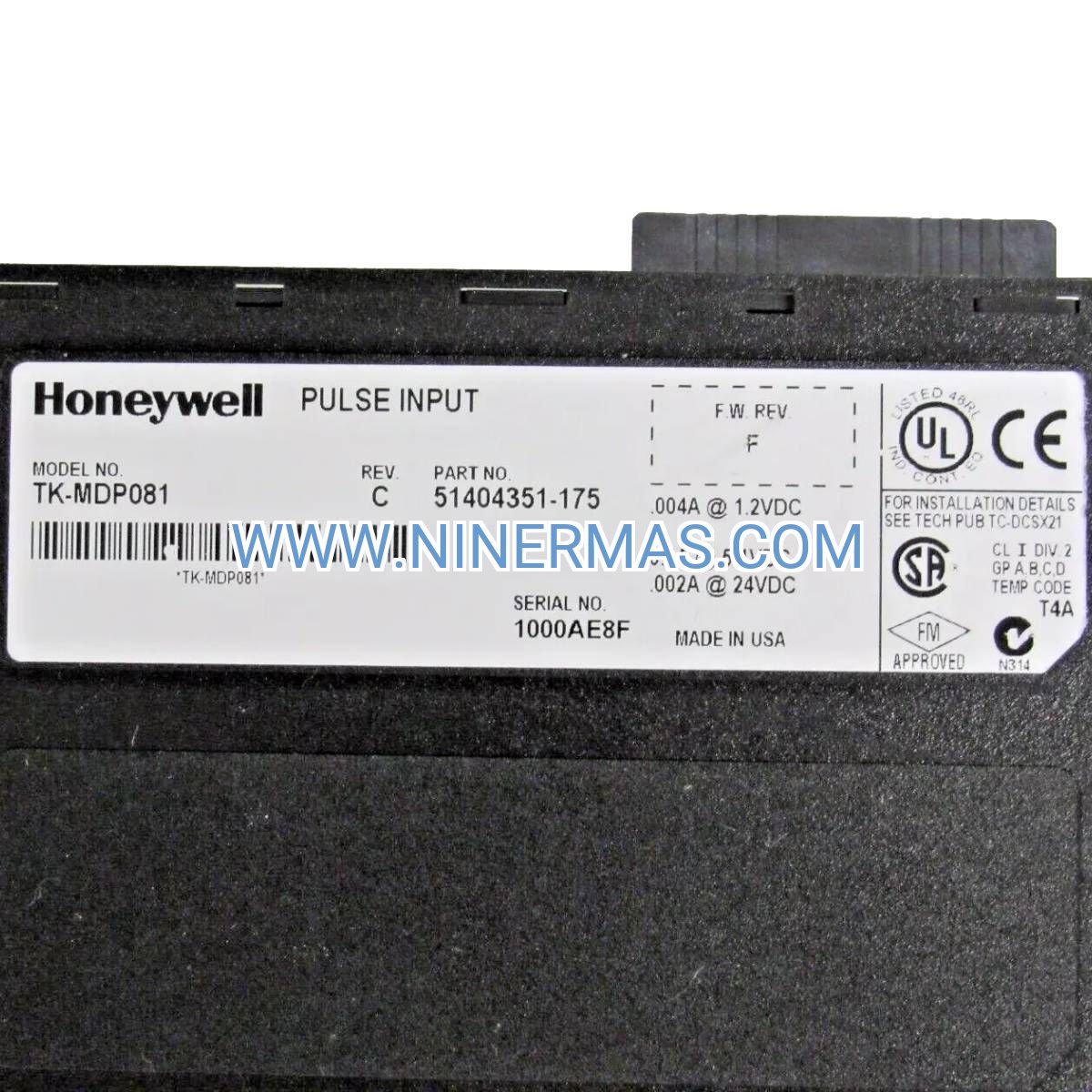

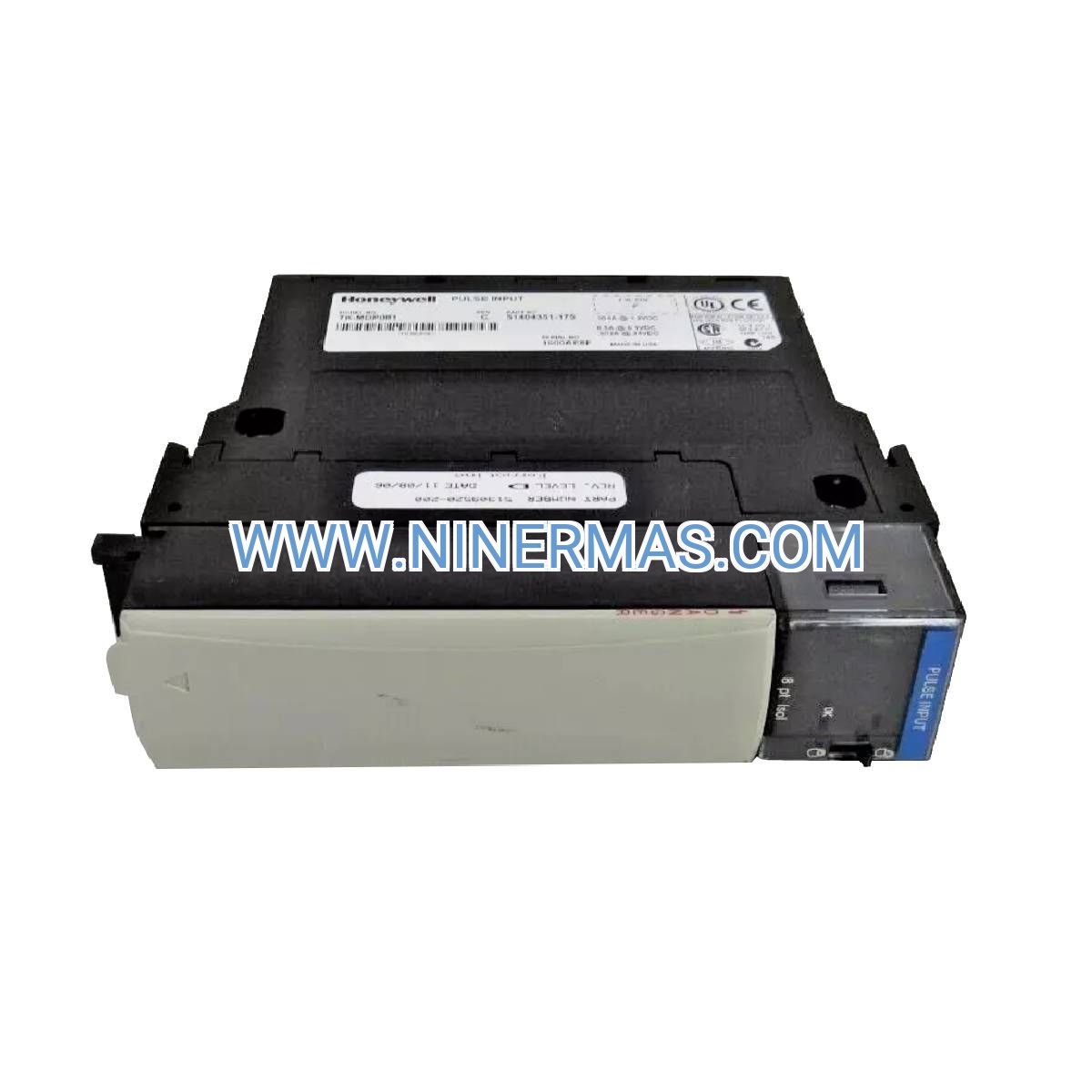

TK-MDP081 High-Speed Pulse I/O Module (Industrial-Grade Counting & Control)

The TK-MDP081 is a precision-engineered pulse input/output module designed for high-reliability industrial automation systems. Built for Honeywell C200 and C300 distributed control platforms, this module delivers accurate pulse counting, totalizing, and output control across eight optically isolated input channels and two robust output channels. Whether you're monitoring flow meters, tracking production events, or controlling batch processes, the TK-MDP081 provides the speed, isolation, and durability required in demanding process environments.

Process engineers and automation specialists rely on the TK-MDP081 to solve critical measurement and control challenges: eliminating ground loop interference through 1500V optical isolation, capturing high-speed pulses up to 10kHz without data loss, and driving actuators with 500mA per output channel. This module transforms raw pulse signals into actionable data for SCADA systems, historians, and control logic, enabling real-time decision-making and regulatory compliance in custody transfer, energy management, and production monitoring applications.

With proven compatibility across Honeywell's Experion PKS and C300 ecosystems, the TK-MDP081 integrates seamlessly into existing DCS architectures while supporting future expansion. Its DIN-rail mounting, wide operating temperature range (-40°C to +70°C), and hot-swap capability ensure minimal downtime during installation and maintenance.

Core Features & Benefits

→ 8 Optically Isolated Pulse Inputs
Capture signals from turbine meters, encoders, proximity sensors, and utility meters with complete electrical isolation. Each channel handles 0-10kHz frequencies, protecting sensitive control systems from voltage spikes and ground loops while maintaining measurement accuracy.

→ Dual High-Current Pulse Outputs (500mA Each)
Drive solenoid valves, indicator lamps, and relay coils directly without external amplifiers. Configurable pulse width, frequency, and duty cycle enable precise control of downstream devices in batch sequencing and alarm annunciation.

→ 1500V DC Isolation Protection
Safeguard controller backplanes from field-side electrical faults. Optical isolation prevents damage from lightning strikes, motor starter transients, and wiring errors, reducing unplanned shutdowns and maintenance costs.

✓ Wide Temperature Operation (-40°C to +70°C)
Deploy in extreme environments including outdoor enclosures, boiler rooms, and refrigerated facilities. Industrial-grade components ensure reliable operation across temperature extremes without derating or calibration drift.

✓ DIN-Rail Mounting & Hot-Swap Support
Install in standard 35mm DIN-rail enclosures for space-efficient panel layouts. Hot-swap capability with redundant power supplies allows module replacement during operation, maintaining process continuity in 24/7 facilities.

✓ Low Power Consumption (5W Typical)
Minimize heat generation in densely populated I/O racks. Efficient power design reduces cooling requirements and extends power supply capacity for additional modules.

Typical Application Scenarios

Flow Measurement & Custody Transfer
Interface with turbine meters, positive displacement meters, and Coriolis flowmeters to totalize liquid and gas volumes. The TK-MDP081's high-frequency inputs capture every pulse for accurate billing, inventory reconciliation, and regulatory reporting in oil & gas, chemical processing, and water treatment facilities. Optical isolation ensures measurement integrity even in electrically noisy pump stations.

Production Monitoring & OEE Tracking
Count discrete events from photoelectric sensors, inductive proximity switches, and mechanical counters on packaging lines, assembly stations, and material handling systems. Real-time pulse data feeds MES and SCADA platforms for cycle time analysis, downtime tracking, and overall equipment effectiveness (OEE) calculations, enabling data-driven continuous improvement.

Energy Management & Utility Metering
Process pulse outputs from electric, gas, water, and steam meters to monitor consumption patterns and implement demand response strategies. Totalized values integrate with building management systems (BMS) for cost allocation, carbon footprint reporting, and LEED certification compliance.

Batch Control & Recipe Management
Trigger ingredient additions, valve sequencing, and phase transitions based on accumulated pulse counts. The TK-MDP081's outputs activate pneumatic valves and motor starters in precise timing sequences, ensuring recipe consistency and reducing material waste in food & beverage, pharmaceutical, and specialty chemical production.

Conveyor Positioning & Speed Control
Track encoder feedback from conveyor drives, sortation systems, and robotic pick-and-place units. High-speed inputs support positioning accuracy down to individual product units, while outputs provide setpoint signals to variable frequency drives (VFDs) for coordinated multi-zone control.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TK-MDP081 when your application requires pulse counting frequencies up to 10kHz with electrical isolation. For lower-speed applications (under 1kHz), standard digital input modules may suffice. If you need more than 8 input channels, plan for multiple TK-MDP081 modules or consider higher-density alternatives. Verify that your existing Honeywell controller supports the required number of I/O modules before ordering.

Extended Functions

Advanced Pulse Processing: Configure input channels for totalizing, rate calculation, or frequency measurement through Honeywell Station software. Set up alarm thresholds for high/low flow conditions, implement pulse-width filtering to reject noise, and enable diagnostic counters for troubleshooting intermittent sensor issues.

Output Pulse Generation: Program output channels to generate fixed-frequency pulses for downstream totalizers, create variable-duty-cycle signals for proportional valve control, or trigger one-shot pulses for event acknowledgment. Output parameters adjust dynamically based on control logic without module reconfiguration.

Redundancy & Failover: Deploy in redundant controller configurations for high-availability applications. The TK-MDP081 supports automatic failover with bumpless transfer, maintaining pulse counts and output states during controller switchovers in critical infrastructure and continuous process industries.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom configurations and bulk orders (10+ modules) ship within 7-10 business days. Expedited shipping available for emergency replacements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement and return shipping for confirmed failures. Extended warranty plans available for up to 36 months.

Technical Support: Access to application engineers for configuration assistance, wiring diagrams, and troubleshooting guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8). Emergency support for critical process issues available 24/7.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration examples, and dimensional drawings. Downloadable resources include CAD files for panel layout, sample control logic, and integration guides for common flowmeter brands.

Frequently Asked Questions

What is the maximum pulse input frequency supported by the TK-MDP081 module?
Each of the 8 input channels independently supports pulse frequencies from 0 to 10 kHz, making it suitable for most industrial turbine flowmeters, encoders, and utility meters. For applications requiring higher frequencies (above 10 kHz), consult our technical team for high-speed counter alternatives or signal conditioning solutions.

Can I use the TK-MDP081 with non-Honeywell control systems like Allen-Bradley or Siemens?
No, the TK-MDP081 uses a proprietary communication protocol designed exclusively for Honeywell C200 and C300 controllers. For integration with Allen-Bradley ControlLogix systems, consider the 1794-IP4/B pulse counter module. Siemens users should evaluate the SM 1281 pulse counter module for similar functionality.

How do I wire sensors to the optically isolated pulse inputs?
The TK-MDP081 accepts dry contact closures, NPN transistor outputs (sinking), and PNP transistor outputs (sourcing) within the 5-30V DC range. Each input includes current limiting and reverse polarity protection. Detailed wiring diagrams for common sensor types (2-wire, 3-wire NPN, 3-wire PNP) are provided in the installation manual and available for download from our technical library.

What output current capacity do the pulse output channels provide?
Each of the 2 output channels can sink up to 500mA at voltages up to 30V DC, sufficient to drive most industrial solenoid valves, indicator lamps, and relay coils directly. For loads exceeding 500mA, use external relay modules or solid-state switches. Outputs are short-circuit protected and include diagnostic feedback for open-load detection.

Is the module suitable for hazardous area installations?
The standard TK-MDP081 is designed for general industrial environments and does not carry intrinsic safety (IS) or explosion-proof certifications. For Class I Division 2 or ATEX Zone 2 applications, install the module in a purged enclosure or consult Honeywell for IS-barrier configurations. Certified intrinsically safe pulse input modules are available as separate product lines.

Can I replace the TK-MDP081 module without shutting down the entire control system?
Yes, when configured with redundant power supplies, the TK-MDP081 supports hot-swap replacement. The module can be removed and installed while the controller remains operational, minimizing process disruption. Pulse counts and configuration parameters are stored in the controller and automatically restored upon module insertion. Always follow lockout/tagout procedures and verify redundant power status before attempting hot-swap operations.

Ready to Optimize Your Pulse Counting Applications?

Contact our automation specialists today for application-specific recommendations, system integration support, and volume pricing. Whether you're upgrading legacy systems or designing new installations, the TK-MDP081 delivers the precision and reliability your process demands.
