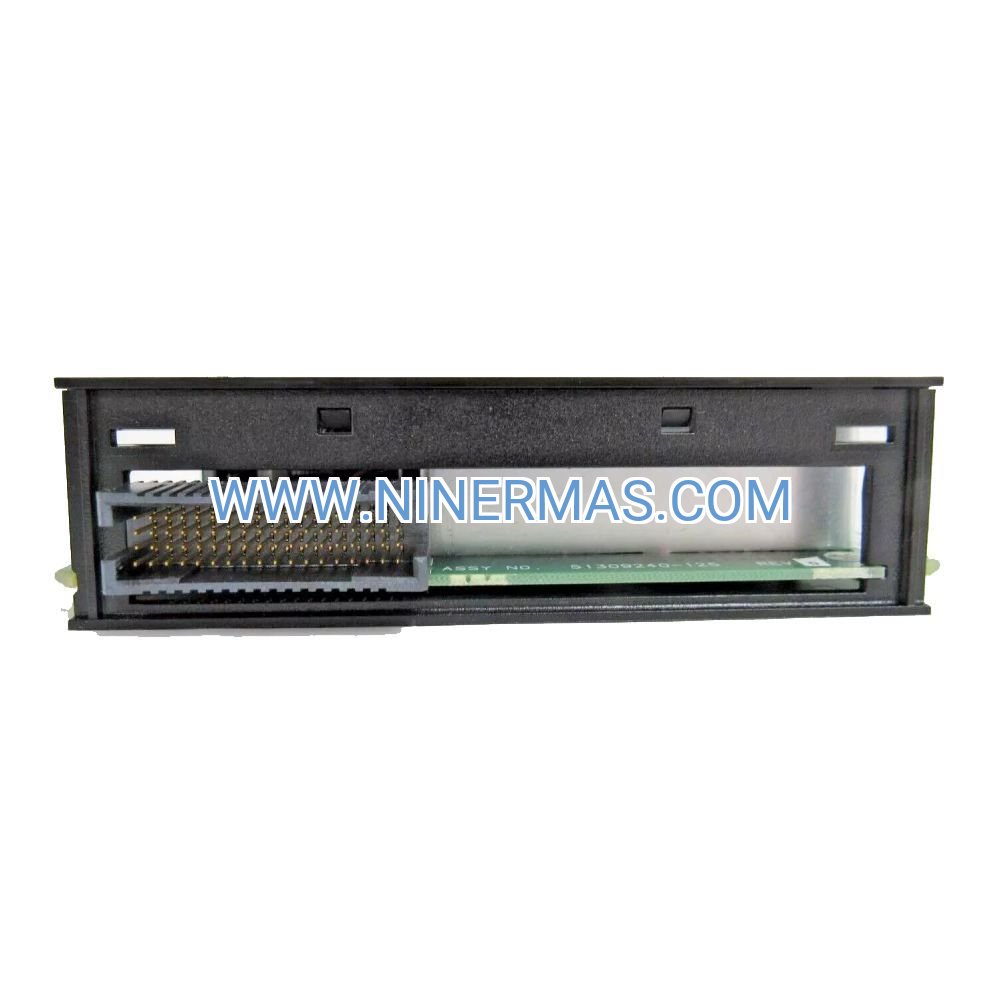

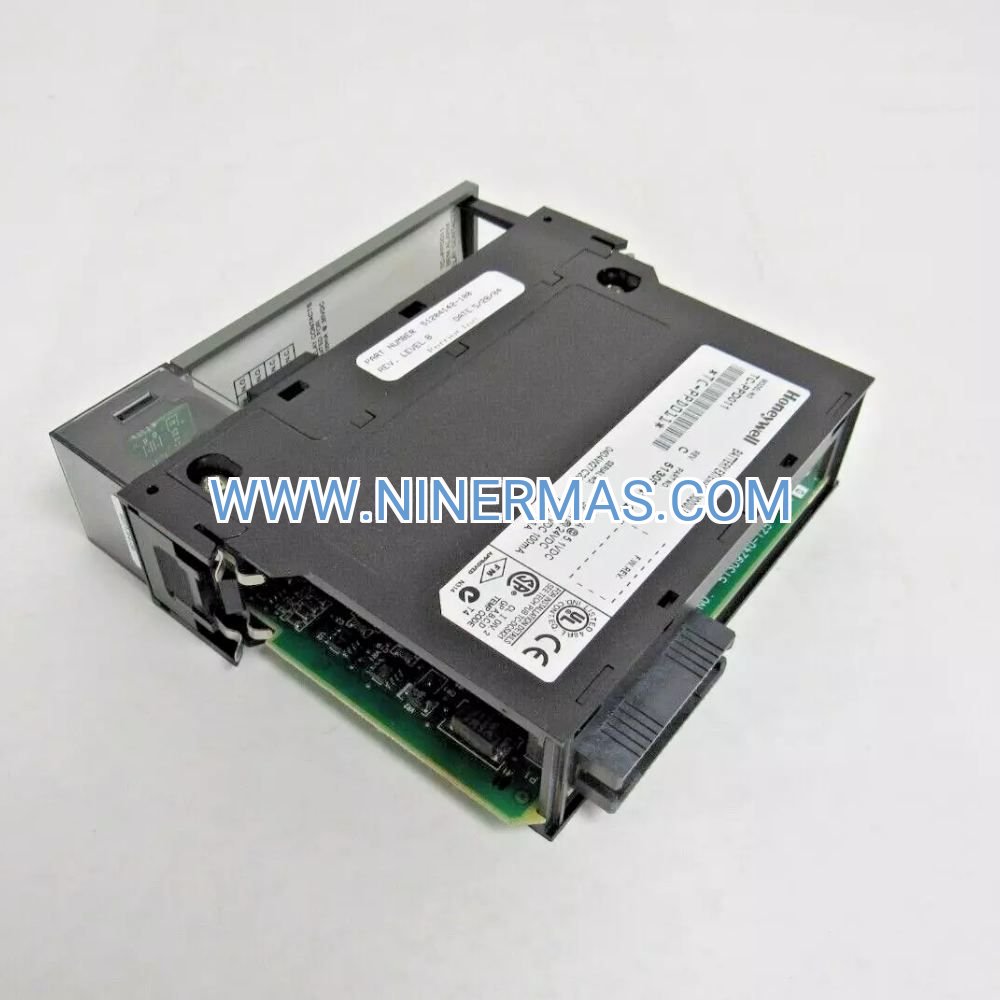

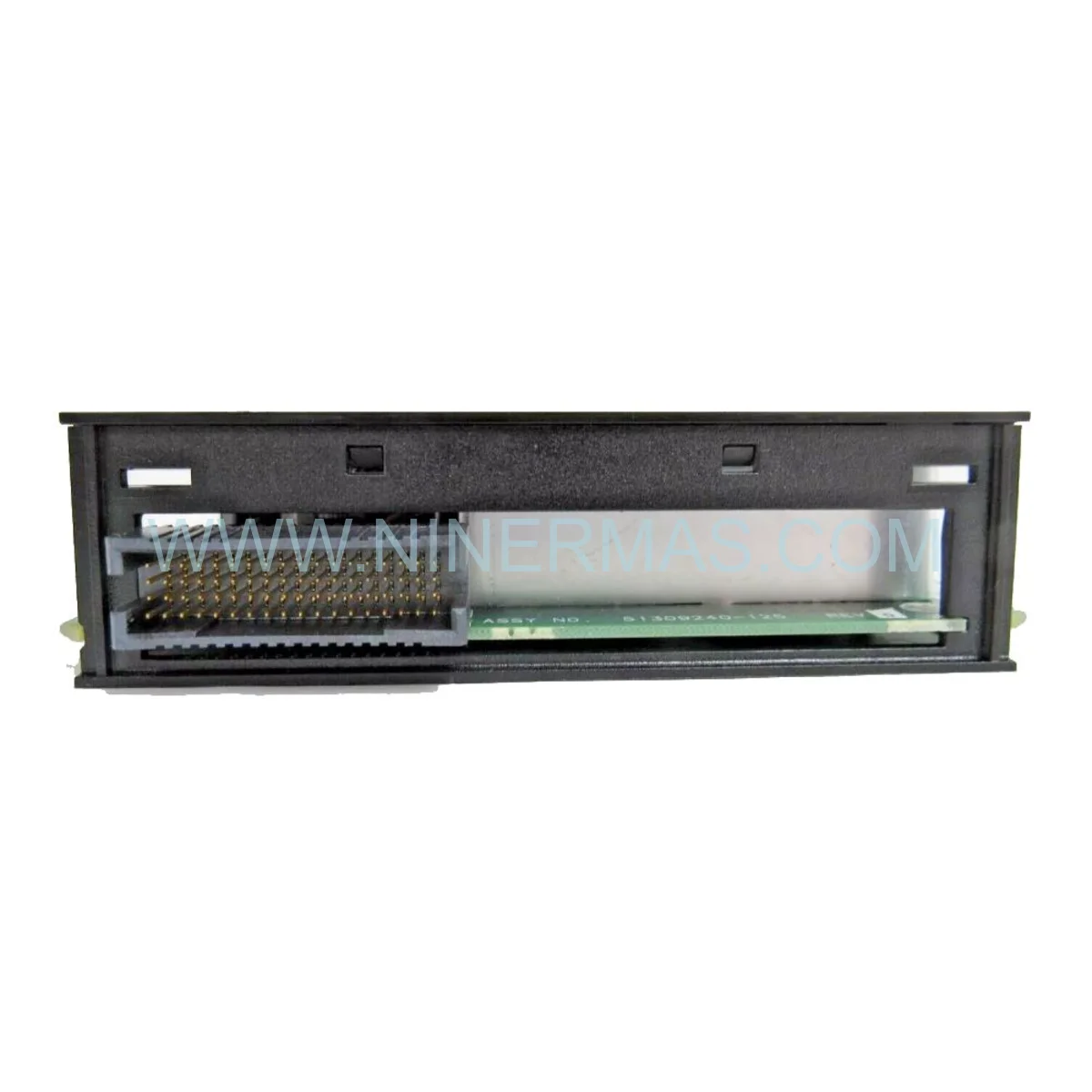

TC-PPD011 Battery Extension Module (Industrial-Grade 16-Channel Analog Input Solution)

The TC-PPD011 (P/N: 51309241-125) represents a professional-grade battery extension module engineered for demanding industrial process control environments. This precision analog input interface delivers 16 independent differential channels with 16-bit resolution, specifically designed for low-level millivolt signal acquisition in Honeywell C200 and C300 distributed control systems.

Built for mission-critical applications where measurement accuracy directly impacts product quality and operational safety, this module processes thermocouple, RTD, and transmitter signals with exceptional linearity and noise immunity. Whether you're monitoring reactor temperatures, tracking vibration signatures, or measuring pressure differentials, the TC-PPD011 provides the signal fidelity required for advanced process optimization.

Ideal for process engineers, instrumentation technicians, and control system integrators seeking reliable, high-density analog I/O expansion for existing Honeywell DCS installations. Contact our technical team today for application-specific configuration guidance and volume pricing.

Core Capabilities & Technical Advantages

✓ Precision Signal Acquisition Architecture
16-bit analog-to-digital conversion delivers 0.0015% resolution across 0-10mV and 0-20mV input ranges, enabling detection of subtle process variations that standard 12-bit modules miss. Differential input topology rejects common-mode noise up to 120VAC, ensuring clean data even in electrically noisy industrial environments.

✓ High-Density I/O Integration
Sixteen independent input channels in a compact DIN-rail form factor reduce panel space requirements by 40% compared to legacy 8-channel designs. Each channel features individual software-configurable scaling, filtering, and alarm thresholds for maximum application flexibility.

✓ Industrial-Hardened Construction
Compression-style screw terminals accommodate 14-22 AWG field wiring with vibration-resistant connections rated for 0.6 Nm torque. Conformal coating options available for corrosive atmosphere protection in chemical processing and offshore applications.

✓ Seamless DCS Integration
Plug-and-play compatibility with Experion PKS and TDC 3000 platforms via standard I/O link protocol. Auto-discovery and hot-swap capability minimize commissioning time and enable online maintenance without system shutdown.

→ Extended Operating Range
Qualified for continuous operation from 0°C to 60°C (32°F to 140°F) with <0.01% drift per °C. Suitable for non-climate-controlled enclosures in power generation, mining, and heavy manufacturing facilities.

→ Diagnostic Intelligence
Built-in channel health monitoring detects open circuits, short circuits, and out-of-range conditions with millisecond response. Front-panel LED indicators provide at-a-glance status for rapid troubleshooting during commissioning and maintenance.

Industry Applications & Use Cases

Chemical & Petrochemical Processing
In polymerization reactors and distillation columns, the TC-PPD011 monitors multi-zone temperature profiles with ±0.1°C accuracy, enabling precise control of exothermic reactions and separation efficiency. Operators achieve tighter product specifications while reducing energy consumption by 8-12% through optimized heat management.

Power Generation & Cogeneration
Turbine bearing temperature monitoring, boiler drum level measurement, and condenser vacuum sensing rely on the module's ability to process low-level signals from thermocouples and pressure transmitters. Integration with redundant controller architectures ensures continuous operation during planned maintenance and fault conditions.

Pharmaceutical Manufacturing
Batch reactor temperature control, lyophilizer chamber monitoring, and clean-in-place (CIP) system verification demand the TC-PPD011's validated performance in 21 CFR Part 11 compliant environments. Audit trail capabilities and electronic signature support facilitate regulatory inspections and quality assurance documentation.

Food & Beverage Production
Pasteurization temperature profiling, fermentation vessel monitoring, and cold storage surveillance benefit from the module's ability to interface with sanitary RTD sensors and hygienic pressure transmitters. HACCP-compliant data logging ensures traceability for food safety programs.

Water & Wastewater Treatment
Municipal treatment plants deploy the TC-PPD011 for pH measurement, chlorine residual monitoring, and turbidity sensing across primary, secondary, and tertiary treatment stages. Multi-channel capacity reduces cabinet complexity while improving system reliability through reduced interconnection points.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the TC-PPD011 when your application requires high-resolution measurement of low-level millivolt signals with minimal noise interference. For higher-level 4-20mA or 0-10VDC signals, consider alternative analog input modules optimized for those ranges. Verify compatibility with your specific C200/C300 controller firmware revision before ordering.

Advanced Features & Customization Options

IoT Connectivity & Remote Monitoring
When paired with Honeywell's Experion PKS gateway modules, the TC-PPD011 enables secure cloud data streaming for predictive maintenance analytics and remote diagnostics. OPC UA server integration supports third-party SCADA platforms and enterprise MES/ERP systems.

Redundancy & Fault Tolerance
While the standard TC-PPD011 does not support hardware redundancy, dual-module configurations with software-based failover provide enhanced availability for critical measurement points. Consult our application engineers for redundant architecture design guidance.

Hazardous Area Deployment
For Class I Division 2 installations, the TC-PPD011 can be mounted in purged enclosures with appropriate certification documentation. Intrinsically safe barrier interfaces enable connection to field devices in Zone 1/Division 1 areas.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (express shipping available)
Custom Configuration: 10-15 business days for factory-programmed modules with specific channel scaling
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime phone and email support for configuration, troubleshooting, and upgrade planning
Documentation Package: Installation manual, wiring diagrams, Control Builder configuration files, and calibration certificates included

Frequently Asked Questions

Can the TC-PPD011 battery extension module interface with non-Honeywell controllers?
This module is purpose-built for Honeywell C200 and C300 DCS platforms using proprietary I/O link communication. For multi-vendor integration, protocol converters or universal analog input modules may be required.

What is the maximum recommended cable length for millivolt signal wiring?
For optimal signal integrity with 0-10mV inputs, limit field wiring to 100 meters (330 feet) using shielded twisted-pair cable with proper shield grounding at the module end only. Longer runs may require in-line signal conditioners or transmitters.

Does each channel support independent signal range configuration?
Yes, all 16 channels can be individually configured for either 0-10mV or 0-20mV ranges via Control Builder software. This flexibility allows mixed sensor types on a single module.

How do I troubleshoot intermittent channel readings?
Use the module's built-in diagnostics to check for open circuits, grounding issues, or electromagnetic interference. Verify shield continuity, inspect terminal connections for corrosion, and confirm proper sensor excitation voltage. Our technical support team can assist with advanced diagnostics via remote session.

Is the TC-PPD011 suitable for safety-instrumented systems (SIS)?
This module is designed for basic process control applications and is not SIL-rated for safety functions. For SIS applications, specify Honeywell's Safety Manager-certified I/O modules with appropriate safety integrity level documentation.

What preventive maintenance is recommended for long-term reliability?
Perform annual terminal tightness checks, verify calibration against known reference sources, and inspect for dust accumulation or corrosion. Firmware updates should be applied per Honeywell's release notes to address known issues and add functionality.

Request a Quote & Technical Consultation

Our industrial automation specialists are ready to assist with TC-PPD011 selection, system integration planning, and volume pricing for multi-module projects. Contact us today to discuss your specific application requirements and receive a detailed proposal within 24 hours.
