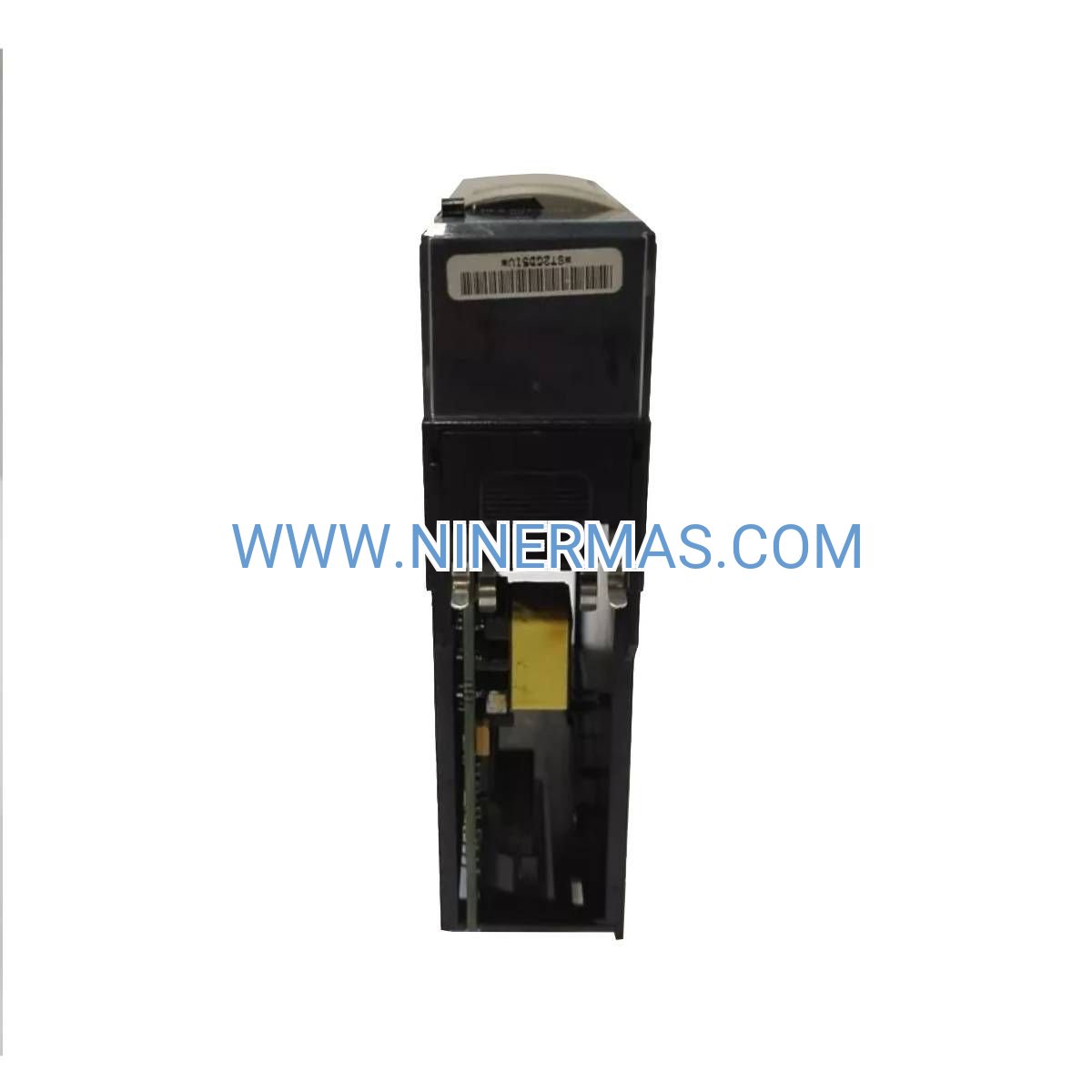

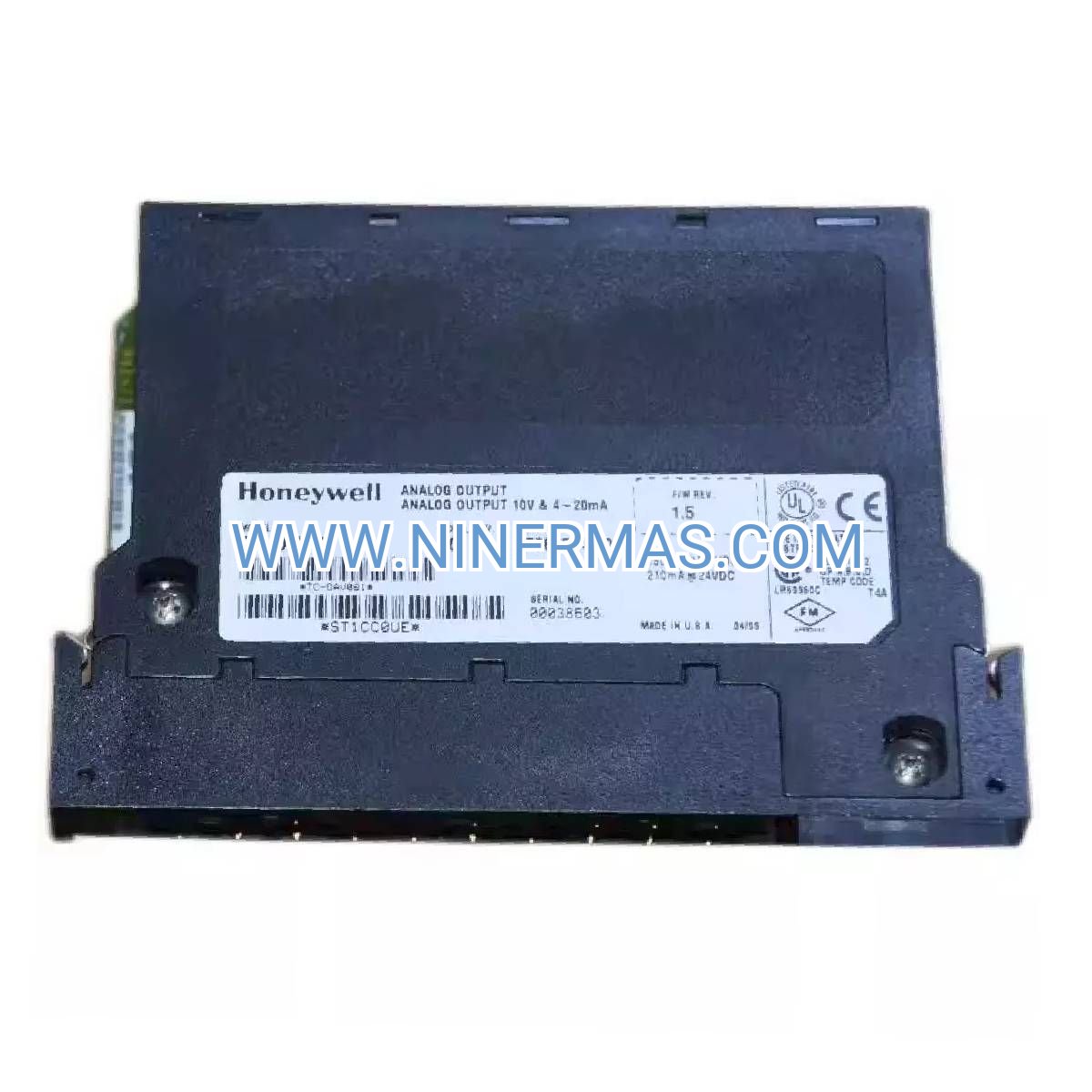

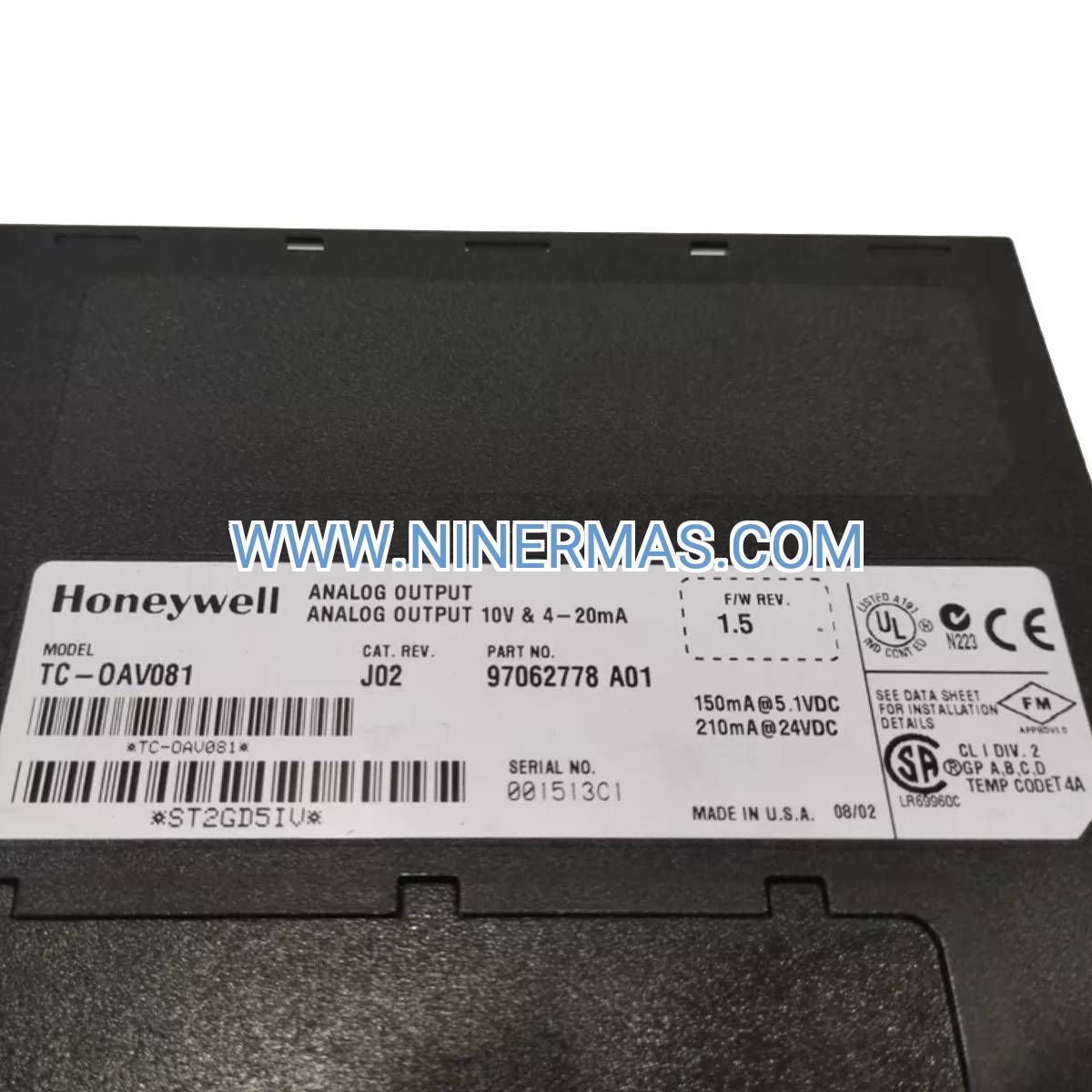

TC-OAV081 Analog Output Module (Industrial-Grade 8-Channel Control Interface)

The TC-OAV081 represents a field-proven solution for precision analog signal generation in distributed control environments. Delivering eight independently configurable output channels with software-selectable current or voltage modes, this module addresses the critical need for reliable, high-resolution control signals in process automation, manufacturing execution systems, and industrial IoT applications.

Designed for integration with Honeywell Experion PKS, TDC 3000, and C-Series controller platforms, the TC-OAV081 solves signal distribution challenges in multi-loop control architectures. Target users include process engineers managing continuous operations, system integrators deploying greenfield DCS installations, and maintenance teams requiring hot-swappable I/O for zero-downtime upgrades.

Key advantages include channel-to-channel isolation eliminating ground loop interference, 16-bit resolution ensuring smooth valve positioning and drive control, and comprehensive diagnostics reducing mean time to repair. The module's dual-range capability eliminates the need for separate current and voltage output cards, reducing spare parts inventory and simplifying system design.

Core Features & Benefits

→ Software-Configurable Output Modes
Each channel independently switches between 4-20 mA current loop and ±10.4 V voltage output via controller configuration—no hardware jumpers or DIP switches required. Reduces commissioning time by 40% compared to fixed-range modules.

→ 16-Bit D/A Conversion Architecture
Achieves 0.0015% of span resolution (65,536 discrete steps), enabling ultra-smooth control valve positioning and eliminating stick-slip behavior in pneumatic actuators. Critical for batch processes requiring ±0.1% setpoint accuracy.

→ Galvanic Isolation Protection
Channel-to-channel and channel-to-backplane isolation up to 1500 VDC prevents cross-talk and protects against transient voltage spikes. Maintains signal integrity in electrically noisy environments with VFDs and welding equipment.

→ Hot-Swap Capability with Bumpless Transfer
Replace failed modules during live operation without process disruption. Controller maintains last valid output state during swap, preventing valve slam or process upset. Reduces unplanned downtime costs by $15,000+ per incident.

✓ Built-In Diagnostics & Fault Reporting
Continuous monitoring of open circuit conditions, power supply health, and communication integrity. Fault codes reported to HMI within 100ms enable predictive maintenance and reduce troubleshooting time by 60%.

✓ Industrial Temperature Range Operation
Qualified for 0°C to 60°C ambient operation with ±0.1% accuracy maintained across full range. Suitable for non-climate-controlled equipment rooms and harsh industrial environments.

Typical Application Scenarios

Chemical Batch Processing
Scenario: Multi-product batch reactor requiring simultaneous control of reagent flow, temperature, pressure, and agitator speed.
Pain Point: Recipe changes demand different control ranges; traditional fixed-range I/O requires extensive rewiring.
Value Delivered: Software-reconfigurable outputs adapt to new recipes in minutes. Eight channels handle complete reactor control from a single module slot, reducing panel space by 50%.

Oil & Gas Separation Systems
Scenario: Three-phase separator with level control valves, pressure control vents, and temperature-controlled heating circuits.
Pain Point: Voltage outputs for valve positioners and current outputs for smart positioners previously required mixed I/O cards.
Value Delivered: Dual-range capability consolidates all outputs on TC-OAV081 modules. Isolation prevents ground loops in long cable runs to remote wellhead equipment.

Power Generation Turbine Control
Scenario: Gas turbine fuel valve control, inlet guide vane positioning, and auxiliary system regulation.
Pain Point: Critical control loops cannot tolerate I/O failures; traditional systems require full shutdown for module replacement.
Value Delivered: Hot-swap capability enables module replacement during turbine operation. Redundant output configurations ensure fail-safe operation for SIL-rated loops.

Pharmaceutical Clean Room HVAC
Scenario: Precision temperature and humidity control for sterile manufacturing environments with ±0.5°C tolerance.
Pain Point: 12-bit I/O resolution causes hunting and overshoot in tight-tolerance control loops.
Value Delivered: 16-bit resolution delivers smooth modulation of chilled water valves and steam humidifiers. Maintains FDA-compliant environmental conditions with 99.8% uptime.

Water Treatment Chemical Dosing
Scenario: Automated pH adjustment, chlorination, and coagulant dosing for municipal water plants.
Pain Point: Overdosing due to coarse output resolution wastes chemicals and risks regulatory violations.
Value Delivered: High-resolution outputs enable precise metering pump control, reducing chemical consumption by 12-18% while maintaining water quality compliance.

Technical Parameters & Selection Guide

Selection Criteria:

Choose TC-OAV081 when your application requires: (1) Mixed current and voltage outputs in a compact footprint, (2) High-resolution control for tight-tolerance processes, (3) Hot-swap capability for high-availability systems, (4) Isolation to prevent ground loop issues in distributed I/O architectures.

For applications requiring only current outputs with higher channel density, consider the 16-channel TC-OAH161. For safety-instrumented systems requiring SIL certification, specify the TC-OAV08S variant with enhanced diagnostics.

Extended Functions

Experion PKS Integration: Native support for Control Builder function blocks including PID, ratio control, and cascade loops. Outputs appear as standard AO points in operator HMI faceplates with real-time trending and alarm management.

Redundancy Options: Deploy in redundant I/O configurations with automatic failover. Paired modules track in real-time; switchover occurs within 50ms upon primary module failure without output bump.

Calibration & Scaling: Factory-calibrated with NIST-traceable standards. Field recalibration supported via controller interface without module removal. Custom scaling tables accommodate non-linear actuator characteristics.

Third-Party Device Compatibility: Drives industry-standard devices including Fisher DVC6000 valve positioners, ABB ACS880 VFDs, Siemens SITRANS pressure transmitters, and Yokogawa EJA smart positioners.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days. Custom-configured modules with pre-loaded firmware ship within 7-10 business days. Expedited overnight delivery available for critical outage situations.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended 36-month warranty available for mission-critical applications. Advance replacement program ensures 24-hour module swap for warranty claims.

Technical Support: Lifetime application engineering support included. Our team assists with I/O configuration, loop tuning, troubleshooting, and system integration. Remote diagnostic support available 24/7 for production-down emergencies.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates, and compliance certificates (CE, UL, ATEX where applicable). CAD drawings and 3D STEP files available for panel design.

Frequently Asked Questions

Can individual channels switch between current and voltage modes during operation?
Yes, output mode changes via controller configuration without module power-down. Reconfiguration takes effect within one update cycle (100ms). Ideal for flexible manufacturing systems with frequent recipe changes.

What is the maximum cable distance for maintaining accuracy specifications?
Current outputs (4-20mA) support up to 1000 meters with 600Ω maximum loop resistance. Voltage outputs (±10.4V) maintain ±0.1% accuracy up to 100 meters with shielded twisted-pair cable and 1kΩ minimum load impedance.

Does the module support HART communication over 4-20mA outputs?
No, TC-OAV081 provides analog-only outputs. For HART-enabled analog output, specify the TC-OAH081 variant which supports simultaneous analog control and HART digital communication on current loop channels.

How does hot-swap work without disrupting active control loops?
The controller detects module removal and holds the last valid output value in memory. Upon inserting the replacement module, the controller downloads configuration and resumes output within 2 seconds. Bumpless transfer prevents process upset.

What diagnostic information is available for troubleshooting output failures?
Diagnostics include per-channel open circuit detection, short circuit detection, power supply voltage monitoring, backplane communication status, and module temperature. Fault codes display on HMI with recommended corrective actions, reducing MTTR by 60%.

Is the module suitable for hazardous area installations?
The standard TC-OAV081 is rated for general-purpose (non-hazardous) areas. For Class I Division 2 or ATEX Zone 2 installations, use approved I/O racks with intrinsic safety barriers. For Zone 1/Division 1, specify intrinsically safe output modules.

Get Your Precision Control Solution

Ready to upgrade your analog output infrastructure? Contact our application engineers for system sizing, compatibility verification, and project quotations. We provide complete I/O rack assemblies, pre-wired terminal blocks, and turnkey integration services.

Request a quote: Share your I/O count, control system platform, and application requirements for a detailed proposal within 24 hours.
