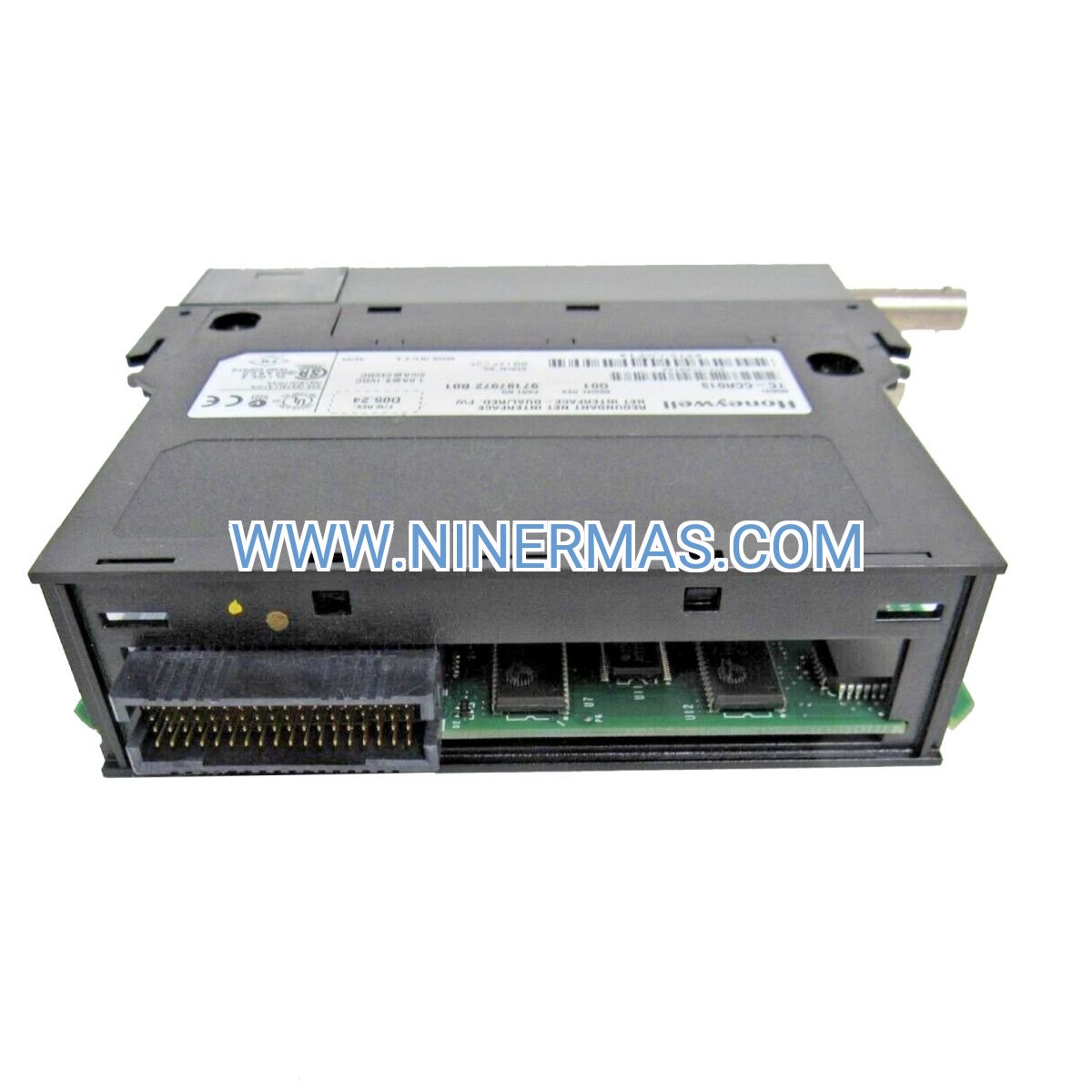

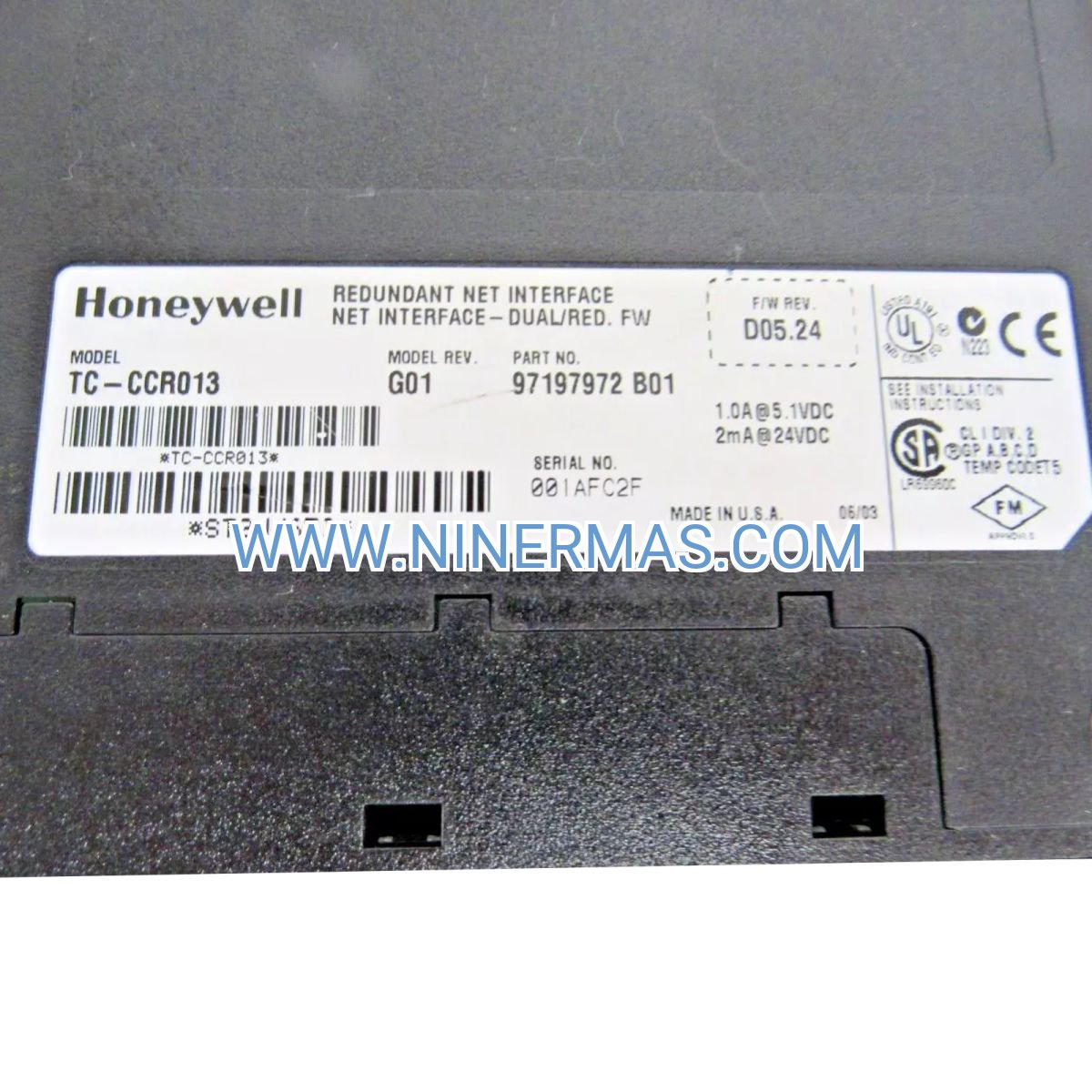

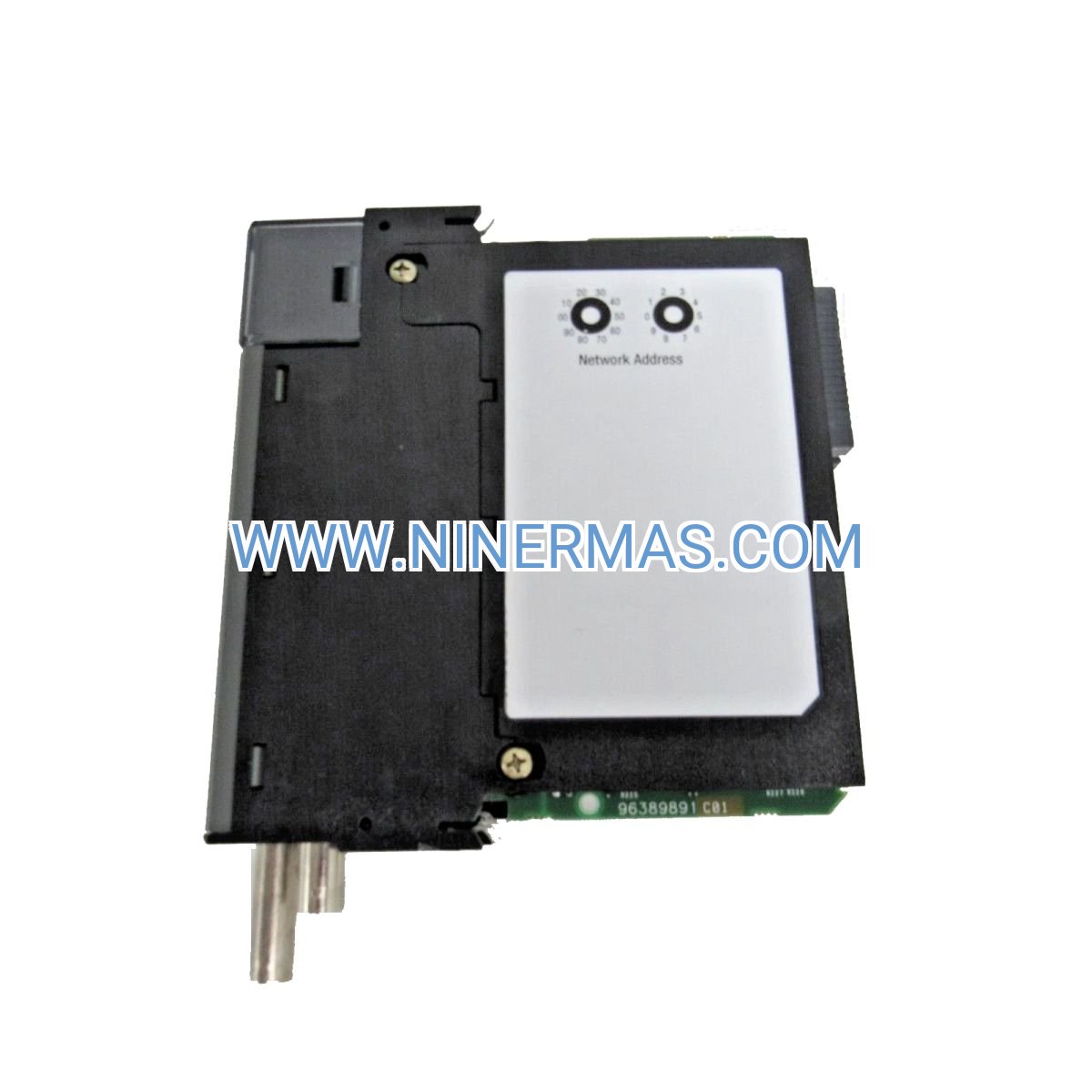

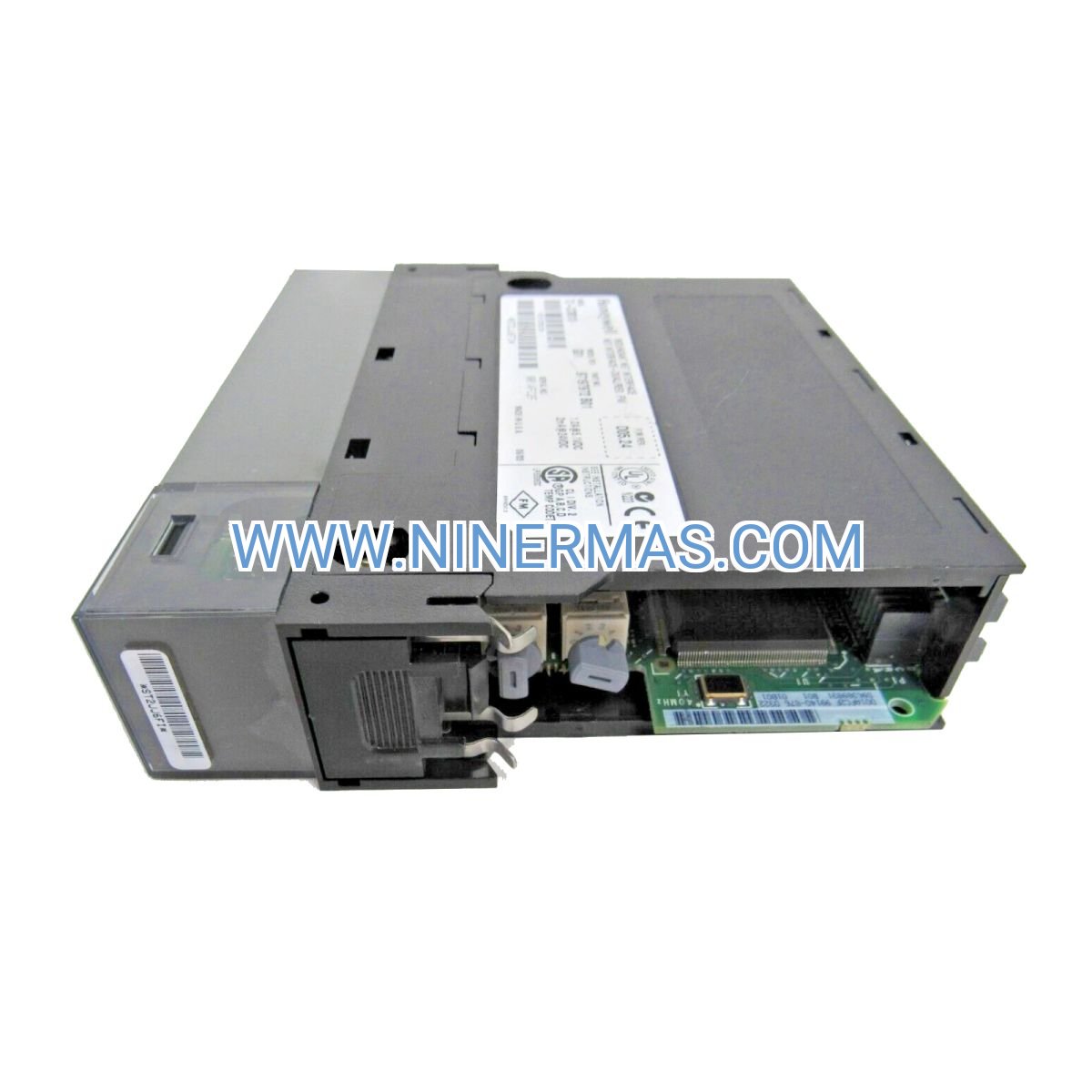

TC-CCR013 Redundant ControlNet Interface (Industrial-Grade Network Module)

The TC-CCR013 represents a critical infrastructure component for industrial automation environments where network interruptions translate directly to production losses and safety risks. Engineered as a dual-channel ControlNet interface module, this device delivers automatic failover protection within ControlLogix architectures, maintaining deterministic communication even when primary network paths experience cable damage, connector degradation, or media failures.

Manufacturing facilities operating continuous processes—chemical reactors, pharmaceutical batch systems, oil refining units—depend on this module to eliminate single points of network failure. When integrated into redundant controller configurations, the TC-CCR013 ensures that sensor data, control commands, and HMI updates flow without interruption during maintenance activities or unexpected component failures.

Built for environments demanding 99.99% uptime, this interface module combines CIP-based ControlNet protocol support with hot-swappable design, enabling technicians to perform network maintenance without halting production lines. The result: reduced mean time to repair (MTTR), lower operational risk, and compliance with industry standards for high-availability control systems.

Core Capabilities & Technical Advantages

→ Dual-Channel Redundancy Architecture
Two independent ControlNet communication paths operate simultaneously, with automatic switchover logic detecting network degradation within milliseconds. When Channel A experiences signal loss or excessive errors, the module transitions to Channel B without dropping packets or requiring controller intervention—critical for closed-loop process control where communication gaps cause product quality issues or safety shutdowns.

→ Deterministic 5 Mbps Performance
Scheduled messaging guarantees bandwidth allocation for time-critical I/O updates, while unscheduled messaging handles operator commands and diagnostic data. This dual-messaging model ensures that emergency stop signals and safety interlocks receive priority transmission even during peak network utilization—essential for SIL-rated safety systems.

→ Hot-Swap Serviceability
Replace failed modules during live operation without powering down the ControlLogix chassis or interrupting adjacent modules. Maintenance teams can stock spare units and perform replacements during production shifts, eliminating costly scheduled downtime for network infrastructure repairs.

→ Comprehensive Network Diagnostics

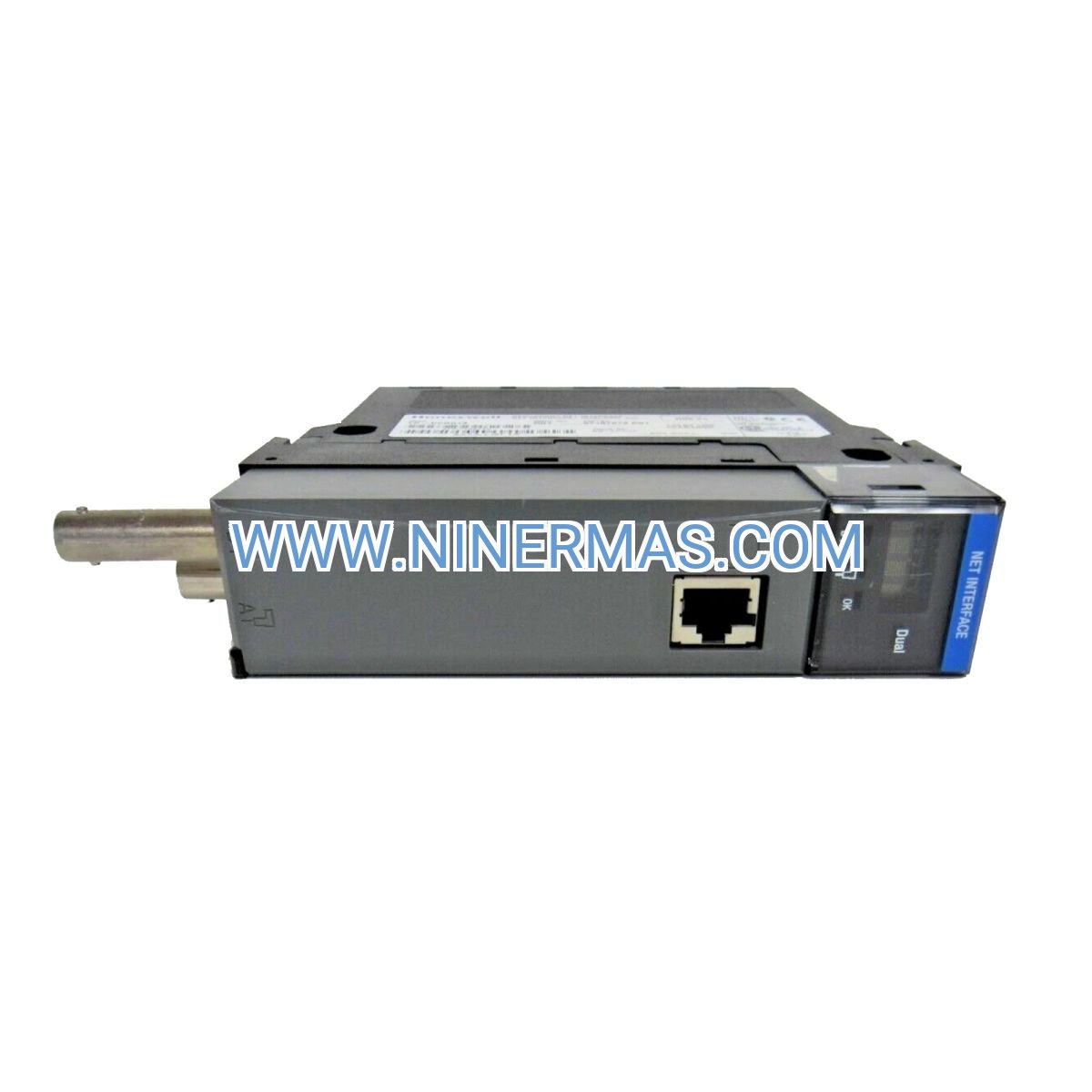

Front-panel LEDs provide instant visibility into channel health, network activity, and fault conditions. Software-accessible status registers expose detailed metrics including packet error rates, channel utilization percentages, and failover event logs—enabling predictive maintenance strategies that address network degradation before failures occur.

✓ Extended Node Capacity
Support for up to 99 devices per ControlNet segment allows complex distributed architectures spanning multiple production zones. Combine with fiber repeaters to extend network reach across campus-scale facilities while maintaining microsecond-level synchronization between remote I/O racks.

✓ Environmental Hardening Options
Conformal coating protection available for installations exposed to corrosive chemicals, high humidity, or extreme temperature swings. Operating range of 0°C to 60°C accommodates both climate-controlled control rooms and harsh industrial floor environments.

Industrial Application Scenarios

Continuous Process Industries
Chemical plants, pulp & paper mills, and food processing facilities utilize the TC-CCR013 to maintain control loop integrity during network maintenance or cable routing changes. A pharmaceutical manufacturer reduced unplanned downtime by 40% after implementing redundant ControlNet infrastructure, protecting batch processes valued at $500K+ per production run.

Automotive Assembly & Material Handling
Robotic welding cells, paint systems, and conveyor networks require deterministic communication for coordinated motion control. The TC-CCR013's scheduled messaging ensures that position updates from servo drives reach controllers within guaranteed time windows, preventing collisions and maintaining production throughput targets of 60+ units per hour.

Water & Wastewater Treatment
Municipal utilities operating 24/7 SCADA systems depend on redundant network paths to monitor remote lift stations, chemical dosing systems, and filtration equipment. When a backhoe severs a primary ControlNet cable during excavation work, automatic failover maintains visibility and control—preventing environmental compliance violations and service disruptions.

Power Generation & Distribution
Turbine control systems, substation automation, and generator protection relays leverage the TC-CCR013's fault tolerance to meet NERC CIP reliability standards. Redundant communication paths ensure that critical alarms and trip signals reach operators even during network infrastructure failures.

Packaging & Bottling Lines
High-speed packaging equipment coordinating filling stations, capping machines, and labeling systems requires microsecond-level synchronization. The TC-CCR013 eliminates network-induced timing variations that cause product rejects, label misalignment, or underfilled containers—quality issues that directly impact customer satisfaction and regulatory compliance.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the TC-CCR013 when your application requires guaranteed network uptime during cable maintenance, protection against accidental cable damage, or compliance with industry standards mandating redundant communication paths (ISA-95, IEC 62443). For non-critical applications where brief network interruptions are acceptable, consider standard single-channel ControlNet interfaces to reduce initial capital costs.

Advanced Integration & IoT Connectivity

Modern industrial environments increasingly demand integration between legacy ControlNet infrastructure and contemporary Industrial IoT platforms. The TC-CCR013 serves as a reliable data source for cloud-based analytics systems when paired with edge gateways supporting OPC UA or MQTT protocols. Real-time production data flows from ControlLogix controllers through the redundant ControlNet backbone to enterprise MES/ERP systems, enabling predictive maintenance algorithms and overall equipment effectiveness (OEE) tracking.

For facilities implementing Industry 4.0 initiatives, the module's diagnostic data streams provide valuable inputs for machine learning models that predict network degradation patterns. By analyzing historical failover events, packet error trends, and channel utilization metrics, maintenance teams can schedule proactive cable replacements before failures occur—shifting from reactive to predictive maintenance strategies.

Customization Options: Extended temperature variants (-25°C to 70°C), conformal coating for chemical resistance, and custom firmware configurations available for OEM integrators and large-scale deployments. Contact our engineering team to discuss application-specific requirements including hazardous location certifications (Class I Div 2, ATEX Zone 2) and seismic qualification for critical infrastructure projects.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-sealed units requiring import documentation
Expedited Shipping: Next-day delivery available for critical downtime situations (additional fees apply)
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues
Technical Support: Unlimited phone/email support for configuration assistance, network troubleshooting, and integration guidance
Documentation Package: Installation manual, wiring diagrams, RSLogix configuration examples, and network design guidelines included with every shipment

Frequently Asked Questions

How does the TC-CCR013 handle failover when both network channels experience simultaneous failures?
The module continuously monitors both channels and prioritizes the path with the lowest error rate. If both channels fail completely, the module enters a fault state and triggers diagnostic alarms visible in RSLogix software and on the front-panel LEDs. This condition typically indicates a systemic issue such as power loss to network infrastructure or complete cable severance requiring immediate technician intervention.

What cable specifications are required for optimal redundant ControlNet performance?
Use RG-6 quad-shield coaxial cable (75-ohm impedance) for copper installations, with maximum segment lengths of 250 meters between taps or repeaters. For fiber installations, multimode 62.5/125μm or 50/125μm cable supports distances up to 3 kilometers when used with appropriate media converters. Always terminate network ends with 75-ohm resistors to prevent signal reflections that degrade communication reliability.

Can I upgrade existing single-channel ControlNet systems to redundant configurations without replacing all network components?
Yes—redundancy upgrades require replacing single-channel interface modules with TC-CCR013 units and installing a second parallel cable infrastructure. Existing taps, terminators, and repeaters can remain in service for the primary channel while you add redundant components for the secondary path. This phased approach minimizes upfront capital costs and allows testing of redundant operation before full deployment.

Does the TC-CCR013 support integration with third-party ControlNet devices from manufacturers other than Honeywell?
Absolutely—ControlNet is an open standard protocol (ODVA specification), ensuring interoperability with devices from Allen-Bradley, Schneider Electric, ABB, and other vendors. The TC-CCR013 communicates seamlessly with any ControlNet-compliant device including I/O modules, variable frequency drives, HMI panels, and third-party controllers.

What diagnostic tools help identify which network channel is active during normal operation?
RSLogix 5000/Studio 5000 software displays real-time channel status including active path, standby path health, packet statistics, and failover event history. The module's front panel features dedicated LEDs for Channel A status, Channel B status, network activity, and module health—enabling quick visual assessment without connecting a programming terminal.

Are firmware updates required when integrating the TC-CCR013 with newer ControlLogix processors?
Firmware compatibility depends on your controller's revision level. The module ships with firmware compatible with ControlLogix processors running v20 and later. For legacy systems (v16-v19), firmware downgrades may be necessary—contact technical support with your controller catalog number and firmware revision for compatibility verification before ordering.

Ready to Eliminate Network Downtime?

Protect your critical automation infrastructure with proven redundant ControlNet technology. Our industrial automation specialists are available to discuss your specific application requirements, recommend complementary components for complete redundant architectures, and provide detailed quotations including volume pricing for multi-unit deployments.

Request a technical consultation: Share your network topology, controller configuration, and uptime requirements to receive a customized redundancy design with bill of materials, installation guidelines, and ROI analysis demonstrating downtime cost savings.
