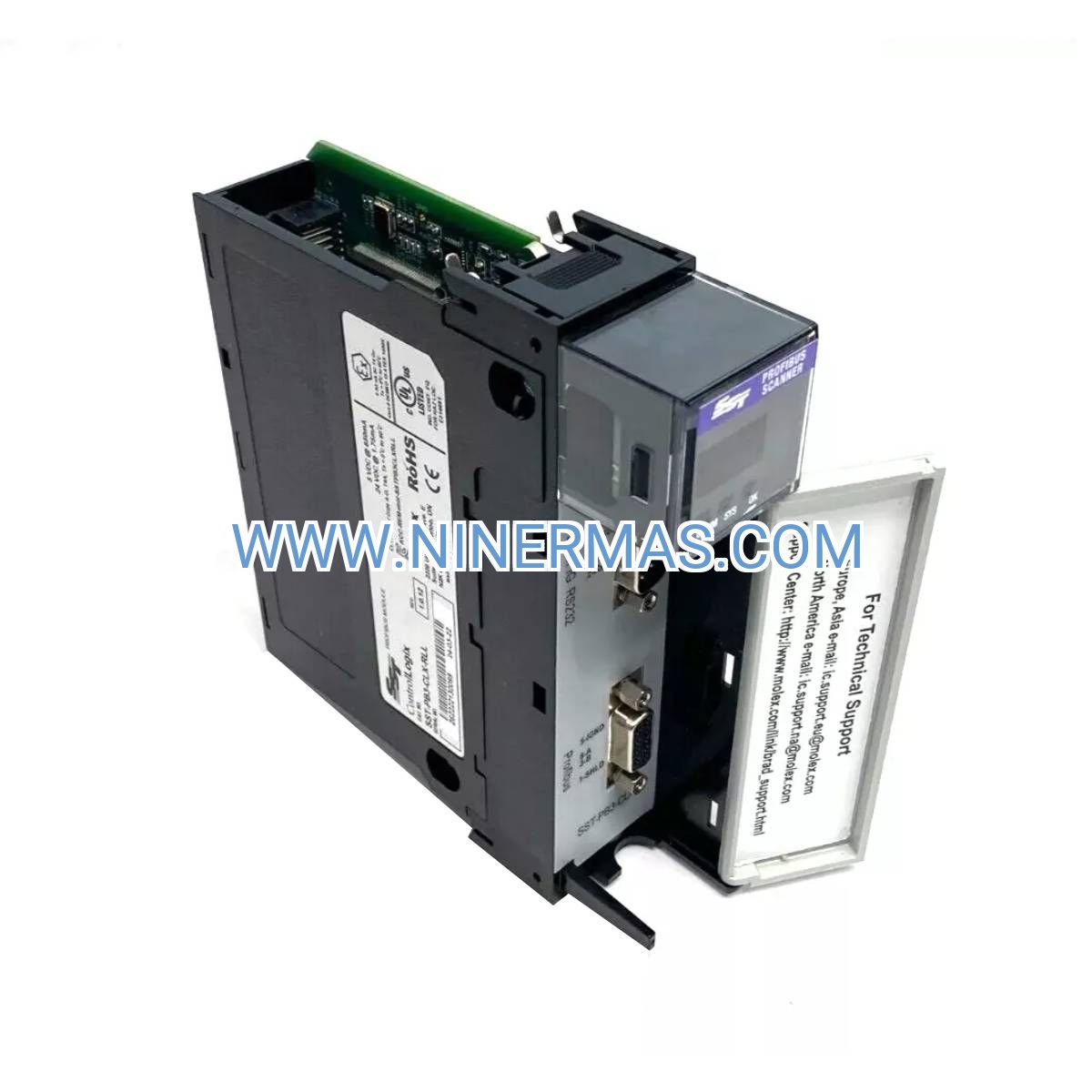

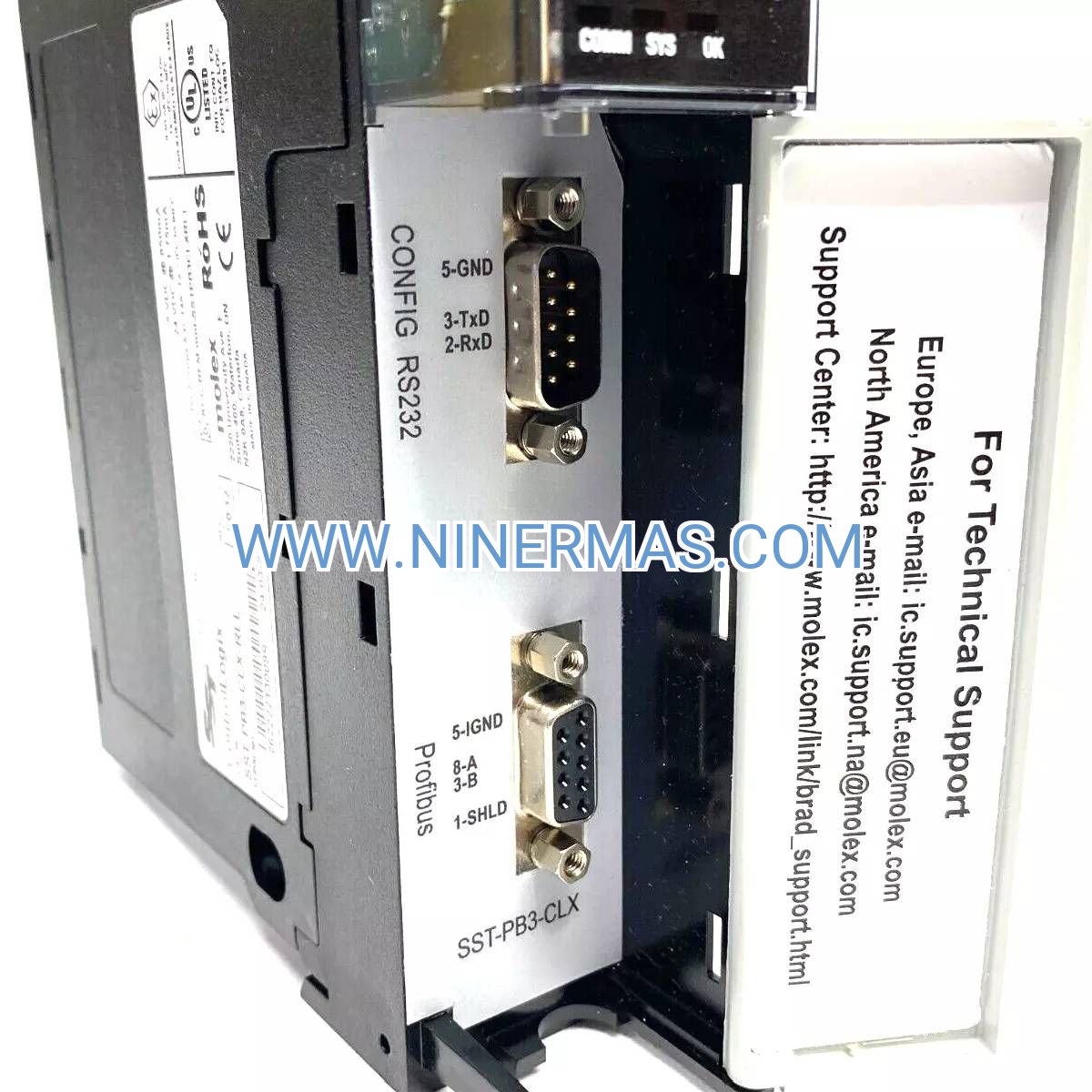

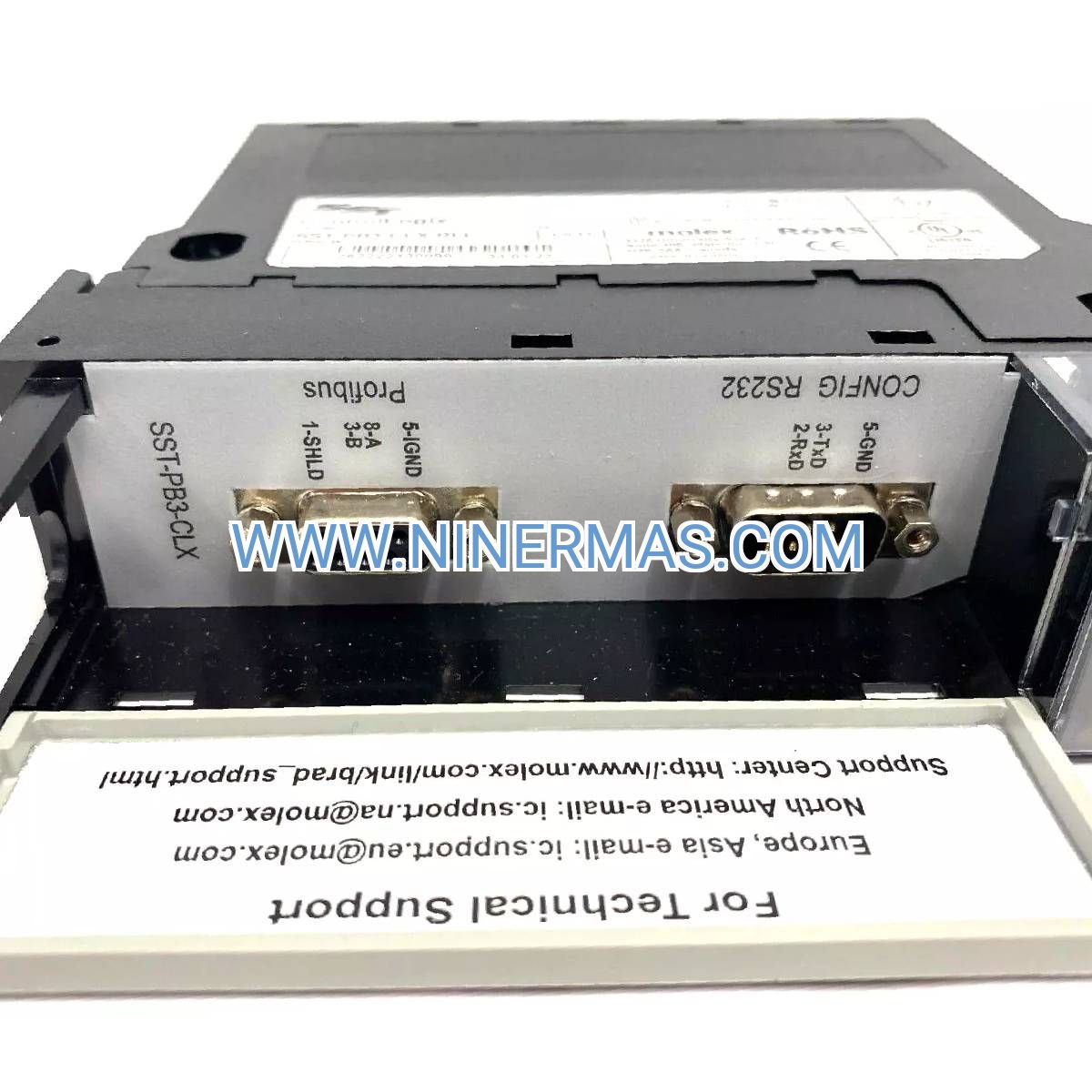

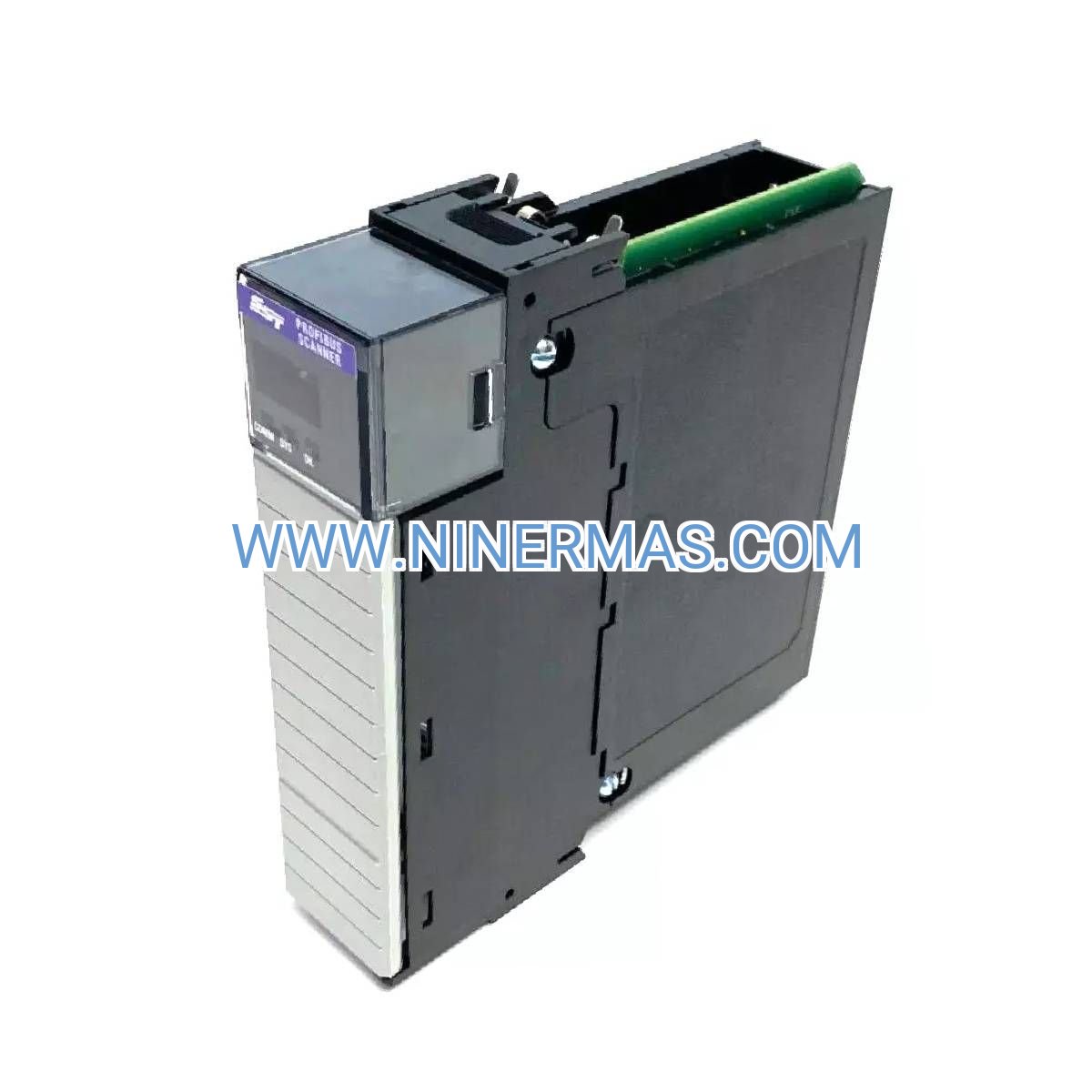

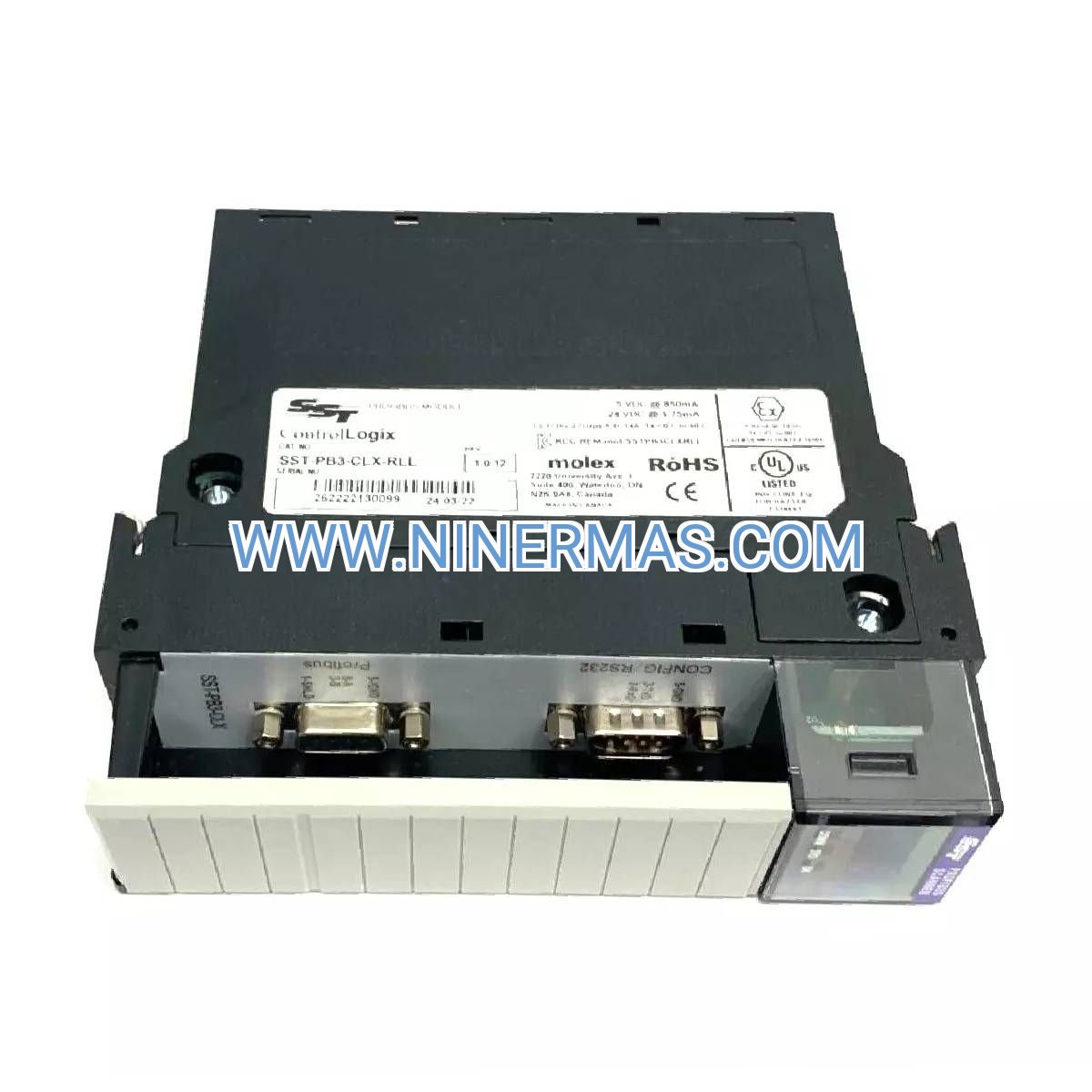

SST-PB3-CLX PROFIBUS DP Scanner Module (Industrial-Grade ControlLogix Gateway)

The SST-PB3-CLX is a high-performance PROFIBUS DP scanner engineered to bridge Rockwell Automation ControlLogix platforms with PROFIBUS fieldbus networks. Designed for mission-critical industrial environments, this communication gateway enables real-time data exchange with up to 125 PROFIBUS slaves while maintaining electrical isolation and diagnostic transparency across multi-vendor automation ecosystems.

Whether you're integrating legacy PROFIBUS instrumentation into modern ControlLogix architectures or building hybrid control systems that demand protocol interoperability, the SST-PB3-CLX delivers proven reliability in process manufacturing, automotive assembly, water treatment, and power generation applications. Its auto-baud detection, hot-swap capability, and comprehensive status reporting through RSLogix 5000 reduce commissioning time and simplify ongoing maintenance.

With 1500V optical isolation, CE/UL/ATEX certifications, and support for PROFIBUS DP V0/V1 protocols, this scanner module protects your investment while future-proofing your automation infrastructure. Ready to unify your control network? Contact our integration specialists for application-specific configuration guidance.

Core Capabilities & Business Value

→ Multi-Protocol Unification
Eliminate protocol silos by connecting PROFIBUS drives, I/O modules, analyzers, and valve positioners directly to your ControlLogix controller. Reduce hardware costs by leveraging existing PROFIBUS assets instead of costly replacements.

→ High-Throughput Data Exchange
Auto-baud detection (9.6 Kbps to 12 Mbps) and optimized data transfer (244 bytes I/O per slave) ensure sub-10ms cycle times for time-sensitive control loops. Maintain deterministic performance even with 125 active slaves.

→ Simplified Diagnostics & Troubleshooting
Front-panel LEDs and RSLogix 5000 tag integration provide instant visibility into slave health, communication errors, and network status. Reduce mean time to repair (MTTR) by up to 40% compared to black-box gateways.

→ Industrial-Hardened Reliability
1500V optical isolation shields your ControlLogix backplane from fieldbus electrical noise and ground loops. Operate continuously in 0°C to 60°C environments with CE/UL/cUL/ATEX compliance for global deployments.

→ Hot-Swap Maintenance
Replace or upgrade the module without shutting down your ControlLogix chassis. Minimize production downtime during scheduled maintenance or emergency repairs.

✓ Plug-and-Play Configuration
EDS file integration with RSLogix 5000 and SST Configuration Software streamlines setup. Pre-configured GSD files for common PROFIBUS devices accelerate commissioning from weeks to days.

Industry-Proven Application Scenarios

Chemical Processing & Refining
Integrate PROFIBUS-based Coriolis flow meters, pH analyzers, and smart positioners into your ControlLogix DCS. The SST-PB3-CLX enables centralized recipe management and real-time quality control while maintaining compliance with ISA-88 batch standards. Pair with redundant power supplies and fiber-optic PROFIBUS repeaters for SIL-rated safety loops.

Automotive Body Welding Lines
Synchronize PROFIBUS servo drives controlling robotic spot welders with ControlLogix motion controllers managing conveyor systems. Achieve ±0.1mm positioning accuracy across 50+ weld stations while leveraging the scanner's diagnostic capabilities to predict servo drive failures before they cause line stoppages.

Municipal Water & Wastewater Treatment
Connect distributed PROFIBUS VFDs, ultrasonic level sensors, and turbidity meters across multiple treatment basins to a centralized ControlLogix SCADA system. The SST-PB3-CLX's extended temperature range and vibration resistance ensure reliable operation in pump stations and clarifier environments. Reduce energy costs by 15-25% through optimized pump scheduling based on real-time flow data.

Power Generation & Co-Generation Plants
Interface PROFIBUS turbine control systems with ControlLogix protection relays and emissions monitoring equipment. The scanner's deterministic performance supports sub-50ms trip response times for overspeed protection while maintaining continuous data logging for regulatory compliance (EPA Part 75, EU ETS).

Food & Beverage Packaging
Integrate PROFIBUS-based vision systems, checkweighers, and metal detectors into ControlLogix-controlled packaging lines. Achieve 99.9% product traceability through synchronized data capture while meeting FDA 21 CFR Part 11 requirements for electronic records.

Technical Parameters & Selection Criteria

Selection Guidelines:

• For networks exceeding 32 slaves or requiring <50ms cycle times, consider segmenting with multiple scanners
• Use SST-PB3-CLX-RLL variant for redundant PROFIBUS links in SIL 2/3 applications
• Pair with Siemens 6ES7972-0AA02-0XA0 repeaters for networks exceeding 1200m total length
• Verify ControlLogix controller memory capacity supports total I/O image size (max 30KB per scanner)

Advanced Integration & IoT Connectivity

Cloud Data Forwarding: Combine the SST-PB3-CLX with ControlLogix Ethernet/IP modules and edge gateways to stream PROFIBUS device data to AWS IoT Core, Azure IoT Hub, or on-premises historians. Enable predictive maintenance analytics by monitoring vibration signatures from PROFIBUS-connected accelerometers.

OPC UA Server Integration: Expose PROFIBUS slave data as OPC UA nodes through ControlLogix-based OPC servers. Facilitate MES/ERP integration without custom middleware development.

Custom Ladder Logic Functions: Develop reusable Add-On Instructions (AOIs) in RSLogix 5000 to encapsulate PROFIBUS device control logic. Standardize commissioning across multiple sites while maintaining local customization flexibility.

Multi-Protocol Architectures: Deploy alongside Allen-Bradley 1756-ENBT Ethernet/IP modules, 1756-CNBR ControlNet scanners, and 1756-DNB DeviceNet scanners to create unified control networks spanning four industrial protocols from a single ControlLogix chassis.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (FOB Shanghai/Hong Kong)
Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific GSD files
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Lifetime email/phone support for configuration, troubleshooting, and firmware updates
Documentation Package: User manual, EDS file, sample RSLogix 5000 project, GSD library (200+ devices), and quick-start guide included

Extended Services Available:

• On-site commissioning assistance (Asia-Pacific region)
• Custom AOI development for specialized PROFIBUS devices
• Network performance audits and optimization consulting
• Spare parts kitting and emergency replacement programs

Frequently Asked Questions

Can the SST-PB3-CLX scanner module interface with Siemens S7-300 PROFIBUS networks?
Yes, the scanner supports all PROFIBUS DP V0/V1 compliant devices regardless of manufacturer. You can connect Siemens ET200M/S I/O, S7-300 CPUs operating as slaves, and third-party PROFIBUS instruments. Ensure your GSD files are imported into the SST Configuration Software for proper device mapping.

What is the maximum PROFIBUS cable distance I can achieve with this module?
Maximum segment length depends on baud rate: 1200m at 9.6-187.5 Kbps, 400m at 500 Kbps, 200m at 1.5 Mbps, 100m at 3-12 Mbps. Use RS485 repeaters (e.g., Siemens 6ES7972-0AA02-0XA0) to extend total network length up to 9.6 km with proper segment planning.

Does this PROFIBUS scanner support redundant ControlLogix configurations?
The standard SST-PB3-CLX provides single-link operation. For redundant ControlLogix systems, use two SST-PB3-CLX modules (one per controller) with external PROFIBUS Y-links, or upgrade to the SST-PB3-CLX-RLL variant featuring dual PROFIBUS ports for media redundancy.

How do I monitor PROFIBUS slave diagnostics in RSLogix 5000?
The scanner creates controller-scoped tags containing slave status, communication error counters, active slave count, and individual device health flags. Use these tags in HMI faceplates or alarm logic. Extended diagnostics (DP-V1 acyclic services) are accessible through the SST Configuration Software for detailed device-level troubleshooting.

Is firmware update capability available for the SST-PB3-CLX?
Yes, firmware updates are distributed via the SST Configuration Software and can be performed in-situ without removing the module from the chassis. Always verify compatibility with your RSLogix 5000 version before updating. Current firmware version: 3.12 (as of Q1 2026).

Can I use this scanner in hazardous area installations?

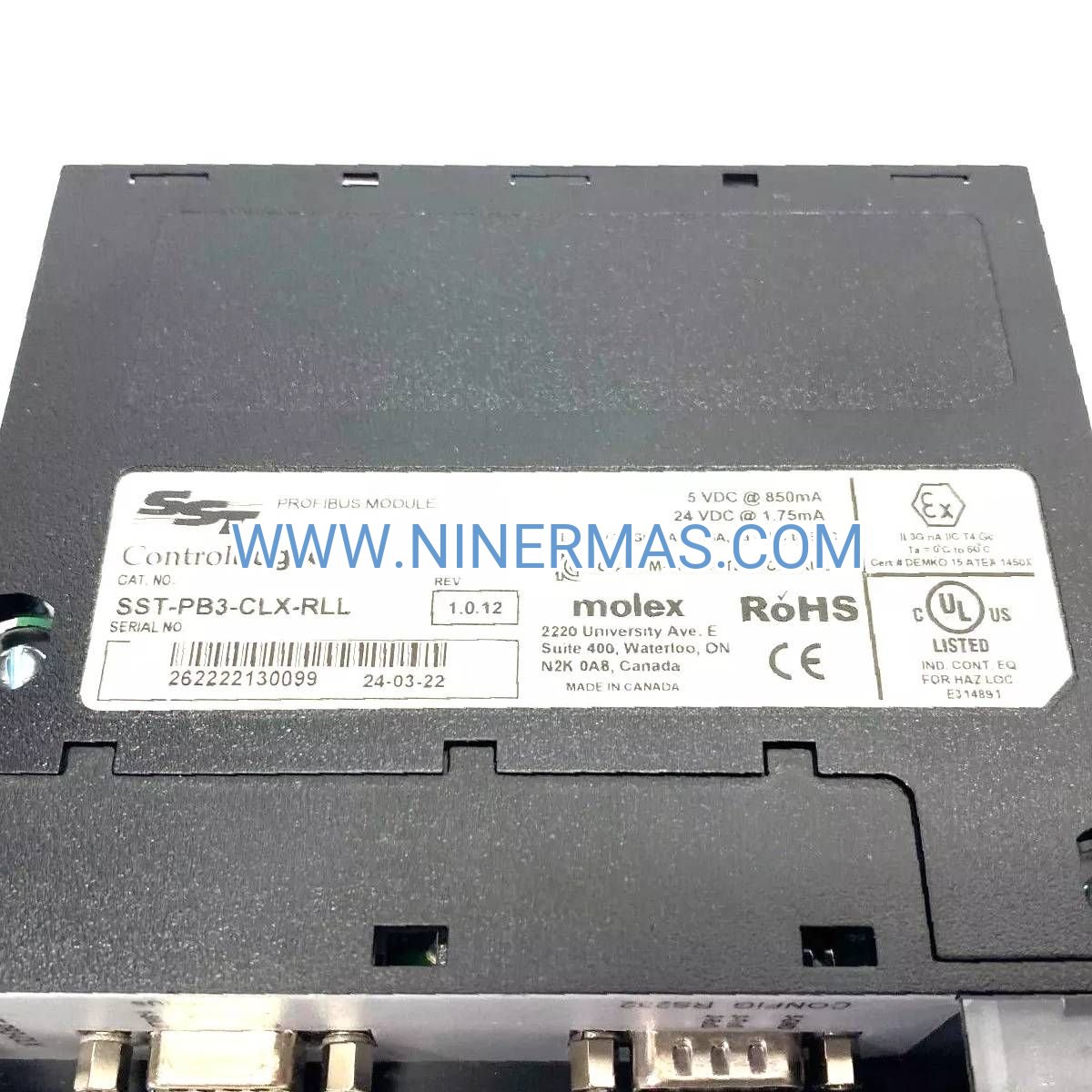

The SST-PB3-CLX carries ATEX Zone 2 certification (II 3G Ex nA IIC T4 Gc) for installation in non-hazardous areas of facilities with occasional explosive atmospheres. For Zone 1/0 installations, use intrinsically safe PROFIBUS couplers (e.g., Siemens 6ES7972-0AC80-0XA0) to create IS segments while keeping the scanner in a safe area.

Ready to Integrate Your PROFIBUS Network?

Our automation specialists are available to assist with network design, device selection, and configuration planning. Whether you're retrofitting legacy systems or designing greenfield installations, we provide application-specific guidance to ensure optimal performance.

Contact us today: Share your PROFIBUS device list and ControlLogix platform details for a customized integration proposal including wiring diagrams, I/O mapping templates, and commissioning checklists.
