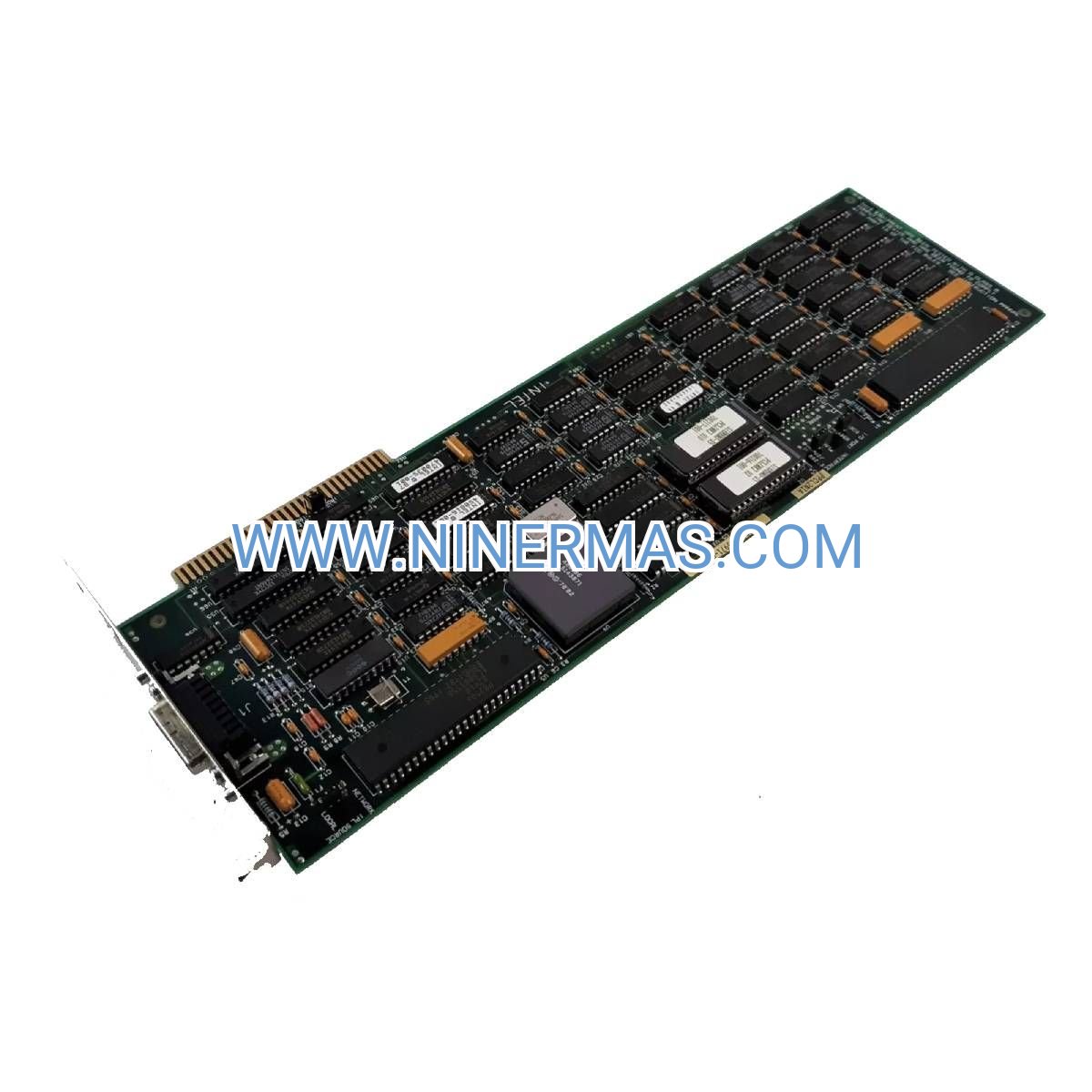

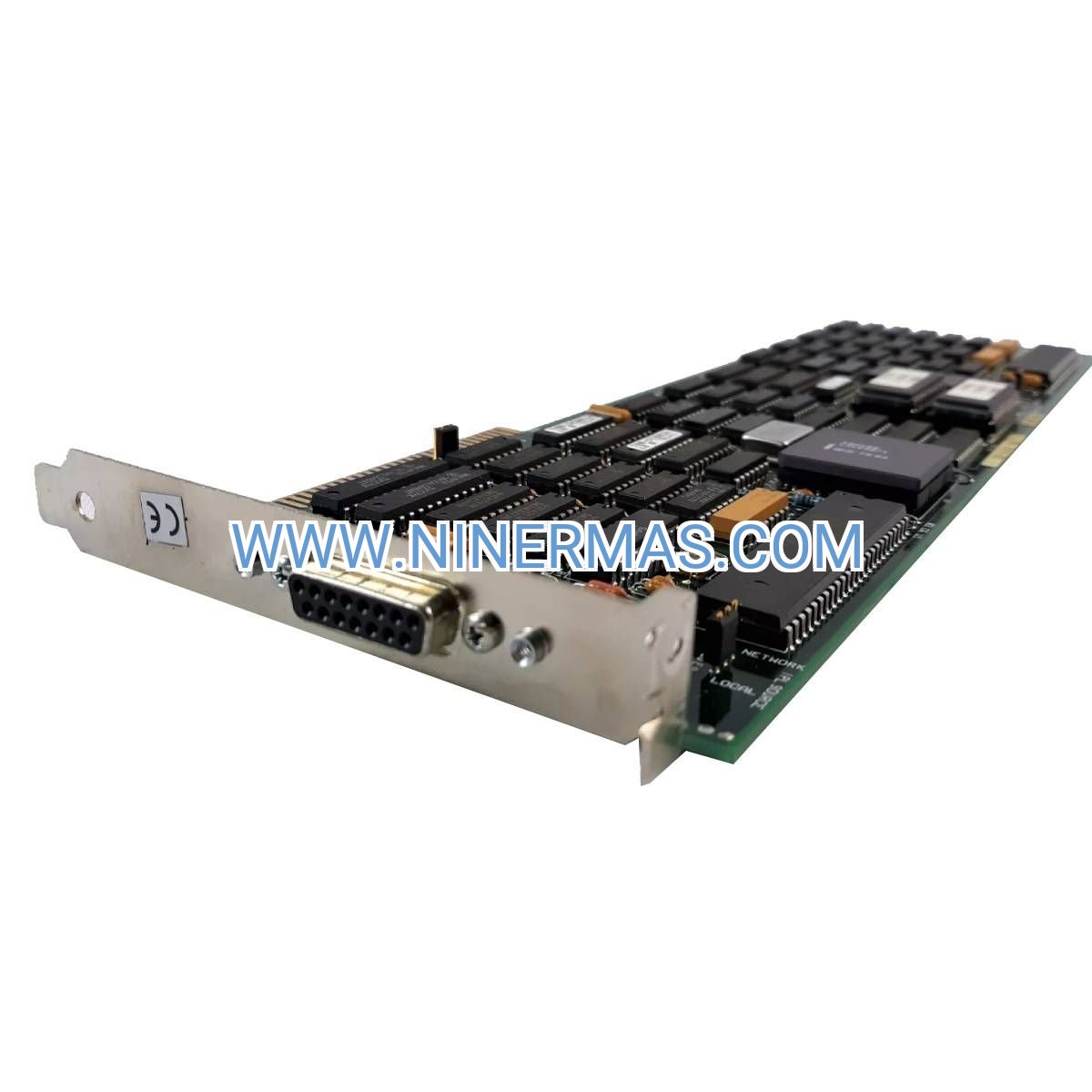

PBA455971-003 Industrial-Grade CPU Control Board (Honeywell TPS/Experion Platform)

The PBA455971-003 represents Honeywell's commitment to reliable distributed control system architecture, delivering deterministic processing power for time-critical industrial operations. Engineered as a core computational module within TotalPlant Solution (TPS) and Experion ecosystems, this CPU board provides the intelligence layer for process automation, safety interlocks, and supervisory control across chemical, power, and manufacturing sectors.

Designed for engineers managing legacy TPS migrations or expanding Experion installations, this controller balances compact footprint (0.73 lb) with industrial resilience, operating reliably in ambient temperatures from 0°C to +60°C while maintaining data integrity in humidity levels up to 95% non-condensing. Its modular PCB architecture enables rapid field replacement, minimizing mean time to repair (MTTR) during critical production windows.

Whether you're retrofitting aging control cabinets or building greenfield automation infrastructure, the PBA455971-003 integrates seamlessly with Honeywell's I/O ecosystem, communication networks, and engineering tools—delivering the processing foundation for multi-loop control strategies, batch sequencing, and real-time data acquisition.

Key Technical Advantages & Business Value

→ Deterministic Control Execution
High-speed logic processing ensures scan cycle consistency for PID loops, sequential function charts, and alarm management—critical for maintaining product quality in continuous processes and preventing cascade failures in interconnected systems.

✓ Proven TPS/Experion Compatibility
Backward-compatible with legacy TPS installations while supporting migration to Experion PKS/LX platforms, protecting capital investments and enabling phased modernization without full system replacement—reducing project risk and capital expenditure.

✓ Space-Optimized Design
At just 0.33 kg, this controller maximizes cabinet density in space-constrained control rooms and field enclosures, allowing engineers to consolidate multiple control functions within existing infrastructure without costly panel modifications.

✓ Extended Environmental Tolerance
Storage rating of -40°C to +85°C and operational range of 0°C to +60°C ensures reliable performance in non-climate-controlled environments including outdoor substations, remote pump stations, and industrial mezzanines.

✓ Modular Serviceability
Rack-mount architecture with standardized connectors enables hot-swap replacement in redundant configurations, supporting predictive maintenance strategies and reducing unplanned downtime costs.

✓ IEC 61131-3 Programming Support
Compatible with industry-standard programming languages (Ladder Logic, Function Block Diagram, Structured Text) through Honeywell Control Builder, accelerating commissioning timelines and leveraging existing engineering expertise.

Industrial Application Scenarios

Chemical Processing & Refining
In petrochemical complexes and specialty chemical plants, the PBA455971-003 manages reactor temperature cascades, distillation column pressure control, and batch recipe execution. When deployed in redundant pairs with automatic failover, it ensures continuous operation during catalyst regeneration cycles and product transitions—preventing off-spec production that can cost $50,000+ per batch.

Power Generation & Cogeneration
Utility-scale power plants leverage this controller for turbine governor control, boiler combustion optimization, and emissions monitoring. Integrated with Honeywell's safety instrumented systems, it coordinates emergency shutdown sequences while maintaining auxiliary systems—critical for meeting NERC reliability standards and avoiding grid penalties.

Pharmaceutical Manufacturing (cGMP Environments)
In FDA-regulated facilities, this CPU board executes validated control strategies for fermentation bioreactors, lyophilization cycles, and clean-in-place (CIP) sequences. Its deterministic scan times support 21 CFR Part 11 compliance through predictable audit trail generation and electronic signature workflows.

Water & Wastewater Treatment
Municipal treatment plants use the PBA455971-003 for aeration basin dissolved oxygen control, chemical dosing optimization, and SCADA integration. Its robust environmental ratings withstand high-humidity pump stations and outdoor chlorination buildings where commercial-grade electronics fail prematurely.

Food & Beverage Production
Breweries, dairy processors, and beverage bottlers deploy this controller for pasteurization temperature profiling, CIP system automation, and packaging line coordination—ensuring product safety while maximizing overall equipment effectiveness (OEE) through reduced changeover times.

Technical Parameters & Selection Criteria

Selection Guidelines:

Choose the PBA455971-003 when your application requires a proven CPU module for existing TPS infrastructure or Experion system expansion. Verify chassis compatibility and firmware revision alignment with your current system version. For new installations, consult Honeywell's system architecture guides to determine optimal controller-to-I/O ratios based on scan time requirements and communication bandwidth.

For safety-critical applications requiring SIL 2/3 certification, pair this controller with Honeywell FSC (Fail-Safe Controller) modules rather than relying solely on standard control processors. Redundant configurations should incorporate dual controllers with automatic switchover logic validated during factory acceptance testing (FAT).

Advanced Integration Capabilities

Network Connectivity: The PBA455971-003 supports Honeywell's proprietary high-speed control network (HSCN) for deterministic I/O communication, plus Ethernet/IP and Modbus TCP for enterprise integration. When combined with Honeywell's horizontal bus driver modules, it enables distributed control architectures spanning multiple process units with centralized engineering and diagnostics.

Cybersecurity Features: Embedded security protocols align with IEC 62443 industrial cybersecurity standards, including role-based access control, encrypted configuration downloads, and audit logging—essential for critical infrastructure protection and compliance with NERC CIP requirements in power generation applications.

Predictive Diagnostics: Built-in health monitoring tracks CPU utilization, memory allocation, and communication statistics, feeding data to Honeywell's Asset Performance Management (APM) platform for predictive maintenance scheduling and capacity planning.

Virtualization Support: Compatible with Honeywell's Virtual Process Control Network (VPCN) for simulation, operator training, and control strategy validation before deployment—reducing commissioning time by up to 30% and minimizing startup risks.

Delivery Timelines & Service Commitments

Standard Lead Time: In-stock units ship within 2-3 business days via expedited logistics. For bulk orders (10+ units), allow 5-7 business days for quality verification and documentation preparation.

Custom Configuration: Pre-loaded firmware or factory-configured units available with 10-14 business day lead time, including FAT documentation and as-built drawings.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service for critical applications, minimizing production impact.

Technical Support: Access to certified Honeywell automation specialists for integration planning, troubleshooting, and system optimization. Support includes configuration file review, network architecture consultation, and remote diagnostics assistance.

Documentation Package: Every shipment includes installation quick-start guide, dimensional drawings, wiring diagrams, and access to Honeywell's technical library for detailed programming manuals and system integration guides.

Frequently Asked Questions

Can the PBA455971-003 replace older TPS controller models without system reconfiguration?
Backward compatibility depends on your TPS system version and firmware revision. Most TPS R300+ systems support direct replacement with configuration migration, while earlier versions may require Control Builder project updates. Our technical team provides pre-migration compatibility assessments to identify potential issues before procurement.

What is the maximum I/O capacity supported by this CPU board?
The controller supports up to 4,000 I/O points in typical configurations, though actual capacity depends on scan time requirements, communication loading, and control strategy complexity. For applications exceeding 2,500 points, we recommend load analysis using Honeywell's system sizing tools to ensure adequate processing headroom.

Does this controller support redundant operation for high-availability applications?
Yes, when deployed with Honeywell's redundancy modules and configured through Experion software, the PBA455971-003 operates in hot-standby redundant pairs with bumpless transfer during failover events. Redundant configurations require matched firmware revisions and synchronized configuration databases.

How does this CPU board handle power interruptions or brownout conditions?
The controller includes capacitor-backed memory retention for critical parameters and supports graceful shutdown sequences when paired with uninterruptible power supplies (UPS). For applications requiring ride-through capability, integrate with Honeywell's power supply modules featuring holdup times of 20-50ms.

What cybersecurity certifications does the PBA455971-003 maintain?
The controller architecture aligns with IEC 62443-4-2 component security requirements, supporting secure boot, encrypted communications, and role-based access control when deployed within properly configured Experion systems. Compliance documentation available for critical infrastructure projects requiring NERC CIP or CFATS validation.

Are firmware updates field-installable, or do they require factory service?
Firmware updates are field-installable through Honeywell Control Builder software using standard Ethernet connectivity. Major version upgrades may require system downtime and configuration backup/restore procedures. We provide detailed upgrade procedures and rollback plans for mission-critical installations.

Ready to Optimize Your Control Architecture?

Whether you're maintaining existing TPS infrastructure, migrating to Experion, or designing new process control systems, the PBA455971-003 delivers the computational reliability your operations demand. Our team provides end-to-end support from initial specification through commissioning and lifecycle management.

Contact our automation specialists today:
→ Technical consultation and system compatibility verification
→ Competitive pricing for single units or project quantities
→ Expedited shipping to minimize project delays
→ Post-installation support and optimization services
