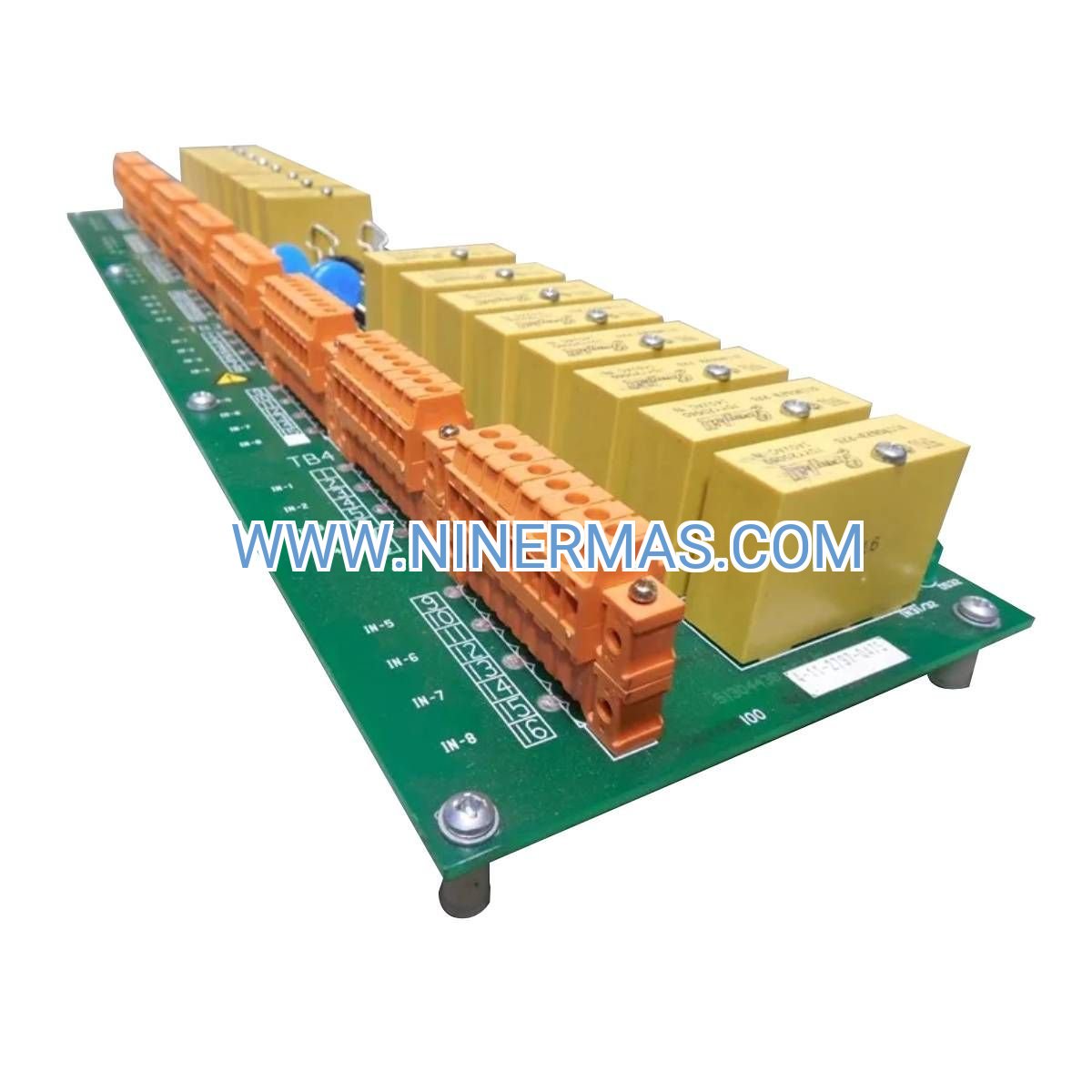

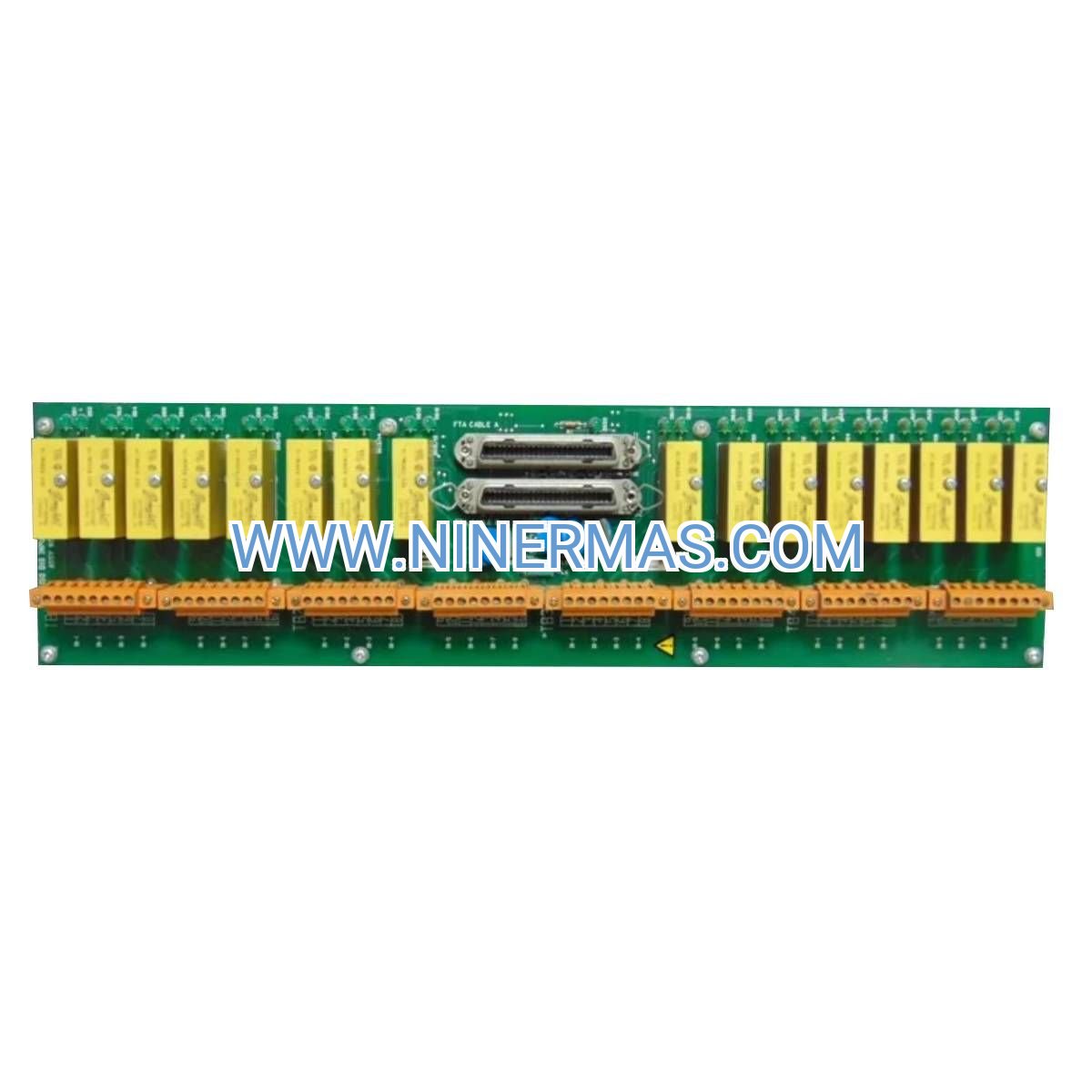

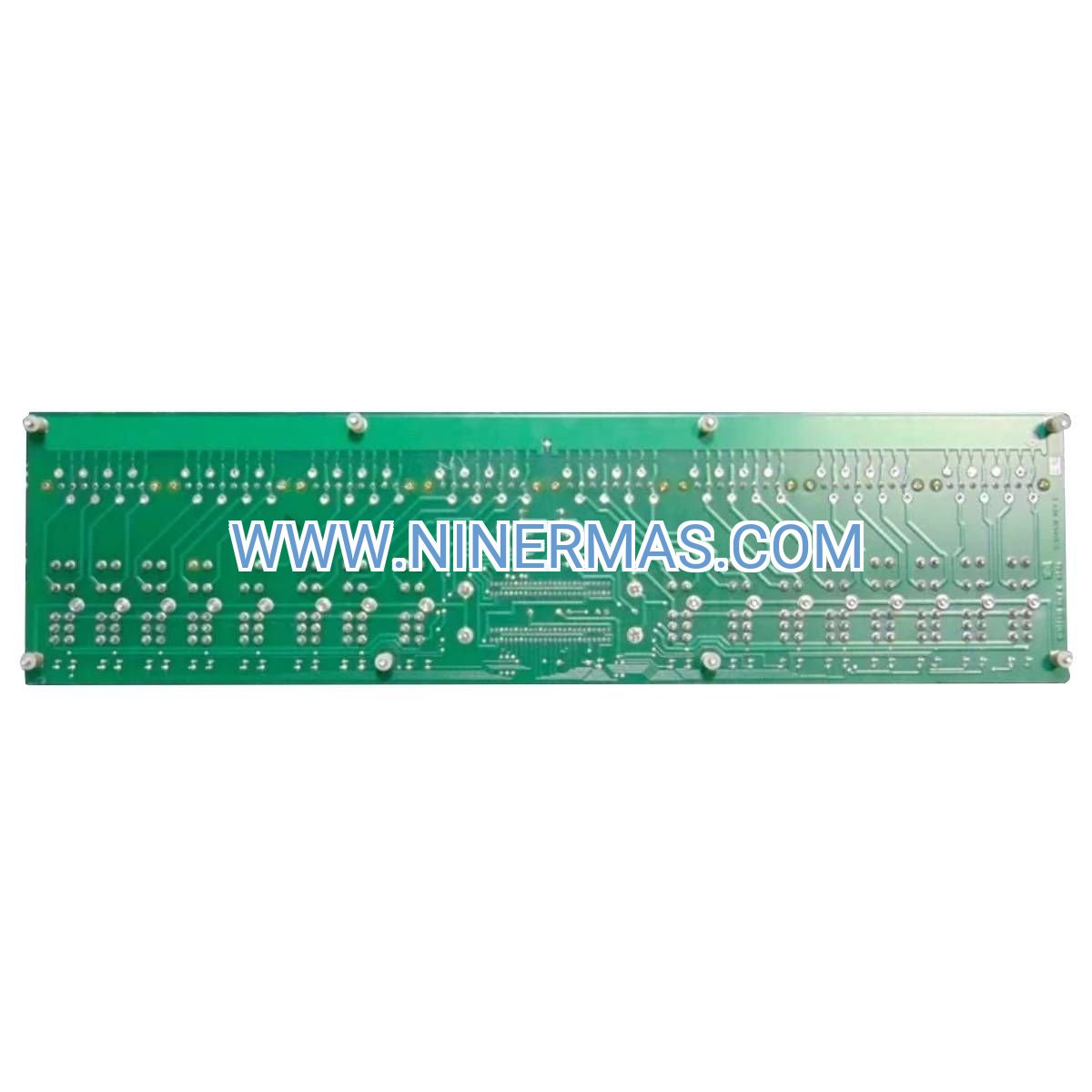

MU-TDIA12 Field Terminal Assembly (Industrial-Grade 120VAC Discrete Input Interface)

Engineered for mission-critical process automation, the MU-TDIA12 field terminal assembly delivers high-density discrete signal acquisition across 32 independent 120VAC input channels. This industrial-hardened interface module serves as the frontline connection between field instrumentation and Honeywell TDC 3000 or Experion PKS distributed control architectures, converting real-world switch states, relay contacts, and limit switch positions into actionable control system data.

Process industries demand unwavering signal integrity when monitoring safety interlocks, equipment status indicators, and emergency shutdown devices. The MU-TDIA12 addresses these requirements through 1500VAC optical isolation per channel, eliminating ground loop interference while protecting sensitive controller electronics from field-side electrical transients. Whether tracking valve position confirmations in petrochemical units or monitoring pump run status across water treatment facilities, this module maintains signal fidelity in electrically hostile industrial environments.

Designed for operational continuity, the assembly supports hot-swap replacement during live system operation—minimizing unplanned downtime during maintenance activities. DIN rail mounting enables rapid installation within standard FTA enclosures, while screw-clamp terminals accommodate 14-22 AWG field wiring for secure, vibration-resistant connections. With response times under 20ms and compatibility spanning legacy TDC 3000 through modern Experion platforms, the MU-TDIA12 bridges decades of control system evolution.

Key Capabilities & Business Value

→ High-Density Signal Consolidation
32 discrete inputs per module reduce cabinet footprint by 60% compared to traditional 8-point assemblies. Lower installed costs through reduced wiring labor, fewer I/O racks, and simplified panel layouts. Ideal for applications requiring extensive discrete monitoring—turbine protection systems, batch sequencing, and multi-zone safety circuits.

✓ Electrical Isolation & Noise Immunity
1500VAC optical isolation on every channel blocks common-mode voltage interference and protects against field-side faults. Maintains signal accuracy in VFD-heavy environments, near high-voltage switchgear, and during electrical storms. Reduces nuisance trips by 40% in electrically noisy installations.

✓ Hot-Swap Serviceability
Online insertion/removal capability allows module replacement without process shutdown or controller reboot. Cuts mean-time-to-repair (MTTR) from hours to minutes during critical failures. Supports predictive maintenance strategies by enabling proactive component replacement during scheduled maintenance windows.

✓ Wide Voltage Acceptance Range
85-132VAC operating window accommodates utility voltage fluctuations and brownout conditions without false triggering. Eliminates need for voltage regulation in remote field locations. Proven reliable across global power grids—from North American 120VAC to European 110VAC industrial standards.

✓ Diagnostic Transparency
Per-channel LED indicators provide instant visual confirmation of input states during commissioning and troubleshooting. Open-circuit detection alerts operators to wiring faults before they impact process safety. System-level diagnostics integrate with Experion Station for centralized health monitoring.

✓ Multi-Generation Platform Compatibility
Seamless integration with TDC 3000 legacy systems and Experion PKS Series C controllers protects capital investment during phased modernization projects. Enables hybrid architectures where new Experion controllers coexist with established TDC infrastructure—critical for brownfield expansions and incremental upgrades.

Industrial Application Scenarios

Petrochemical & Refining Operations
In hydrocarbon processing facilities, the MU-TDIA12 monitors emergency shutdown (ESD) valve position switches across distillation columns, reactor vessels, and storage tank farms. When a high-level switch activates in a crude oil separator, the module transmits the signal to the safety instrumented system within 20ms—triggering automated feed isolation before overflow occurs. Operators rely on the assembly's 1500VAC isolation to maintain signal integrity despite proximity to 480VAC motor control centers and variable frequency drives.

Power Generation & Cogeneration Plants
Turbine protection systems utilize the MU-TDIA12 to track bearing temperature switches, vibration sensors, and overspeed trip mechanisms across steam and gas turbine packages. During a bearing temperature excursion, the module's sub-20ms response time ensures the protection relay signal reaches the turbine controller before catastrophic damage occurs. The wide 85-132VAC input range accommodates voltage sag during generator synchronization events without false alarms.

Chemical Manufacturing & Batch Processing
Batch reactor control sequences depend on the MU-TDIA12 to verify agitator motor run status, reactor vessel door interlocks, and ingredient addition valve confirmations. A pharmaceutical manufacturer reduced batch rejection rates by 15% after replacing aging relay-based monitoring with this module's open-circuit detection capability—identifying loose terminal connections before they caused ingredient dosing errors. The 32-channel density allowed consolidation of three legacy I/O racks into a single FTA assembly.

Water & Wastewater Treatment
Municipal treatment plants deploy the assembly to monitor pump station run status, clarifier level switches, and chemical feed system alarms across distributed lift stations. When a submersible pump seal failure triggers a leak detection switch, the MU-TDIA12 immediately alerts the SCADA system—enabling remote pump shutdown before motor damage occurs. Hot-swap capability allows technicians to replace modules during daytime operations rather than requiring after-hours callouts.

Pulp & Paper Production
Paper machine control systems use the module to track dryer section limit switches, press roll position indicators, and stock valve confirmations. The optical isolation prevents ground loops between the machine's extensive 480VAC motor network and the DCS controller network—eliminating the random I/O faults that previously caused 2-3 unplanned shutdowns per month. Maintenance teams appreciate the visual LED diagnostics during the high-speed troubleshooting required in continuous production environments.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the MU-TDIA12 when your application requires monitoring of 120VAC discrete devices (limit switches, relay contacts, pushbuttons) in North American or 110VAC industrial installations. For 24VDC signal monitoring, consider the 51304717-100 variant. When channel count exceeds 32 inputs, deploy multiple MU-TDIA12 modules within the same FTA rack—each module operates independently with isolated power domains. Verify controller I/O capacity before specifying; each module consumes one I/O Link connection on the TDC 3000 or Experion controller.

Advanced Integration & Expansion Options

Hybrid I/O Architectures: Combine the MU-TDIA12 with analog input assemblies for comprehensive process monitoring. Pair discrete valve position feedback with analog flow transmitter signals to create closed-loop control strategies. The modular FTA design allows mixing of digital input, digital output, analog input, and analog output modules within a single enclosure—reducing cabinet count and simplifying wiring infrastructure.

Redundant System Configurations: Deploy dual MU-TDIA12 modules in fault-tolerant architectures where critical safety signals require 1oo2 (one-out-of-two) voting logic. Connect identical field devices to parallel input channels on separate modules, then configure the Experion controller for redundant signal processing. This approach eliminates single points of failure in emergency shutdown systems and turbine protection circuits.

Remote I/O Extensions: Extend the MU-TDIA12's reach to distant field locations using fiber-optic I/O Link extenders. Monitor discrete signals up to 2 kilometers from the central control room without signal degradation—ideal for pipeline pump stations, remote compressor buildings, and distributed tank farms. Fiber connectivity also provides inherent lightning protection in outdoor installations.

Predictive Maintenance Integration: Leverage the module's diagnostic data streams within Experion's Asset Performance Management (APM) framework. Track input state change frequencies to identify chattering relay contacts before they fail. Monitor open-circuit detection events to schedule preventive wiring inspections. Correlate I/O module temperature trends with ambient conditions to optimize cabinet cooling strategies.

Delivery, Warranty & Technical Support

Lead Times: Stock items ship within 2-3 business days via expedited courier. Custom-configured assemblies (special terminal blocks, extended temperature ratings) require 3-4 weeks for factory preparation. Emergency same-day shipping available for critical outage situations—contact our technical sales team for rapid response coordination.

Warranty Coverage: All MU-TDIA12 modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty begins on shipment date and includes advance replacement service—we ship the replacement module before receiving the defective unit to minimize your downtime. Extended warranty programs available for up to 36 months.

Technical Support Services: Our application engineers provide pre-sales configuration assistance, including I/O point mapping, cable length calculations, and power budget analysis. Post-installation support includes remote diagnostics, firmware update guidance, and troubleshooting consultation. Access to detailed CAD drawings, wiring diagrams, and configuration templates accelerates commissioning timelines.

Documentation Package: Each module ships with installation quick-start guide, terminal wiring diagrams, and safety precautions sheet. Complete technical manuals (PDF format) include detailed specifications, configuration procedures, diagnostic flowcharts, and spare parts lists. AutoCAD DXF files and 3D STEP models available for panel design integration.

Frequently Asked Questions

What is the maximum field wiring distance for reliable 120VAC signal transmission to the MU-TDIA12?
For 120VAC discrete signals, we recommend maximum cable runs of 300 meters (1000 feet) using 18 AWG shielded twisted-pair cable. Longer distances may experience voltage drop below the 85VAC minimum threshold, causing intermittent input detection. In high-EMI environments (near VFDs or welding equipment), reduce cable length to 150 meters and use continuous shield grounding at the FTA end only.

Can the MU-TDIA12 interface with dry contact devices, or does it require powered 120VAC sources?
The module requires an external 120VAC source for proper operation—it cannot provide excitation voltage for dry contacts. Connect dry contact devices (relay outputs, limit switches) in series with a 120VAC supply, using the contact to switch the voltage to the MU-TDIA12 input terminal. Each input draws approximately 8mA, so a single 120VAC/1A supply can power multiple input circuits.

How does the MU-TDIA12 handle input signal debouncing for mechanical switch contacts?
The module incorporates hardware-based input filtering with approximately 10-15ms debounce time to reject contact bounce and electrical noise. For applications requiring longer debounce periods (slow-moving mechanical actuators), configure additional software filtering in the TDC 3000 or Experion controller logic. The 20ms total response time includes both hardware filtering and controller scan time.

Is the MU-TDIA12 compatible with Experion PKS Series C controllers, or only legacy TDC 3000 systems?
The module supports both platforms. When used with Experion PKS Series C, connect via the C300 controller's Universal I/O (UIO) interface using standard FTA I/O Link cables. Configuration occurs through Experion Station's Control Builder application. For TDC 3000 integration, connect to Process Manager or Local Control Network (LCN) nodes using the appropriate I/O Link adapter.

What diagnostic capabilities help identify wiring faults or failed input channels?
Each input channel features a dedicated LED indicator (green = ON state, off = OFF state) for visual troubleshooting. The module also provides open-circuit detection—if an input circuit loses continuity (broken wire, disconnected terminal), the system generates a diagnostic alarm visible in the operator station. Channel-level diagnostics include last state change timestamp and cumulative state change counter for predictive maintenance analysis.

Can I mix the MU-TDIA12 with other I/O module types in the same FTA enclosure?
Yes, the modular FTA architecture allows mixing of digital input, digital output, analog input, and analog output assemblies within a single rack. Each module operates independently with isolated power and signal domains. Observe proper slot assignment per the controller's I/O configuration—consult the TDC 3000 or Experion I/O planning guide to verify slot compatibility and address mapping.

Ready to Enhance Your DCS Discrete Monitoring?

The MU-TDIA12 field terminal assembly delivers the signal integrity, diagnostic transparency, and operational flexibility required for modern process automation. Whether you're expanding an existing TDC 3000 installation, migrating to Experion PKS, or designing a greenfield control system, this proven interface module provides the foundation for reliable discrete signal acquisition.

Contact our industrial automation specialists today: Share your I/O point count, field device specifications, and system architecture—we'll provide application-specific recommendations, wiring diagrams, and delivered pricing within 24 hours. For urgent replacement needs or technical troubleshooting support, our team is available via phone and email during extended business hours.
