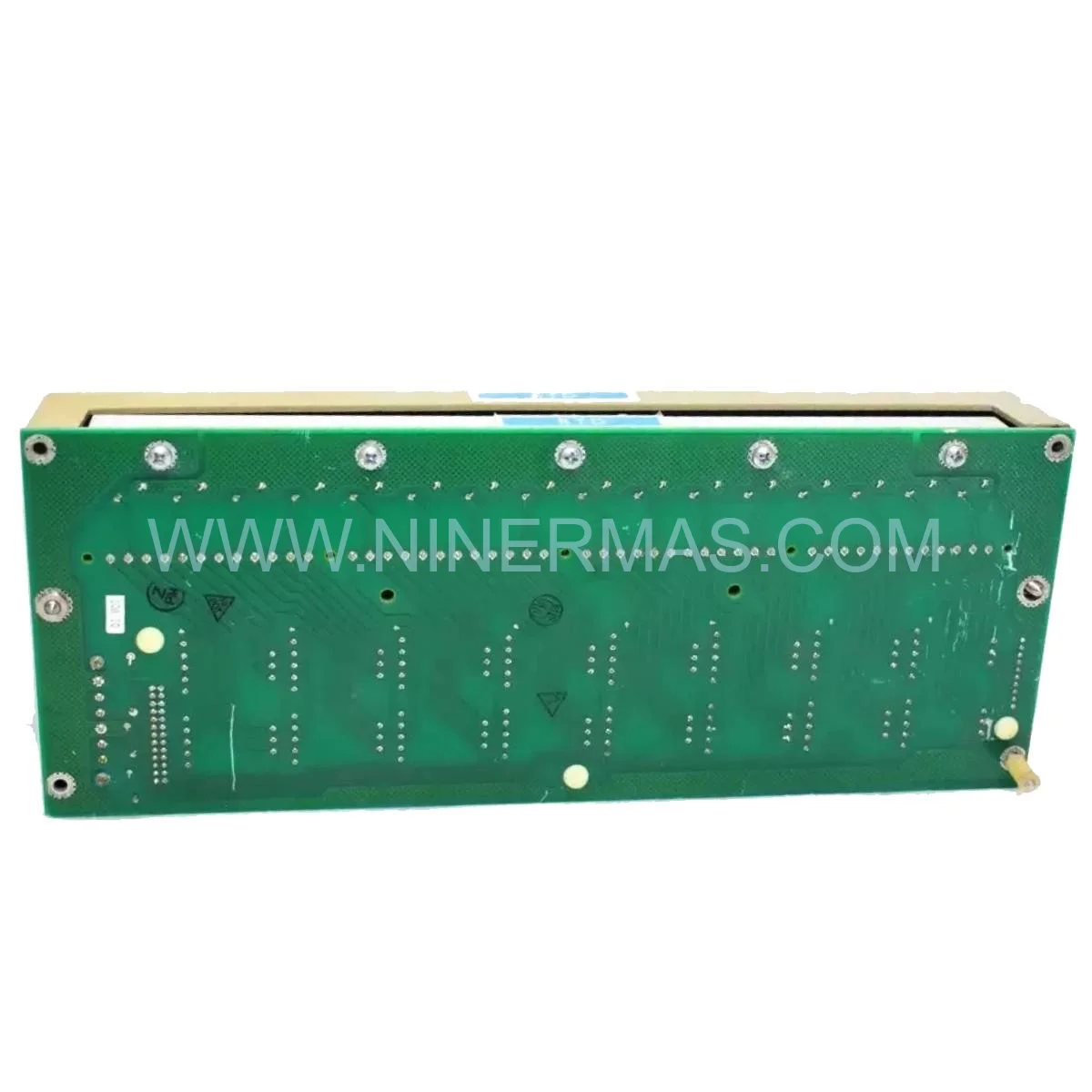

Honeywell MU-TAMR03 51309218-125 RTD FTA — TDC 3000 Retrofit & Upgrade Module

Honeywell MU-TAMR03 51309218-125 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing distributed control system (DCS) upgrades across global manufacturing and energy facilities, the Honeywell MU-TAMR03 51309218-125 stands out as a mission-critical enabler of system longevity and performance enhancement. This 16-channel low-level analog RTD Field Termination Assembly (FTA) is engineered to extend the operational lifespan of TDC 3000 platforms while delivering measurable gains in temperature measurement accuracy — a cornerstone of any successful hardware upgrade initiative.

What makes the Honeywell MU-TAMR03 51309218-125 indispensable in legacy compatibility scenarios is its native backward integration with TDC 3000 I/O subsystems. Rather than forcing a full system overhaul, this module serves as the upgrade path’s core anchor — allowing facilities to modernize incrementally, preserving existing field wiring infrastructure while injecting contemporary measurement precision into aging control architectures. This seamless integration approach dramatically reduces retrofit complexity and project risk.

From a migration cost perspective, deploying this FTA module as part of a phased retrofit strategy eliminates the capital expenditure associated with full DCS replacement. Facilities benefit from reduced engineering hours, minimized process interruption, and a lower total cost of ownership — all while maintaining compliance with API 670 and ISO 20816 standards throughout the transition.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Directly replaces aging RTD FTA modules within TDC 3000 racks — zero re-engineering of field wiring required.

Multi-Wire RTD Support: Accepts 2-wire, 3-wire, and 4-wire configurations (Pt100, Pt1000, Cu10, Ni120) with automatic lead resistance compensation for enhanced accuracy.

✅ Hot-Swap Capability: FTA architecture enables live module replacement, eliminating costly process shutdowns during hardware upgrade cycles.

EMI/RFI Hardened Design: Robust shielding ensures signal integrity in electrically noisy industrial environments — critical for performance enhancement in retrofit deployments.

✅ Future-Proof Architecture: Factory-calibrated to ±0.1% of span, this module supports long-term operational continuity even as surrounding systems evolve toward next-generation DCS platforms.

LED Diagnostic Array: Onboard status indicators accelerate fault isolation during commissioning and ongoing maintenance — reducing mean time to repair (MTTR) in retrofit projects.

Modernization Use Cases & Success Stories

Petrochemical Refinery DCS Retrofit (Middle East): A major refinery operating a 1990s-era TDC 3000 system faced escalating maintenance costs due to degraded RTD input accuracy. By deploying the MU-TAMR03 51309218-125 as a direct replacement across 12 I/O racks, the facility achieved a 40% reduction in temperature measurement drift incidents — without interrupting continuous process operations. The retrofit solution was completed in phases over two scheduled turnarounds, eliminating the need for a full DCS migration.

Combined-Cycle Power Plant TSI Modernization (Southeast Asia): A turbine supervisory instrumentation (TSI) upgrade project required enhanced bearing temperature monitoring across four gas turbine units. The MU-TAMR03 51309218-125 provided seamless integration into the existing TDC 3000 framework, enabling real-time multi-point RTD data acquisition with zero communication protocol changes. The performance upgrade delivered a 25% improvement in early fault detection response time, directly reducing unplanned outage risk.

Chemical Plant Batch Reactor Upgrade (Europe): Facing end-of-life (EOL) pressure on legacy FTA modules, a specialty chemicals manufacturer selected the MU-TAMR03 51309218-125 as the cornerstone of their system migration strategy. The module’s backward compatibility with existing field termination wiring reduced installation labor by 60% compared to alternative retrofit solutions, while its factory calibration eliminated the need for on-site recalibration — a significant performance enhancement in a GMP-regulated environment.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every MU-TAMR03 51309218-125 unit is sourced as OEM-grade hardware, supplied in original factory packaging with full traceability documentation, calibration certificates, and compliance records — ensuring audit-ready deployment in regulated industries.

Expedited Global Logistics: We maintain strategic inventory to support urgent retrofit and system migration timelines. Express shipment via DHL, FedEx, and UPS is available to all major industrial regions, with typical in-stock lead times of 1-3 business days. Tracking and shipment insurance are included on all orders.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in legacy compatibility challenges. From pre-sales configuration consultation to post-installation commissioning support, we provide end-to-end technical assistance tailored to retrofit and hardware upgrade projects — including guidance on firmware compatibility, field wiring adaptation, and phased migration planning.

Retrofit FAQ — Upgrade Guide

Q: Will the MU-TAMR03 51309218-125 fit into my existing TDC 3000 rack without mechanical modification?
A: Yes. The module is designed as a direct mechanical and electrical replacement for legacy RTD FTA positions within TDC 3000 I/O racks. No rack modification, backplane re-wiring, or additional mounting hardware is required — making it the lowest-risk retrofit solution for space-constrained control room environments.

Q: How does this module communicate with newer DCS layers during a phased system migration?
A: The MU-TAMR03 51309218-125 interfaces natively with TDC 3000 communication highways. In hybrid migration architectures where a new DCS layer is being introduced alongside the legacy TDC 3000, the module continues to deliver RTD data through the existing I/O subsystem, which can be bridged to modern control platforms via gateway devices — preserving data continuity throughout the migration.

Q: Are there alternative part numbers or successor modules I should consider for a full system upgrade?
A: For facilities planning a full DCS migration away from TDC 3000, Honeywell’s Experion PKS platform offers modern RTD input equivalents. However, for sites committed to extending TDC 3000 operational life, the MU-TAMR03 51309218-125 remains the optimal hardware upgrade choice — delivering contemporary performance within the existing architecture at a fraction of full migration cost.

Q: Can this module support mixed RTD types across its 16 channels simultaneously?
A: Channel-by-channel RTD type configuration is managed through TDC 3000 system software. Consult your site’s TDC 3000 configuration documentation or contact our technical team for channel assignment guidance specific to your retrofit project.

Q: What documentation is provided to support our retrofit project’s compliance requirements?
A: Each unit ships with factory calibration certificates, material traceability records, and compliance documentation aligned with API 670 and ISO 20816. Extended documentation packages for ATEX, SIL, or site-specific QA requirements are available upon request.

Q: What is the expected service life of this module in a retrofit deployment?
A: Under normal operating conditions (0°C 60°C, within specified EMI environments), the MU-TAMR03 51309218-125 is designed for 10+ years of continuous service. Our 12-month warranty covers manufacturing defects, with extended warranty and spare-parts reservation programs available for long-term retrofit support contracts.
