Honeywell MU-TAMR03 Retrofit-Compatible Analog Mux Module

Honeywell MU-TAMR03 Retrofit-Compatible Analog Mux Module: Legacy System Compatibility & Smooth Upgrade Path

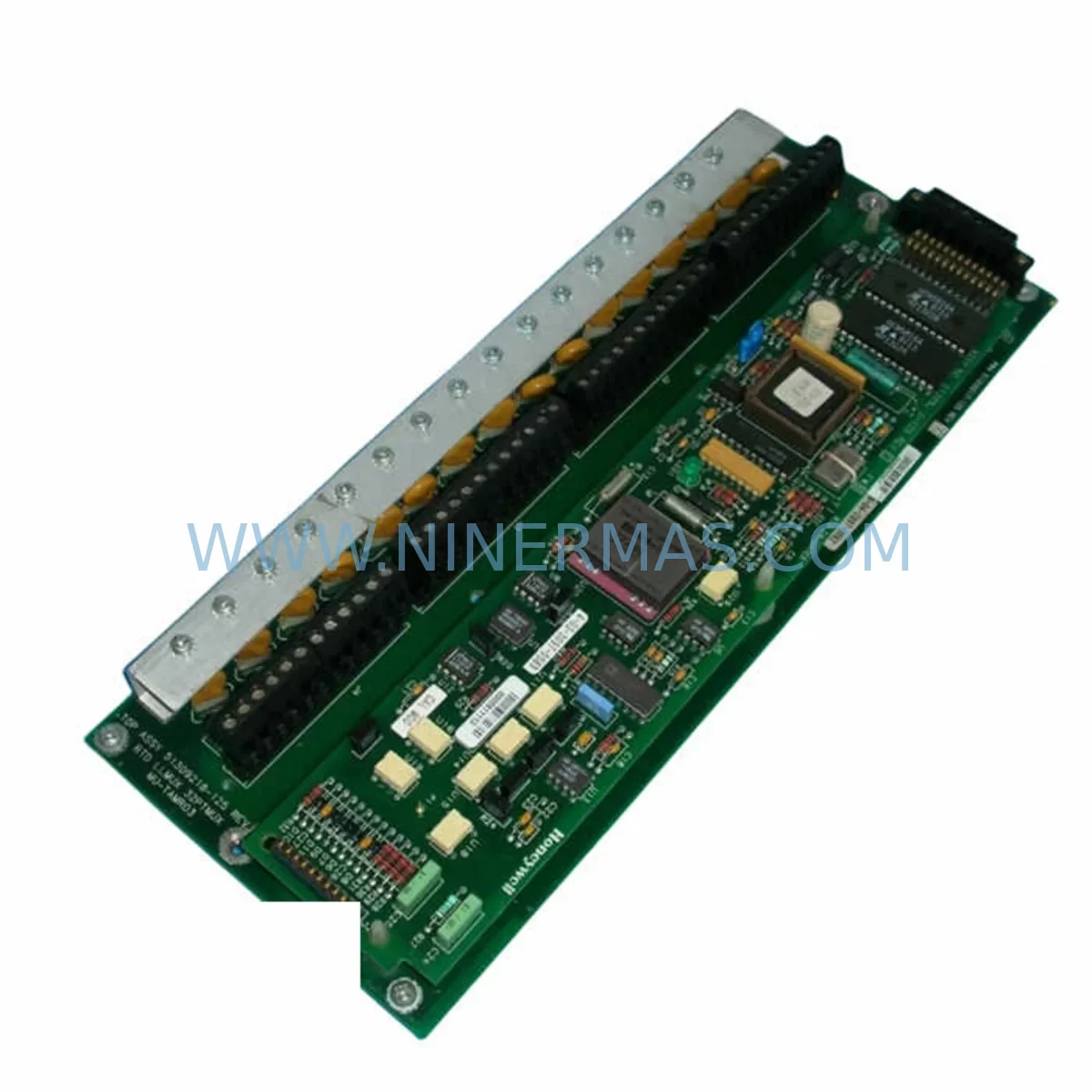

The Honeywell MU-TAMR03 (part number 51309218-125) is a ruggedized analog multiplexer module engineered for demanding industrial environments. Designed for integration within the Honeywell TDC 3000 distributed control system platform, this module serves as a critical interface between field analog signals and the process control network. As legacy TDC 3000 installations age and original spare parts become increasingly scarce, the MU-TAMR03 has become one of the most sought-after retrofit and replacement components for plant engineers tasked with extending the operational life of existing control infrastructure without committing to a full DCS migration.

Whether you are managing a refinery, chemical plant, power generation facility, or continuous process operation, the MU-TAMR03 provides a reliable, drop-in compatible solution for analog signal multiplexing within your existing backplane architecture. Its ruggedized construction ensures stable performance in high-vibration, high-temperature, and electrically noisy environments — conditions common in brownfield retrofit projects where the control cabinet may have been in service for 15 to 25 years.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MU-TAMR03 into an aging TDC 3000 or TPS control system requires careful pre-installation planning. The first step is a thorough audit of the existing control cabinet to confirm available rack slots, current power budget, and the condition of the backplane connectors. The MU-PSIM11 power supply module should be checked to ensure it can support the additional load of the replacement module, particularly in racks that are already near capacity.

Field wiring termination is a critical checkpoint. The MU-TAMR03 connects to the process field via an I/O termination assembly (ITA) — typically a MU-TAIH02 or MU-TAIH04 termination panel — which must be verified for compatibility with the existing cable harness. In many retrofit scenarios, the original termination panels remain serviceable and can be reused, significantly reducing rewiring time and minimizing the risk of introducing wiring errors during the changeover.

Module address configuration is handled through DIP switches on the module faceplate. Before powering up the replacement unit, engineers must confirm the address settings match the original module’s configuration as recorded in the system’s control database. Mismatched addresses will cause the Honeywell Universal Control Network (UCN) to fail to recognize the module, resulting in loss of I/O points and potential process upsets.

For plants running the Honeywell TPS (Total Plant Solution) environment, the Engineering Console database should be backed up prior to any hardware swap. While a direct MU-TAMR03 replacement typically does not require changes to the control strategy or HMI graphics built in GUS (Global User Station) or Experion PKS operator stations, it is best practice to verify that all analog point tags are correctly mapped and that alarm limits are intact after the module comes online.

In systems where the MU-TAMR03 feeds signals into a Honeywell HPM (High-Performance Process Manager) or PM (Process Manager) controller, the process manager’s I/O configuration should be reviewed to confirm that channel assignments and engineering unit scaling remain consistent with the original module. Any discrepancy in channel mapping can result in incorrect process variable readings that may not immediately trigger alarms but can cause subtle control deviations over time.

For facilities planning a broader migration from TDC 3000 toward Experion PKS or a third-party DCS platform, the MU-TAMR03 can serve as a bridging component — maintaining analog I/O continuity while other system layers are progressively upgraded. In this phased approach, the analog mux module continues to serve its original function while C200 or C300 controllers are introduced alongside the legacy HPM, allowing engineers to migrate control strategies loop by loop without a full plant shutdown.

Signal isolation is another consideration in retrofit projects involving older field wiring. Where ground loops or signal interference are detected, inline signal isolators or signal conditioners may be inserted between the field device and the termination assembly to protect the MU-TAMR03 inputs and ensure measurement accuracy. This is particularly relevant in plants where the original cable shielding has degraded or where new variable-frequency drives (VFDs) have been installed near existing signal cables.

For sites requiring expanded I/O capacity beyond what the existing rack can accommodate, the MU-TAMR03 can be deployed in conjunction with additional MU-GAIX12 or MU-GAIX22 analog input modules installed in an expansion rack connected via the UCN highway. This approach avoids the need to replace the entire control system while providing the additional measurement points required by process expansion projects.

Programming cable access for on-site diagnostics and module verification is typically handled through the Honeywell Engineering Console connected to the UCN network. No dedicated programming cable is required for the MU-TAMR03 itself, as all configuration and diagnostics are performed through the network-connected console. However, a laptop loaded with TDC 3000 maintenance tools should be available on-site during commissioning to monitor module status, verify I/O readings, and confirm alarm functionality before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer undertaking a control system retrofit. When replacing the MU-TAMR03 in a live production environment, the recommended approach is to schedule the swap during a planned maintenance window, ideally when the affected process loops can be placed in manual control at the GUS or Experion operator station.

Before removing the original module, all affected analog loops should be documented — including current process values, controller outputs, and any active alarms. This snapshot serves as the baseline for post-installation verification. The replacement MU-TAMR03 should be pre-configured with the correct module address and verified on a bench test setup if possible before being brought to the field, reducing the time the rack slot remains empty.

The physical swap of the module is typically completed in under 15 minutes. The majority of the downtime budget is consumed by pre-swap preparation and post-swap verification — confirming that all analog channels are reading correctly, that the UCN communication link is established, and that the HPM or PM controller has recognized the new module and resumed automatic control of all associated loops.

Where process continuity is critical and a hot-swap is not feasible, some facilities implement a temporary bypass strategy using portable signal simulators connected to the termination assembly. This allows the control system to continue receiving a representative signal while the module is exchanged, preventing the controller from driving outputs to their failsafe states during the changeover period.

All replacement units supplied by NINERMAS are pre-tested and verified prior to shipment, with a 12-month warranty covering manufacturing defects and functional failures. This pre-shipment testing significantly reduces the risk of receiving a non-functional unit and helps keep the planned maintenance window on schedule. Detailed test reports are available upon request for quality assurance documentation purposes.

Retrofit Support FAQ

Q1: Is the MU-TAMR03 (51309218-125) a direct drop-in replacement for the MU-TAMR01 or MU-TAMR02?
The MU-TAMR03 is functionally compatible with earlier MU-TAMR series modules in most TDC 3000 and TPS installations. However, engineers should verify the hardware revision level and DIP switch address configuration of the original module before installation. In the majority of cases, no changes to the control database or HMI graphics are required for a direct replacement.

Q2: What pre-installation checks are required for wiring and termination compatibility?
Confirm that the existing I/O termination assembly (ITA) — such as the MU-TAIH02 or MU-TAIH04 — is compatible with the MU-TAMR03 and that the field cable harness is correctly connected. Inspect terminal blocks for corrosion or loose connections, and verify that signal types (4–20 mA, thermocouple, RTD) match the module’s configured channel assignments.

Q3: Does NINERMAS provide pre-shipment testing and what does the 12-month warranty cover?
Yes. All MU-TAMR03 units are fully tested and functionally verified before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Test reports are available upon request. Units are shipped with appropriate anti-static and protective packaging to prevent transit damage.

Q4: What is the typical lead time and stock availability for the MU-TAMR03?
NINERMAS maintains inventory of the MU-TAMR03 to support urgent retrofit and breakdown replacement requirements. Lead times vary based on current stock levels. Contact our sales team for real-time availability and expedited shipping options. We supply to customers globally and can provide export documentation as required.
