Honeywell 51309218-175 MC-TAMR03 Service-Ready Spare Part

Honeywell 51309218-175 MC-TAMR03 Service-Ready Spare Part: Minimizing Downtime with Reliable Analog Mux Replacement

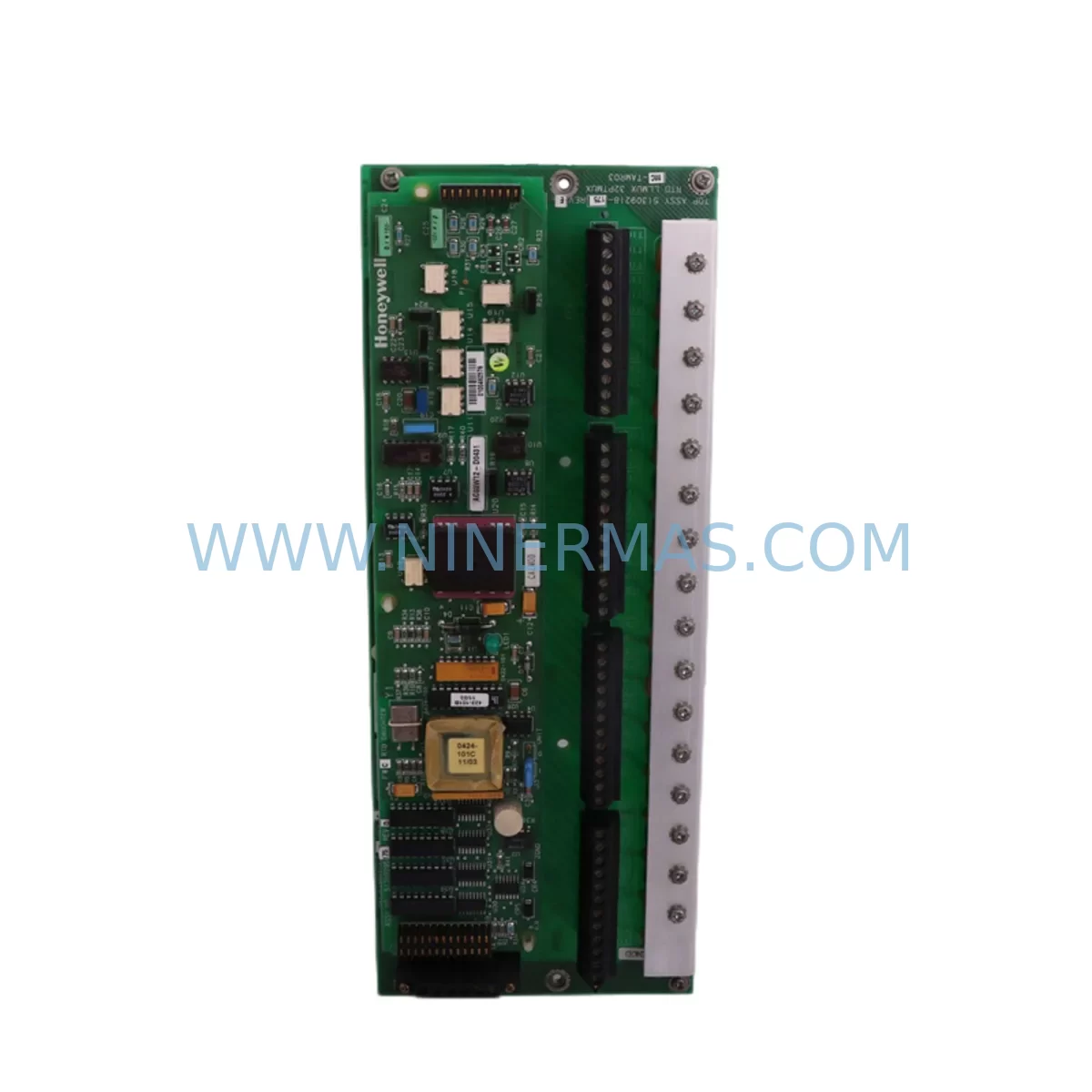

The Honeywell 51309218-175 MC-TAMR03 is a Low Level Analog Multiplexer (Mux) Module designed for use in Honeywell’s TotalPlant Solution (TPS) and Experion PKS distributed control systems. As a critical signal conditioning and multiplexing component, the MC-TAMR03 handles low-level analog inputs — including thermocouple and millivolt signals — from field instruments and routes them accurately into the DCS for process monitoring and control. When this module fails or degrades, the consequences can range from erratic process readings to complete loss of analog input channels, triggering unplanned shutdowns and costly production interruptions.

At NINERMAS, we stock the 51309218-175 MC-TAMR03 as a service-ready spare, fully tested prior to shipment and backed by a 12-month warranty. Whether you are responding to an emergency fault, building a preventive maintenance inventory, or planning an annual turnaround, this module is available for immediate dispatch to minimize your system downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing Honeywell TPS or Experion PKS systems, the MC-TAMR03 sits at the heart of analog signal acquisition. A proactive spare parts strategy around this module should extend to the broader signal chain and control cabinet ecosystem to ensure full system resilience.

When replacing or inspecting the 51309218-175 MC-TAMR03, it is strongly recommended to simultaneously verify the condition of the MC-TAIX08 Analog Input Module, which often works in tandem with the mux module to process multiplexed signals. Check the MC-PDOX02 or MC-PDOX03 Power Distribution Module supplying the card cage — degraded power rails are a common root cause of intermittent analog faults that are misdiagnosed as module failures.

Inspect the MC-TAIH02 High Level Analog Input Module in adjacent slots, as cross-channel interference or shared backplane issues can affect multiple modules simultaneously. The MC-TAMR03 relies on a stable backplane connection; therefore, the MC-BPSX01 or equivalent backplane assembly should be inspected for oxidized contacts, bent pins, or mechanical damage during any mux module replacement.

Field wiring termination is equally critical. Verify the MC-TLPA02 or MC-TLPA03 Terminal Panel connections for loose terminations, moisture ingress, or corroded screw terminals — particularly for thermocouple circuits where millivolt-level signals are highly susceptible to noise and resistance changes. Review the MC-TAIX04 or MC-TAIX16 Analog Input Modules in the same cabinet for any shared fault patterns that may indicate a systemic wiring or grounding issue rather than an isolated module failure.

For systems with communication-intensive architectures, confirm the health of the MC-TCNX01 or MC-TCNX02 Communication Interface Module to ensure that data from the mux module is being correctly transmitted to the controller. In cabinets where signal isolation is required, inspect any installed signal isolators or barriers on the thermocouple or mV input circuits to rule out isolation degradation as a contributing fault factor.

Procurement engineers should note that the 51309218-175 MC-TAMR03 is a legacy TPS-era component. Long-term availability from OEM channels is limited, making it essential to secure buffer stock — typically 1 to 2 units per system — to avoid extended lead times during emergency shutdowns. NINERMAS maintains ongoing inventory of this module and can support long-term supply agreements for facilities operating aging Honeywell TPS platforms.

Site Replacement Workflow

Replacing the Honeywell MC-TAMR03 (51309218-175) on-site follows a structured procedure to minimize downtime and ensure system compatibility:

1. Pre-Replacement Verification: Confirm the fault is isolated to the MC-TAMR03 by reviewing DCS alarm logs, channel diagnostics, and performing a visual inspection of the module’s LED status indicators. Cross-reference the module’s revision level (Rev. 175) with your system’s firmware and hardware compatibility matrix to ensure the replacement unit is a direct fit.

2. Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected card cage. Notify the control room to place affected analog input channels in manual or bypass mode to prevent false process trips during the swap.

3. Module Extraction and Inspection: Remove the faulty MC-TAMR03 and inspect the backplane connector for damage. Clean the slot contacts if necessary before inserting the replacement unit. Avoid forcing the module — misalignment can damage both the module and the backplane.

4. Replacement and Restoration: Insert the service-ready 51309218-175 MC-TAMR03 into the correct slot, secure the retaining latch, and restore power. Monitor the DCS for channel restoration and verify that all previously faulted analog input channels return to normal operation with accurate engineering unit readings.

5. Post-Replacement Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), update the spare parts inventory, and flag the need to replenish the consumed spare to maintain your buffer stock level.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios, ensuring that system compatibility is maintained and downtime is kept to an absolute minimum.

Spare Parts Support FAQ

Q1: Is the Honeywell 51309218-175 MC-TAMR03 compatible with both TPS and Experion PKS systems?
The MC-TAMR03 was originally designed for the Honeywell TotalPlant Solution (TPS) platform. Compatibility with Experion PKS depends on the specific cabinet configuration and whether legacy TPS I/O is being retained within the Experion architecture. We recommend verifying your system’s hardware compatibility documentation or consulting your DCS engineer before installation. Our technical team can assist with compatibility confirmation prior to purchase.

Q2: How is the module tested before shipment?
Every 51309218-175 MC-TAMR03 unit shipped by NINERMAS undergoes functional verification testing prior to dispatch. This includes power-on testing and basic signal path verification to confirm the module is operational. Each unit is shipped with appropriate anti-static packaging to prevent ESD damage during transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, electrical overstress, physical mishandling, or use outside the module’s specified environmental and electrical parameters. Warranty claims are processed promptly — contact our support team at sale@ninermas.com with your order details and fault description.

Q4: Can NINERMAS support long-term or repeat supply of the MC-TAMR03?
Yes. NINERMAS specializes in long-term supply of legacy and hard-to-source industrial automation spare parts. We can establish blanket purchase agreements or scheduled delivery arrangements for facilities that require ongoing access to the 51309218-175 MC-TAMR03 and related Honeywell TPS components. Contact us to discuss your annual maintenance requirements and we will provide a tailored supply plan.
