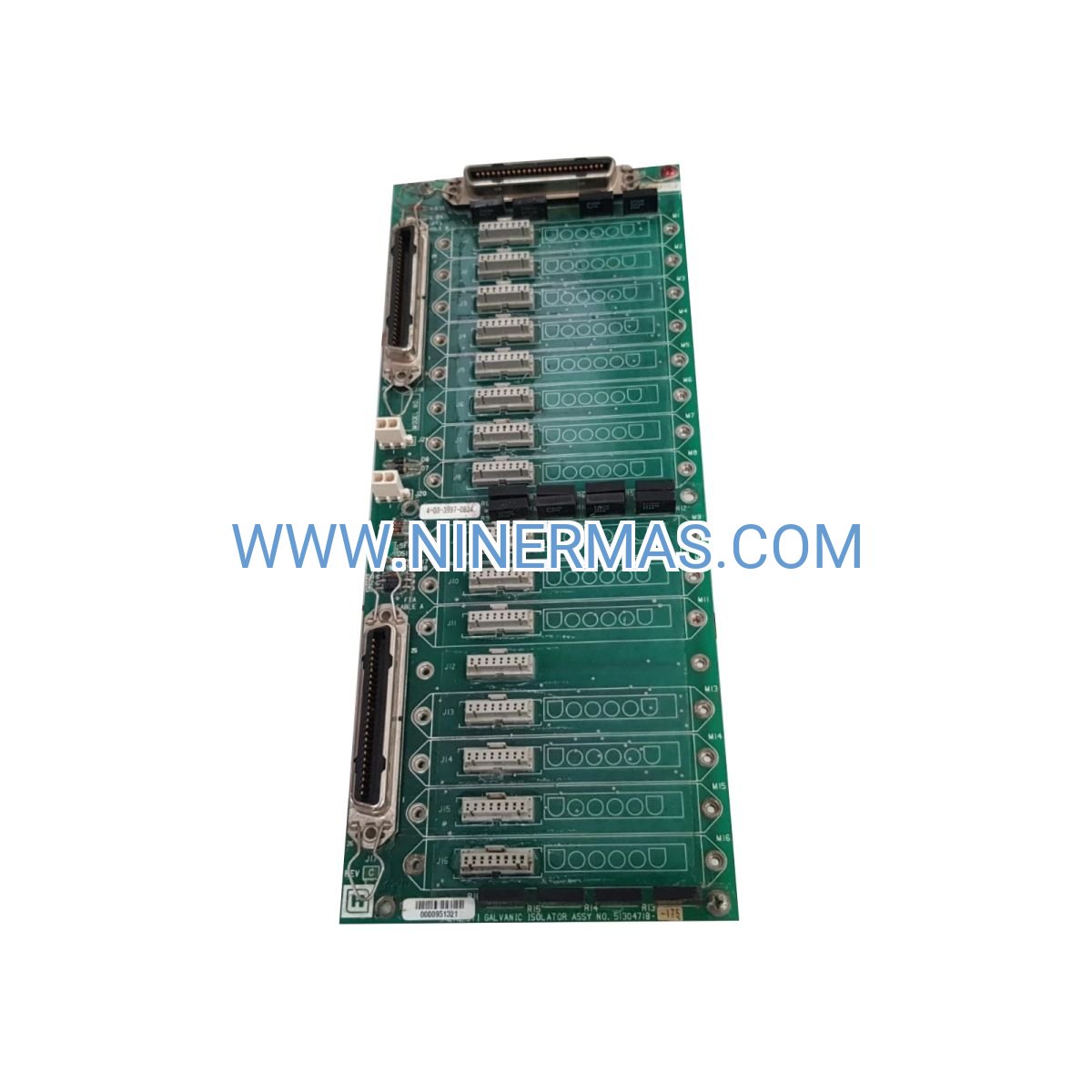

MU-TAIH13 Analog Input FTA Module (Industrial-Grade 16-Channel Solution)

The Honeywell MU-TAIH13 represents a field-proven analog input solution engineered for mission-critical process automation. This Field Termination Assembly delivers 16 differential input channels with multi-range capability, supporting 4-20mA, 0-20mA, and ±10V signal types across TDC 3000 and Experion PKS distributed control architectures.

Designed for industries where measurement accuracy directly impacts operational efficiency and safety—including petrochemical refineries, pharmaceutical manufacturing, power generation facilities, and water treatment plants—this module combines high-density I/O with robust galvanic isolation and hot-swappable serviceability.

Whether you're modernizing legacy TDC 3000 infrastructure or expanding Experion PKS capacity, the MU-TAIH13 delivers reliable signal acquisition with 16-bit resolution and ±0.1% accuracy, ensuring precise process variable monitoring for temperature, pressure, flow, and level measurement applications.

Core Features & Benefits

→ Universal Signal Compatibility
Accepts 4-20mA, 0-20mA current loops and ±10V voltage signals on any channel, eliminating the need for multiple module types and simplifying spare parts inventory.

→ Hot-Swap Serviceability
Replace failed modules during live operation without process shutdown or controller reboot, reducing mean time to repair (MTTR) and maximizing plant uptime.

→ Channel-to-Channel Isolation
Galvanic isolation prevents ground loop interference and cross-channel noise, maintaining signal integrity in electrically noisy industrial environments.

→ High-Density Architecture
Packs 16 input channels into a single FTA slot, optimizing cabinet space utilization and reducing installation costs compared to lower-density alternatives.

→ Built-In Diagnostics
Continuous self-monitoring detects open circuits, short circuits, and out-of-range conditions, enabling predictive maintenance strategies and faster fault isolation.

→ Industrial Temperature Rating
Operates reliably across 0°C to 60°C (32°F to 140°F) ambient conditions, suitable for control room and field-mounted enclosure installations.

Typical Application Scenarios

✓ Refinery Process Monitoring
Challenge: Distillation columns require simultaneous monitoring of 12+ temperature zones with 0.1°C accuracy.
Solution: Single MU-TAIH13 module interfaces with RTD transmitters (4-20mA output) to provide real-time thermal profiling, enabling precise cut-point control and product quality optimization.

✓ Chemical Batch Reactor Control
Challenge: Recipe-driven processes demand flexible analog input configuration for varying sensor types across production campaigns.
Solution: Software-configurable input ranges allow the same hardware to handle pressure transmitters (4-20mA), pH sensors (0-20mA), and analytical instruments (±10V) without rewiring.

✓ Power Plant Boiler Instrumentation
Challenge: Steam drum level, feedwater flow, and combustion air measurements must maintain accuracy despite electrical noise from motor drives and switchgear.
Solution: Channel-to-channel isolation and 250Ω input impedance reject common-mode interference, ensuring stable PID loop performance.

✓ Water Treatment SCADA Integration
Challenge: Municipal facilities need cost-effective expansion of existing TDC 3000 systems to accommodate new filtration trains.
Solution: Backward compatibility with legacy controllers eliminates costly system-wide upgrades while adding modern diagnostic capabilities.

✓ Pharmaceutical Clean Room Monitoring
Challenge: FDA-regulated environments require validated, traceable measurement systems with minimal maintenance windows.
Solution: Hot-swap capability enables module replacement during scheduled maintenance without batch interruption, maintaining 21 CFR Part 11 compliance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the MU-TAIH13 when your application requires more than 8 analog inputs per FTA slot, mixed signal type support, or when upgrading from obsolete TAIH modules. For applications with fewer than 12 channels, consider the MC-TAIH12 for cost optimization. Ensure your FTA chassis has adequate power budget (5W per module) and available I/O Link bandwidth.

Extended Functions

Advanced Diagnostics Integration: The module reports channel health status to the controller, enabling integration with plant-wide asset management systems. Diagnostic data includes wire break detection, signal out-of-range alarms, and module self-test results accessible via Experion Station or TDC 3000 operator consoles.

Redundancy Support: When deployed in fault-tolerant Experion PKS configurations, the MU-TAIH13 supports automatic failover to backup I/O processors, maintaining process continuity during controller maintenance or failure events.

Calibration Management: Software-based zero and span adjustments eliminate the need for physical potentiometer tuning, with calibration coefficients stored in non-volatile memory for audit trail compliance.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Expedited delivery available for critical outage situations—contact our team for same-day dispatch options on in-stock inventory.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship. Extended warranty programs available for multi-year capital projects.

Technical Support: Our application engineers provide pre-sale configuration assistance, installation guidance, and post-deployment troubleshooting. Access to Honeywell technical documentation, wiring diagrams, and configuration templates included with purchase.

Documentation Package: Each module ships with installation manual, safety data sheet, and certificate of conformity. Digital resources include AutoCAD panel layout drawings and controller configuration files.

Frequently Asked Questions

Q: How do I configure input signal types on the MU-TAIH13 module?
A: Signal type configuration is performed through your TDC 3000 or Experion PKS controller software—no DIP switches or jumpers required. Each channel is independently configurable for 4-20mA, 0-20mA, or ±10V operation via the control builder application.

Q: What cable assemblies are needed for field wiring connections?
A: The module requires standard Honeywell I/O Link cables (such as 51204033-020 or 51202329 series) for backplane communication. Field wiring terminates at the FTA terminal block using 14-22 AWG copper conductors with ferrule terminations recommended.

Q: Can this module replace obsolete TAIH or PAIH analog input cards?
A: Yes, the MU-TAIH13 is designed as a form-fit-function replacement for legacy analog input modules in TDC 3000 systems. Controller database modifications may be required—consult migration documentation or contact our technical team for upgrade planning assistance.

Q: Does the MU-TAIH13 support HART protocol for smart transmitter communication?
A: This module provides standard analog signal acquisition only. For HART communication, you'll need dedicated HART-enabled input modules or HART multiplexers in your system architecture. Contact us for HART-compatible alternatives.

Q: What is the maximum cable length between transmitters and the FTA module?
A: For 4-20mA current loops, cable runs up to 1000 meters (3280 feet) are supported with appropriate wire gauge (typically 18 AWG for runs exceeding 300m). Voltage inputs should be limited to 100 meters to minimize noise pickup and voltage drop.

Q: How does channel isolation protect against ground loop problems?
A: Each input channel features transformer-based galvanic isolation rated at 1500V AC, breaking ground loop paths between field devices and the control system. This prevents circulating currents that can cause measurement errors or equipment damage in multi-grounded installations.
