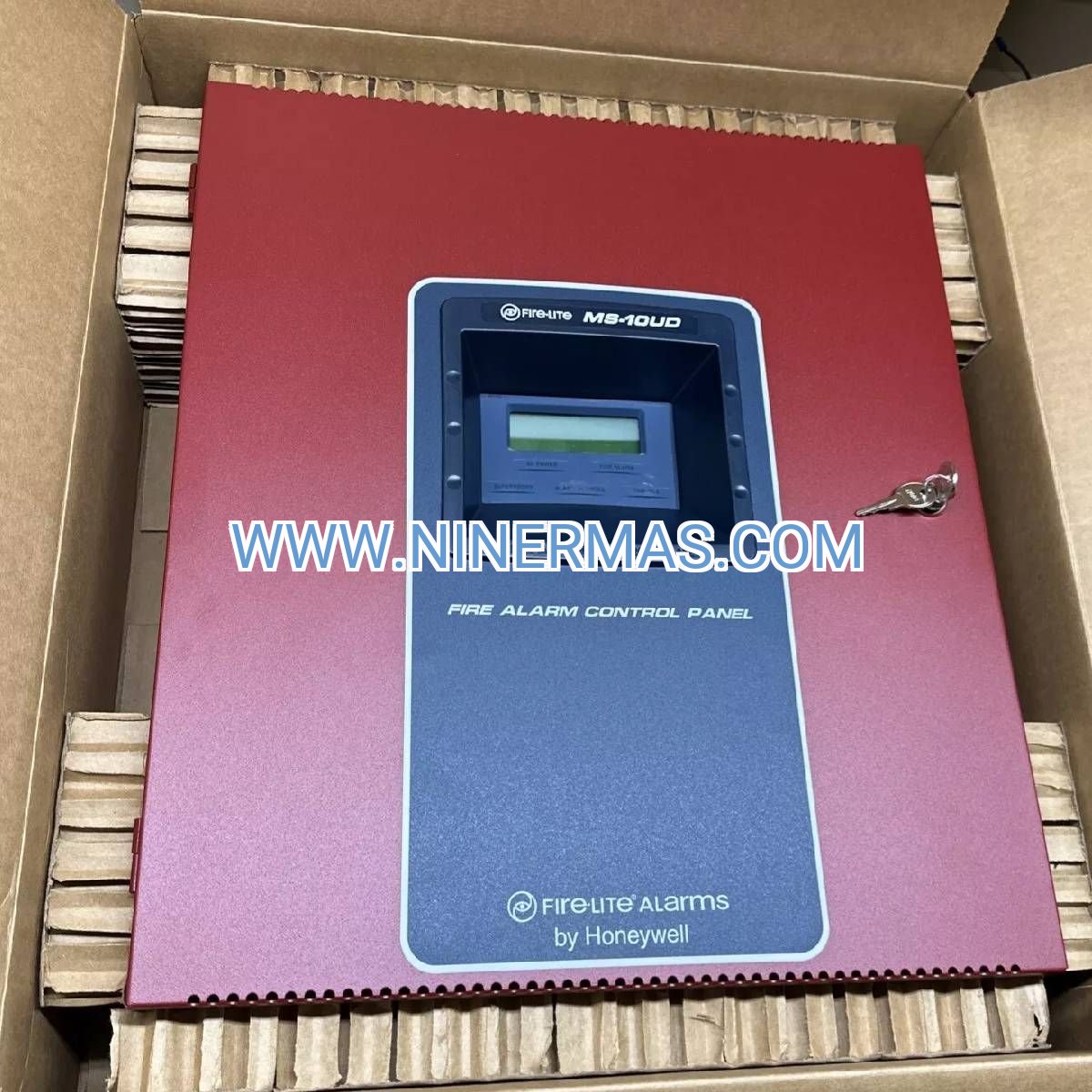

MS-10UD-7E Fire Alarm Control Panel (Industrial-Grade 10-Zone Detection System)

The MS-10UD-7E represents Honeywell's commitment to reliable fire detection technology for commercial and industrial environments. This conventional fire alarm control panel combines 10-zone monitoring capacity with an integrated FLPS-7 power supply module, delivering code-compliant fire safety infrastructure for facilities ranging from office buildings to manufacturing plants.

Designed for system integrators and facility managers who demand dependable life safety equipment, the MS-10UD-7E operates on 240VAC power with battery backup capability. Its NEMA 1 enclosure houses diagnostic LEDs, zone terminals, and notification appliance circuits—all engineered to meet UL 864 and NFPA 72 standards without compromise.

Whether you're upgrading legacy fire alarm systems or designing new installations, this control panel provides the foundation for comprehensive fire detection coverage. Compatible with conventional smoke detectors, heat sensors, and manual pull stations, it delivers the flexibility modern facilities require while maintaining the reliability that life safety applications demand.

Core Features & Advantages

→ 10-Zone Detection Architecture
Monitor up to 10 independent fire detection zones from a single control point. Each zone supports conventional two-wire devices, enabling cost-effective coverage for facilities up to 10,000 square feet. Business value: Reduce installation complexity while maintaining comprehensive fire detection coverage across multiple building areas.

→ Integrated FLPS-7 Power Module
240VAC primary power with built-in battery charging circuitry ensures continuous operation during utility outages. The FLPS-7 module accommodates 12V or 24V standby batteries (field-installed) for up to 24 hours of backup runtime. Business value: Eliminate separate power supply purchases and reduce cabinet space requirements by 40%.

→ UL 864 & NFPA 72 Certification
Factory-tested to meet North American fire alarm standards, including FM approval for commercial installations. Full compliance documentation included with every unit. Business value: Pass code inspections on first submission and avoid costly project delays.

✓ Diagnostic LED Array
Front-panel indicators display power status, alarm conditions, trouble signals, and supervisory events at a glance. Technicians can identify system faults in under 60 seconds without opening the enclosure. Business value: Reduce service call duration and minimize system downtime.

✓ Flexible Device Compatibility
Works with all conventional 2-wire smoke detectors, fixed-temperature heat detectors, rate-of-rise sensors, and manual pull stations. Supports mixed device types on individual zones. Business value: Leverage existing device inventory and avoid vendor lock-in.

✓ Expandable Notification Circuits
Dedicated terminals for horns, strobes, and combination notification appliances. Relay outputs enable integration with building automation systems, elevator recall, and HVAC shutdown sequences. Business value: Create coordinated emergency response across all building systems.

Application Scenarios

Office & Commercial Buildings
Deploy the MS-10UD-7E in multi-tenant office complexes, retail centers, and hospitality facilities where zoned fire detection is required by code. Each floor or tenant space becomes an independent zone, enabling precise alarm location identification. Typical installations cover 5,000-10,000 sq ft per panel. Pain point addressed: Eliminates false alarm confusion in multi-occupancy buildings by pinpointing exact alarm origin. Value delivered: Faster emergency response and reduced evacuation time by 30%.

Manufacturing & Warehouse Facilities
Industrial environments benefit from the MS-10UD-7E's robust NEMA 1 enclosure and wide operating temperature range (0°C to 49°C). Zone individual production areas, storage sections, or hazardous material rooms for targeted fire detection. Compatible with high-temperature heat detectors for welding areas and loading docks. Pain point addressed: Prevents nuisance alarms from dust, humidity, or temperature fluctuations common in industrial settings. Value delivered: Maintain production uptime while ensuring worker safety compliance.

Educational Institutions
Schools, universities, and training centers require code-compliant fire alarm systems that accommodate future expansion. The MS-10UD-7E's 10-zone capacity supports phased installations—start with critical areas like laboratories and kitchens, then expand to classrooms and administrative wings. Pain point addressed: Budget-constrained institutions can deploy fire protection incrementally without replacing control equipment. Value delivered: Reduce initial capital expenditure by 50% while maintaining full code compliance.

Healthcare & Assisted Living
Hospitals, clinics, and senior care facilities demand 24/7 fire detection reliability. The MS-10UD-7E's battery backup and supervisory monitoring ensure continuous protection even during power outages or device failures. Integrate with nurse call systems and emergency lighting controls for coordinated life safety response. Pain point addressed: Meets stringent healthcare fire safety codes (NFPA 101) for patient-occupied areas. Value delivered: Protect vulnerable populations with fail-safe fire detection infrastructure.

Retrofit & Upgrade Projects
Replace obsolete fire alarm panels in existing buildings without rewiring detection loops. The MS-10UD-7E's conventional zone architecture accepts legacy 2-wire devices, preserving your investment in installed smoke detectors and pull stations. Compact 356mm x 305mm footprint fits standard electrical enclosures. Pain point addressed: Avoid costly building-wide rewiring during fire alarm system modernization. Value delivered: Complete panel upgrades in 4-6 hours versus 2-3 days for addressable system conversions.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the MS-10UD-7E when: Your facility requires 10 or fewer detection zones, you're working with conventional 2-wire devices, 240VAC power is available, and project budget prioritizes proven technology over advanced addressable features.

Consider alternatives when: You need more than 10 zones (evaluate 20-zone models), require device-level addressability for pinpoint alarm location, or must integrate with existing addressable fire alarm networks.

Compatibility check: Verify that your smoke detectors, heat sensors, and notification appliances operate on 12V or 24V nominal voltage. Confirm wire gauge supports device current draw over maximum circuit length (typically 18 AWG for runs up to 1,000 feet).

Extended Functions

Building Automation Integration
The MS-10UD-7E provides Form-C relay outputs for alarm, trouble, and supervisory conditions. Connect these dry contacts to building management systems (BMS) for automated HVAC shutdown, elevator recall, and access control lockdown during fire events. Relay ratings: 2A @ 30VDC resistive load.

Remote Annunciation
Drive remote LED annunciators or graphic displays using the panel's zone status outputs. Ideal for facilities where the main control panel is located in a secured electrical room but building occupants need visible alarm indication in lobbies or corridors.

Customization Options
Factory-configurable zone labels and alarm verification timers available for OEM integrators. Minimum order quantities apply. Contact our technical sales team for custom firmware programming and private-label enclosure options.

Delivery & Service Assurance

Lead Time
• Standard units: Ships within 3-5 business days from order confirmation
• Custom configurations: 2-3 weeks for factory programming and testing
• Expedited shipping: Next-day and 2-day delivery available for urgent projects

Warranty Coverage
12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes free replacement parts and technical support. Extended warranty plans available for critical infrastructure applications.

Technical Support
Our fire alarm specialists provide pre-sales system design consultation, installation guidance, and post-deployment troubleshooting. Support channels include email, phone, and remote diagnostics. Average response time: Under 4 hours for technical inquiries.

Documentation Package
Every MS-10UD-7E ships with installation manual, wiring diagrams, programming guide, and UL/FM certification documents. CAD drawings and submittal data sheets available for download on our technical resources portal.

Frequently Asked Questions

What is the maximum wire run length for detection zones?
Maximum loop resistance is 50 ohms end-to-end. Using 18 AWG wire, you can achieve runs up to 1,000 feet (305 meters) with typical device loading. For longer distances, use 16 AWG or 14 AWG wire to reduce voltage drop.

Can I mix smoke detectors and heat detectors on the same zone?
Yes, the MS-10UD-7E supports mixed device types on individual zones. However, best practice recommends grouping similar devices together for easier troubleshooting and maintenance. Consult NFPA 72 for specific application requirements.

How do I calculate battery backup capacity?
Measure total standby current (panel + devices) and alarm current (panel + devices + notification appliances). NFPA 72 requires 24 hours standby plus 5 minutes alarm. Example: 0.5A standby × 24h = 12Ah minimum battery capacity. Add 20% safety margin.

Does this panel support remote monitoring or IoT connectivity?
The MS-10UD-7E is a conventional panel without native IP connectivity. For remote monitoring, integrate relay outputs with third-party alarm communicators or building automation gateways that support Modbus, BACnet, or cellular dialer protocols.

What is the typical installation time for experienced technicians?
Panel mounting and wiring: 2-3 hours. Device connection and loop testing: 1-2 hours. System programming and commissioning: 1 hour. Total project time: 4-6 hours for standard 10-zone installations. Add time for battery installation and remote annunciator wiring.

Is the MS-10UD-7E suitable for outdoor or harsh environment installations?
No, the NEMA 1 enclosure is rated for indoor use only in controlled environments. For outdoor or corrosive atmospheres, specify NEMA 4X enclosures with conformal-coated circuit boards. Contact our sales team for harsh-environment fire alarm solutions.

Secure Your Fire Safety Infrastructure Today

The MS-10UD-7E delivers the proven reliability that commercial and industrial facilities demand from life safety equipment. With UL 864 certification, 10-zone capacity, and integrated power supply, this control panel provides the foundation for code-compliant fire detection systems.

Ready to specify the MS-10UD-7E for your next project? Our fire alarm specialists are standing by to assist with system design, device selection, and compliance documentation. Contact us today for technical consultation and volume pricing.
