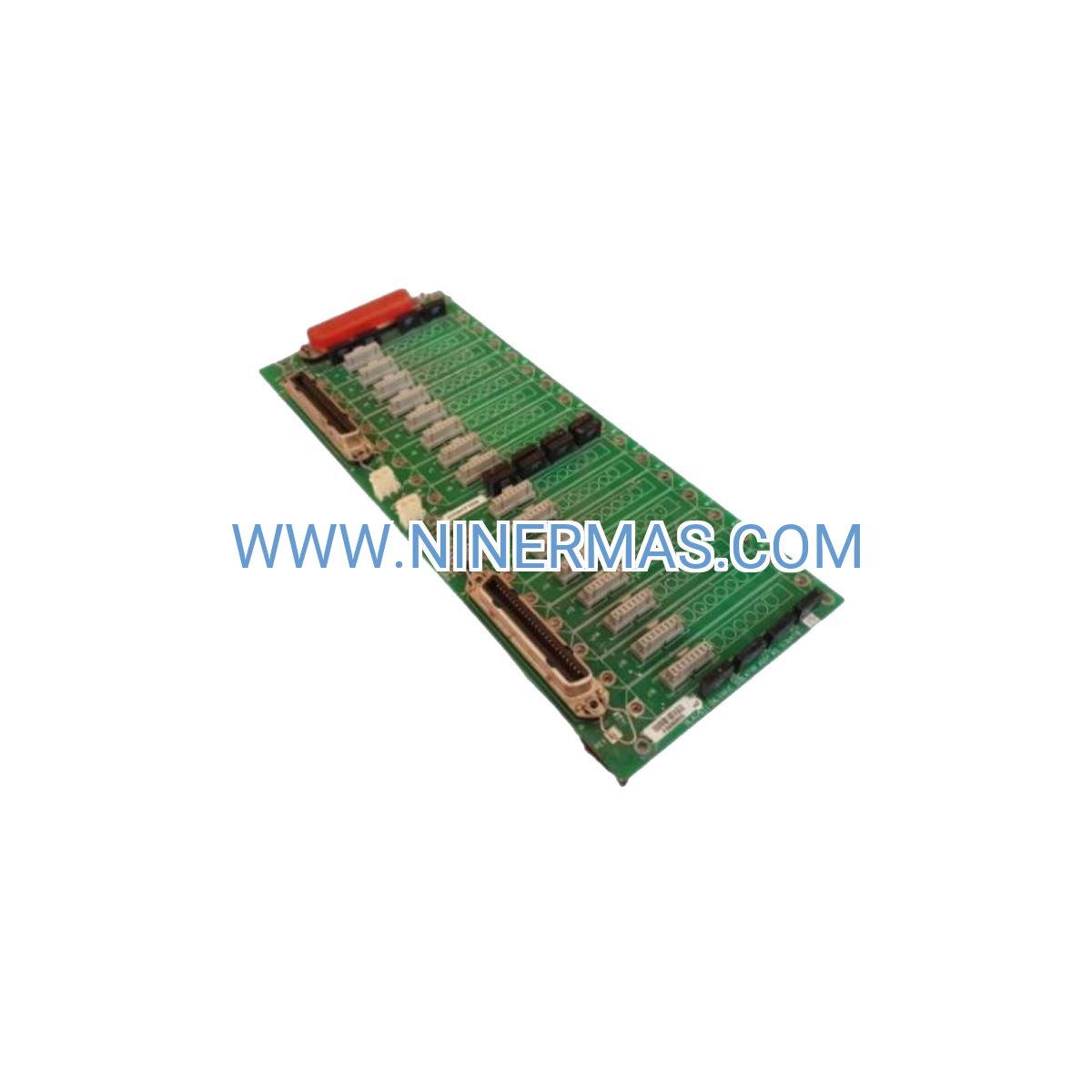

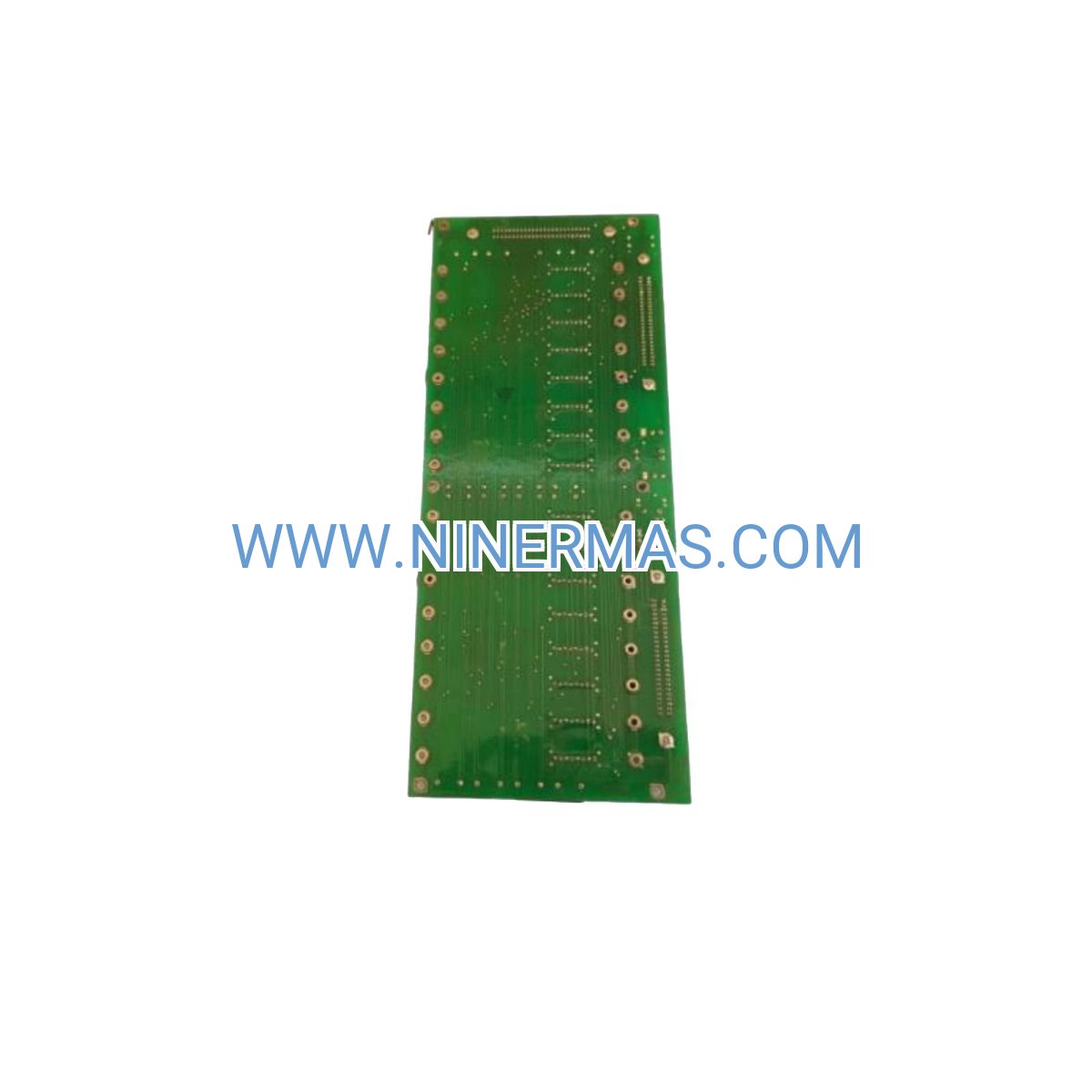

MC-TAIH13 Field Termination Assembly (Industrial-Grade Signal Acquisition)

The MC-TAIH13 represents a field-proven solution for high-precision analog signal acquisition in mission-critical industrial environments. Engineered as a Field Termination Assembly for Honeywell TDC 3000 distributed control platforms, this 16-channel module transforms raw sensor voltages into reliable process data with exceptional accuracy and noise immunity.

Process engineers and automation specialists rely on the MC-TAIH13 when measurement integrity directly impacts product quality, safety compliance, and operational efficiency. From petrochemical refineries monitoring reactor temperatures to pharmaceutical facilities tracking sterile processing conditions, this module delivers consistent performance where failure is not an option.

With 12-bit resolution, channel-to-channel isolation, and support for multiple voltage ranges, the MC-TAIH13 eliminates signal degradation while simplifying field wiring. Whether you're retrofitting legacy systems or designing new control architectures, this FTA module integrates seamlessly into existing TDC 3000 infrastructures without costly downtime.

Core Features & Benefits

→ Multi-Range Voltage Acquisition
Accepts 0-10V DC, 0-5V DC, and 1-5V DC signals with independent per-channel configuration. Eliminates the need for external signal conditioning when interfacing diverse transmitter types, reducing installation costs by up to 40% compared to single-range alternatives.

→ Galvanic Isolation Architecture
Channel-to-channel and channel-to-system isolation prevents ground loops and cross-talk in electrically noisy environments. Maintains signal integrity even when sensors operate at different ground potentials, critical for multi-zone process areas.

→ High-Accuracy A/D Conversion
12-bit resolution with ±0.1% full-scale accuracy ensures measurement precision for regulatory compliance and quality control. Detects process variations as small as 2.5mV on 10V range inputs, enabling early fault detection.

✓ Hot-Swappable Design
Supports online module replacement in redundant configurations without process interruption. Reduces mean time to repair (MTTR) by 60% during scheduled maintenance or emergency component failures.

✓ Built-In Diagnostics
Real-time channel health monitoring with over-range detection and communication status indicators. Diagnostic data streams directly to TDC 3000 operator workstations for predictive maintenance scheduling.

✓ Industrial Temperature Rating
Operates reliably across 0°C to 60°C ambient range with automatic thermal compensation. Proven performance in control rooms, field enclosures, and harsh industrial settings without forced cooling.

Typical Application Scenarios

Continuous Process Manufacturing
Chemical plants utilize the MC-TAIH13 to monitor reactor vessel pressures, distillation column temperatures, and flow transmitter outputs across batch and continuous operations. The module's isolation prevents electrical faults in one measurement loop from cascading to adjacent critical sensors, maintaining process visibility during equipment malfunctions.

Power Generation & Distribution
Utility operators deploy these modules for turbine vibration monitoring, generator excitation voltage tracking, and environmental compliance measurements. The 12-bit resolution captures subtle performance degradation trends, enabling condition-based maintenance that extends asset lifecycles by 15-25%.

Oil & Gas Production Facilities
Offshore platforms and pipeline stations depend on MC-TAIH13 modules for wellhead pressure surveillance, separator level control, and custody transfer metering. Galvanic isolation protects against lightning-induced surges and cathodic protection interference common in these applications.

Pharmaceutical & Biotech Manufacturing
GMP-regulated facilities leverage the module's accuracy for bioreactor pH monitoring, clean room differential pressure tracking, and autoclave temperature validation. Audit trail capabilities through TDC 3000 integration support FDA 21 CFR Part 11 compliance requirements.

Water & Wastewater Treatment
Municipal treatment plants employ the MC-TAIH13 for chlorine residual analyzers, turbidity meters, and dissolved oxygen sensors. The module's wide operating temperature range accommodates outdoor installations in pump stations and remote lift facilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the MC-TAIH13 when your application requires high-level voltage inputs (as opposed to 4-20mA current loops). For current signal acquisition, consider the MC-TAIH12 variant. Verify that your sensor outputs fall within the 0-10V DC maximum range; higher voltages require external attenuation. In applications with more than 16 analog points, plan for multiple modules with coordinated I/O addressing in your TDC 3000 configuration database.

Extended Functions

Redundancy Support: The MC-TAIH13 participates in TDC 3000 redundant I/O architectures when paired with dual communication modules. Automatic failover occurs within 100ms of primary module failure, maintaining process control continuity.

Advanced Filtering: Configurable digital filtering algorithms suppress high-frequency noise from variable frequency drives and switching power supplies. Filter time constants adjustable from 0.1 to 10 seconds match process dynamics.

Calibration Management: Software-based zero and span adjustments eliminate potentiometer drift issues. Calibration coefficients stored in non-volatile memory survive power cycles and module replacements.

Integration Capabilities: While designed for TDC 3000 platforms, the module's standard FTA interface enables integration with third-party historians, SCADA systems, and MES platforms via OPC DA/UA gateways.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days via express courier. Custom-configured modules with pre-loaded calibration data available in 7-10 business days. Expedited same-day shipping available for critical outage situations (additional fees apply).

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime—receive your replacement module before returning the defective unit.

Technical Support: Unlimited access to application engineers with TDC 3000 expertise for configuration assistance, troubleshooting guidance, and integration planning. Support available via email, phone, and remote desktop sessions during business hours (8 AM - 6 PM CST, Monday-Friday).

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration database templates, and dimensional drawings. Digital copies of all documentation available for immediate download upon order confirmation.

Frequently Asked Questions

Can the MC-TAIH13 interface with 4-20mA transmitters directly?
No, this module is designed exclusively for voltage inputs. For current loop signals, use a 250Ω precision resistor to convert 4-20mA to 1-5V DC, or specify the MC-TAIH12 current input variant for direct connection without external components.

What is the maximum cable length between field transmitters and the MC-TAIH13?
With shielded twisted-pair cable, reliable operation is achievable up to 300 meters (1000 feet) for 0-10V signals. Longer runs may require local signal repeaters or consideration of 4-20mA current loop transmitters which offer superior noise immunity over distance.

Does the module support HART protocol communication?
No, the MC-TAIH13 performs analog-to-digital conversion only and does not decode HART digital signals superimposed on 4-20mA loops. HART communication requires dedicated interface modules or smart transmitter gateways within the TDC 3000 architecture.

How do I configure different voltage ranges for individual channels?
Range selection is performed through the TDC 3000 configuration software during database setup. Each channel's input range is defined in the point detail configuration and downloaded to the module during system initialization. No physical jumpers or DIP switches are required.

Is the MC-TAIH13 suitable for SIL-rated safety instrumented systems?
While the module offers high reliability, it is not certified for use in Safety Instrumented Systems per IEC 61508/61511 standards. For SIL applications, consult Honeywell's Safety Manager or FSC (Fail-Safe Control) product lines specifically designed for safety-critical functions.

What preventive maintenance is recommended for optimal performance?
The MC-TAIH13 is a solid-state device requiring minimal maintenance. Annual verification of calibration accuracy using a precision voltage source is recommended. Inspect terminal block connections for tightness and check for corrosion in harsh environments. Firmware updates are not applicable as the module uses fixed logic.

Ready to Enhance Your Process Control Accuracy?

Contact our automation specialists today to discuss your analog input requirements and receive a detailed quotation. We offer volume discounts for multi-module projects and can provide system-level integration support for complete TDC 3000 upgrades or expansions.
