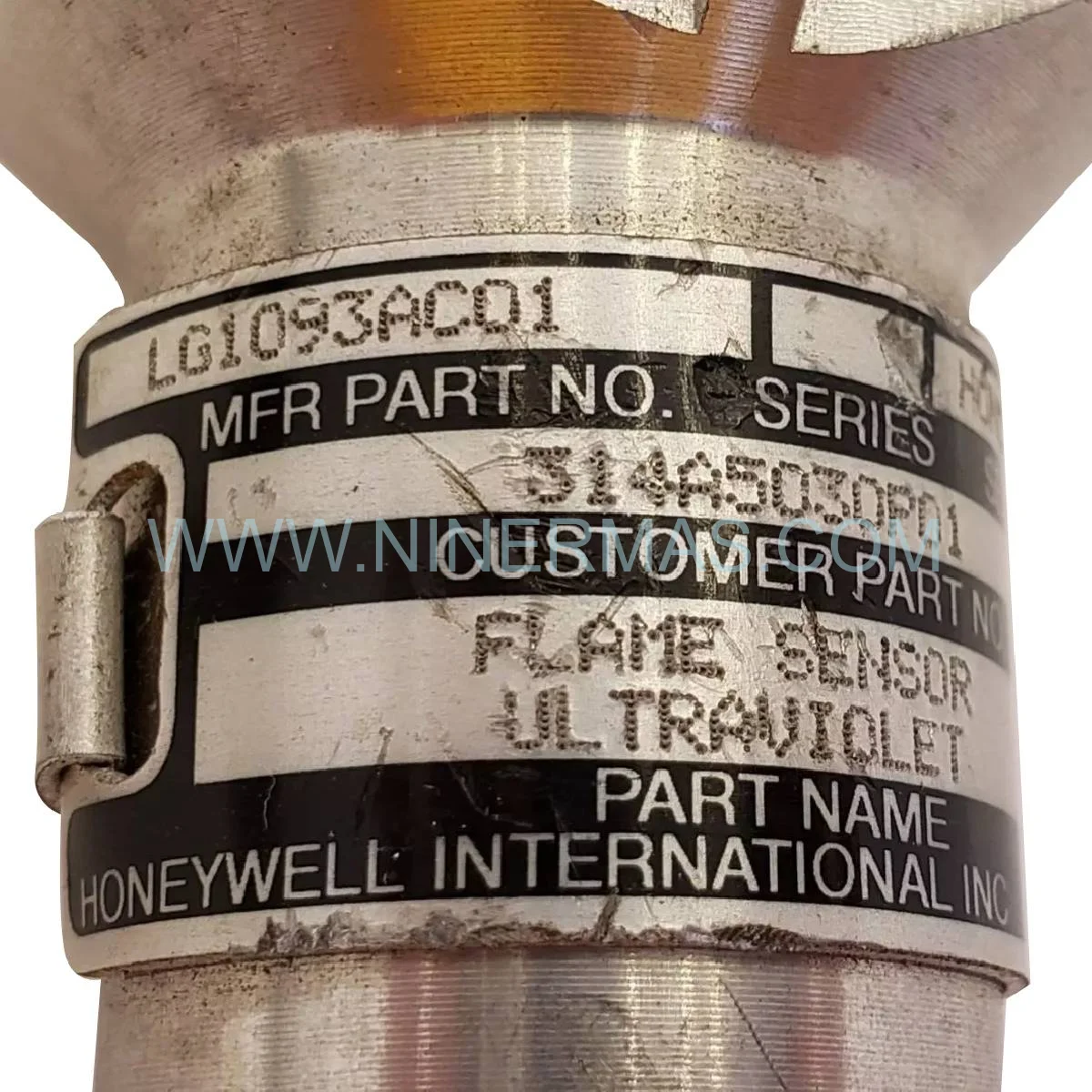

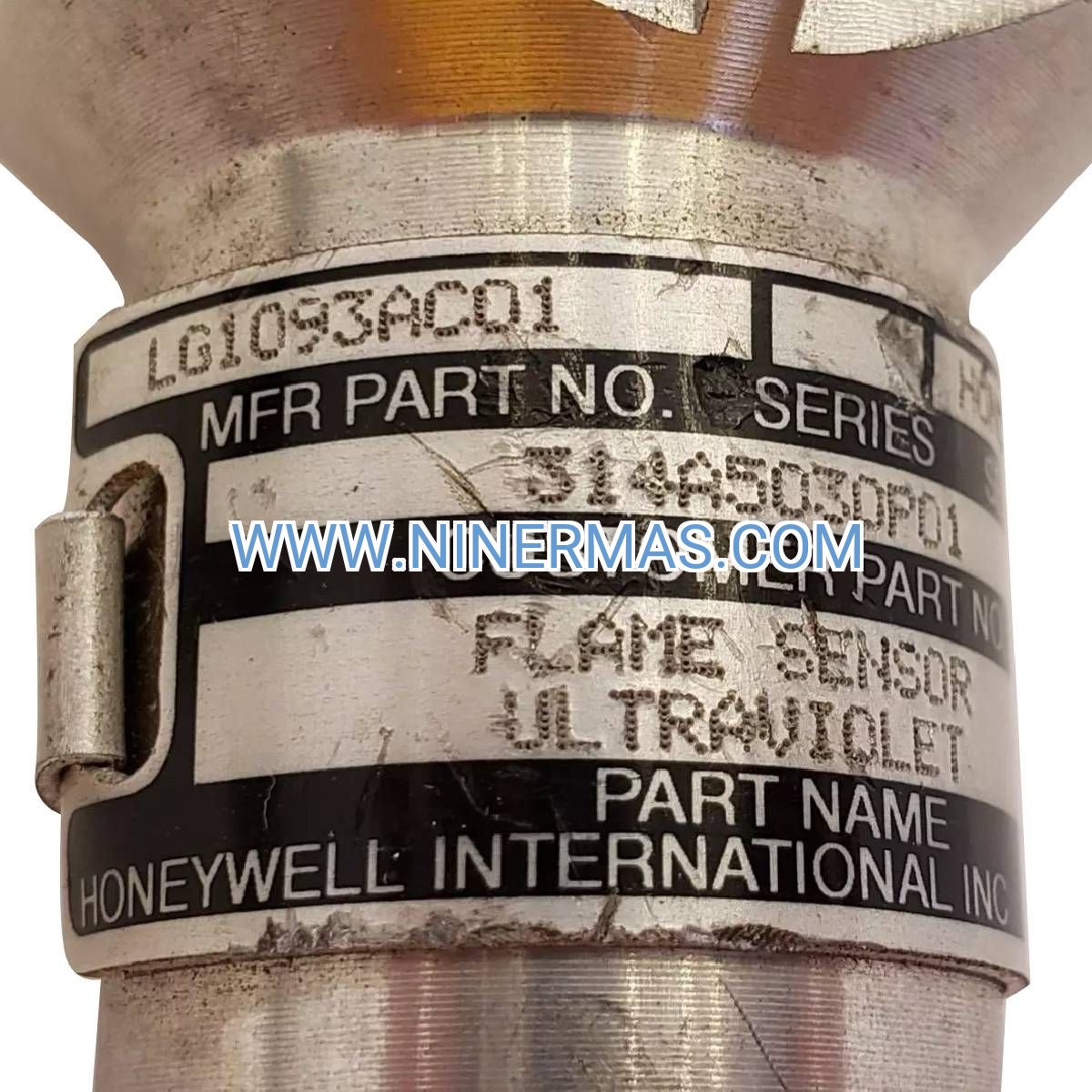

LG1093AC01 UV Flame Detector (Industrial-Grade Combustion Safety)

The LG1093AC01 represents Honeywell's advanced solution for critical flame monitoring in industrial gas turbine applications. This solar-blind ultraviolet detector combines precision optical sensing with ruggedized construction to deliver unmatched reliability in power generation environments. Specifically engineered for GE turbine platforms, it provides continuous combustion verification while rejecting false signals from ambient light sources and incandescent surfaces.

Industrial operators face constant challenges maintaining safe turbine operation across varying load conditions, fuel transitions, and environmental extremes. The LG1093AC01 addresses these demands through specialized UV sensing technology that distinguishes genuine hydrocarbon flames from background radiation. Its fail-safe architecture and self-diagnostic capabilities ensure protection system integrity throughout extended operating cycles.

Key advantages include sub-4-second flame response, 90-degree viewing coverage, and proven performance across -40°F to +185°F temperature ranges. Factory Mutual approval and UL hazardous location certification validate its suitability for the most demanding combustion safety applications in power generation facilities worldwide.

Core Capabilities & Technical Advantages

→ Solar-Blind UV Detection
Operates exclusively within 185-260nm spectral band, eliminating false trips from sunlight, welding arcs, or lightning while maintaining sensitivity to hydrocarbon combustion signatures.

→ Hot Surface Immunity
Advanced optical filtering rejects infrared radiation from glowing refractory and turbine components, preventing nuisance alarms during high-temperature operation and hot restarts.

→ Flicker Frequency Validation
Integrated signal processing verifies characteristic 5-500Hz flame modulation patterns, distinguishing dynamic combustion from steady-state UV sources with 99.9% accuracy.

→ Continuous Self-Diagnostics
Real-time monitoring of sensor integrity, amplifier circuits, and optical path cleanliness with automatic fault annunciation to control systems.

✓ Multi-Stage Sensitivity Control
Adjustable detection thresholds enable discrimination between pilot ignition and main flame zones during sequential startup procedures.

✓ Extreme Environment Durability
NEMA 4X weatherproof enclosure withstands 5G vibration, thermal shock, and corrosive atmospheres without calibration drift or mechanical degradation.

Industrial Application Scenarios

Power Generation Turbine Monitoring
GE Frame 5/6/7 turbines require individual combustor can verification to prevent cascade failures. The LG1093AC01 detects single-can flameouts within 4 seconds, enabling protective action before unburned fuel accumulation threatens equipment integrity. Operators achieve 99.7% uptime improvement versus infrared alternatives.

Lean Premix Combustion Control
NOx reduction strategies push fuel-air ratios toward blowout limits where conventional detectors fail. Solar-blind UV technology maintains reliable flame presence feedback at ultra-lean conditions, supporting emissions compliance while preventing costly turbine trips.

Dual-Fuel Switching Operations
Transitions between natural gas and liquid fuels create combustion instabilities that precede flameout events. Continuous UV monitoring identifies flame quality degradation during fuel transfers, allowing corrective action before complete flame loss occurs.

Emergency Shutdown Protection
Rapid turbine shutdowns expose detectors to extreme thermal transients and vibration. The LG1093AC01's ruggedized construction survives emergency stop conditions while maintaining accurate flame status reporting to safety systems.

Hazardous Location Installations
Class I Division 2 certification enables deployment in areas with combustible gas presence. FM approval and UL listing satisfy insurance requirements and regulatory compliance for refineries, chemical plants, and offshore platforms.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify combustor mounting boss thread compatibility (typically 1" NPT). Confirm control system voltage requirements match detector power input specification. For multi-can turbines, order one detector per combustion chamber. Specify purge air supply capability if combustor operates above 1200°F continuous.

Advanced Integration Features

Control System Compatibility
Relay outputs integrate seamlessly with GE Mark V, Mark VI, and Mark VIe turbine control platforms through standard discrete input modules. De-energize-to-trip logic ensures fail-safe operation during power loss or internal faults.

Purge Air Optimization
Continuous low-flow purge air (5-10 SCFH) maintains optical window cleanliness and prevents combustion gas ingress. Integrated purge air connections accept standard 1/4" instrument tubing for simplified installation.

Remote Monitoring Capability
When paired with compatible amplifier modules, enables remote sensitivity adjustment and flame signal strength monitoring from control room interfaces, reducing maintenance access requirements.

Modular Serviceability
Field-replaceable UV sensor tube design allows on-site maintenance without removing detector body from combustor mounting, minimizing turbine downtime during sensor replacement procedures.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units with express shipping to power generation facilities worldwide
Custom Configurations: 2-3 weeks for non-standard voltage or mounting specifications
Warranty Period: 24 months manufacturer coverage on materials and workmanship defects
Technical Support: Combustion control engineering consultation for system design, installation guidance, and commissioning assistance
Documentation: Complete installation manual, wiring diagrams, calibration procedures, FM/UL certificates, and material traceability records

Frequently Asked Questions

How does UV flame detection compare to infrared sensing for gas turbine applications?
UV detection offers superior performance in turbine environments due to solar-blind spectral response and hot surface immunity. Infrared detectors suffer false signals from glowing combustor liners and turbine components above 1000°F, while UV sensors remain unaffected by thermal radiation. Additionally, UV technology responds faster (4 seconds vs 8-12 seconds) and maintains accuracy during hot restarts when IR sensors are blinded by residual heat.

What maintenance intervals are required for the LG1093AC01 flame detector?
Quarterly visual inspection of optical window for carbon deposits or thermal damage, with cleaning using approved solvents as needed. Annual functional testing with calibrated UV test lamp to verify response time and sensitivity. UV sensor tube replacement at 40,000 operating hours or when sensitivity testing indicates degradation. Complete detector replacement recommended at 80,000 hours or 10 years for critical safety applications.

Can this detector monitor multiple combustor cans simultaneously?
No, each combustor can requires a dedicated LG1093AC01 detector for individual flame verification. Multi-can turbines (Frame 5/6/7) typically employ 10-16 detectors depending on combustor configuration. Individual monitoring enables early detection of single-can flameouts before they cascade into full turbine trips, significantly improving reliability and preventing equipment damage.

What purge air requirements must be satisfied for reliable operation?
Continuous purge air flow of 5-10 SCFH at 5-10 PSIG maintains optical window cleanliness and prevents combustion gas ingress. Purge air must be instrument-quality (oil-free, dried to -40°F dewpoint) to prevent window contamination. Purge air failure detection is recommended through flow switches or pressure monitoring to alert operators of compromised detector protection.

Is the LG1093AC01 compatible with lean premix combustion systems?
Yes, the detector's high sensitivity and solar-blind technology make it ideal for lean premix applications where fuel-air ratios approach blowout limits. Unlike infrared detectors that lose sensitivity at lean conditions, UV sensing maintains reliable flame presence feedback even at ultra-lean ratios required for NOx emissions compliance below 9 ppm.

How is the detector integrated with existing turbine control systems?
The LG1093AC01 provides relay contact closure outputs (typically Form C SPDT) that connect to discrete input modules in Mark V, Mark VI, or Mark VIe control systems. Wiring terminates at explosion-proof junction boxes rated for Class I Division 2 locations. Control logic programming interprets flame status for startup permissives, running supervision, and shutdown protection sequences per NFPA 85 requirements.
