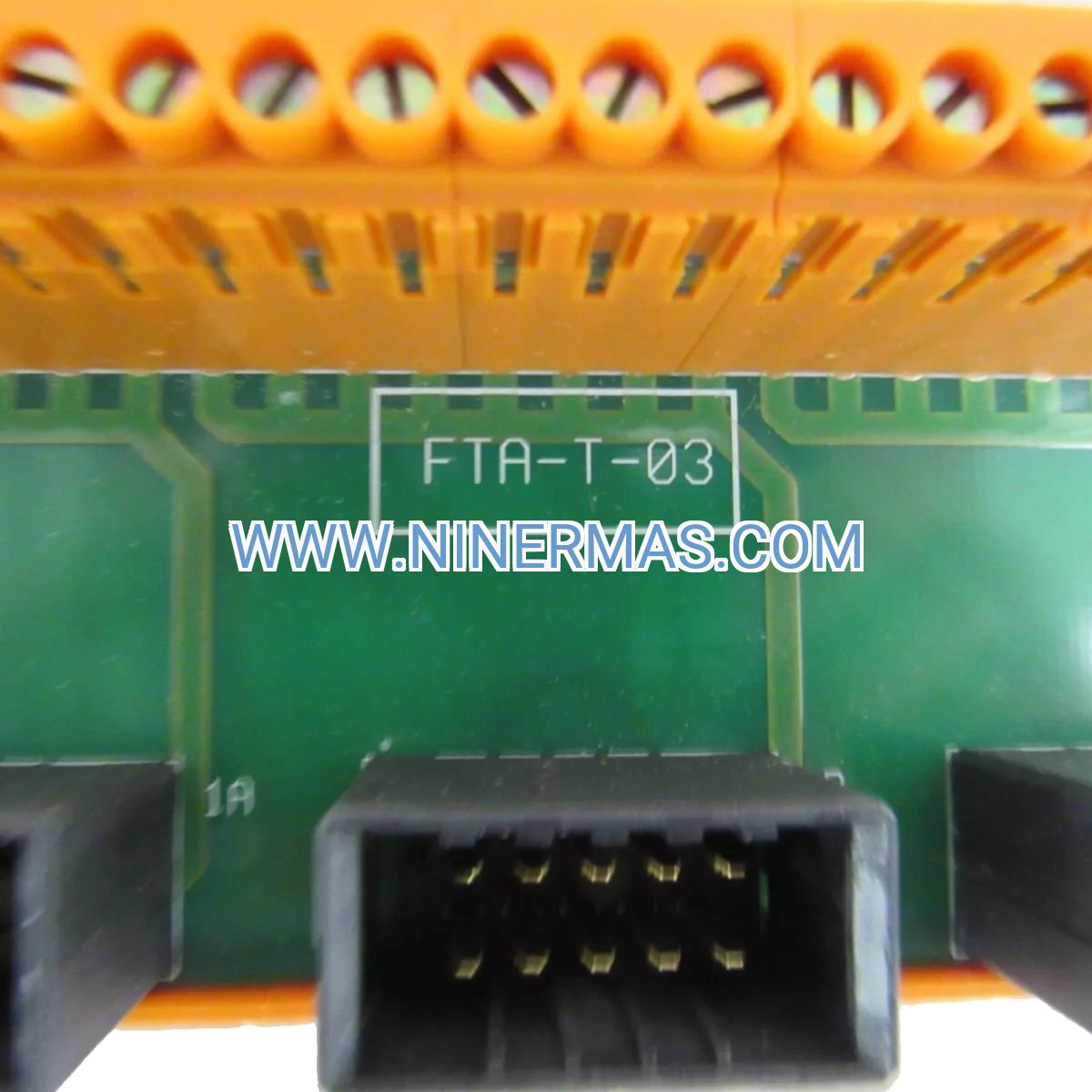

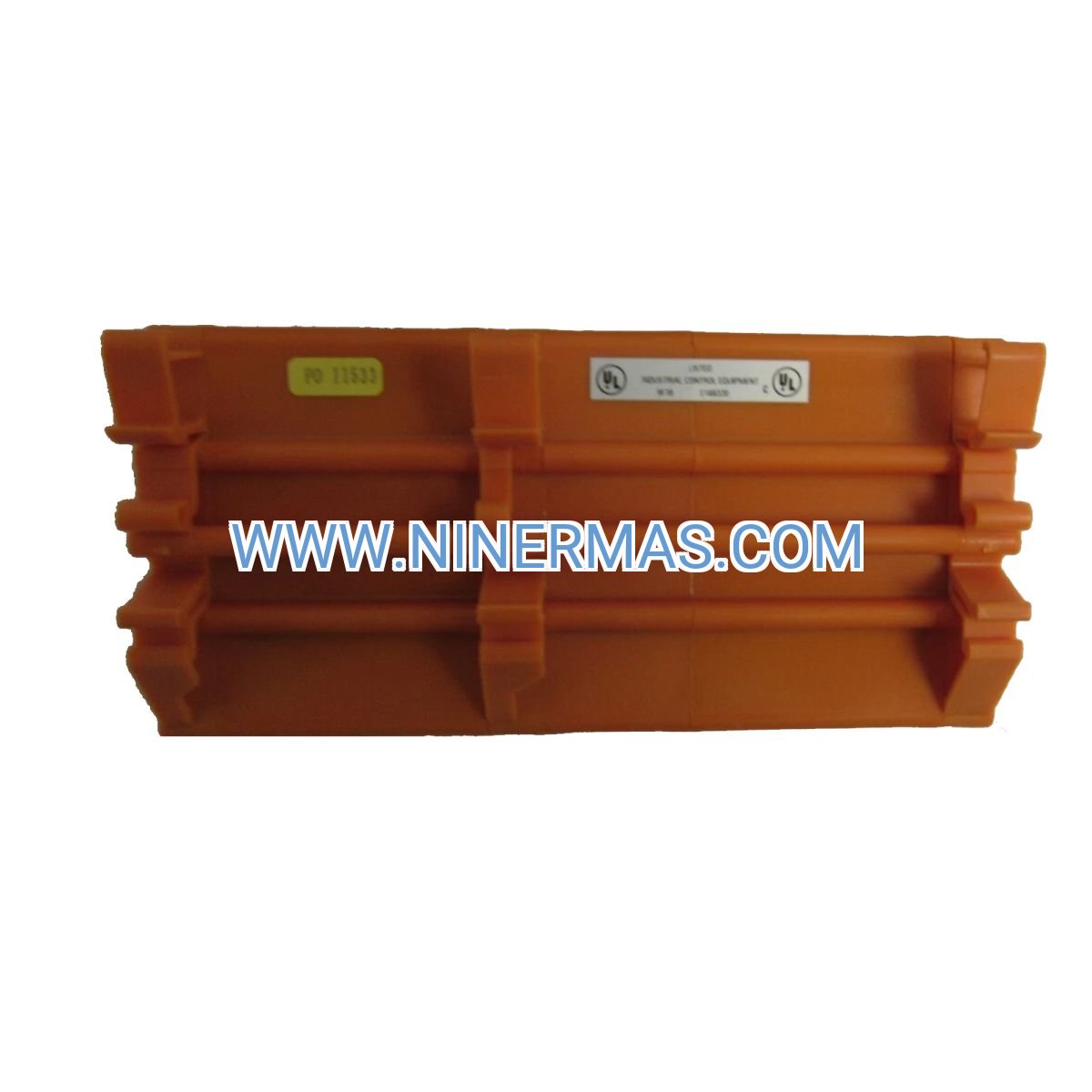

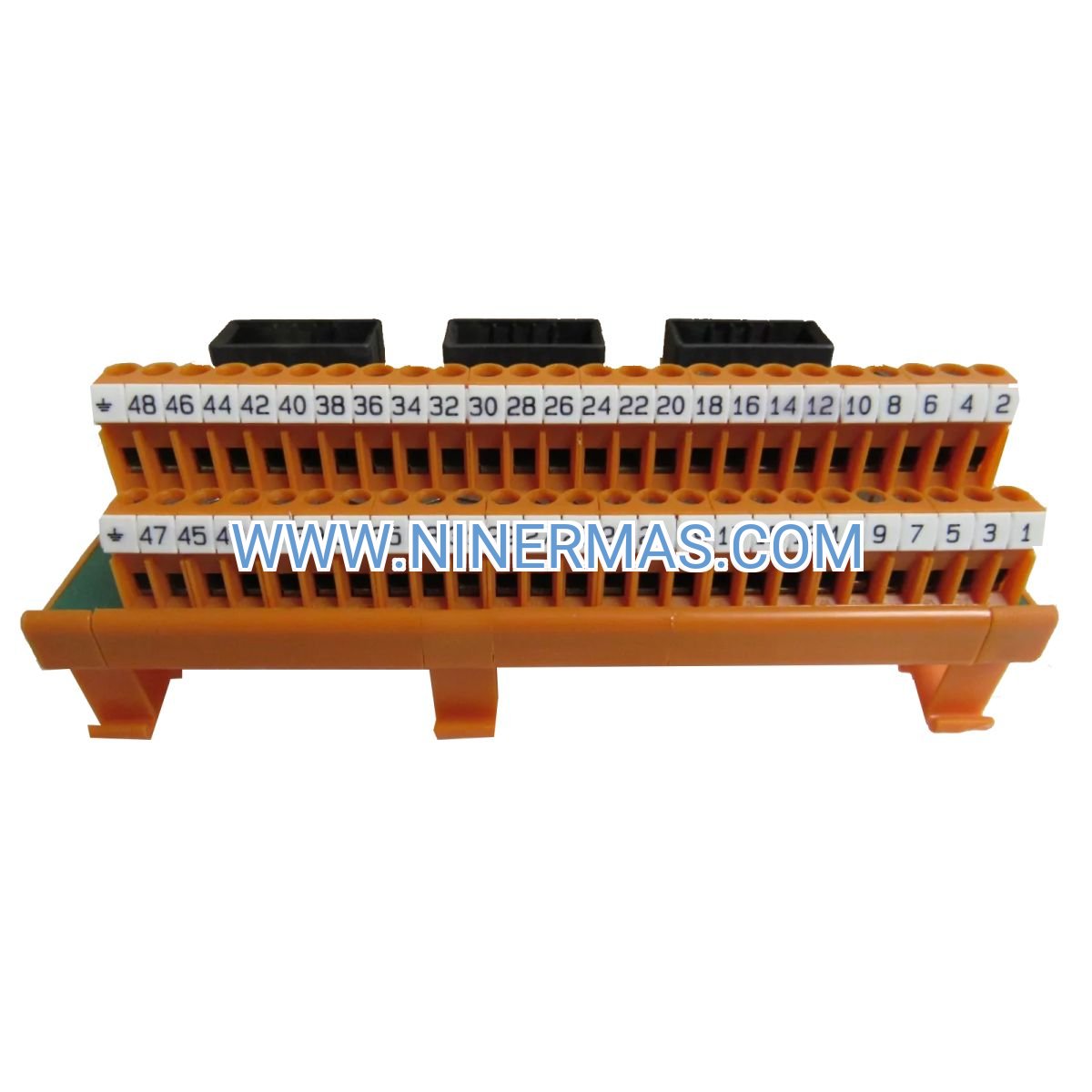

FTA-T-03 Industrial-Grade Fail-Safe Relay Output Module

The FTA-T-03 represents a critical safety component engineered for high-integrity protection systems where failure is not an option. This field termination assembly delivers four independent fail-safe relay outputs specifically designed for Honeywell Safety Manager FSC platforms, providing the reliable switching capability demanded by emergency shutdown (ESD), fire and gas (F&G), and turbomachinery protection applications.

Built to address the challenge of maintaining continuous safety coverage in process industries, this module serves facilities requiring SIL 3-rated output control for critical valve actuation, emergency isolation, and protective device triggering. Plant engineers and safety system integrators rely on the FTA-T-03 when absolute reliability and compliance with IEC 61508 functional safety standards are non-negotiable requirements.

What sets this module apart is its proven fail-safe architecture—upon detecting power loss, communication failure, or internal diagnostics faults, all relay contacts automatically transition to their predetermined safe state, ensuring personnel protection and asset preservation even during system anomalies.

Core Features & Benefits

→ SIL 3 Certified Safety Integrity: Meets IEC 61508 requirements for the highest level of safety-critical applications, providing documented proof of failure rate performance and systematic capability for regulatory compliance and insurance requirements.

→ Four Independent Relay Channels: Each output operates autonomously with 250VAC/5A contact rating, enabling simultaneous control of multiple final control elements while maintaining channel isolation to prevent common-cause failures.

→ Hot-Swap Maintenance Capability: Replace modules during operation without system shutdown, reducing mean time to repair (MTTR) by up to 75% and eliminating costly production interruptions during routine maintenance.

→ Comprehensive Diagnostic Monitoring: Real-time health checks include relay coil continuity, contact position verification, power supply status, and backplane communication integrity—all accessible through Safety Manager HMI for predictive maintenance strategies.

→ Extended Temperature Range Operation: Functions reliably from -40°C to +70°C, supporting installations in extreme climates from Arctic gas processing to Middle Eastern refineries without environmental enclosure requirements.

→ Rapid Response Performance: ≤50ms actuation time ensures protective actions execute within critical time windows defined by safety instrumented function (SIF) requirements and process hazard analysis (PHA) studies.

Typical Application Scenarios

Petrochemical Emergency Shutdown Systems: In refinery crude distillation units, the FTA-T-03 controls emergency isolation valves that prevent overpressure events. When process sensors detect abnormal conditions, the module actuates pneumatic valve operators within milliseconds, isolating hazardous materials before catastrophic failure occurs. This application reduces incident probability by 99.9% compared to manual intervention.

Offshore Platform Fire & Gas Protection: On floating production storage and offloading (FPSO) vessels, these modules interface with deluge valve systems and ventilation dampers. Upon gas detection or fire alarm activation, relay outputs trigger water spray systems and HVAC isolation, containing hazards and protecting personnel in confined spaces where evacuation options are limited.

Power Generation Turbine Protection: Gas turbine installations utilize the FTA-T-03 for trip valve control and fuel isolation. When vibration monitoring or overspeed conditions exceed safe thresholds, the module executes coordinated shutdown sequences that prevent bearing damage and blade failure—avoiding repair costs exceeding $2M per incident.

Chemical Batch Process Interlocking: Pharmaceutical and specialty chemical facilities deploy these modules for reactor temperature control and pressure relief valve actuation. The fail-safe design ensures runaway reaction prevention even during PLC communication loss, maintaining product quality and preventing batch losses valued at $500K+.

Pipeline Compressor Station Safety: Natural gas transmission systems use FTA-T-03 modules to control compressor anti-surge valves and emergency blowdown systems. Integration with vibration and temperature monitoring creates multi-layered protection that has reduced unplanned shutdowns by 60% across major pipeline operators.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FTA-T-03 when your safety instrumented function (SIF) requires relay output switching with SIL 3 capability. For applications needing more than four outputs, deploy multiple modules across the FSC backplane. If solid-state outputs are preferred for high-cycle applications (>100K operations/year), consider the FC-SDOL series as an alternative. Verify that your Safety Manager controller firmware is version 5.0 or higher to ensure full compatibility and diagnostic feature support.

Extended Functions

Advanced Diagnostic Integration: The FTA-T-03 supports predictive maintenance through continuous self-monitoring. Relay coil resistance tracking identifies degradation trends before failure occurs, while contact wear counters enable condition-based replacement strategies. Integration with Safety Manager's asset management system provides automated maintenance scheduling based on actual operating hours and switching cycles.

Cybersecurity-Hardened Communication: Module-to-controller communication employs encrypted protocols with CRC error checking, preventing unauthorized configuration changes and ensuring data integrity in networked safety systems. This design meets IEC 62443 industrial cybersecurity standards for safety-critical infrastructure.

Flexible Configuration Options: Each relay output supports independent fail-safe state definition (energized-to-trip or de-energized-to-trip) to match specific valve and actuator requirements. Time delay functions (0-60 seconds) enable sequential shutdown logic without external timers, simplifying system architecture and reducing component count.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for stock items. Custom-configured modules with factory programming ship within 10 business days. Expedited same-day shipping available for emergency replacement requirements at critical facilities.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers all defects in materials and workmanship. Extended warranty programs available for installations requiring 5-year coverage aligned with turnaround maintenance cycles.

Technical Support: Our application engineering team provides pre-sale consultation for SIF design, loop verification calculations, and system integration planning. Post-installation support includes remote diagnostics, firmware update assistance, and troubleshooting guidance from certified safety system specialists.

Documentation Package: Each module ships with calibration certificates, material traceability records, IEC 61508 certification documents, installation manual, and AutoCAD terminal block drawings. FMEDA (Failure Modes, Effects, and Diagnostic Analysis) reports available upon request for SIL verification calculations.

Frequently Asked Questions

What is the maximum wiring distance for relay outputs on the FTA-T-03?
Relay output circuits can extend up to 300 meters using 18 AWG shielded cable for resistive loads. For inductive loads (solenoid valves, motor starters), limit runs to 150 meters and install RC snubber networks at the load to suppress voltage transients. Always use twisted-pair conductors within overall shield to minimize electromagnetic interference in high-noise industrial environments.

Can this module integrate with non-Honeywell safety controllers?
The FTA-T-03 is specifically engineered for Honeywell Safety Manager FSC backplane architecture and cannot interface with third-party safety PLCs. For multi-vendor system integration, use the relay outputs to drive hardwired inputs on external controllers, maintaining electrical isolation between safety systems per IEC 61511 requirements.

How does the fail-safe mechanism work during power interruption?
Upon detecting backplane power loss or communication timeout (typically 100ms), internal spring-return mechanisms force all relay contacts to their configured safe state without requiring external energy. This purely mechanical action ensures fail-safe operation even during complete electrical system failure, meeting the "de-energize to trip" philosophy required by most safety standards.

What maintenance intervals are recommended for optimal reliability?
Perform functional proof testing every 12 months per IEC 61511 requirements for SIL 3 applications. Inspect terminal connections annually for tightness (torque to 0.5 Nm). Replace modules after 200,000 switching cycles or 10 years of service, whichever occurs first. Diagnostic counters within the Safety Manager track actual cycles to optimize replacement timing.

Is the FTA-T-03 suitable for hazardous area installation?
The module carries ATEX Zone 2 and IECEx certification for installation in non-incendive locations when mounted in approved enclosures. For Zone 1/Division 1 applications, install the module in a purged/pressurized panel rated for the specific gas group and temperature class. The relay contacts are not intrinsically safe and require appropriate barriers when switching circuits in hazardous zones.

What diagnostic capabilities help reduce false trip events?
Advanced diagnostics differentiate between actual process demands and nuisance trips caused by wiring faults or component degradation. Contact position feedback confirms relay state matches commanded output, while coil current monitoring detects partial failures before they cause spurious trips. These features have reduced false trip rates by 40% in field installations compared to previous-generation modules.

Take the Next Step

Ensure your safety instrumented systems meet the highest integrity standards with the FTA-T-03 fail-safe relay module. Our technical specialists are ready to assist with SIL verification calculations, system architecture reviews, and integration planning tailored to your specific application requirements.

Contact our safety systems team today: Request a detailed quotation, schedule a technical consultation, or arrange factory acceptance testing for your critical safety project. We provide complete documentation packages to support your functional safety lifecycle from design through decommissioning.
