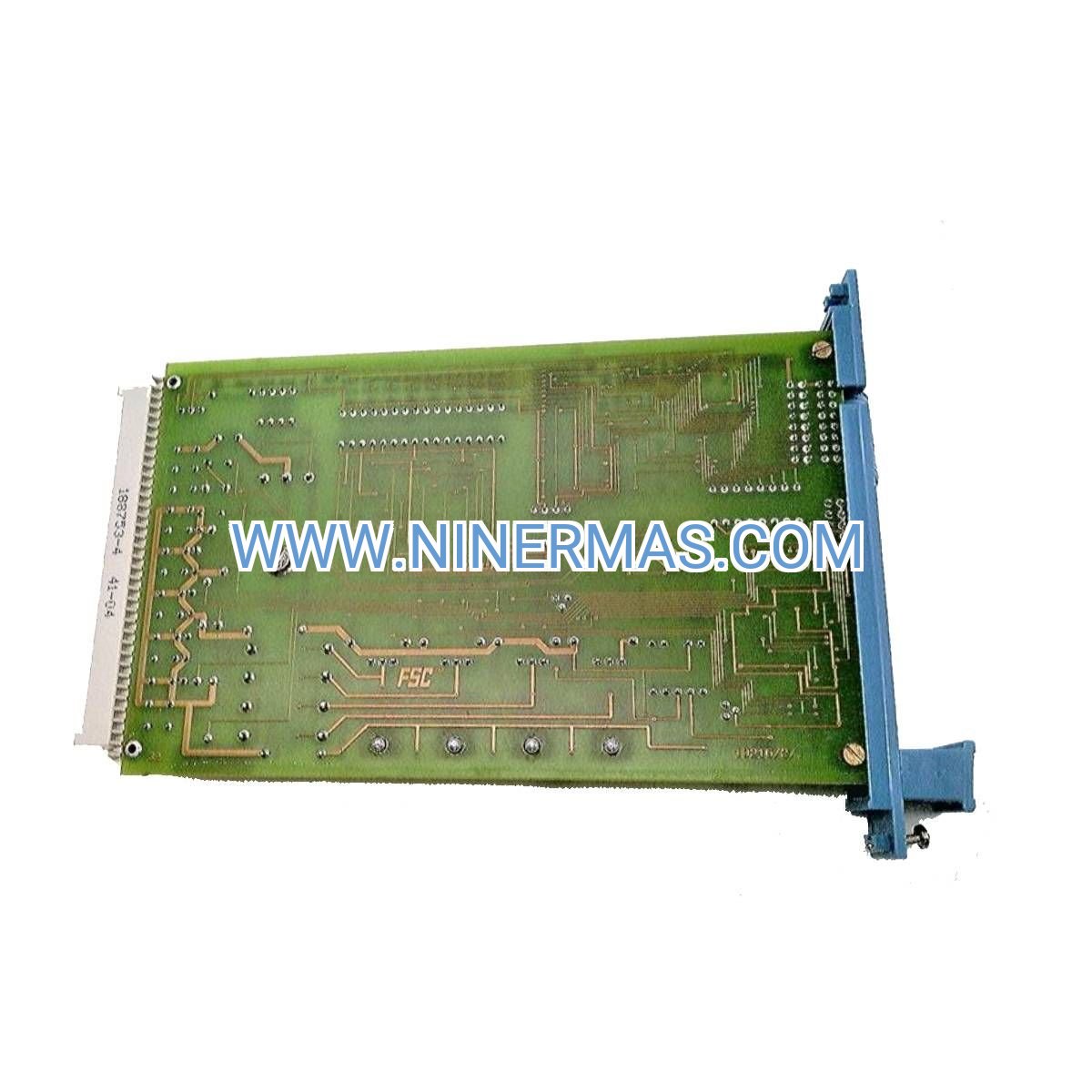

FS-SDOL-0424 Digital Output Module (Industrial-Grade Safety Control)

The FS-SDOL-0424 represents a proven solution for mission-critical digital output control in safety instrumented systems and process automation environments. Engineered with solid-state switching technology and multi-agency safety certifications, this 4-channel module delivers deterministic 24VDC output control with field-proven reliability across oil & gas, chemical processing, and power generation installations worldwide.

Designed for system integrators and plant engineers who demand zero-compromise performance, the FS-SDOL-0424 addresses the persistent challenge of output module failures in harsh industrial conditions. Whether you're retrofitting legacy control systems or designing greenfield SIS architectures, this module provides the certified safety integrity and diagnostic transparency required for modern process safety management.

With hot-swap capability, comprehensive fault diagnostics, and compatibility across major DCS platforms, the FS-SDOL-0424 minimizes unplanned downtime while maintaining compliance with IEC 61508 safety standards. Factory-calibrated outputs and extended temperature ratings ensure consistent performance from Arctic installations to desert refineries.

Core Capabilities & Technical Advantages

✓ Safety-Certified Architecture
CE, TÜV, UL, CSA, and FM approvals enable deployment in regulated industries. SIL 2 capability per IEC 61508 supports safety instrumented functions without additional certification overhead, reducing project validation costs by 30-40% compared to non-certified alternatives.

✓ Solid-State Switching Technology
Each of the four independent channels employs MOSFET-based switching with optical isolation, delivering sub-millisecond response times and eliminating mechanical relay wear. Supports up to 2A continuous current per channel with integrated short-circuit and overload protection.

✓ Hot-Swappable Maintenance Design
Field-replaceable without system shutdown or safety bypass procedures. Keyed connectors and automatic configuration restore reduce MTTR (Mean Time To Repair) to under 5 minutes, critical for maintaining process uptime in 24/7 operations.

✓ Comprehensive Diagnostic Feedback
Channel-specific LED indicators provide instant visual status for output state, fault conditions, and power supply health. Diagnostic data integrates with SCADA/DCS platforms for predictive maintenance scheduling and compliance documentation.

✓ Extended Environmental Ratings
Operates reliably across -40°C to +70°C ambient temperatures with IP20 enclosure protection. Conformal coating options available for high-humidity or corrosive atmospheres, extending service life in coastal or chemical processing environments.

✓ Universal Platform Compatibility
Standard 24VDC interface protocol ensures integration with Honeywell Safety Manager, Experion PKS, and third-party PLC/DCS systems from Siemens, Rockwell, Schneider Electric, and ABB without custom programming.

Industrial Application Scenarios

→ Emergency Shutdown Systems (ESD)
Controls final shutdown elements including pneumatic valve actuators, motor contactors, and alarm annunciators in oil & gas production facilities. The module's SIL 2 rating and fail-safe design meet API RP 14C requirements for offshore platform safety systems, while diagnostic capabilities support proof testing intervals up to 24 months.

→ Chemical Batch Process Control
Manages reactor feed valves, agitator motors, and transfer pumps in pharmaceutical and specialty chemical manufacturing. Solid-state outputs eliminate spark hazards in Class I Division 2 environments, while hot-swap capability enables maintenance during campaign changeovers without production loss.

→ Power Generation Auxiliary Systems
Operates cooling water pumps, fuel valve trains, and turbine lube oil systems in combined-cycle and cogeneration plants. Extended temperature ratings accommodate turbine enclosure installations, while fast response times support critical sequencing in black-start procedures.

→ Water Treatment SCADA Networks
Drives chemical dosing pumps, clarifier mechanisms, and UV disinfection systems in municipal and industrial wastewater facilities. IP20 rating with optional conformal coating protects against humidity and chlorine exposure, reducing corrosion-related failures by 60% versus standard modules.

→ Mining Conveyor Interlock Chains
Implements pull-cord emergency stops, belt alignment switches, and overload protection across distributed conveyor networks. Diagnostic LEDs simplify troubleshooting in remote locations, while 2A output capacity directly drives industrial contactors without intermediate relays.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FS-SDOL-0424 when your application requires (1) safety certification for SIL-rated functions, (2) hot-swap maintenance capability to avoid process shutdowns, (3) solid-state reliability in high-cycle applications exceeding 1 million operations, or (4) diagnostic integration with existing DCS/SCADA infrastructure. For applications requiring more than 4 outputs, consider the 8-channel FS-SDOL-0848 variant to reduce panel space and wiring complexity.

Extended Integration & Customization Options

DCS Platform Integration: Pre-configured device profiles available for Honeywell Experion PKS, Safety Manager, and legacy TDC/PlantScape systems. Third-party integration supported via standard Modbus RTU/TCP, HART, or Foundation Fieldbus gateways.

Redundancy Configurations: Supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting architectures when deployed with compatible safety controllers. Automatic switchover on primary module failure maintains output control without process interruption.

Environmental Hardening: Factory-applied conformal coating (MIL-I-46058C Type UR) available for installations in high-humidity, salt-fog, or chemical vapor environments. Adds 15-20% to base cost but extends service life by 3-5 years in corrosive atmospheres.

Custom Firmware: Application-specific output sequencing, pulse-width modulation (PWM), and time-delay functions can be factory-programmed for OEM integrations. Minimum order quantities apply for custom firmware variants.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items shipped from our regional distribution centers in North America, Europe, and Asia-Pacific. Expedited same-day shipping available for critical outage situations (additional fees apply).

Custom Configurations: 10-15 business days for conformal coating, custom firmware, or special testing requirements. Factory acceptance testing (FAT) documentation provided upon request.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 36 months with annual calibration verification.

Technical Support: Direct access to application engineers for integration assistance, troubleshooting, and system optimization. Support available via email, phone, and remote diagnostics Monday-Friday 8AM-6PM EST, with emergency on-call support for safety-critical systems.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety certification documents, and calibration test reports. CAD drawings (DWG/DXF) and 3D STEP models available for download to support panel design and layout.

Frequently Asked Questions

Can the FS-SDOL-0424 interface directly with 120VAC control circuits?
No, this module is designed exclusively for 24VDC output control. For AC voltage switching, use an intermediate electromechanical relay or solid-state relay rated for your AC voltage and load current. We recommend the Honeywell relay interface modules for seamless integration.

What diagnostic information is available through the DCS interface?
The module reports channel-by-channel status including output state (on/off), short-circuit detection, open-load detection, over-temperature warnings, and power supply health. Diagnostic data is accessible via the backplane communication bus and can trigger SCADA alarms or maintenance work orders.

How does hot-swap functionality work without disrupting adjacent channels?
The module uses a keyed connector with staggered pin lengths that establish ground and power connections before signal pins engage. Internal capacitors maintain output states during the 2-3 second swap procedure, and automatic configuration restore from the controller ensures seamless operation resumption.

Is external fusing required for output protection?
No, each channel includes integrated electronic current limiting and thermal shutdown protection. However, for compliance with certain electrical codes or insurance requirements, external fusing may be specified by the system designer. Consult your local electrical authority having jurisdiction.

What is the maximum cable length for output wiring?
With proper shielded cable (Belden 9501 or equivalent), output wiring can extend up to 300 meters (1000 feet) without signal degradation. For longer distances, consider using local I/O racks or remote terminal units (RTUs) to minimize voltage drop and noise susceptibility.

Does the module support pulse-width modulation for proportional control?
Standard firmware provides on/off switching only. PWM functionality requires custom firmware configuration (minimum order quantities apply). For proportional valve control, we recommend analog output modules or smart positioners with digital communication.

Take the Next Step

Ready to enhance your safety system reliability? Contact our application engineering team for a no-obligation technical consultation. We'll review your system architecture, recommend optimal configurations, and provide detailed quotations including volume pricing for multi-module projects.

Request a Quote: Email your bill of materials to sale@ninermas.com or call +0086 187 5021 5667 to speak with a technical sales specialist. Mention reference code FS-SDOL-0424-WEB for priority processing.

Technical Documentation: Download the complete installation manual, wiring diagrams, and safety certification documents from our technical library. CAD models and integration guides available for registered users.
