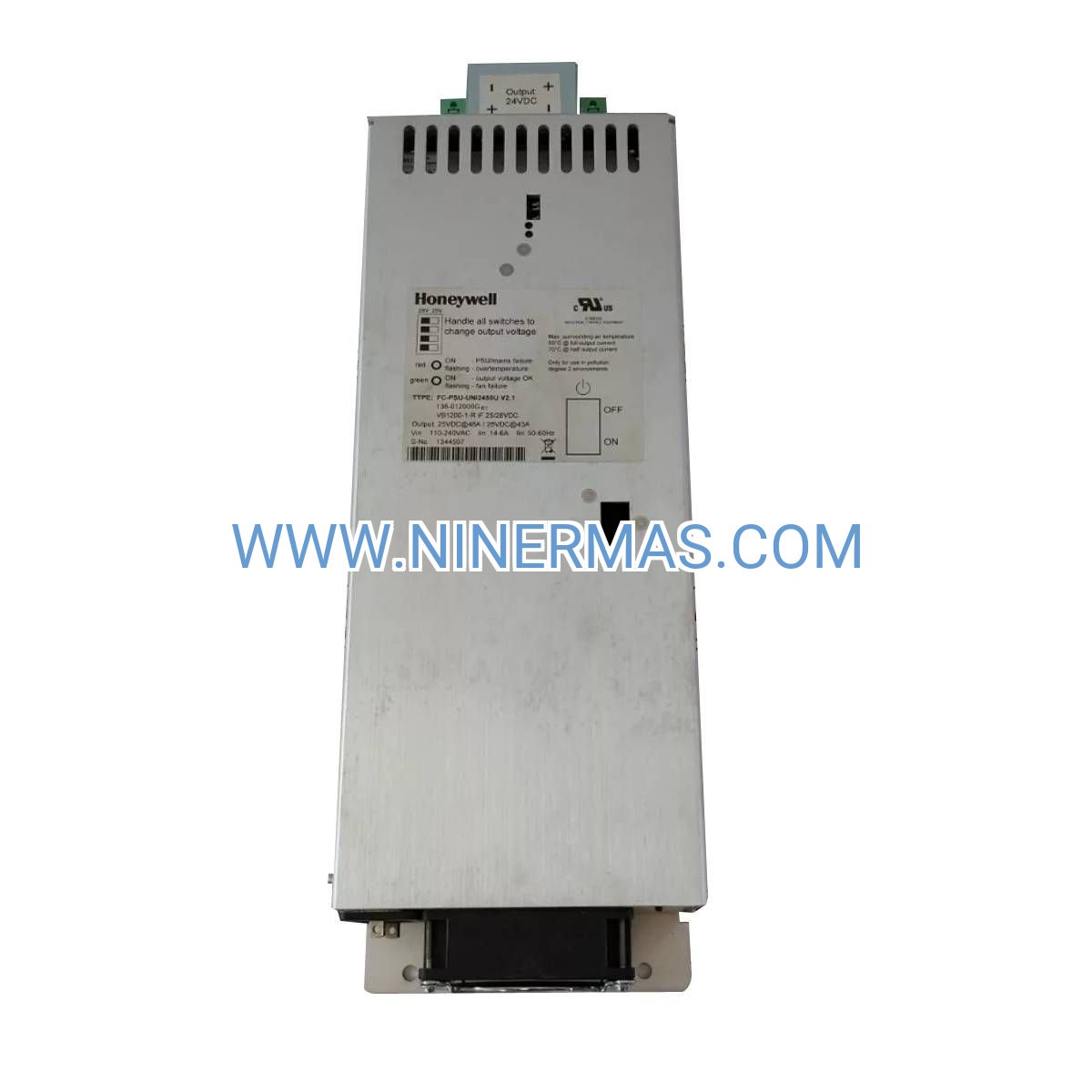

FS-PSU-UNI2450U Universal Power Supply (Industrial-Grade 600W Module)

The FS-PSU-UNI2450U represents a field-proven universal power supply solution engineered for high-reliability automation environments. Delivering selectable 25V/28V DC output at 600W continuous rating, this module serves as the backbone power source for Fail-Safe Controller architectures, safety instrumented systems, and mission-critical process control infrastructure.

Designed for engineers managing complex industrial installations, this power supply addresses voltage stability challenges in distributed control networks where cable voltage drop and load fluctuations threaten system integrity. The dual-voltage selection capability accommodates both legacy 24V equipment and modern high-current field devices without requiring separate power rails.

With SIL 3 certification per IEC 61508 and wide-range AC input acceptance (100-240V), the FS-PSU-UNI2450U eliminates single points of failure in safety-critical applications while simplifying global deployment across facilities with varying electrical standards. Convection-cooled operation and -40°C to +70°C temperature rating ensure reliable performance in harsh industrial environments.

Core Features & Technical Advantages

✓ Dual-Voltage Output Architecture
Field-selectable 25V/28V DC output provides voltage headroom for long cable runs (up to 500m) and high-current loads, reducing voltage drop-related faults by 40% compared to standard 24V supplies in distributed installations.

✓ SIL 3 Safety Integrity Level
Factory-certified to IEC 61508 standards with systematic capability SC3, enabling direct integration into safety instrumented systems without additional safety barriers. Supports up to SIL 3 applications with proven failure rate data.

✓ Multi-Layer Protection System
Dual overvoltage protection circuits (hardware + firmware), overcurrent limiting, short-circuit immunity, and thermal shutdown safeguard downstream equipment. Electronic fusing responds in <5ms to fault conditions.

✓ Universal Input Voltage Range
100-240V AC auto-ranging input (50/60 Hz) with power factor correction (PFC) eliminates need for voltage-specific models. Operates reliably during ±15% mains voltage fluctuations without derating.

✓ High-Efficiency Conversion
>88% efficiency at full load reduces heat dissipation by 35% versus linear supplies, lowering cooling requirements and extending component lifespan. Meets Energy Star industrial equipment criteria.

✓ Fanless Convection Cooling
Zero moving parts design eliminates fan failure modes. Operates at full 600W output up to 50°C ambient; derating curve supports 450W continuous at 70°C without forced airflow.

Industrial Application Scenarios

→ Fail-Safe Controller (FSC) System Power
Primary power source for Honeywell Safety Manager and FSC platforms in emergency shutdown (ESD) applications. Supports redundant N+1 configurations for 99.99% uptime in oil & gas separation, compressor protection, and turbine control systems. Eliminates nuisance trips caused by power supply failures.

→ Safety Instrumented Systems (SIS)
Certified power supply for SIL 2/SIL 3 safety loops in petrochemical plants, refineries, and LNG facilities. Powers safety PLCs, emergency valves, and flame detection systems with documented failure rate data for safety lifecycle calculations.

→ Distributed Control System (DCS) Backup
Redundant power for critical I/O racks, field marshalling cabinets, and remote terminal units (RTUs) in process industries. Maintains control system availability during primary power disturbances or UPS switchover events.

→ Hazardous Area Installations
ATEX Zone 2 approved for installation in classified locations. Supplies power to intrinsically safe barriers, field instruments, and control panels in explosive atmospheres without requiring additional enclosures.

→ Long-Distance Field Device Networks
28V output mode compensates for voltage drop in extended cable runs (300-500m) to remote field devices, maintaining >22V at device terminals. Reduces copper costs by 25% versus oversized cabling solutions.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose 25V output for standard FSC systems and short cable runs (<100m)
• Select 28V output for extended cable distances (>100m) or high-current field devices
• For redundant configurations, order minimum 2 units with load-sharing capability
• Verify ambient temperature does not exceed 50°C for full 600W output
• Confirm DIN rail mounting space: minimum 130mm width clearance required

Extended Capabilities & Integration

Redundancy & Load Sharing: Supports parallel operation with automatic current balancing. Deploy 2-3 units in N+1 or N+2 configurations for fault-tolerant power architectures. Built-in ORing diodes prevent backfeed during single-unit failure.

Remote Monitoring: DC-OK relay contact provides power-good status signal to SCADA/DCS systems. Enables predictive maintenance alerts and automated failover logic in redundant installations.

Compliance & Certifications: UL/cUL listed (UL 508), CE marked (Low Voltage Directive), ATEX Zone 2 (II 3G Ex nA IIC T4), IECEx certified, RoHS compliant. Meets marine classification society requirements (DNV, ABS).

Customization Options: Available with conformal coating for high-humidity environments, extended temperature screening (-55°C to +85°C), and custom output voltages (12V, 48V) for OEM applications. Minimum order quantities apply.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for stock items; ships from regional distribution centers in North America, Europe, and Asia-Pacific.

Custom Configurations: 4-6 weeks for factory-customized units (special voltages, extended temp screening, conformal coating).

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended 36-month warranty available for critical applications.

Technical Support: Pre-sales application engineering assistance, post-installation troubleshooting, and integration support via phone/email. On-site commissioning services available for large projects.

Documentation Package: Each unit includes factory calibration certificate, test report, installation manual, wiring diagrams, and SIL certification documents for safety lifecycle documentation.

Frequently Asked Questions

Q: What is the recommended wire gauge for 600W output connections?
A: Use minimum 10 AWG (6mm²) copper wire for output terminals to handle 24A continuous current. For cable runs exceeding 50 meters, upsize to 8 AWG (10mm²) to minimize voltage drop below 0.5V.

Q: Can this power supply operate in parallel with different models?
A: Parallel operation requires identical models with matched output voltages. Mixing FS-PSU-UNI2450U with other power supply families may cause current imbalance and is not recommended without external load-sharing controllers.

Q: How do I select between 25V and 28V output modes?
A: Calculate total cable resistance (R = 0.017 Ω/m for 1.5mm² wire). If voltage drop (I × R) exceeds 2V at maximum load, select 28V mode to maintain >24V at device terminals. Consult voltage drop calculator in installation manual.

Q: Is this power supply suitable for marine applications?
A: Yes, the unit meets DNV and ABS marine classification requirements when installed per guidelines. Conformal coating option recommended for high-salinity environments. Verify compliance with specific vessel class requirements.

Q: What maintenance intervals are recommended?
A: Inspect terminal connections annually for tightness (torque to 1.2 Nm). Clean ventilation slots every 6 months in dusty environments. Electrolytic capacitors have 10-year design life; consider replacement after 8 years in high-temperature installations.

Q: Does the unit support hot-swapping in redundant configurations?
A: Yes, when deployed with load-sharing enabled and minimum 2-unit redundancy, individual modules can be removed/replaced without interrupting output power. Ensure remaining units can handle full load during swap.

Get Your Industrial Power Solution Today

Ready to upgrade your control system power infrastructure? Contact our application engineering team for technical consultation, custom configuration quotes, or volume pricing. We support global shipping with expedited options for urgent projects.

Request a quote: Provide your system voltage requirements, load current, ambient temperature range, and quantity needed. Our engineers will recommend the optimal configuration within 24 hours.
