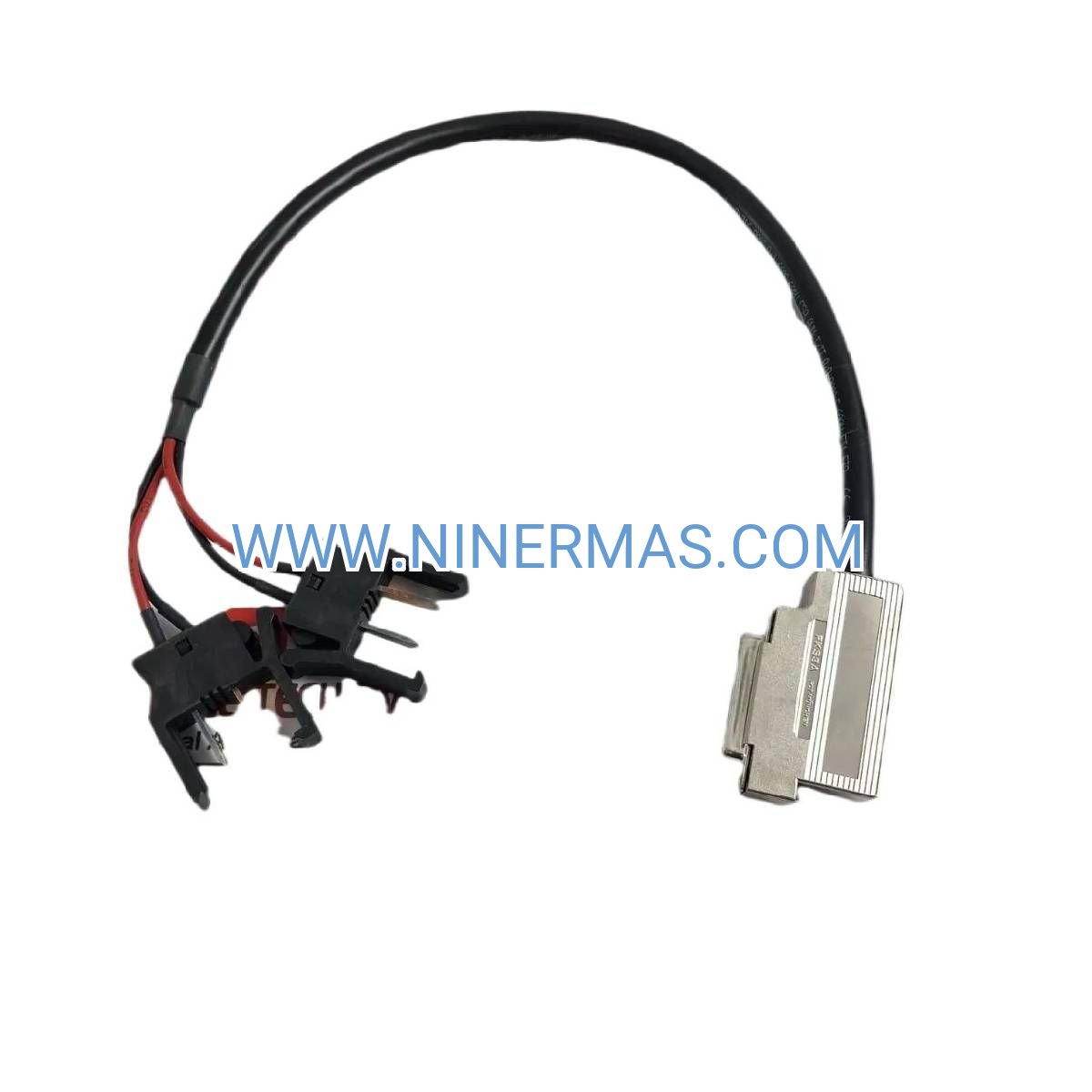

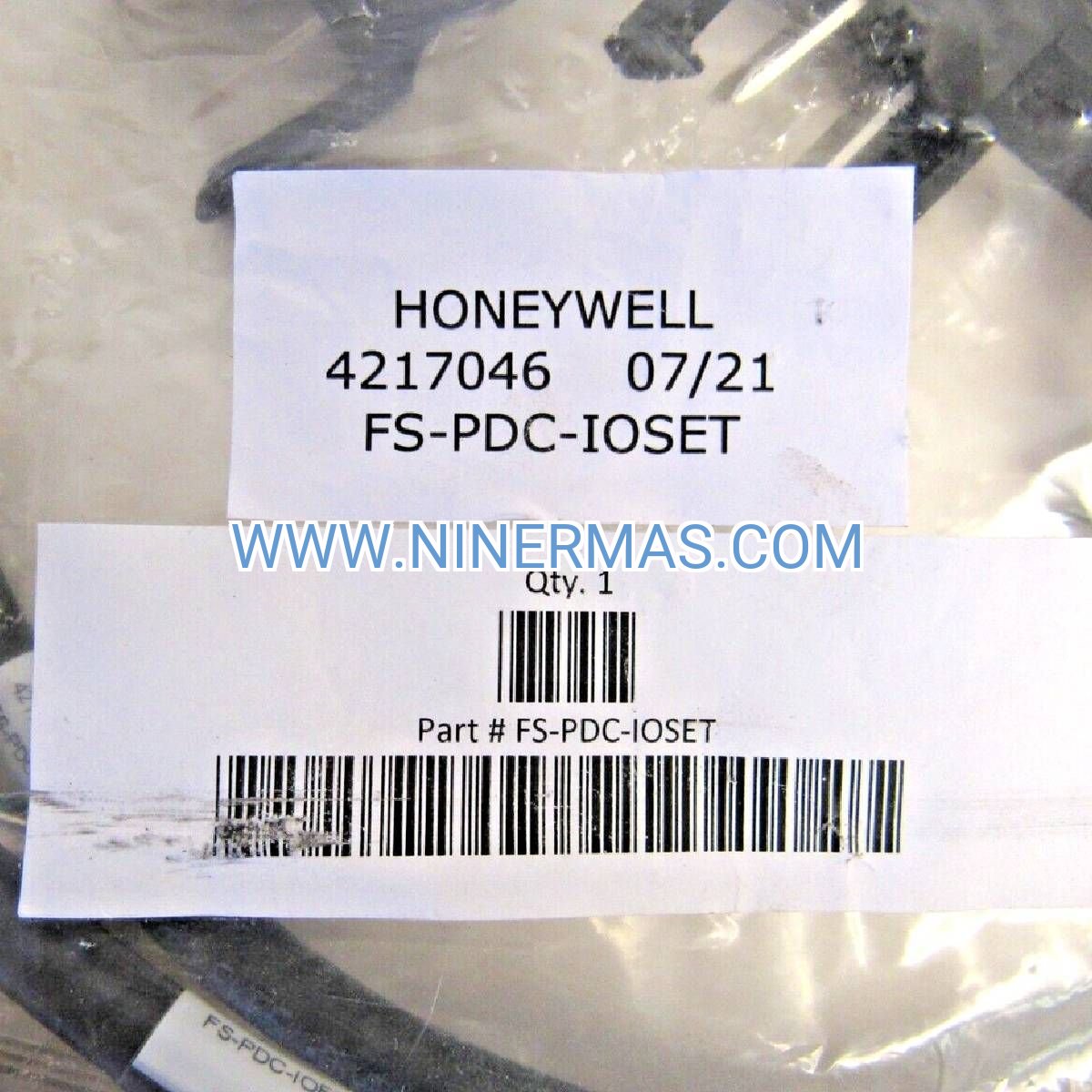

FS-PDC-IOSET Power Distribution Cable Set (Industrial-Grade Multi-Voltage Solution)

The FS-PDC-IOSET represents a factory-engineered power distribution solution designed for mission-critical IO chassis installations across process automation, safety systems, and distributed control environments. This pre-assembled cable set eliminates field termination risks while delivering stable 24V, 48V, and 110V DC power to Honeywell FSC IO modules, reducing commissioning time and ensuring long-term reliability in demanding industrial settings.

Built for automation engineers and system integrators who demand zero-compromise power infrastructure, the FS-PDC-IOSET addresses the core challenge of maintaining consistent voltage delivery across multiple IO points while withstanding temperature extremes from -40°C to +70°C. Whether you're upgrading legacy DCS architectures or deploying new safety instrumented systems, this cable set provides the power backbone that keeps your control systems operational 24/7.

With UL and CSA safety certifications and compatibility across Honeywell's FSC chassis ecosystem, the FS-PDC-IOSET delivers plug-and-play power distribution that meets North American industrial standards while supporting global deployment requirements.

Core Features & Business Value

→ Factory-Terminated Connectors
Pre-wired connections eliminate 70% of installation time compared to field termination, reducing labor costs and accelerating project timelines while preventing costly wiring errors that cause system downtime.

→ Triple-Voltage Architecture
Single cable set supports 24V, 48V, and 110V DC systems, providing deployment flexibility across diverse automation platforms without requiring multiple cable inventories or custom fabrication.

✓ Industrial Temperature Range
Operates reliably from -40°C to +70°C, ensuring consistent performance in extreme environments including outdoor enclosures, high-temperature process areas, and cold storage facilities.

✓ Safety-Certified Design
UL Listed and CSA Approved construction meets stringent North American electrical codes, simplifying compliance documentation and reducing liability exposure during facility inspections.

✓ Redundancy-Optimized Configuration
Engineered specifically for redundant IO module architectures, supporting high-availability control strategies that minimize unplanned downtime in critical process applications.

✓ Multi-Conductor Industrial Construction
Heavy-duty cable design resists mechanical stress, chemical exposure, and electromagnetic interference, delivering decades of maintenance-free operation in harsh industrial environments.

Typical Application Scenarios

Chemical Process Control
In continuous chemical manufacturing, the FS-PDC-IOSET powers IO chassis controlling reactor temperature, pressure transmitters, and flow control valves. The cable set's chemical-resistant construction and wide temperature range ensure reliable operation in corrosive atmospheres where standard wiring would degrade, preventing costly process interruptions and maintaining product quality consistency.

Oil & Gas Production Facilities
Offshore platforms and remote wellhead installations leverage the FS-PDC-IOSET's multi-voltage capability to power distributed IO modules monitoring pipeline pressure, separator levels, and safety shutdown systems. Pre-terminated connectors reduce installation time in confined spaces while eliminating field wiring errors that could compromise safety system integrity.

Pharmaceutical Manufacturing
GMP-compliant production lines utilize the FS-PDC-IOSET to power IO chassis managing clean room environmental controls, batch reactor sequencing, and automated material handling. UL/CSA certifications streamline regulatory documentation while factory-tested reliability supports validation requirements for critical process parameters.

Power Generation & Utilities
Turbine control systems and substation automation deployments rely on the FS-PDC-IOSET's redundancy-optimized design to maintain continuous power distribution to safety-critical IO modules. The cable set's -40°C to +70°C operating range ensures consistent performance across seasonal temperature variations in outdoor switchgear installations.

Water & Wastewater Treatment
Municipal treatment facilities deploy the FS-PDC-IOSET to power IO chassis controlling pump stations, chemical dosing systems, and SCADA monitoring points. The industrial-grade construction withstands high-humidity environments and chemical exposure common in treatment plant electrical rooms.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FS-PDC-IOSET when deploying Honeywell FSC IO chassis requiring multi-voltage DC power distribution. Verify your system voltage requirements (24V, 48V, or 110V DC) and confirm chassis compatibility before ordering. For hazardous area installations, consult local electrical codes and Honeywell's hazardous location documentation to ensure proper certification compliance.

Extended Functions

System Integration Capabilities: The FS-PDC-IOSET integrates seamlessly with Honeywell Experion PKS and TDC 3000 distributed control systems, supporting both standalone IO chassis deployments and large-scale redundant architectures. The cable set's standardized connector interface enables rapid replacement during maintenance windows without requiring specialized tools or recalibration.

Customization Options: While the standard FS-PDC-IOSET configuration meets most industrial requirements, custom cable lengths and specialized connector configurations are available for unique installation constraints. Contact our technical team to discuss project-specific requirements including extended temperature ratings, alternative voltage configurations, or specialized certifications for international deployments.

Delivery & Service Assurance

Lead Time: Standard FS-PDC-IOSET cable sets ship within 3-5 business days from our distribution center. Custom configurations require 2-3 weeks for factory fabrication and testing. Expedited shipping options available for urgent project requirements.

Warranty Coverage: All units include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Warranty service includes free replacement and technical support for troubleshooting installation issues.

Technical Support: Our automation specialists provide pre-sales system design consultation, installation guidance, and post-deployment troubleshooting assistance. Support services include cable routing recommendations, voltage drop calculations, and integration planning for complex multi-chassis architectures.

Documentation Package: Each cable set ships with installation instructions, connector pinout diagrams, electrical specifications, and safety certification documentation to support project commissioning and regulatory compliance requirements.

Frequently Asked Questions

What IO chassis models are compatible with the FS-PDC-IOSET cable set?
The FS-PDC-IOSET is engineered specifically for Honeywell FSC IO chassis including the FS-IOCHAS-0001R, FC-IOCHAS-0001, and FC-IOCHAS-0003R models. For optimal performance and safety compliance, use only with Honeywell-certified chassis assemblies. Third-party chassis compatibility is not guaranteed.

How does pre-assembled cabling reduce installation costs compared to field termination?
Factory-terminated cable sets eliminate 60-70% of field wiring labor by removing the need for individual wire stripping, crimping, and connector assembly. This translates to faster commissioning schedules, reduced skilled labor requirements, and elimination of wiring errors that cause expensive troubleshooting delays and rework.

Can the FS-PDC-IOSET operate in Class I Division 2 hazardous locations?
The standard FS-PDC-IOSET is designed for general industrial use. For hazardous area classifications including Class I Division 2 or ATEX Zone 2 environments, verify compliance with local electrical codes and consult Honeywell's hazardous location installation guidelines. Additional certifications may be required depending on jurisdiction.

What current capacity does this cable set support per voltage level?
Current ratings vary by voltage configuration and cable length. Typical installations support 5-10A per circuit depending on ambient temperature and bundling conditions. For precise amperage specifications and voltage drop calculations for your specific installation, contact our technical support team with your system requirements.

Is the cable set suitable for outdoor enclosure installations?
Yes, the FS-PDC-IOSET's -40°C to +70°C operating range and industrial-grade construction make it suitable for outdoor electrical enclosures with proper environmental protection. Ensure enclosures provide adequate protection from direct water exposure and UV radiation to maximize cable service life.

What components are included in the complete cable set package?
The FS-PDC-IOSET includes pre-terminated power distribution cables for 24V, 48V, and 110V DC connections, chassis mounting hardware, cable management accessories, and comprehensive installation documentation including connector pinout diagrams and electrical specifications.

Order Your FS-PDC-IOSET Power Cable Set Today

Ensure reliable power distribution for your IO chassis deployment with genuine Honeywell FS-PDC-IOSET cable sets. Contact our automation specialists at sale@ninermas.com or call +0086 187 5021 5667 for technical consultation, volume pricing, or custom configuration requirements. Fast global shipping available.
