FS-PDC-ART05 Volt & Watchdog Distribution Module (Industrial-Grade Signal Routing)

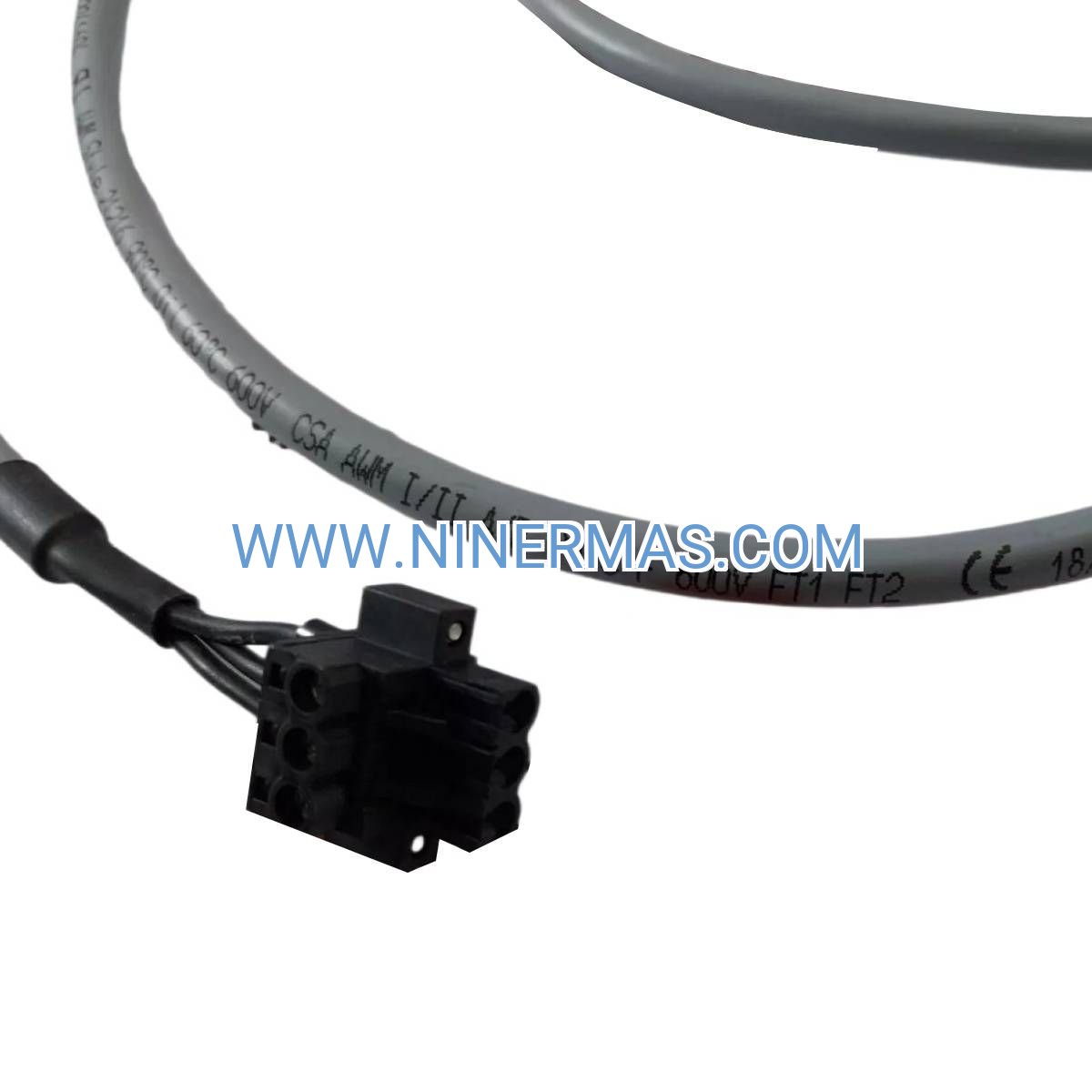

The FS-PDC-ART05 represents a field-proven solution for distributing critical volt and watchdog signals across multi-sensor vibration monitoring installations. Engineered for turbomachinery protection systems, this pre-assembled module eliminates wiring complexity while maintaining signal integrity in harsh industrial environments. Designed for seamless integration with Honeywell 3300 XL and 3500 series platforms, it addresses the core challenge of reliable power and health-check signal distribution in rotating equipment surveillance networks.

Industrial facilities operating compressors, turbines, and high-speed rotating machinery require continuous monitoring to prevent catastrophic failures. The FS-PDC-ART05 serves as the backbone for distributed sensor arrays, ensuring every proximity probe and transducer receives stable power and watchdog supervision. This factory-calibrated assembly targets maintenance engineers, instrumentation technicians, and system integrators who demand zero-compromise reliability in mission-critical applications.

Key advantages include 40% faster installation versus traditional point-to-point wiring, factory-tested cable integrity, and a robust 3-pole connector design that withstands thousands of mating cycles. The 2-meter cable length provides optimal reach for typical cabinet-to-field installations while minimizing signal degradation. UL and CSA approval processes are underway, reinforcing its suitability for regulated industrial environments.

Core Features & Business Value

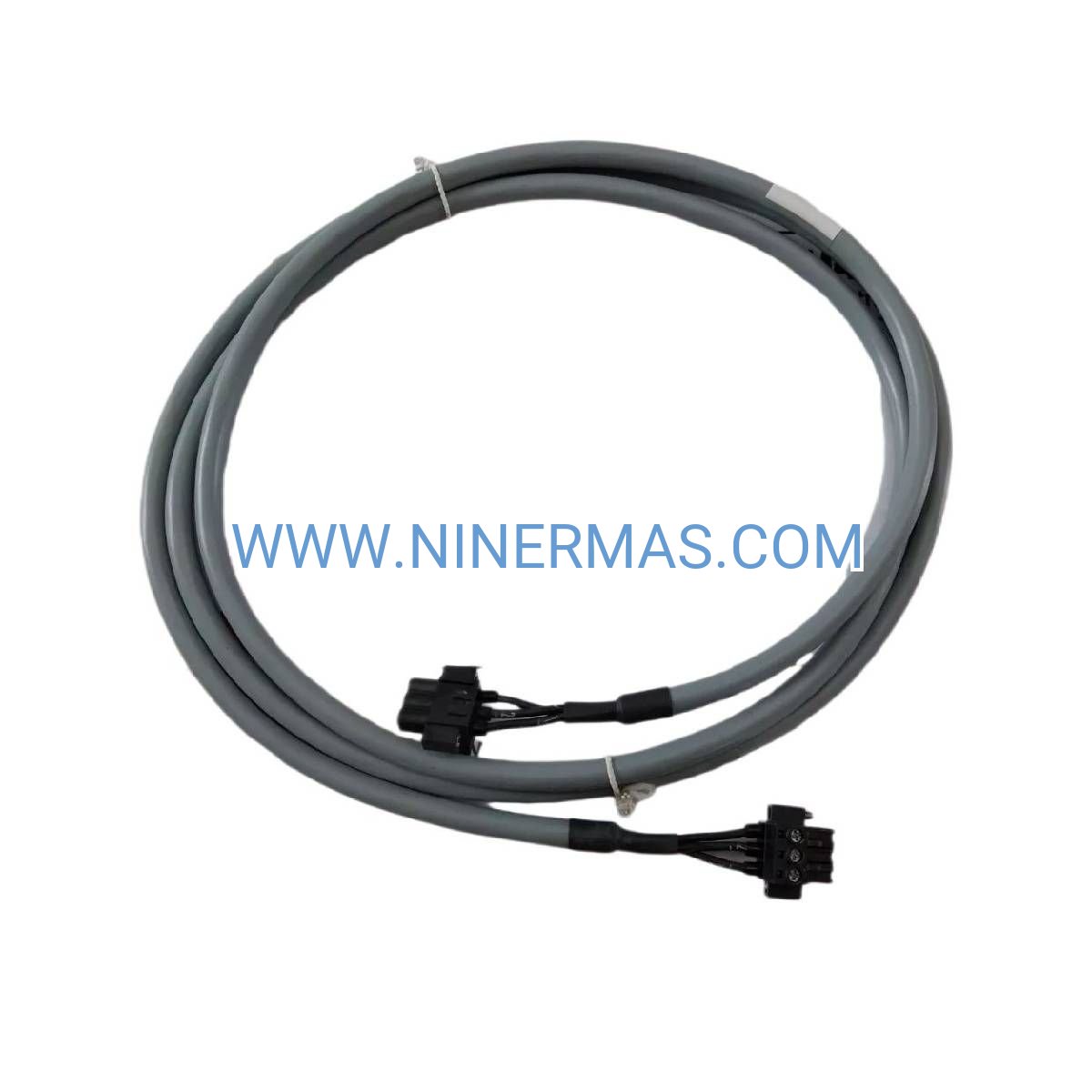

→ Pre-Terminated 2-Meter Cable Assembly
Eliminates field termination errors and reduces commissioning time. Factory-tested continuity ensures first-time-right installations, cutting labor costs by up to 35% compared to custom-built harnesses.

✓ Dual-Function Signal Distribution
Simultaneously routes volt supply and watchdog health signals to multiple endpoints. Consolidates two critical functions into one compact module, reducing panel space requirements and simplifying troubleshooting.

✓ Industrial-Grade 3-Pole Connector
Secure locking mechanism rated for 10,000+ mating cycles. Vibration-resistant design maintains contact integrity in high-shock environments, preventing intermittent faults that plague screw-terminal alternatives.

→ OEM-Quality Construction
Factory-calibrated to Honeywell specifications with rigorous quality control. Each unit undergoes electrical testing and mechanical inspection before shipment, ensuring consistent performance across production batches.

✓ Plug-and-Play Compatibility
Drop-in replacement for legacy distribution modules in existing Honeywell installations. Backward-compatible pinout reduces retrofit complexity and preserves existing wiring infrastructure.

→ Extended Environmental Range
Operates reliably from -20°C to +70°C, covering 95% of industrial process environments. Conformal-coated PCB resists moisture, dust, and chemical exposure common in petrochemical and power generation facilities.

Application Scenarios & Industry Use Cases

Turbomachinery Vibration Monitoring Networks
In gas turbine installations with 12-16 proximity probes per machine, the FS-PDC-ART05 centralizes signal distribution from the monitoring rack to field-mounted sensors. Solves the challenge of maintaining consistent volt supply across long cable runs while providing real-time watchdog verification. Reduces wiring errors that cause false alarms and unplanned shutdowns, improving plant availability by 2-3%.

Multi-Point Bearing Surveillance Systems
Critical rotating equipment like centrifugal compressors require continuous bearing temperature and vibration monitoring. This module distributes power and health signals to 4-8 sensor clusters, enabling simultaneous data acquisition from thrust bearings, radial bearings, and coupling assemblies. Accelerates commissioning schedules by 30% through standardized pre-wired connections.

Retrofit Upgrades for Legacy Monitoring Platforms
When upgrading from obsolete Bently Nevada or older Honeywell systems, the FS-PDC-ART05 bridges new monitoring electronics with existing field wiring. Preserves capital investment in installed sensors while modernizing the control room infrastructure. Typical retrofit projects achieve 50% cost savings versus complete sensor replacement.

Offshore Platform Condition Monitoring
Marine and offshore environments demand corrosion-resistant, vibration-proof signal distribution. The module's sealed connector and conformal coating withstand salt spray and humidity, maintaining signal integrity in FPSO turbo-generators and subsea pump monitoring applications. Reduces maintenance intervals from quarterly to annual inspections.

Power Generation Auxiliary Systems
Boiler feed pumps, induced draft fans, and cooling water pumps in thermal power plants require distributed vibration monitoring. The FS-PDC-ART05 enables centralized signal routing from DCS cabinets to remote equipment locations up to 50 meters away, supporting predictive maintenance programs that reduce unplanned outages by 40%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FS-PDC-ART05 when your application requires standardized 2-meter cable runs between monitoring racks and sensor junction boxes. For installations exceeding 2 meters, consider custom cable assemblies or intermediate junction boxes. Verify that your monitoring platform supports 3-pole connector pinouts—consult system documentation or contact technical support for compatibility confirmation. In hazardous area installations (Class I Div 2), ensure proper intrinsic safety barriers are installed upstream of this module.

Extended Functionality & Integration Options

IoT-Ready Monitoring Integration: While the FS-PDC-ART05 is a passive distribution module, it integrates seamlessly with IIoT-enabled vibration monitoring systems. When paired with Honeywell Experion PKS or third-party SCADA platforms, distributed sensor data flows through this module to cloud-based analytics engines, enabling predictive maintenance algorithms and remote diagnostics.

Redundant Configuration Support: Critical applications can deploy dual FS-PDC-ART05 modules in parallel for N+1 redundancy. Automatic failover logic in the monitoring system switches to the backup distribution path if primary watchdog signals are lost, ensuring zero-downtime surveillance.

Custom Cable Length Options: Standard 2-meter assemblies cover 80% of installations, but special-order configurations from 1 to 10 meters are available for unique cabinet layouts or remote sensor locations. Custom lengths maintain the same factory-tested quality and connector specifications.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Typical delivery to major industrial hubs in North America, Europe, and Asia-Pacific ranges from 5-7 business days.

Custom Configuration Lead Time: Special cable lengths or modified connector types require 3-4 weeks for factory production and testing. Rush orders may be accommodated—contact sales for expedited scheduling.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials, workmanship, and electrical performance. Warranty includes free replacement for cable continuity failures, connector defects, or signal integrity issues arising from manufacturing faults.

Technical Support: Pre-sales engineering assistance available for compatibility verification, system design reviews, and integration planning. Post-sales support includes installation guidance, troubleshooting protocols, and field service coordination if required.

Documentation Package: Each module ships with installation instructions, pinout diagrams, electrical specifications, and compliance certificates. Digital copies available for download from the product support portal.

Frequently Asked Questions

What monitoring systems are compatible with the FS-PDC-ART05 distribution module?
Primarily designed for Honeywell 3300 XL and 3500 series vibration monitoring platforms. Also compatible with third-party systems using standard volt/watchdog signal protocols—verify voltage levels (typically -24V DC) and pinout configurations before integration. Contact technical support with your system model for compatibility confirmation.

Can I extend the cable length beyond 2 meters using field splices?
Field splicing is not recommended as it introduces potential failure points and voids the factory calibration. For runs exceeding 2 meters, order custom cable lengths or use intermediate junction boxes with shielded extension cables. Maintaining signal integrity requires proper cable gauge and shielding—consult installation guidelines.

How does the watchdog function improve system reliability?
The watchdog signal provides continuous health verification of the distribution path. If the module or cable develops a fault, the monitoring system immediately detects the watchdog loss and triggers an alarm, preventing silent failures that could mask actual machinery problems. This dual-layer supervision is critical in safety-instrumented systems.

Is the module suitable for hazardous area installations?
The FS-PDC-ART05 itself is not intrinsically safe rated. For Class I Div 1/2 or ATEX Zone 1/2 installations, install approved intrinsic safety barriers (e.g., Honeywell 3991 series) between the monitoring rack and this distribution module. The module can be located in the safe area or non-hazardous zone.

What is the expected service life in continuous operation?
Under normal industrial conditions (temperature cycling, vibration exposure, humidity), the module typically exceeds 10 years of maintenance-free operation. The connector's 10,000-cycle rating supports frequent disconnections during maintenance without degradation. Cable insulation is rated for 20+ years in non-UV environments.

Does the module require periodic calibration or testing?
No field calibration is required—the module is a passive distribution device with no active electronics. However, best practice recommends annual continuity testing during scheduled maintenance outages to verify cable integrity and connector contact resistance. Use a standard multimeter to check end-to-end resistance (typically <0.5 ohms per conductor).

Take the Next Step

Ready to streamline your vibration monitoring installation? Request a technical datasheet with detailed pinout diagrams and integration examples, or contact our application engineers to discuss your specific system requirements. For immediate procurement, add the FS-PDC-ART05 to your cart—volume discounts available for orders of 10+ units. Need a custom cable length or modified connector? Submit a special configuration request and receive a quote within 24 hours.
