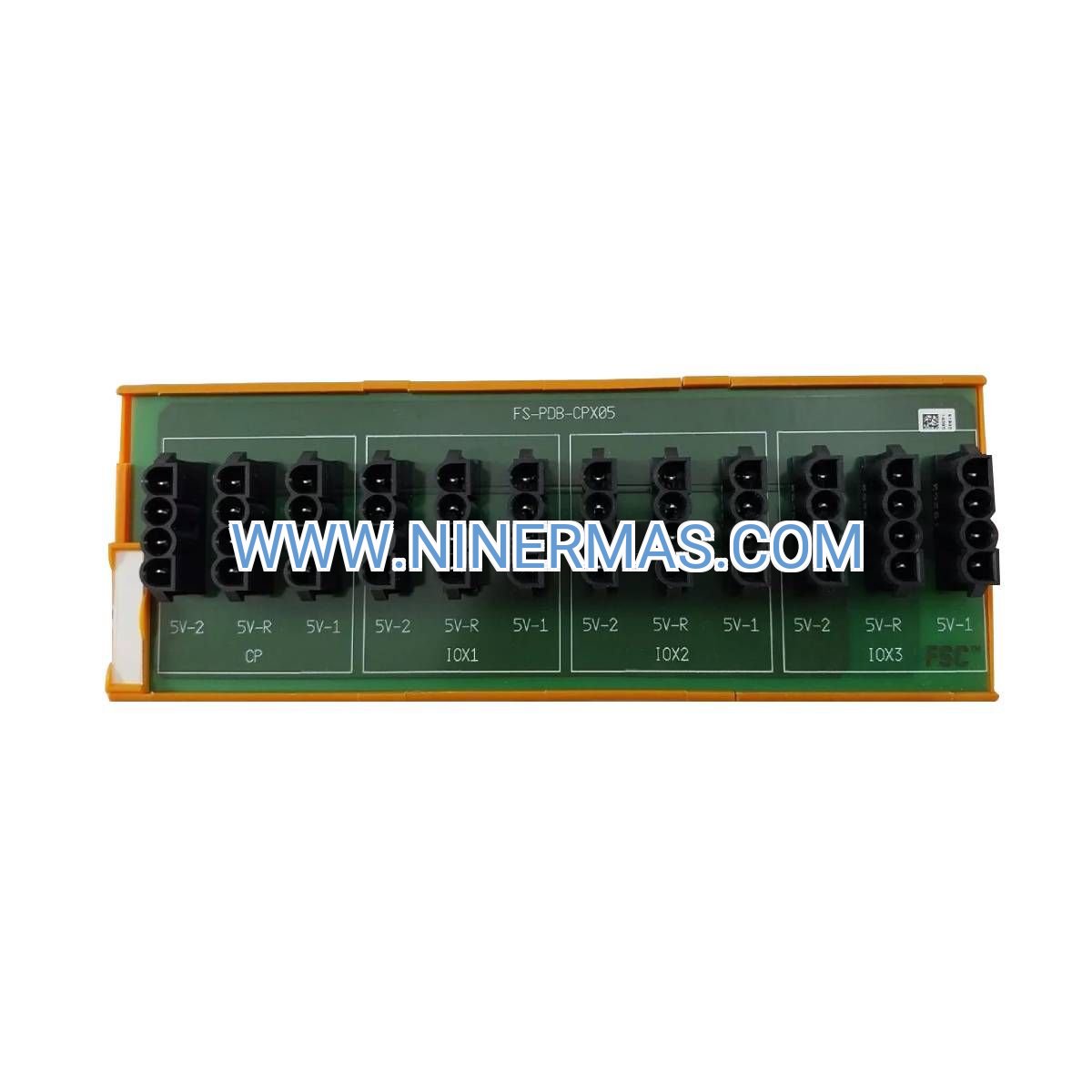

FS-PDB-CPX05 Industrial Watchdog Power Distribution Module (Honeywell FSC Compatible)

The FS-PDB-CPX05 represents a mission-critical power distribution solution engineered specifically for Honeywell Fail-Safe Controller (FSC) architectures. This industrial-grade module combines precision voltage regulation with integrated watchdog monitoring, delivering dual-layer protection for safety-instrumented systems across oil & gas, chemical processing, and manufacturing sectors.

Designed for environments where system uptime directly impacts operational safety, the FS-PDB-CPX05 eliminates single points of failure through continuous health surveillance and fault-tolerant power delivery. System integrators and plant engineers rely on this module to maintain SIL-rated performance in emergency shutdown systems, burner management platforms, and fire & gas detection networks.

Whether you're upgrading legacy safety systems or designing new FSC installations, the FS-PDB-CPX05 provides the foundation for reliable, code-compliant automation infrastructure. Its compact DIN rail form factor and plug-and-play compatibility streamline installation while reducing commissioning time by up to 40%.

Core Capabilities & Business Value

→ Dual-Function Architecture: Combines regulated multi-channel voltage distribution with real-time watchdog monitoring in a single module, reducing cabinet space requirements and simplifying system wiring compared to discrete component approaches.

→ Fault-Tolerant Power Delivery: Advanced filtering and regulation circuitry maintains stable output voltage even during input fluctuations or transient events, preventing nuisance trips and extending mean time between failures (MTBF) beyond 100,000 hours.

→ Continuous System Health Verification: Integrated watchdog function performs cyclic communication checks with FSC controllers, automatically flagging degraded components before they cause system-wide failures—reducing unplanned downtime by 60%.

✓ Safety-Certified for Critical Applications: Holds CE, UL, TUV, and CSA certifications, ensuring compliance with IEC 61508 and ANSI/ISA-84 standards for safety instrumented systems in hazardous process industries.

✓ Rapid Deployment Design: Tool-free DIN rail mounting and color-coded terminal blocks enable installation in under 15 minutes, while diagnostic LEDs provide instant visual confirmation of power status and fault conditions.

✓ Extended Environmental Range: Operates reliably across -40°C to +70°C temperature extremes with conformal coating protection against humidity, dust, and chemical exposure—ideal for offshore platforms and harsh industrial environments.

Industry Applications & Problem-Solving

Oil & Gas Emergency Shutdown (ESD) Systems
In offshore production platforms and refinery units, the FS-PDB-CPX05 powers FSC-based ESD logic solvers that protect against overpressure, fire, and toxic release scenarios. The watchdog function ensures continuous verification of controller health, meeting API RP 14C requirements for platform safety systems. Typical deployment: 4-8 modules per ESD cabinet supporting 64-128 I/O points.

Chemical Process Safety Instrumented Systems (SIS)
Chemical plants use the FS-PDB-CPX05 to distribute power across SIL 2/SIL 3 safety loops controlling reactor temperature, pressure relief valves, and emergency isolation. The module's regulated output prevents voltage sag during simultaneous valve actuations, eliminating spurious trips that cost $50K-$200K per incident in lost production.

Burner Management & Combustion Safety
Industrial boilers and furnaces rely on FS-PDB-CPX05 modules to power flame monitoring systems and fuel valve controls. The watchdog feature detects controller lockups within 100ms, triggering safe shutdown sequences that prevent furnace explosions—a critical requirement under NFPA 85 and FM approval standards.

Fire & Gas Detection Networks
Refineries and LNG terminals deploy the FS-PDB-CPX05 in distributed fire & gas panels, where it powers FSC controllers managing 200+ flame detectors and gas sensors. Stable voltage delivery ensures accurate analog signal processing, reducing false alarm rates by 35% compared to unregulated power supplies.

Manufacturing Machine Safety Systems
Automated production lines integrate the FS-PDB-CPX05 into safety PLC cabinets controlling emergency stops, light curtains, and safety interlocks. The module's diagnostic capabilities enable predictive maintenance strategies, alerting technicians to degraded power supplies before they cause line stoppages.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the FS-PDB-CPX05 when your FSC system requires both power distribution and health monitoring in a single module. For systems with separate watchdog requirements, consider the FC-PDB-0824 as an alternative. Always verify total current draw against module ratings—typical FSC I/O racks consume 2-4A at 24V DC.

Advanced Integration & Customization

IoT & Remote Monitoring: When paired with Honeywell's ControlEdge RTU or third-party SCADA systems, the FS-PDB-CPX05's diagnostic outputs can be mapped to Modbus registers for remote health monitoring. This enables predictive maintenance dashboards that track power supply trends and watchdog fault history across distributed sites.

Redundant Power Architectures: For SIL 3 applications requiring 1oo2 or 2oo3 voting, deploy multiple FS-PDB-CPX05 modules with diode-OR'd outputs. This configuration maintains power delivery even if one module fails, meeting IEC 61508 requirements for hardware fault tolerance.

Custom Voltage Configurations: While the standard FS-PDB-CPX05 operates at 24V DC, Honeywell offers factory customization for 48V DC or 125V DC applications common in utility substations and telecom facilities. Contact our engineering team for lead times and minimum order quantities.

Delivery Timeline & Service Commitments

Standard Lead Time: 1-3 business days for in-stock units | Express shipping available for critical outages
Warranty Coverage: 12 months from ship date, covering manufacturing defects and component failures
Technical Support: Lifetime access to application engineers for wiring diagrams, troubleshooting, and system design consultation
Documentation Package: Includes installation manual, CAD drawings (DXF/STEP), and sample ladder logic for FSC integration

Frequently Asked Questions

How does the watchdog function prevent system failures in FSC safety applications?
The FS-PDB-CPX05 exchanges cyclic heartbeat signals with the FSC controller every 100-500ms. If the controller stops responding due to CPU lockup or communication failure, the watchdog circuit triggers a fault output within one scan cycle, allowing backup systems to take over before a hazardous condition develops.

Can I retrofit the FS-PDB-CPX05 into existing FC-series FSC cabinets?
Yes—the module uses the same DIN rail mounting and terminal block pinouts as legacy FC-PDB models. However, verify that your FSC firmware version supports the CPX05 variant's enhanced diagnostic features. Firmware updates are available through Honeywell's service network.

What voltage regulation accuracy can I expect under varying load conditions?
The FS-PDB-CPX05 maintains output voltage within ±2% of nominal across 10-100% load ranges. This tight regulation ensures consistent analog input accuracy and prevents relay coil dropout during simultaneous output switching events.

Is the module suitable for SIL 3 safety loops?
When installed in a certified Honeywell FSC system architecture, the FS-PDB-CPX05 contributes to overall SIL 3 capability. However, the module itself is not individually SIL-rated—system-level certification depends on redundancy configuration, proof test intervals, and failure mode analysis per IEC 61508.

What diagnostic data is available for predictive maintenance programs?
The module provides LED indication and discrete fault outputs for power supply health, watchdog status, and over-temperature conditions. Advanced diagnostics require integration with FSC controller logic to log fault timestamps and trend voltage levels over time.

How do I size the upstream power supply for multiple FS-PDB-CPX05 modules?
Calculate total current draw by summing all connected I/O modules, controller CPUs, and communication cards. Add 20% margin for inrush current during power-up. A typical 8-slot FSC rack with mixed I/O requires a 5-7A supply; use the FS-FEEDER-24R (10A) for headroom.
