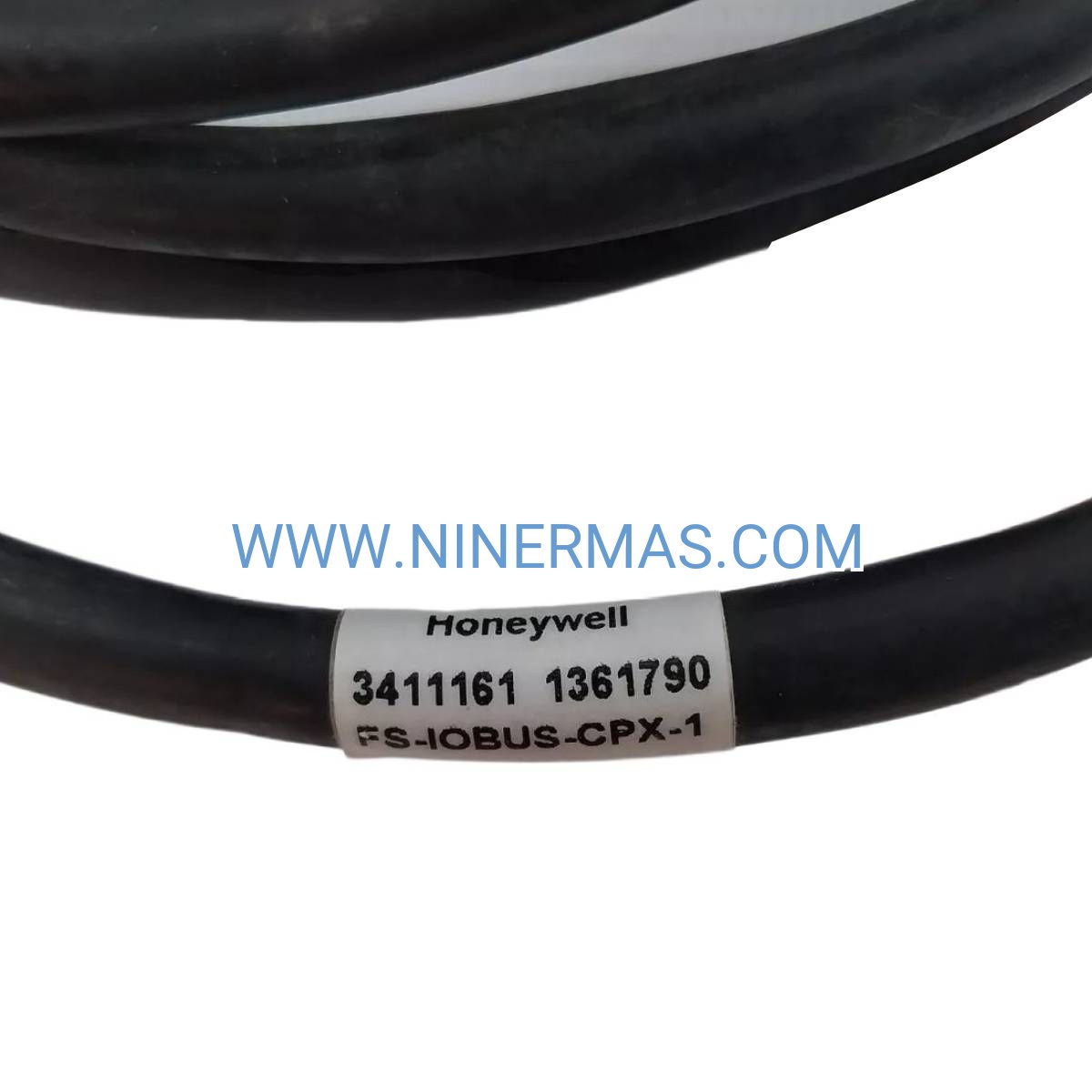

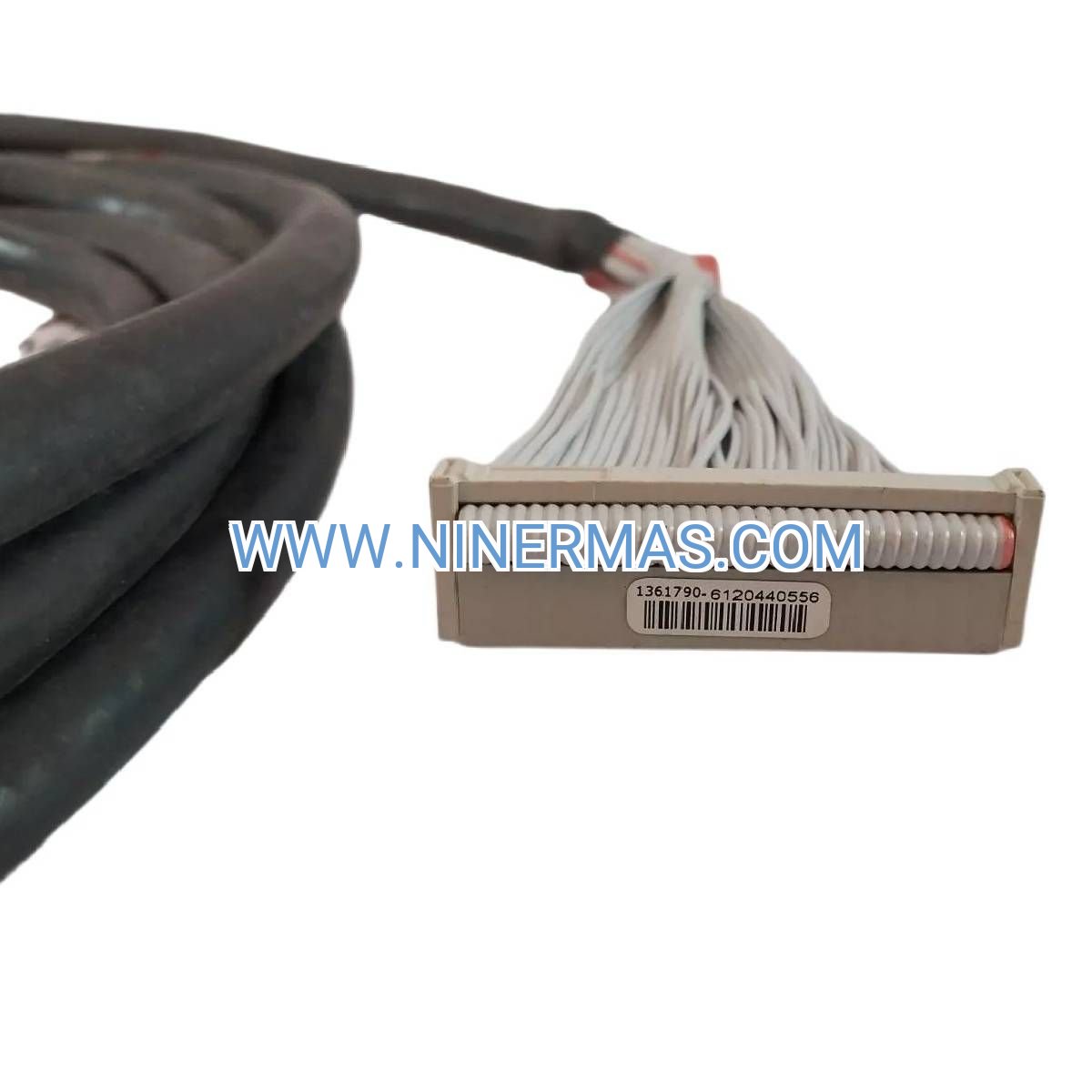

FS-IOBUS-CPX-1 I/O Bus Cable (Industrial-Grade Fail-Safe Connectivity)

The FS-IOBUS-CPX-1 represents Honeywell's advanced engineering in fail-safe communication infrastructure, delivering 3.4-meter industrial-grade connectivity for FSC (Fail-Safe Controller) architectures. Designed for safety-critical automation environments, this I/O bus cable ensures uninterrupted data flow between control modules and field devices where system integrity directly impacts operational safety and regulatory compliance.

Industrial facilities operating under SIL (Safety Integrity Level) requirements demand communication infrastructure that withstands harsh environmental conditions while maintaining signal fidelity. This cable addresses the critical challenge of reliable data transmission in environments with electromagnetic interference, temperature extremes, and mechanical stress—common obstacles in oil refineries, chemical processing plants, and power generation facilities.

With UL and CSA certifications, tinned copper conductors, and comprehensive EMI/RFI shielding, the FS-IOBUS-CPX-1 delivers the performance reliability that safety engineers and automation specialists require for mission-critical control systems. Whether you're upgrading legacy infrastructure or designing new fail-safe architectures, this cable provides the foundation for dependable industrial communication networks.

Core Features & Benefits

→ Extended Temperature Range (-40°C to +85°C)
Operates reliably across extreme thermal conditions, eliminating communication failures in outdoor installations, furnace proximity applications, and cold storage facilities. This temperature resilience reduces maintenance interventions and extends cable service life in challenging industrial environments.

→ Dual-Layer EMI/RFI Protection
Advanced shielding architecture prevents electromagnetic interference from VFDs, welding equipment, and high-voltage power lines. Maintains signal integrity in electrically noisy environments, reducing false triggers and ensuring accurate data transmission for safety-critical control logic.

→ Industrial Sealed Connectors
Factory-terminated connections with IP-rated sealing prevent moisture ingress, dust contamination, and corrosion. Reduces installation time by 40% compared to field-terminated alternatives while ensuring consistent connection quality across your automation infrastructure.

✓ 300V AC/DC Voltage Rating
Provides robust electrical isolation for mixed-voltage installations, supporting both control-level signals and higher-voltage discrete I/O applications. Simplifies system design by accommodating diverse voltage requirements within a single cable infrastructure.

✓ Tinned Copper Conductors
Superior corrosion resistance compared to bare copper, particularly valuable in coastal facilities, chemical processing environments, and high-humidity applications. Maintains low contact resistance over extended service periods, ensuring long-term signal reliability.

✓ UL Listed & CSA Approved
Meets North American safety standards for industrial control equipment, streamlining compliance documentation for facility audits and insurance requirements. Pre-certified components accelerate project approval timelines and reduce engineering validation workload.

Typical Application Scenarios

Oil & Gas Production Facilities
In offshore platforms and refinery operations, the FS-IOBUS-CPX-1 connects emergency shutdown systems, fire and gas detection networks, and process safety interlocks. The cable's corrosion-resistant construction and wide temperature range address the unique challenges of marine environments and hydrocarbon processing areas where communication failure could result in catastrophic safety incidents.

Chemical Manufacturing Plants
Safety instrumented systems (SIS) in chemical facilities rely on this cable for reactor monitoring, batch process control, and hazardous material handling automation. The EMI shielding prevents interference from variable frequency drives and motor control centers, while the sealed connectors resist chemical vapor exposure common in production environments.

Power Generation Stations
Turbine control systems, boiler management networks, and generator protection schemes utilize the FS-IOBUS-CPX-1 for reliable communication in high-EMI environments. The cable's 300V rating accommodates both low-voltage sensor signals and higher-voltage discrete outputs within integrated control architectures, reducing cable inventory complexity.

Pharmaceutical Production Lines
Clean room automation and batch documentation systems benefit from the cable's sealed connector design, which prevents particulate contamination while maintaining GMP compliance. The precise 3.4-meter length supports standardized equipment spacing in modular production facilities, simplifying validation documentation and change control procedures.

Water Treatment Infrastructure
SCADA systems controlling pumping stations, filtration processes, and chemical dosing equipment depend on this cable for outdoor installations exposed to temperature cycling and moisture. The cable's robust construction ensures continuous operation in underground vaults, outdoor control panels, and partially submerged equipment enclosures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FS-IOBUS-CPX-1 when your application requires fail-safe communication between FSC controllers and distributed I/O modules within 3.4 meters. For longer cable runs, consider daisy-chaining multiple segments or implementing signal repeaters to maintain data integrity. Verify that your FSC system firmware supports the 12 Mbps data rate to maximize communication performance.

Extended Functions

IoT Integration Capabilities: When paired with Honeywell's Experion PKS or PlantCruise systems, the FS-IOBUS-CPX-1 enables cloud connectivity for remote monitoring and predictive maintenance analytics. The cable's high-speed data transmission supports real-time streaming of process variables to edge computing devices and industrial IoT gateways.

Advanced Diagnostic Features: FSC systems utilizing this cable can leverage built-in communication diagnostics to detect cable degradation, connection issues, and signal quality problems before they impact process control. Proactive monitoring reduces unplanned downtime and supports condition-based maintenance strategies.

Customization Options: For applications requiring non-standard cable lengths or specialized connector configurations, contact our technical team to discuss custom cable assemblies. We can provide factory-terminated solutions from 1 meter to 50 meters with various connector types to match your specific installation requirements.

Delivery & Service Assurance

Standard Lead Time: In-stock items ship within 1-2 business days via express courier services. International orders typically arrive within 5-7 business days depending on customs clearance and destination country logistics.

Custom Configuration Lead Time: Non-standard cable lengths or specialized connector configurations require 3-4 weeks for factory production and quality testing. Rush orders may be available for critical projects—contact our sales team for expedited manufacturing options.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions. Warranty includes free replacement and return shipping for defective units.

Technical Support: Complimentary pre-sales engineering consultation to verify compatibility with your FSC system configuration. Post-purchase support includes installation guidance, troubleshooting assistance, and system integration recommendations from certified Honeywell specialists.

Documentation Package: Each cable ships with certification of conformity, dimensional drawings, pinout diagrams, and installation instructions. Digital copies of technical datasheets and CAD models available for download to support your engineering documentation requirements.

Frequently Asked Questions

What is the minimum bend radius for the FS-IOBUS-CPX-1 cable during installation?
Maintain a minimum bend radius of 34mm (10x cable diameter) to prevent conductor damage and shield degradation. Tighter bends can compromise signal integrity and reduce cable service life, particularly in applications with vibration or thermal cycling.

Can this cable support redundant FSC controller configurations?
Yes, the FS-IOBUS-CPX-1 is fully compatible with redundant FSC architectures. Each controller requires a dedicated I/O bus cable connection to the same I/O modules, ensuring continuous operation during controller failover events without communication interruption.

How does the cable perform in high-vibration environments like compressor stations?
The industrial-grade connectors and flexible cable construction withstand continuous vibration up to 5G acceleration. For extreme vibration applications, use additional strain relief and secure cables at 300mm intervals to prevent connector fatigue and mechanical stress.

Is the FS-IOBUS-CPX-1 suitable for hazardous area installations?
When installed according to NEC Article 500-505 requirements and used with appropriate intrinsically safe barriers, this cable supports Class I Division 2 and Zone 2 installations. For Division 1 or Zone 1 applications, consult Honeywell's hazardous location installation guidelines.

What diagnostic capabilities are available for troubleshooting communication issues?
FSC systems provide real-time monitoring of bus communication status, including signal quality metrics, error counters, and connection status indicators. Use the FSC configuration software to access diagnostic data and identify cable-related issues before they impact process control.

Can I mix FS-IOBUS-CPX-1 cables with other cable types in the same FSC network?
For optimal performance and simplified troubleshooting, use consistent cable types throughout your FSC I/O network. Mixing cable types with different impedance characteristics or shielding configurations may introduce signal reflections and reduce overall network reliability.

Ready to Enhance Your Fail-Safe Control Infrastructure?

Contact our industrial automation specialists today to discuss your FSC system requirements and receive personalized cable selection guidance. We offer volume pricing for large projects, technical consultation for complex installations, and expedited shipping for urgent replacement needs.
