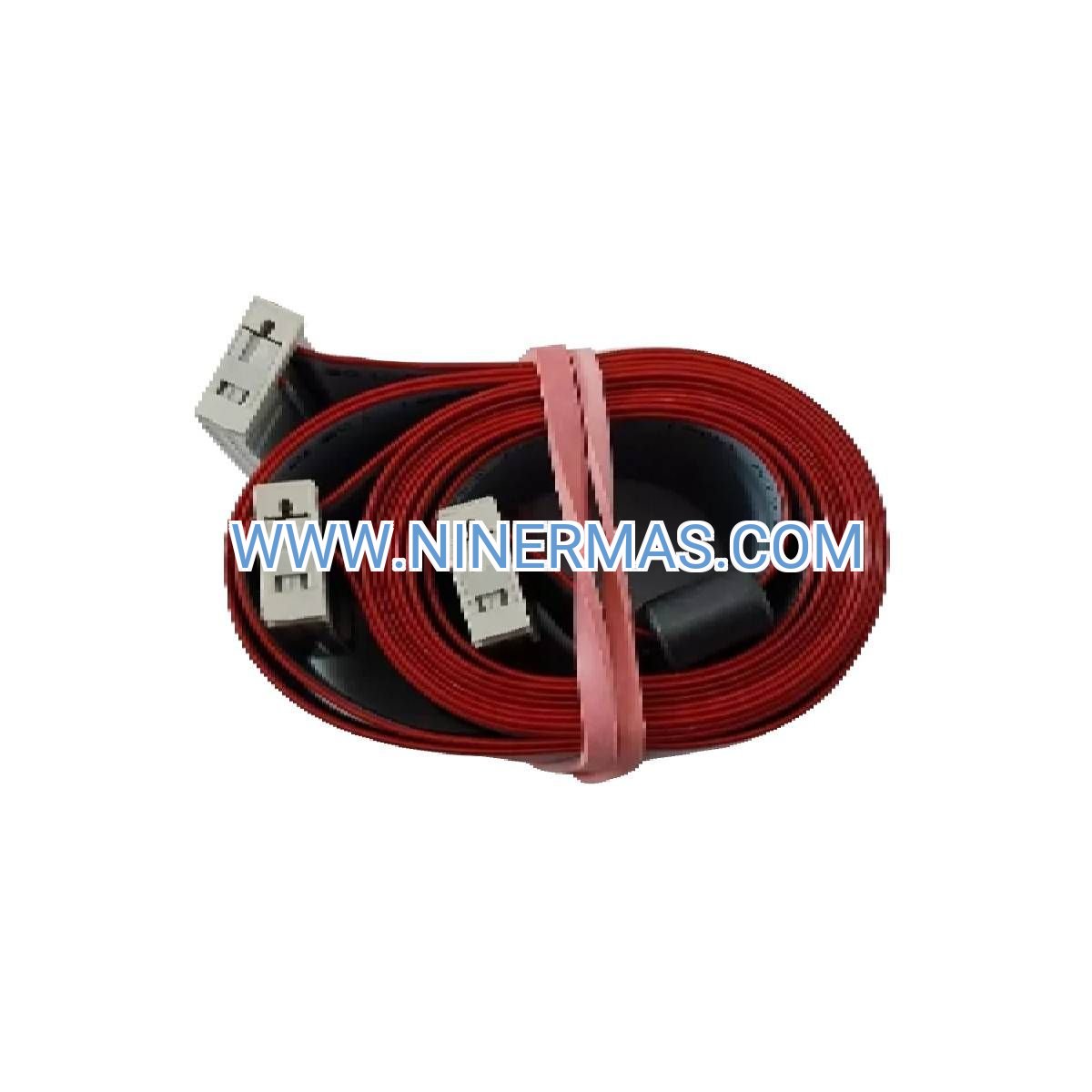

FS-IOBUS-CPIO2 I/O Bus Cable (Industrial-Grade Safety Communication)

The FS-IOBUS-CPIO2 represents a mission-critical communication backbone for Honeywell Fail-Safe Controller (FSC) architectures, delivering deterministic data exchange between control processors and distributed I/O modules. Engineered to IEC 61508 SIL 3 standards, this factory-calibrated cable eliminates field termination risks while providing electromagnetic immunity essential for safety instrumented systems in hazardous process environments.

Designed for engineers and system integrators managing emergency shutdown (ESD), fire & gas detection, and burner management systems, this cable solves the challenge of maintaining signal integrity across electrically noisy industrial facilities. Its pre-tested connectors and comprehensive shielding architecture reduce commissioning time by up to 40% compared to field-assembled alternatives, while ensuring compliance with global safety certifications including ATEX, IECEx, and UL.

Whether you're expanding existing FSC installations or designing new safety-critical control systems, the FS-IOBUS-CPIO2 delivers proven reliability with hot-swap capability, wide temperature tolerance (-40°C to +70°C), and full compatibility across Honeywell's FSC product ecosystem—from controller chassis to remote I/O racks supporting up to 8 distributed nodes per safety loop.

Core Features & Benefits

→ SIL 3 Safety Integrity Certification
Complies with IEC 61508 functional safety standards for use in safety instrumented systems (SIS) protecting personnel, assets, and the environment. Validated for systematic capability and random hardware failure rates required in oil & gas, chemical processing, and power generation applications.

→ Factory-Installed Terminations
Pre-wired D-Sub connectors undergo 100% continuity and insulation resistance testing before shipment, eliminating human error during installation. Reduces field labor costs by 50% and accelerates project schedules with plug-and-play deployment.

→ Advanced EMI/RFI Shielding
Twisted-pair conductors with 360-degree braided shield and drain wire provide >90% electromagnetic interference rejection. Maintains signal-to-noise ratios exceeding 40dB in proximity to VFDs, welding equipment, and high-voltage switchgear.

→ Hot-Swappable Architecture
Supports online cable replacement in redundant FSC configurations without safety logic interruption. Enables predictive maintenance strategies and minimizes unplanned downtime during cable upgrades or troubleshooting.

✓ Deterministic Scan Performance
Guaranteed 10ms I/O update cycles ensure real-time response for critical safety functions. Supports up to 2048 I/O points per controller with jitter-free data synchronization across distributed chassis.

✓ Extended Environmental Range
Operates continuously from -40°C to +70°C with UV-resistant jacketing and moisture-sealed connectors. Rated for 300V AC/DC with 1500V dielectric withstand, suitable for Class I Division 2 and Zone 2 hazardous locations.

Typical Application Scenarios

Emergency Shutdown Systems (ESD)
Connects safety logic solvers to field I/O modules monitoring critical process parameters like pressure, temperature, and flow. In offshore platforms and refineries, the cable enables triple-modular redundant (TMR) voting architectures where simultaneous sensor failures must not compromise shutdown integrity. Typical installations link controller chassis to I/O racks positioned near wellheads, separators, or compressor stations—reducing wiring complexity while maintaining SIL 3 fault tolerance.

Fire & Gas Detection Networks
Establishes communication paths between FSC controllers and distributed flame detectors, toxic gas sensors, and suppression system actuators. The cable's shielding prevents false alarms caused by electrical transients from motor starters or lightning strikes. Deployed in petrochemical plants and LNG terminals where detection zones span hundreds of meters, requiring reliable data transmission across multiple I/O chassis without signal degradation.

Burner Management Systems (BMS)
Interconnects safety controllers with ignition sequencing modules, flame scanners, and fuel valve actuators in boilers and furnaces. The deterministic scan time ensures precise timing for purge cycles and flame supervision—critical for preventing explosive atmospheres. Used in power plants and industrial heating applications where IEC 61508 compliance is mandatory for insurance and regulatory approval.

High-Integrity Pressure Protection (HIPPS)
Links FSC processors to ultra-fast pressure transmitters and hydraulic isolation valves protecting pipelines and vessels from overpressure events. The cable's low-latency design supports <100ms total loop response times required for HIPPS applications. Common in upstream oil & gas facilities where mechanical relief valves are impractical due to toxic or flammable process fluids.

Distributed Control System (DCS) Integration
Provides safety-rated communication between FSC safety layers and Honeywell Experion or third-party DCS platforms. Enables coordinated shutdown sequences where process control and safety logic must interact—such as controlled depressurization during emergency events. Facilitates compliance with IEC 61511 requirements for safety/BPCS interface management.

Technical Parameters & Selection Guide

Selection Criteria: Verify controller chassis model and I/O rack configuration before ordering. For redundant FSC systems, order cables in pairs to support dual communication paths. Consult Honeywell engineering drawings for exact cable routing distances—standard lengths accommodate typical cabinet-to-field-junction-box installations, while custom lengths require 2-week lead time. Ensure grounding infrastructure supports shield termination at both ends per NEC Article 504 or IEC 60079-14.

Extended Functions

Diagnostic Integration: The FSC system continuously monitors bus communication health, detecting open circuits, short circuits, and shield degradation. Diagnostic data is accessible via Honeywell Safety Manager software, enabling predictive maintenance alerts before cable failures impact safety availability. Built-in CRC error checking validates every data frame, with automatic retry mechanisms maintaining >99.99% message delivery rates.

Redundancy Support: When deployed in dual-cable configurations with redundant controllers, the FS-IOBUS-CPIO2 enables bumpless failover with <50ms switchover time. Each cable operates independently on separate physical paths, preventing common-cause failures from conduit damage or connector corrosion. Supports online cable testing without de-energizing the safety system.

Cybersecurity Compliance: While the I/O bus operates on a deterministic physical layer (not Ethernet), the cable's shielding provides defense-in-depth against electromagnetic eavesdropping and injection attacks. Compatible with IEC 62443 security architectures when FSC controllers are integrated with firewalled DCS networks.

Delivery & Service Assurance

Lead Time: Standard-length cables ship within 3-5 business days from our regional distribution centers. Custom-length assemblies require 10-15 business days for factory fabrication and testing. Expedited 24-hour shipping available for critical outage support.

Warranty Coverage: 18-month comprehensive warranty covering material defects, workmanship issues, and premature connector wear. Warranty includes free replacement shipping and technical root-cause analysis for any field failures.

Technical Support: Our FSC-certified application engineers provide pre-sales system design review, installation guidance, and post-commissioning troubleshooting. Access to 24/7 emergency hotline for safety system outages, with remote diagnostic support and on-site dispatch coordination.

Documentation Package: Each cable ships with factory test certificate, material traceability report, IEC 61508 compliance declaration, and installation instructions. Digital copies of certification documents available via secure customer portal for regulatory audits and asset management systems.

Frequently Asked Questions

What is the maximum I/O bus cable length for FSC systems?
The FS-IOBUS-CPIO2 supports distances up to 30 meters (98 feet) without signal repeaters or amplifiers. For installations exceeding this range, Honeywell recommends fiber-optic I/O extenders or intermediate junction chassis. Always verify cable length against system response time requirements—longer cables may add 1-2ms propagation delay.

Can I use this cable in ATEX Zone 1 or Class I Division 1 areas?
The cable itself is certified for Zone 2/Division 2 installations. For Zone 1/Division 1 deployment, the cable must terminate inside certified enclosures (Ex d or Ex e) with proper cable gland sealing. Consult your site's hazardous area classification drawings and engage a certified electrical contractor for installation design.

How do I verify cable integrity after installation?
Use the FSC system's built-in diagnostics to perform loop-back tests and shield continuity checks. The Safety Manager software displays real-time signal quality metrics including bit error rates and shield resistance. For offline testing, a standard multimeter can verify conductor continuity and insulation resistance (>100MΩ at 500V DC).

Is the FS-IOBUS-CPIO2 compatible with legacy FSC 2000 systems?
Yes, the cable maintains backward compatibility with FSC 2000 controllers and I/O modules. However, verify connector pinouts match your specific chassis revision—early FSC 2000 units may require adapter plates. Contact our technical team with your controller serial numbers for compatibility confirmation.

What causes intermittent communication errors on I/O bus cables?
Common root causes include improper shield grounding (must be bonded at both ends), excessive bend radius violations during installation, or proximity to unshielded AC power cables. Environmental factors like moisture ingress at connectors or vibration-induced contact wear also degrade signal quality. Our support team can analyze FSC diagnostic logs to pinpoint failure modes.

Do you stock replacement cables for emergency outages?
Yes, we maintain inventory of standard-length FS-IOBUS-CPIO2 cables at our Shanghai and Singapore warehouses for same-day dispatch. For critical safety system failures, we offer 4-hour courier delivery within major industrial zones. Contact our emergency hotline (+0086 187 5021 5667) for expedited support.

Get Your FSC System Connected Today

Ensure your safety instrumented systems meet IEC 61508 compliance with genuine Honeywell FS-IOBUS-CPIO2 cables. Our application engineers are ready to assist with cable selection, system integration planning, and technical documentation. Request a quote now or contact our team for project-specific consultation—we support installations across Asia-Pacific with local inventory and certified technical resources.
