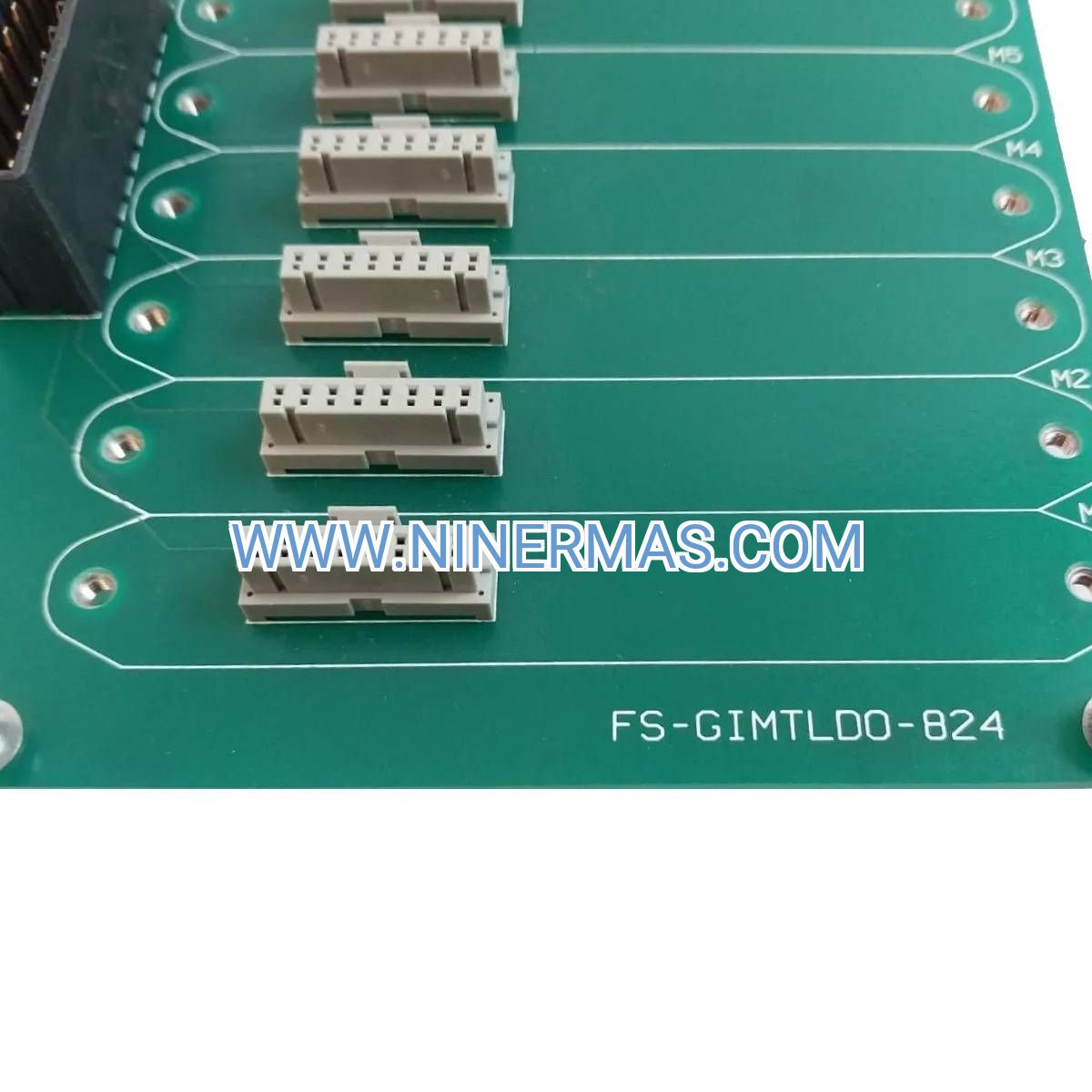

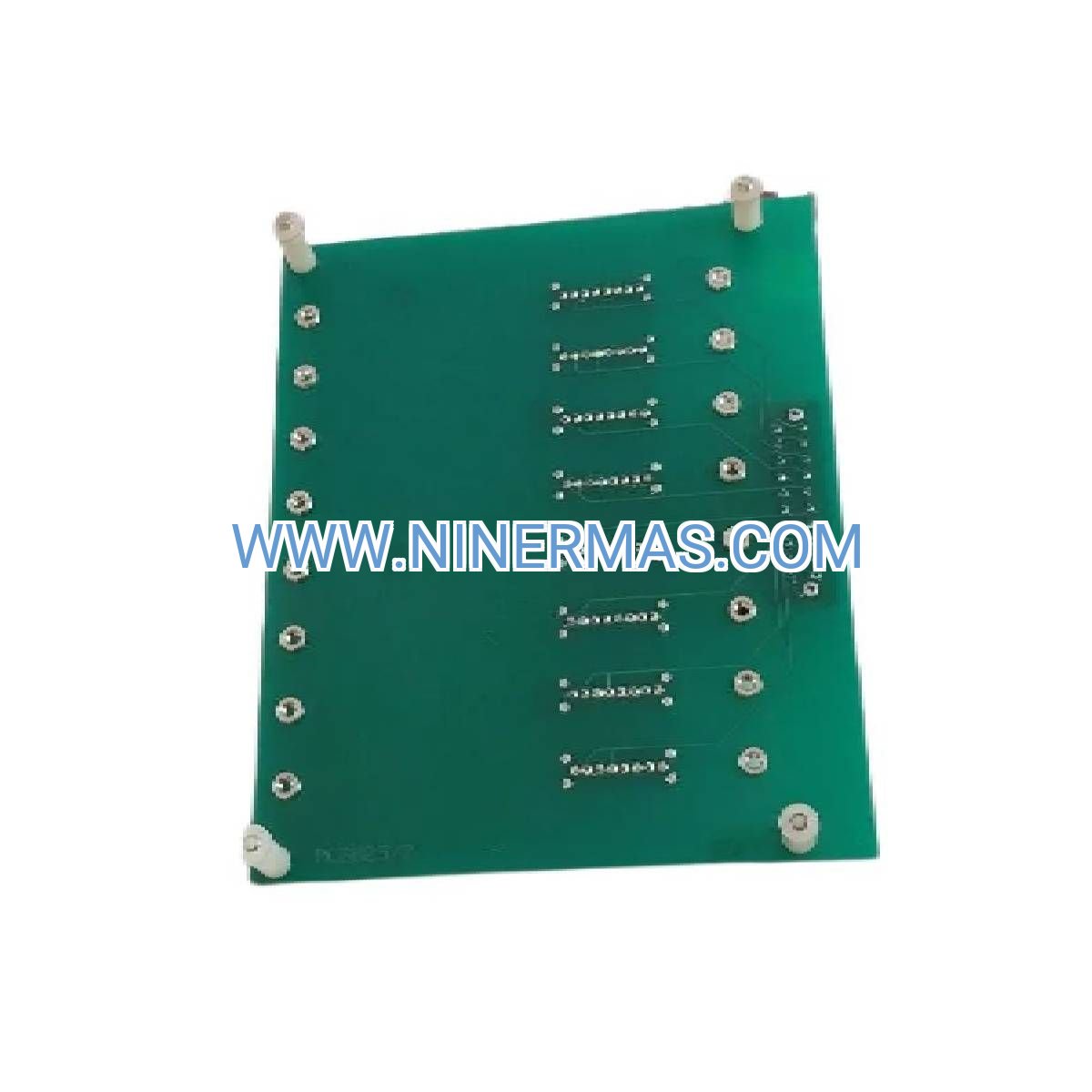

FS-GIMTLDO-824 Safety-Rated Digital Output Module (Industrial-Grade Relay Interface)

The FS-GIMTLDO-824 represents a mission-critical component in modern safety instrumented systems, delivering eight independently isolated relay output channels engineered for fail-safe operation in hazardous industrial environments. Designed as a field termination assembly for Honeywell's FSC safety controller ecosystem, this module bridges the gap between digital control logic and high-power field devices requiring galvanic isolation and proven reliability under SIL 3 safety integrity requirements.

Industrial facilities deploying emergency shutdown systems, burner management platforms, or process safety applications demand output modules that eliminate single points of failure while maintaining diagnostic transparency. This FTA module addresses these challenges through potential-free relay contacts rated for both AC and DC loads, comprehensive channel-to-channel isolation exceeding 1500V, and integrated health monitoring that reports contact degradation before catastrophic failure occurs.

Whether you're retrofitting legacy DCS installations, expanding existing safety architectures, or commissioning greenfield projects in oil & gas, chemical processing, or power generation sectors, the FS-GIMTLDO-824 delivers the proven performance and regulatory compliance your operations require. With response times under 10 milliseconds and mechanical endurance exceeding 10 million cycles, this module ensures your critical shutdown sequences execute reliably when process conditions demand immediate protective action.

Technical Capabilities & Business Value

→ Eight Isolated Relay Outputs: Each channel features independent potential-free contacts rated 2A @ 250V AC / 30V DC, enabling direct control of solenoid valves, motor contactors, and alarm annunciators without intermediate signal conditioning. This eliminates costly interface panels and reduces cabinet footprint by up to 40% compared to traditional marshalling approaches.

✓ SIL 3 Safety Certification: Certified to IEC 61508 and IEC 61511 standards with proven-in-use documentation spanning millions of operational hours across global installations. Achieve systematic capability SC3 and hardware fault tolerance HFT=1 when deployed in redundant configurations, reducing insurance premiums and regulatory audit burden.

✓ Extended Environmental Range: Operates reliably from -40°C to +70°C ambient temperature with conformal coating protection against humidity, vibration, and chemical exposure. Ideal for outdoor marshalling cabinets, subsea control systems, and arctic climate installations where commercial-grade electronics fail.

→ Hot-Swappable Architecture: Removable terminal blocks enable pre-wiring and field replacement without system shutdown, reducing mean time to repair (MTTR) from hours to minutes. Maintenance teams can stock spare modules and execute replacements during normal operations, eliminating costly production interruptions.

✓ Comprehensive Diagnostics: Built-in self-test routines monitor coil continuity, contact welding, and power supply integrity with fault reporting to host controllers via backplane communication. Predictive maintenance algorithms identify degrading relays before failure, enabling condition-based replacement strategies that reduce spare parts inventory by 30%.

→ Universal Mounting Compatibility: Standard 35mm DIN rail mounting with integrated locking clips ensures vibration-resistant installation in both vertical and horizontal orientations. Compact 22.5mm width allows high-density I/O configurations in space-constrained control panels.

Industry Applications & Problem-Solving Scenarios

Emergency Shutdown Systems (ESD): In offshore oil platforms and petrochemical complexes, the FS-GIMTLDO-824 executes final element control for pneumatic actuated valves isolating process flows during overpressure, fire, or toxic gas release events. The module's fail-safe design ensures valves move to their safe state even during controller power loss, preventing environmental disasters and protecting personnel. Typical installations pair eight output channels with redundant solenoid valve assemblies, achieving 99.99% availability for critical shutdown functions.

Burner Management Systems (BMS): Power generation facilities and industrial boilers rely on this FTA module to control fuel gas valves, ignition transformers, and flame safeguard interlocks. The potential-free contacts eliminate ground loop interference that plagues solid-state outputs in high-EMI environments near combustion equipment. Response times under 10ms ensure compliance with NFPA 85 and FM approval requirements for rapid fuel cutoff during flame failure conditions.

Process Safety Interlocks: Chemical manufacturing plants implement multi-layered protection using the FS-GIMTLDO-824 to control reactor cooling systems, emergency venting, and material transfer isolation. The module's SIL 3 certification enables risk reduction factors exceeding 10,000:1, allowing facilities to operate higher-hazard processes while maintaining acceptable safety integrity levels. Integration with Honeywell Safety Manager platforms provides complete audit trails for regulatory compliance demonstration.

Distributed Control Architectures: Large-scale facilities spanning multiple process units deploy remote I/O marshalling cabinets housing the FS-GIMTLDO-824 alongside analog input modules and communication gateways. This distributed approach reduces field wiring costs by 50% compared to centralized control room terminations while improving system resilience through geographic separation of critical I/O points.

Legacy System Modernization: Aging relay logic panels and pneumatic control systems can be retrofitted with the FS-GIMTLDO-824 to gain modern diagnostic capabilities while preserving existing field wiring infrastructure. The module's potential-free contacts interface seamlessly with 24V DC, 120V AC, and 230V AC field devices, enabling phased migration strategies that minimize production disruption.

Technical Parameters & Selection Criteria

Selection Criteria: When specifying the FS-GIMTLDO-824, evaluate total channel count requirements across all safety functions, ensuring 20% spare capacity for future expansion. For applications requiring more than 64 outputs per controller, implement distributed I/O architectures using multiple FTA modules connected via redundant communication networks. Verify that field device inrush currents remain below 2A contact rating; high-inrush loads may require external contactors or solid-state relay interfaces.

Advanced Integration & Customization Options

Redundant Controller Configurations: Deploy dual FS-GIMTLDO-824 modules in 1oo2 (one-out-of-two) voting architectures where each output channel controls separate solenoid valves on the same final element. This configuration achieves spurious trip rate reduction while maintaining SIL 3 integrity for high-availability processes that cannot tolerate false shutdowns.

Remote I/O Expansion: Extend controller reach up to 100 meters using shielded FTA cables, enabling distributed marshalling cabinets located near process equipment. This approach reduces field wiring costs, improves signal integrity, and simplifies troubleshooting by consolidating I/O terminations at equipment skids rather than central control rooms.

Third-Party System Integration: While optimized for Honeywell FSC platforms, the module's potential-free relay outputs enable integration with Allen-Bradley GuardLogix, Siemens S7 F-Systems, and other safety PLCs via standard digital output protocols. Consult factory application engineers for certification maintenance requirements when deploying in mixed-vendor architectures.

Condition Monitoring Integration: Connect relay contact status to plant-wide asset management systems for predictive maintenance analytics. Trending contact resistance and switching time degradation enables data-driven replacement scheduling that optimizes spare parts inventory and minimizes unplanned downtime.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock modules ship within 24-48 hours via express courier to major industrial centers worldwide. Typical delivery to North American facilities: 3-5 business days; European destinations: 5-7 business days; Asia-Pacific regions: 7-10 business days.

Custom Configurations: Factory-configured modules with pre-terminated cables, custom labeling, or special environmental coatings require 3-4 weeks lead time. Consult our application engineering team for project-specific requirements and expedited delivery options.

Warranty Coverage: All FS-GIMTLDO-824 modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs up to 60 months available for critical infrastructure applications requiring long-term performance guarantees.

Technical Support: Lifetime access to application engineering support via phone, email, and remote diagnostics. On-site commissioning assistance and training programs available through our global network of certified system integrators and Honeywell authorized service providers.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety certification documents, and configuration software. Downloadable resources include AutoCAD panel layout drawings, EPLAN macros, and sample ladder logic for common safety functions.

Frequently Asked Questions

What is the maximum cable length between the FS-GIMTLDO-824 and field devices?
Relay output modules support cable runs up to 300 meters for 24V DC loads and 500 meters for 120/230V AC loads when using appropriately sized conductors (minimum 18 AWG / 0.75mm²). Longer distances may require voltage drop compensation or local power supplies at field device locations.

Can this module control both normally-open and normally-closed safety logic?
Yes, the Form C (SPDT) relay contacts provide both NO and NC terminals, enabling flexible safety logic implementation. De-energize-to-trip architectures (where relay coil failure causes safe state) are recommended for highest safety integrity, though energize-to-trip configurations are supported for specific applications.

How does relay-based output compare to solid-state alternatives for safety applications?
Relay outputs offer superior galvanic isolation (1500V vs. 50V typical for solid-state), visible contact separation for lockout/tagout verification, and immunity to voltage transients that can cause solid-state device latchup. However, solid-state modules provide faster switching (microseconds vs. milliseconds) and longer operational life for high-frequency cycling applications.

What diagnostic information is available to the host controller?
The module reports per-channel status including commanded state, actual contact position, coil continuity, and contact welding detection. Advanced diagnostics track cumulative switching cycles and contact resistance trends for predictive maintenance scheduling. Fault conditions trigger immediate alarms to operator HMI systems.

Is the FS-GIMTLDO-824 suitable for marine and offshore platform installations?
Yes, the module meets DNV-GL and ABS marine classification requirements when installed in IP54-rated enclosures with appropriate environmental sealing. Conformal coating protects against salt spray corrosion, and extended temperature range supports installations in unheated equipment rooms and outdoor marshalling cabinets.

Can I mix different FTA module types on the same controller backplane?
Absolutely. The FS-GIMTLDO-824 integrates seamlessly with analog input, digital input, and communication modules within Honeywell FSC systems. Mixed I/O configurations enable complete safety loop implementation using a single controller platform, reducing engineering complexity and spare parts inventory.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists today for application-specific guidance, system architecture review, and competitive project pricing. Our team provides complimentary site assessments, I/O count verification, and integration planning to ensure your FS-GIMTLDO-824 deployment meets performance, safety, and budget objectives.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with a certified Honeywell FSC specialist. Mention your project timeline for expedited proposal delivery and volume discount eligibility.
