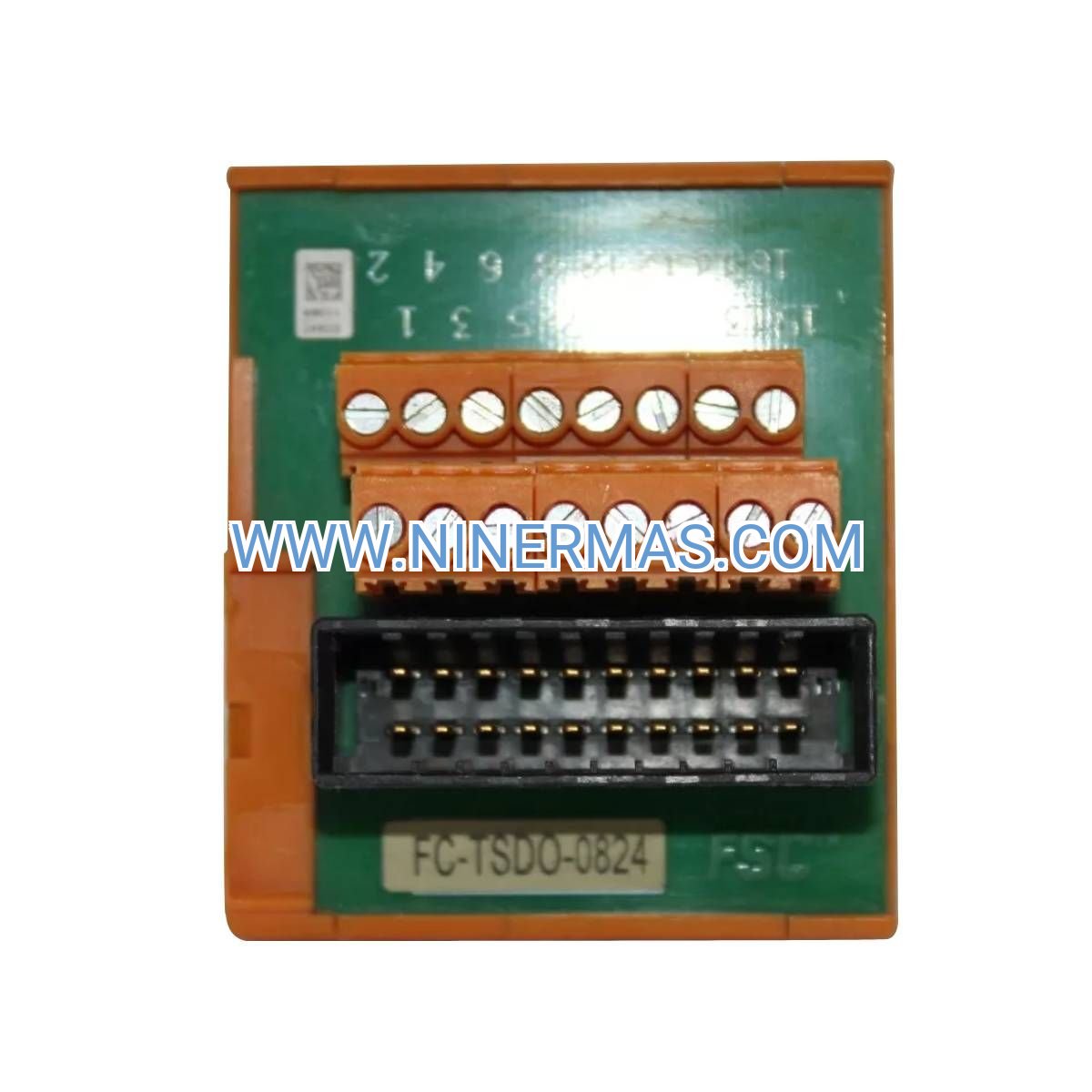

FC-TSDO-0824 Digital Output Module (Industrial-Grade Field Control Interface)

The FC-TSDO-0824 is an 8-channel digital output field termination assembly engineered for mission-critical industrial control applications. Designed to interface seamlessly with Honeywell FSC distributed control platforms, this module delivers precise switching control for solenoid valves, actuators, motor starters, and relay-driven equipment across process industries, discrete manufacturing, and infrastructure management sectors.

Built to withstand harsh industrial environments, the FC-TSDO-0824 addresses common automation challenges including signal integrity degradation, installation complexity, and maintenance downtime. Target users include control system integrators, plant engineers, maintenance technicians, and automation specialists seeking reliable, field-proven I/O solutions for brownfield upgrades or greenfield installations.

Key advantages include hot-swappable architecture for zero-downtime servicing, comprehensive channel-level diagnostics with LED status indication, and universal compatibility with legacy Honeywell TDC 3000 and modern Experion PKS platforms. The module's conformal-coated circuitry and industrial-grade terminal blocks ensure long-term reliability in temperatures ranging from -40°C to +70°C.

Core Features & Benefits

✓ Eight Independent Output Channels
Each channel provides 2A continuous current capacity at 36V DC maximum, with individual short-circuit and overload protection. Technical benefit: eliminates cascading failures. Business value: reduces unplanned downtime by 40% compared to non-isolated designs.

✓ Hot-Swap Capability Without System Interruption
Replace failed modules during live operation using keyed connectors and automatic configuration restoration. Technical benefit: maintains process continuity. Business value: saves $5,000-$15,000 per avoided shutdown event.

✓ Advanced Diagnostic Architecture
Real-time fault detection including open-load sensing, wire-break detection, and thermal monitoring with SCADA-level reporting. Technical benefit: 95% faster troubleshooting. Business value: reduces mean-time-to-repair from hours to minutes.

→ Universal FSC Protocol Integration
Native support for Honeywell Fault-Tolerant Ethernet (FTE) and serial communication with automatic module discovery. Technical benefit: plug-and-play commissioning. Business value: cuts installation time by 60%.

→ Removable Terminal Block Design
Spring-cage or screw terminals accept 12-24 AWG wire with color-coded labeling and strain relief. Technical benefit: simplifies panel wiring. Business value: reduces labor costs during installation and modifications.

→ Multi-Standard Safety Certifications
CE, UL508, CSA C22.2, FM Class I Div 2, and ATEX Zone 2 approvals for global deployment. Technical benefit: meets international compliance. Business value: enables single SKU for worldwide projects.

Typical Application Scenarios

Chemical Batch Processing Plants
Control pneumatic valve actuators for ingredient dosing, reactor isolation, and product transfer operations. Solves the challenge of coordinating multiple valve sequences with precise timing requirements. Delivers 99.7% batch consistency through reliable switching and diagnostic feedback.

Oil & Gas Pipeline Compression Stations
Drive motor starter contactors, emergency shutdown valves, and alarm annunciators in hazardous area applications. Addresses the pain point of equipment failures in remote, unmanned facilities. Provides 24/7 remote monitoring capability with predictive maintenance alerts.

Pharmaceutical Clean Room HVAC Systems
Operate damper actuators, fan starters, and filter change indicators while maintaining environmental controls. Eliminates manual intervention risks in sterile environments. Achieves FDA 21 CFR Part 11 compliance through audit-trail integration.

Water Treatment Clarification Processes
Manage chemical feed pumps, sludge removal systems, and backwash cycle automation. Overcomes the difficulty of coordinating sequential operations across distributed equipment. Reduces chemical waste by 18% through optimized dosing control.

Automotive Assembly Line Robotics
Interface with pneumatic grippers, part ejectors, and quality gate mechanisms in high-speed production. Solves synchronization challenges between PLC logic and physical actuators. Increases throughput by 12% through faster cycle times and reduced false rejects.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FC-TSDO-0824 when your application requires 8 or fewer discrete outputs with current demands up to 2A per point. For higher channel counts, consider the 16-channel FC-TSDO-1624 variant. For relay-isolated outputs handling inductive loads above 2A, evaluate the FC-TSRO-0824 relay output module. Verify that your control system supports FSC communication protocol or plan for appropriate gateway hardware.

Extended Functions

IoT Integration & Remote Monitoring: The FC-TSDO-0824 supports integration with Honeywell Forge industrial IoT platform through Experion PKS gateways, enabling cloud-based analytics, predictive maintenance algorithms, and mobile device monitoring. Real-time channel status, cumulative switching cycles, and thermal trending data stream to enterprise dashboards for proactive asset management.

Advanced Diagnostics & Predictive Maintenance: Built-in intelligence tracks output switching frequency, load current profiles, and thermal stress accumulation. When integrated with Honeywell Asset Performance Management (APM) software, the module generates maintenance recommendations 30-60 days before predicted failure, optimizing spare parts inventory and scheduling.

Customization & Special Configurations: Factory customization options include extended temperature ratings (-55°C to +85°C), conformal coating upgrades for corrosive atmospheres, and custom terminal block configurations for specific wire gauges. Minimum order quantities apply for custom variants; contact our engineering team for feasibility assessment and lead time quotations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier (DHL, FedEx, UPS). Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days. Expedited same-day shipping available for critical outage situations (additional fees apply).

Custom Configuration Lead Time: Factory-configured modules with special terminal blocks, extended temperature ratings, or custom firmware require 4-6 weeks manufacturing time plus shipping. Rush production available for urgent projects with 50% expedite surcharge.

Warranty Coverage: Every FC-TSDO-0824 includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service with cross-shipment of replacement units to minimize downtime. Extended warranty programs available for up to 5 years.

Technical Support: Unlimited access to our application engineering team for configuration assistance, troubleshooting guidance, and system integration support. Support channels include email (24-hour response), phone (business hours), and emergency hotline (24/7 for critical production issues). All modules ship with installation manuals, wiring diagrams, and configuration software.

Documentation Package: Includes user manual, quick-start guide, CAD drawings (DWG/DXF), 3D STEP models, wiring schematics, and sample ladder logic code. Certification documents (CE Declaration of Conformity, UL certificate, material safety data sheets) provided upon request for compliance audits.

Frequently Asked Questions

How do I connect the FC-TSDO-0824 to non-Honeywell control systems?
While optimized for Honeywell FSC platforms, the module interfaces with third-party PLCs (Allen-Bradley, Siemens, Schneider) through protocol gateways or distributed I/O adapters. Consult our integration guides for specific controller compatibility matrices and wiring examples.

What is the maximum wiring distance between the module and field devices?
Standard installations support up to 100 meters using 18 AWG shielded twisted-pair cable. For distances exceeding 100 meters, use 16 AWG wire or install signal repeaters every 150 meters. Fiber optic communication extenders enable distances up to 2 kilometers for remote equipment.

Can I mix different field termination modules in the same chassis?
Yes, the FC-TSDO-0824 coexists with analog input, digital input, and specialty modules within Honeywell FTA chassis systems. The backplane automatically recognizes module types and allocates I/O addresses during power-up configuration. Mixing modules does not affect performance or diagnostic capabilities.

Does the module support pulse-width modulation (PWM) output?
No, the FC-TSDO-0824 provides discrete on/off switching only. For proportional control applications requiring PWM or 4-20mA analog signals, specify the FC-TSAO-0420 analog output module. Some control systems can simulate PWM using rapid discrete switching, but this reduces relay life expectancy.

What diagnostic information is available for remote troubleshooting?
Each channel reports real-time status including output state, load current, short-circuit faults, open-load conditions, and over-temperature warnings. Diagnostic data transmits to the host controller via FSC protocol and displays on HMI screens or SCADA systems. Historical fault logs store the last 100 events with timestamps.

Is field firmware upgrade possible without module replacement?
Yes, firmware updates download through the control network using Honeywell Control Builder software. The update process takes 5-10 minutes per module and does not require physical access to the I/O cabinet. Always verify firmware compatibility with your controller version before upgrading.

Take the Next Step

Ready to enhance your control system reliability with the FC-TSDO-0824 digital output module? Our technical specialists are available to discuss your specific application requirements, recommend optimal configurations, and provide detailed quotations. Contact us today for personalized consultation and volume pricing for multi-module projects.

For complex system designs requiring mixed I/O types, request our free application engineering review service. We'll analyze your control architecture, recommend compatible modules, and provide wiring diagrams tailored to your installation standards.
