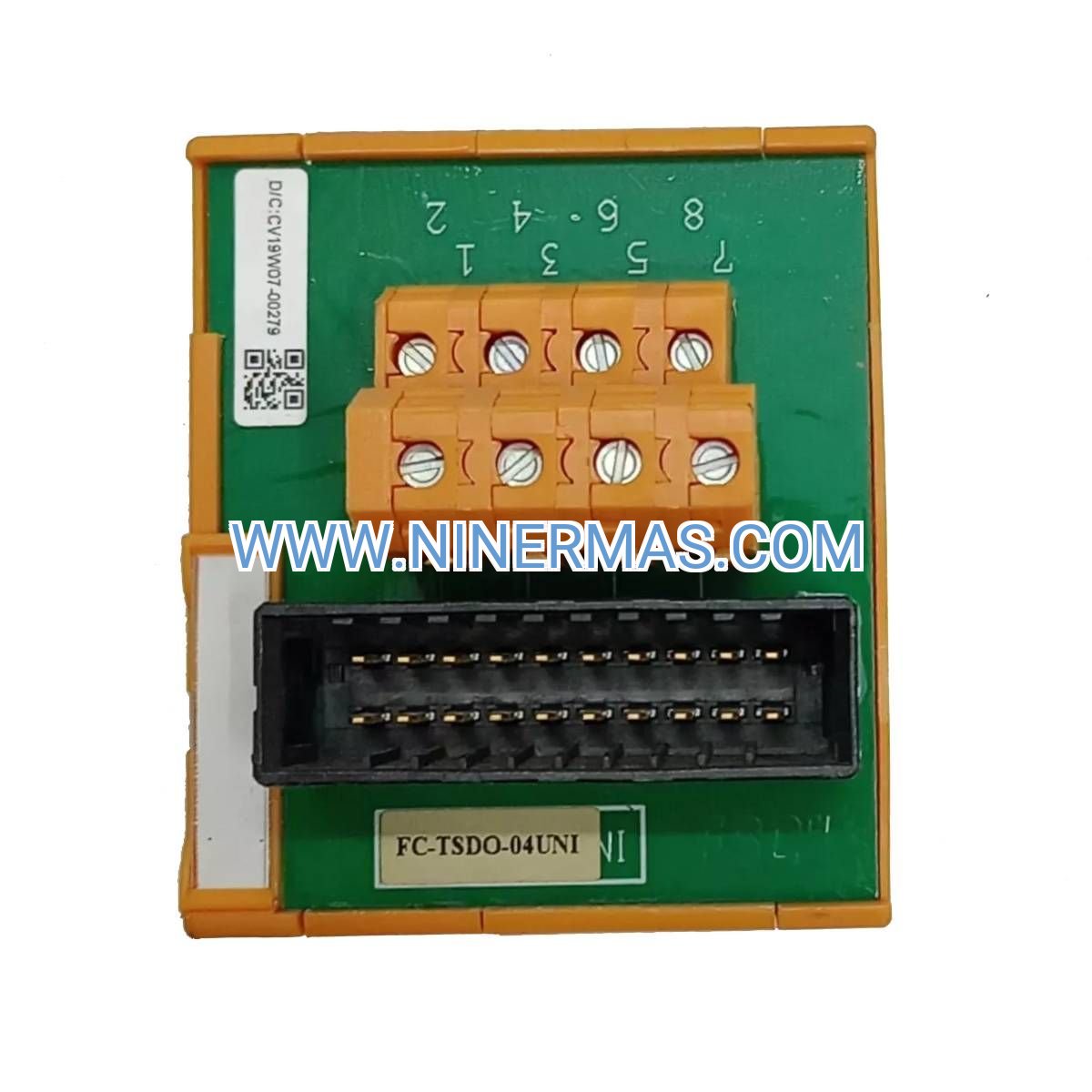

FC-TSDO-04UNI Digital Output Module (Industrial-Grade Process Control)

The FC-TSDO-04UNI represents Honeywell's advanced solution for digital output control in mission-critical industrial environments. Designed as a Field Termination Assembly for Experion PKS distributed control platforms, this 4-channel module bridges the gap between your control logic and field devices with exceptional reliability and flexibility.

Process engineers and automation specialists choose this module when they need versatile output control that adapts to both relay and solid-state requirements. Whether you're managing valve actuators in chemical processing, controlling motor starters in power generation, or driving solenoid banks in manufacturing, the FC-TSDO-04UNI delivers consistent performance under demanding conditions.

With comprehensive electrical isolation, diagnostic capabilities, and hot-swappable architecture, this FTA module minimizes downtime while maximizing system availability. Global safety certifications and rugged construction ensure compliance and longevity across diverse industrial applications worldwide.

Core Features & Benefits

→ Universal Output Architecture
Adapts seamlessly between relay-based and solid-state output modes, eliminating the need for multiple spare parts inventories and simplifying system standardization across your facility.

→ Comprehensive Electrical Isolation
Channel-to-channel and channel-to-system isolation protects your Experion PKS controller from field-side electrical faults, voltage spikes, and ground loop interference that could compromise control integrity.

→ Hot-Swap Capability
Replace failed modules during live operation without process shutdown or controller reboot, reducing mean time to repair (MTTR) by up to 75% compared to legacy systems.

→ Intelligent Diagnostics
Per-channel LED indicators provide instant visual feedback on output status, simplifying commissioning workflows and accelerating troubleshooting during maintenance windows.

→ Extended Environmental Range
Operates reliably from -40°C to +70°C with 5-95% humidity tolerance, making it suitable for outdoor enclosures, high-temperature process areas, and harsh industrial zones.

→ Global Safety Compliance
CE, UL, CSA, ATEX, and IECEx certifications enable deployment across North America, Europe, Asia-Pacific, and hazardous area classifications without additional approvals.

Typical Application Scenarios

✓ Chemical Processing Plants
Scenario: Batch reactor control requiring precise valve sequencing and emergency shutdown capability.
Pain Point Solved: Eliminates relay chatter and contact wear in high-cycle applications while maintaining fail-safe operation.
Value Delivered: Extends valve actuator service life by 40% and reduces unplanned shutdowns through predictive diagnostics.

✓ Oil & Gas Facilities
Scenario: Offshore platform pump control with stringent safety integrity level (SIL) requirements.
Pain Point Solved: Provides certified isolation and redundancy for critical safety instrumented systems (SIS).
Value Delivered: Achieves SIL 2 compliance when configured in redundant architectures, protecting personnel and assets.

✓ Power Generation Stations
Scenario: Turbine auxiliary system control including lube oil pumps, cooling fans, and alarm annunciation.
Pain Point Solved: Consolidates multiple discrete relay panels into compact DIN-rail mounted FTA modules.
Value Delivered: Reduces panel footprint by 60% and simplifies wiring with standardized FTA cable assemblies.

✓ Manufacturing Automation
Scenario: Conveyor interlock systems and material handling equipment control across multi-zone production lines.
Pain Point Solved: Enables centralized control with distributed I/O architecture for flexible production reconfiguration.
Value Delivered: Cuts commissioning time by 50% through auto-discovery and reduces spare parts inventory costs.

Technical Parameters & Selection Guide

Selection Recommendations:

• For applications requiring >4 outputs, consider the 8-channel FC-TSDO-0824 variant
• Pair with FC-TSDI-1624 digital input modules for complete I/O coverage
• Use shielded FTA cables (51201420 series) in electrically noisy environments
• Implement redundant configurations for SIL-rated safety applications
• Verify compatibility with your Experion PKS controller firmware version

Extended Functions

IoT Integration Capabilities
When combined with Honeywell's Experion Orion Console and Uniformance PHD historians, the FC-TSDO-04UNI enables real-time output status monitoring, predictive maintenance analytics, and remote diagnostics through secure industrial IoT gateways.

Advanced Configuration Options
Supports pulse-width modulation (PWM) output modes for proportional control applications, configurable fault response behaviors (fail-safe high/low/last state), and programmable output delays for sequencing complex startup procedures.

Customization Services
Factory-configured modules available with pre-terminated field wiring, custom cable lengths, and application-specific firmware settings to accelerate project deployment and reduce commissioning errors.

Delivery & Service Assurance

Lead Time:
• Standard Configuration: 3-5 business days (in-stock items)
• Custom Configuration: 10-15 business days
• Express Shipping: Available for critical outage situations

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for up to 36 months with preventive maintenance packages.

Technical Support:
Dedicated application engineers provide pre-sales consultation, system integration guidance, configuration assistance, and post-installation troubleshooting. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package:
Each module ships with installation manual, wiring diagrams, configuration software, calibration certificates, and compliance declarations. Digital documentation library accessible 24/7 through customer portal.

Frequently Asked Questions

How does the FC-TSDO-04UNI integrate with existing Experion PKS systems?
The module connects directly to Experion C300 controllers via standard FTA I/O links using 51201420-series cables. Auto-discovery protocols automatically configure channel parameters, and the module appears in Control Builder software for seamless integration into your control strategies.

What output current capacity does each channel support?
In relay mode, each channel handles up to 2A at 250V AC or 30V DC. Solid-state mode supports 0.5A at 24V DC. For higher current requirements, use the module to drive intermediate power relays or contactors rated for your specific load.

Can I replace this module without shutting down the entire control system?
Yes, the FC-TSDO-04UNI features hot-swap capability. Simply remove the failed module from the DIN rail while the system remains energized, insert the replacement unit, and the controller automatically re-establishes communication within 2-3 seconds without process interruption.

Is the module suitable for hazardous area installations?
With ATEX and IECEx certifications, the FC-TSDO-04UNI is approved for Zone 2/Division 2 hazardous locations when installed in appropriately rated enclosures. Consult the certification documentation for specific installation requirements and restrictions.

What cable length limitations apply to FTA connections?
Maximum recommended cable length is 10 meters between the controller and FTA module to maintain signal integrity. For longer distances, use intermediate I/O marshalling cabinets or fiber-optic FTA extenders to preserve communication reliability.

Does the module require external power supplies for operation?
The FTA module receives control power through the I/O link from the Experion controller. However, field power for driving output loads must be supplied separately according to your application voltage requirements (typically 24V DC from a dedicated industrial power supply).

Take the Next Step

Ready to enhance your Experion PKS system with reliable digital output control? Contact our automation specialists today for technical consultation, pricing information, and delivery scheduling. We'll help you configure the optimal solution for your specific application requirements.

Request a Quote: Email sale@ninermas.com with your project details
Technical Questions: Call +0086 187 5021 5667 for immediate engineering support
Volume Pricing: Special rates available for multi-module orders and system integrators
