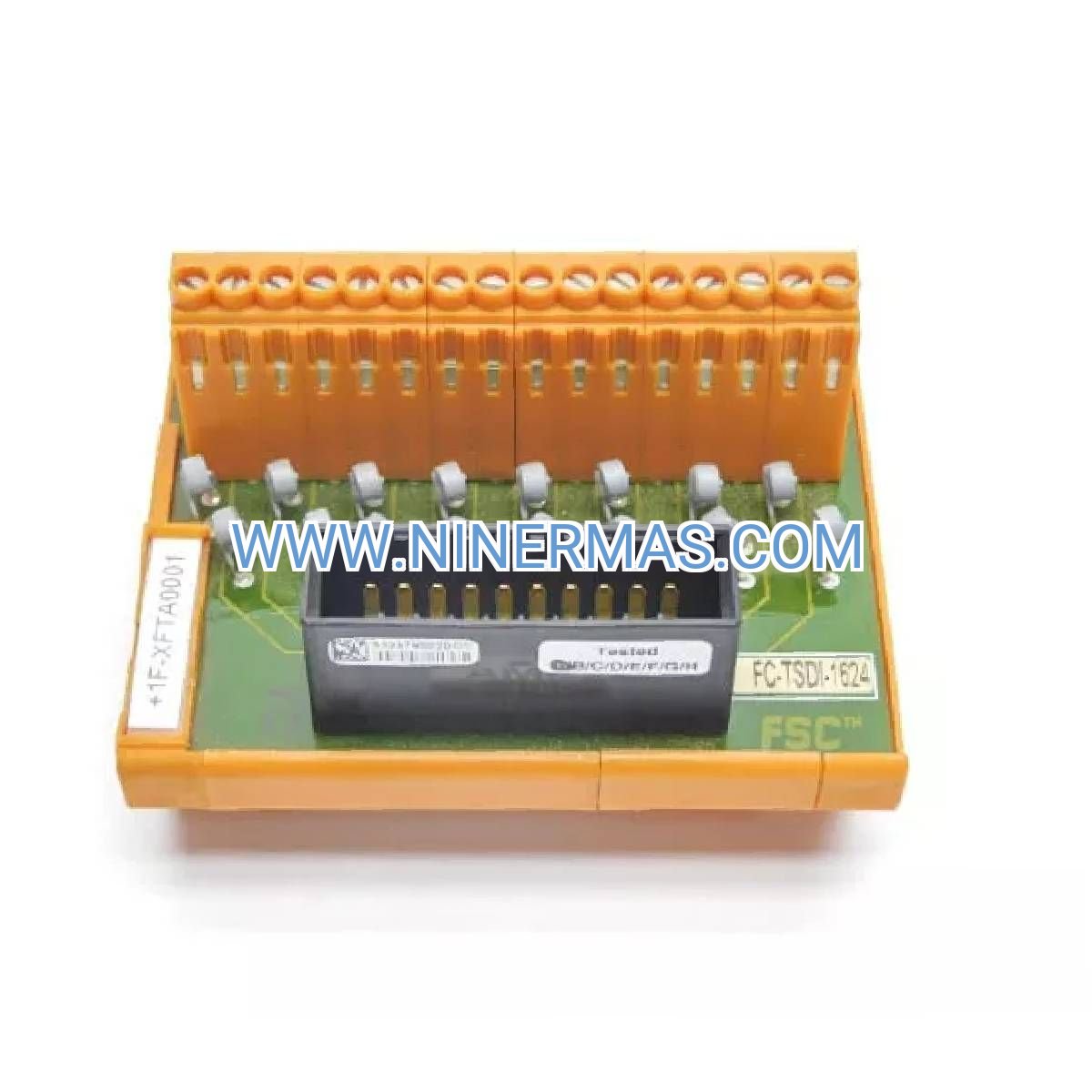

FC-TSDI-1624 Digital Input Field Termination Assembly (Industrial-Grade 16-Channel Solution)

The FC-TSDI-1624 is a high-reliability digital input field termination assembly designed for safety-critical industrial environments. Featuring 16 isolated input channels with 24VDC operation, this module serves as the essential interface between field devices and Honeywell Fail-Safe Control (FSC) systems. Built to withstand extreme temperatures from -40°C to +70°C, it delivers consistent performance in oil refineries, chemical plants, power stations, and pharmaceutical manufacturing facilities where process integrity cannot be compromised.

Process engineers and automation specialists rely on the FC-TSDI-1624 to acquire discrete signals from emergency shutdown switches, valve position indicators, pressure transmitter alarms, and motor status contacts. With channel-to-channel isolation and sub-5ms response times, this field termination assembly ensures accurate signal acquisition even in electrically noisy industrial settings. The module integrates seamlessly into distributed control architectures, supporting both standalone and redundant configurations for maximum system availability.

Whether you're upgrading legacy control systems or designing new safety instrumented systems (SIS), the FC-TSDI-1624 provides the robust signal conditioning and galvanic isolation required for SIL-rated applications. Its compact DIN-rail mounting design simplifies cabinet integration while maintaining full compliance with UL, CE, TÜV, CSA, and FM safety standards.

Core Features & Benefits

→ 16 Isolated Digital Input Channels
Each input features independent channel-to-channel and channel-to-bus isolation, preventing ground loops and cross-talk that can compromise signal integrity in multi-point monitoring applications. Supports both dry contact (switch closure) and wet contact (voltage source) input types for maximum field device compatibility.

→ Ultra-Fast 5ms Signal Response
Critical for emergency shutdown systems where every millisecond counts. The module's rapid input scanning ensures immediate detection of alarm conditions, enabling protective actions before process deviations escalate into safety incidents or production losses.

→ Extended Temperature Range (-40°C to +70°C)
Engineered for harsh industrial environments including outdoor enclosures, unheated control rooms, and high-ambient process areas. Maintains full specification performance across the entire temperature range without derating or auxiliary cooling requirements.

→ Multi-Agency Safety Certifications
Factory-certified to UL, CE, TÜV, CSA, and FM standards, streamlining compliance documentation for safety instrumented systems. Pre-approved for use in hazardous area control panels when properly installed per manufacturer guidelines.

✓ Low Power Consumption (≤3.5W)
Reduces heat generation in densely populated control cabinets while minimizing power supply sizing requirements. Enables higher I/O density per rack without thermal management concerns.

✓ Built-In Diagnostic Capabilities
Real-time channel health monitoring with fault indication for open circuits, short circuits, and power supply anomalies. Diagnostic data integrates with plant asset management systems for predictive maintenance scheduling.

Typical Application Scenarios

Oil & Gas Production Facilities
Monitors wellhead shutdown valves, separator level switches, compressor vibration alarms, and flare system status indicators. The FC-TSDI-1624's isolation architecture prevents electrical faults in one measurement loop from affecting adjacent critical safety functions, maintaining SIL integrity across the entire emergency shutdown system.

Chemical Process Manufacturing
Acquires signals from reactor high-temperature switches, toxic gas detection relays, emergency ventilation status contacts, and containment door position sensors. Fast response times enable rapid initiation of safe-state sequences when hazardous conditions are detected, protecting personnel and equipment.

Power Generation Plants
Interfaces with turbine trip circuits, generator protection relays, cooling system fault contacts, and auxiliary equipment status indicators. Redundant FC-TSDI-1624 configurations provide fault-tolerant signal acquisition for critical balance-of-plant monitoring in both fossil and renewable energy installations.

Pharmaceutical Clean Room Operations
Connects to HEPA filter differential pressure switches, airlock door interlocks, environmental monitoring alarms, and equipment qualification status indicators. The module's low power dissipation minimizes heat contribution to temperature-controlled production environments.

Water & Wastewater Treatment
Processes inputs from pump run status contacts, tank level switches, chlorine leak detectors, and valve limit switches. Robust EMI immunity ensures reliable operation near variable frequency drives and high-power motor control centers common in municipal utility installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FC-TSDI-1624 when your application requires high-density digital input acquisition with galvanic isolation for safety-rated control systems. For applications needing fewer than 16 channels, consider 8-channel variants to optimize cabinet space. When integrating with non-Honeywell control platforms, verify protocol compatibility and consider universal I/O modules with broader system support. Always pair with appropriately rated field wiring and termination hardware to maintain isolation integrity.

Extended Functions

Redundant Configuration Support: Deploy dual FC-TSDI-1624 modules in hot-standby or voting configurations for fault-tolerant signal acquisition. Automatic failover logic ensures continuous operation even during module replacement or failure events, critical for SIL 2/3 safety instrumented functions.

Advanced Diagnostics Integration: Module health data streams to supervisory systems via FSC controller backplane communication. Diagnostic parameters include per-channel wire break detection, input voltage monitoring, and module temperature tracking for comprehensive asset health visibility.

Flexible Field Wiring Options: Compatible with both individual wire termination and pre-assembled cable harnesses. Supports mixed dry/wet contact configurations within a single module, reducing spare parts inventory and simplifying standardization across multiple projects.

Cybersecurity Hardening: As a passive field termination device with no network connectivity, the FC-TSDI-1624 provides inherent protection against cyber threats. All configuration and diagnostics occur through the FSC controller's secured communication channels, maintaining defense-in-depth architecture principles.

Delivery & Service

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders during high-demand periods. Expedited shipping available for critical outage situations.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for long-term capital projects.

Technical Support: Direct access to application engineers with FSC system expertise. Support includes pre-sales configuration assistance, installation guidance, troubleshooting diagnostics, and integration consulting. Response within 4 business hours for technical inquiries.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, certification documents, and configuration software utilities. Digital documentation library accessible 24/7 through customer portal.

Frequently Asked Questions

What cable specifications are recommended for field wiring connections to the FC-TSDI-1624?
Use 18-22 AWG shielded twisted-pair cable with maximum run lengths of 100 meters for optimal noise immunity. Shield termination should occur at the module end only to prevent ground loops. For runs exceeding 100m, consider signal repeaters or local I/O distribution strategies.

Can this digital input module handle high-frequency pulse counting applications?
The FC-TSDI-1624 is optimized for discrete state monitoring rather than high-speed counting. Maximum reliable switching frequency is approximately 100 Hz. For encoder feedback or flow meter pulse counting, specify dedicated high-speed counter modules designed for kilohertz-range signal acquisition.

How does the FC-TSDI-1624 perform in high-vibration environments like offshore platforms?
The module meets IEC 60068-2-6 vibration specifications and has been extensively deployed in offshore oil production and marine propulsion applications. Ensure proper DIN rail locking mechanisms are used and verify cabinet shock mounting meets platform classification society requirements.

What is the maximum input voltage the module can withstand without damage?
Continuous overvoltage protection up to 30 VDC; transient protection to 60 VDC for 1 second. For applications with higher voltage transients (lightning, inductive load switching), install external surge protection devices at the field termination point.

Is hot-swapping supported during live process operation?
Hot-swap capability depends on FSC controller configuration and system safety requirements. Consult your safety instrumented system design documentation and follow lockout-tagout procedures. Some redundant configurations support online module replacement without process interruption.

Does the FC-TSDI-1624 require periodic calibration or maintenance?
No routine calibration required. Recommended maintenance includes annual visual inspection for terminal tightness, connector integrity checks, and diagnostic log review. Typical service life exceeds 15 years in controlled industrial environments.

Ready to Enhance Your Control System Reliability?

Contact our industrial automation specialists today for application-specific configuration guidance, system integration support, and volume pricing for multi-module projects. Our team can assist with FSC system design reviews, I/O mapping optimization, and compliance documentation for safety-rated installations.
