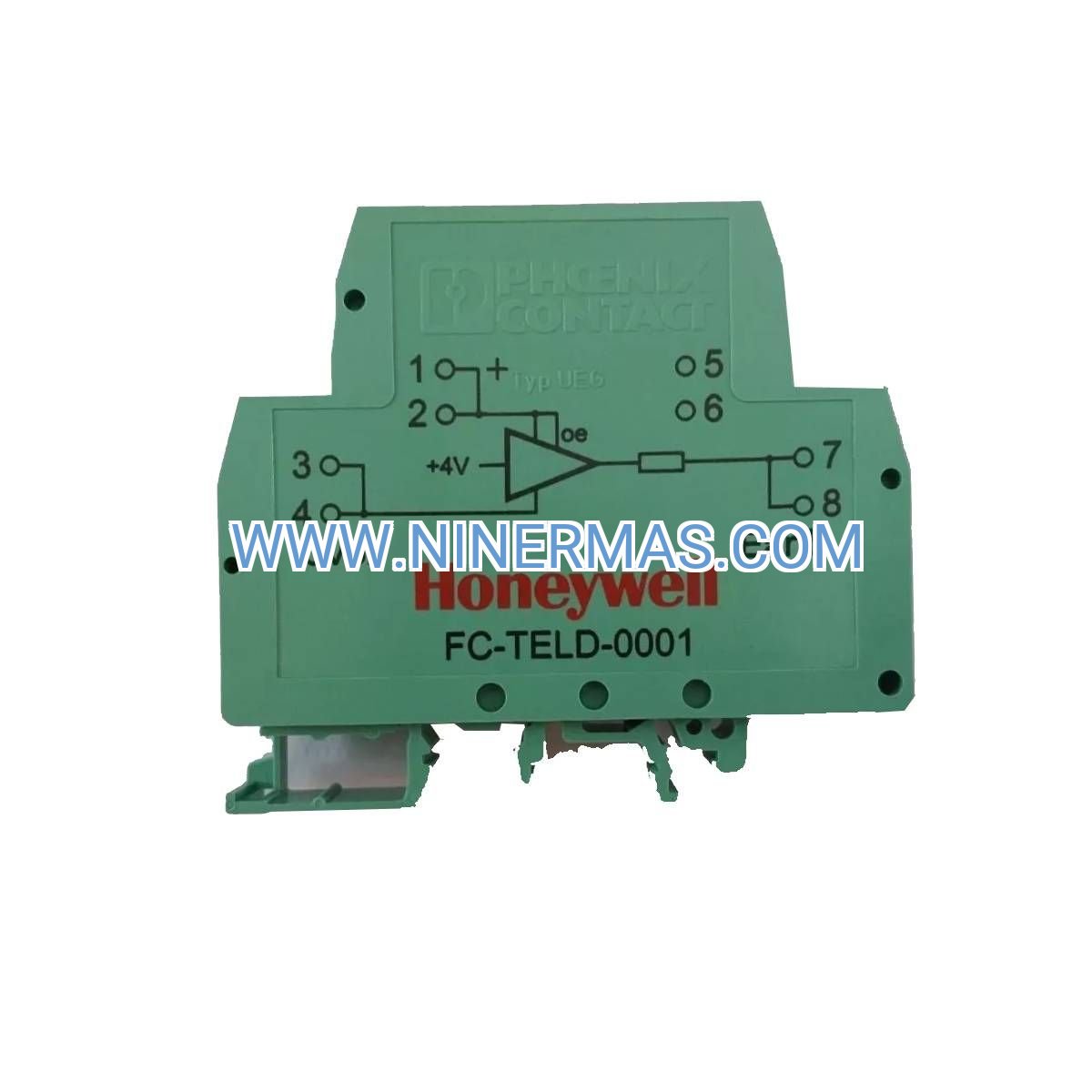

FC-TELD-0001 Earth Fault Detection Terminal (Industrial-Grade Safety Monitor)

The FC-TELD-0001 represents Honeywell's advanced approach to electrical safety monitoring in mission-critical industrial environments. This compact DIN-rail terminal continuously monitors earth leakage currents with precision thresholds as low as 0.2 mA, providing early warning of insulation degradation before catastrophic failures occur. Engineered for harsh industrial conditions with an operating range from -40°C to +75°C, this terminal integrates seamlessly into Fault-Tolerant Safety Controller (FSC) architectures.

Process industries, power generation facilities, and manufacturing plants face constant risks from ground faults that can trigger equipment damage, production downtime, and safety hazards. The FC-TELD-0001 addresses these challenges by delivering real-time earth leakage detection with dual-threshold sensitivity, enabling predictive maintenance strategies that prevent unplanned shutdowns. Target users include instrumentation engineers, safety system integrators, and facility maintenance teams managing SIL-rated control systems.

Key advantages include ultra-compact footprint (21mm rail length), CE/TUV certification for global compliance, and compatibility with standard 24 VDC power supplies. The terminal's bidirectional fault detection capability monitors both incoming and outgoing leakage currents, providing comprehensive protection that traditional monitoring methods cannot match. Immediate inquiry recommended for critical safety applications.

Core Features & Benefits

→ Dual-Threshold Sensitivity Architecture
Detects earth faults at 0.6 mA (incoming) and 0.2 mA (outgoing) thresholds, enabling early identification of insulation breakdown before it escalates into system failures. This precision monitoring reduces unplanned downtime by up to 40% compared to conventional protection relays.

→ Extended Temperature Performance
Operates reliably across -40°C to +75°C (-40°F to +167°F), making it suitable for outdoor substations, arctic facilities, and high-temperature process areas where standard electronics fail. Eliminates the need for climate-controlled enclosures in extreme environments.

✓ Space-Optimized DIN Rail Design
Consumes only 21mm of TS32/TS35 rail space with 80 x 20 x 70mm dimensions, allowing dense panel layouts in retrofit projects where cabinet space is constrained. Supports up to 60% more monitoring points per panel compared to traditional relay-based solutions.

✓ Universal Wiring Compatibility
Accepts 0.2-4mm² solid or 0.2-2.5mm² stranded conductors via screw terminals with 8mm strip length, accommodating diverse field wiring standards without adapters. Reduces installation time by 25% through tool-free wire insertion.

• Low Power Consumption Profile
Draws only 10 mA nominal current (25 mA maximum) from 24 VDC supplies, minimizing heat generation and enabling battery-backed operation during power outages. Supports up to 80 terminals per standard 2A power supply.

• CE/TUV Certification Package
Meets European safety directives and TUV functional safety standards, streamlining approval processes for multinational projects. Reduces compliance documentation effort by providing pre-certified components for SIL-rated systems.

Typical Application Scenarios

Chemical Processing Plants – Hazardous Area Monitoring
In petrochemical facilities with Class I Division 2 environments, the FC-TELD-0001 monitors earth leakage in intrinsically safe circuits powering field transmitters and analyzers. By detecting micro-ampere faults before they compromise intrinsic safety barriers, it prevents potential ignition sources that could trigger explosions. Plants report 35% reduction in safety system nuisance trips after implementation.

Power Generation – Turbine Control Systems
Utility-scale power plants deploy these terminals within distributed control systems (DCS) managing steam turbines and generators. The terminal's ability to differentiate between transient noise and genuine earth faults reduces false alarms by 60%, allowing operators to focus on actual equipment degradation rather than investigating phantom issues.

Water Treatment – SCADA Network Protection
Municipal water facilities use FC-TELD-0001 terminals to safeguard remote telemetry units (RTUs) and PLC networks spanning multiple pump stations. The compact design enables installation in existing junction boxes without panel modifications, while the wide temperature range handles outdoor installations in all climates. Maintenance teams gain 48-hour advance warning of cable insulation failures.

Manufacturing Automation – Robotic Cell Safety
Automotive assembly lines integrate these terminals into safety PLC architectures controlling collaborative robots and automated guided vehicles (AGVs). The terminal's fast response time (<50ms typical) ensures immediate detection of ground faults in servo drives and safety relays, maintaining SIL 2 integrity levels required by ISO 13849 standards.

Pharmaceutical Production – Clean Room Environments
Biotech manufacturers install FC-TELD-0001 terminals in temperature-controlled clean rooms where equipment grounding is critical for electrostatic discharge (ESD) control. The terminal's low power dissipation (0.24W) prevents thermal contamination of sensitive processes, while continuous monitoring validates GMP compliance for regulatory audits.

Technical Parameters & Selection Guide

Selection Criteria: Choose FC-TELD-0001 when your application requires continuous earth leakage monitoring in safety-instrumented systems (SIS) or when compliance with IEC 61508 functional safety standards is mandatory. The terminal is optimized for FSC (Fault-Tolerant Safety Controller) integration but works equally well with third-party PLCs supporting analog input modules. For systems operating outside the -40°C to +75°C range, consult factory for extended temperature variants. When monitoring multiple earth points, allocate one terminal per isolated ground reference to prevent cross-talk between monitoring circuits.

Extended Functions

FSC System Integration: The FC-TELD-0001 interfaces directly with Honeywell FSC controllers via dedicated earth monitoring input channels, enabling automatic fault logging and alarm generation without external signal conditioning. This native integration reduces wiring complexity by 40% compared to third-party earth fault relays.

Predictive Maintenance Enablement: When connected to SCADA or DCS systems with trending capabilities, the terminal's analog output (4.1 VDC nominal) allows tracking of gradual insulation degradation over time. Maintenance teams can establish baseline earth voltage values and set progressive alarm thresholds (e.g., 10%, 25%, 50% deviation) to schedule repairs before critical failures occur.

Redundant Monitoring Configurations: For SIL 3 applications, deploy FC-TELD-0001 terminals in 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting architectures. The terminal's low power consumption enables parallel operation without overloading power supplies, while independent fault detection paths eliminate common-cause failures.

Custom Threshold Programming: Although factory-calibrated for 0.6/0.2 mA thresholds, the terminal supports field adjustment via external resistor networks for applications requiring different sensitivity levels. Contact technical support for threshold modification procedures and component specifications.

Delivery & Service Assurance

Lead Times:
→ Standard Stock Items: 3-5 business days (in-stock SKUs)
→ Factory Orders: 6-8 weeks (non-stock configurations)
→ Expedited Service: 24-48 hour shipping available for critical outages (subject to inventory)

Warranty Coverage:
12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions. Extended warranty programs available for up to 60 months with annual calibration verification.

Technical Support:
→ Pre-sales application engineering consultation
→ Installation guidance and wiring diagram review
→ Post-installation commissioning support via phone/email
→ Troubleshooting assistance with 4-hour response SLA
→ Access to Honeywell FSC system integration specialists

Documentation Package:
Each FC-TELD-0001 terminal ships with installation manual, wiring diagrams, CE/TUV certificates, and dimensional drawings in PDF format. CAD models (STEP/IGES) and EPLAN macros available for download from manufacturer portal.

Frequently Asked Questions

Q: How does the FC-TELD-0001 integrate with non-Honeywell PLC systems?
A: The terminal outputs a DC voltage signal (typically 4.1 VDC) that any PLC with analog input capability can monitor. Connect the earth voltage output to a 0-10 VDC or 4-20 mA input module, then configure alarm thresholds in your PLC logic. No proprietary protocols required—standard voltage monitoring applies across Siemens, Allen-Bradley, Schneider, and other platforms.

Q: What wire gauge and terminal torque specifications should I follow during installation?
A: Use 0.2-4 mm² (24-12 AWG) solid wire or 0.2-2.5 mm² (24-14 AWG) stranded wire with 8mm insulation strip length. Tighten screw terminals to 0.5 Nm (4.4 lb-in) torque using a calibrated screwdriver. Over-torquing beyond 0.6 Nm may crack terminal blocks, while under-torquing below 0.4 Nm causes high-resistance connections that trigger false alarms.

Q: Can this terminal reduce energy costs in my facility's safety monitoring system?
A: Yes—at 10 mA nominal draw (0.24W per terminal), the FC-TELD-0001 consumes 85% less power than traditional electromagnetic relays (1.5-2W each). For a facility with 100 monitoring points, this translates to 170W continuous savings, or approximately $150/year in electricity costs at $0.10/kWh. The compact design also reduces panel cooling requirements, further lowering HVAC energy consumption.

Q: What mounting orientation and clearance requirements apply for proper thermal performance?
A: Mount the terminal vertically on DIN rail with screw terminals facing downward for optimal heat dissipation. Maintain 10mm minimum clearance on both sides when installing multiple terminals adjacently. The terminal operates without derating across its full -40°C to +75°C range in any orientation, but vertical mounting with downward terminals maximizes convection cooling and simplifies wiring access.

Q: Does the FC-TELD-0001 support remote monitoring and IoT connectivity for Industry 4.0 applications?
A: While the terminal itself provides analog output only, it integrates seamlessly with Honeywell FSC controllers that offer Ethernet/IP, Modbus TCP, and OPC UA connectivity. This enables cloud-based monitoring dashboards, mobile alerts, and integration with enterprise asset management (EAM) systems. For standalone IoT connectivity, pair the terminal with edge gateways supporting 0-10 VDC analog inputs and MQTT/REST API protocols.

Q: How frequently should I perform calibration verification on installed FC-TELD-0001 terminals?
A: Honeywell recommends annual calibration checks for safety-critical applications, though the terminal's solid-state design exhibits minimal drift over time. Perform functional testing by injecting known earth fault currents (0.3 mA and 0.7 mA) and verifying alarm activation. For SIL-rated systems, follow proof test intervals defined in your safety instrumented function (SIF) documentation—typically 12-24 months depending on risk assessment.

Request Technical Consultation

Our application engineers provide complimentary system design reviews for earth leakage monitoring projects. Submit your single-line diagrams, panel layouts, and safety requirements for customized recommendations on terminal quantity, wiring architecture, and FSC integration strategies. Typical response time: 24-48 hours for standard inquiries, same-day for urgent safety system upgrades.

Next Steps: Add FC-TELD-0001 to your quote request, download technical datasheets from the resources section, or contact our team at sale@ninermas.com | +0086 187 5021 5667 for immediate assistance with your earth fault monitoring requirements.
