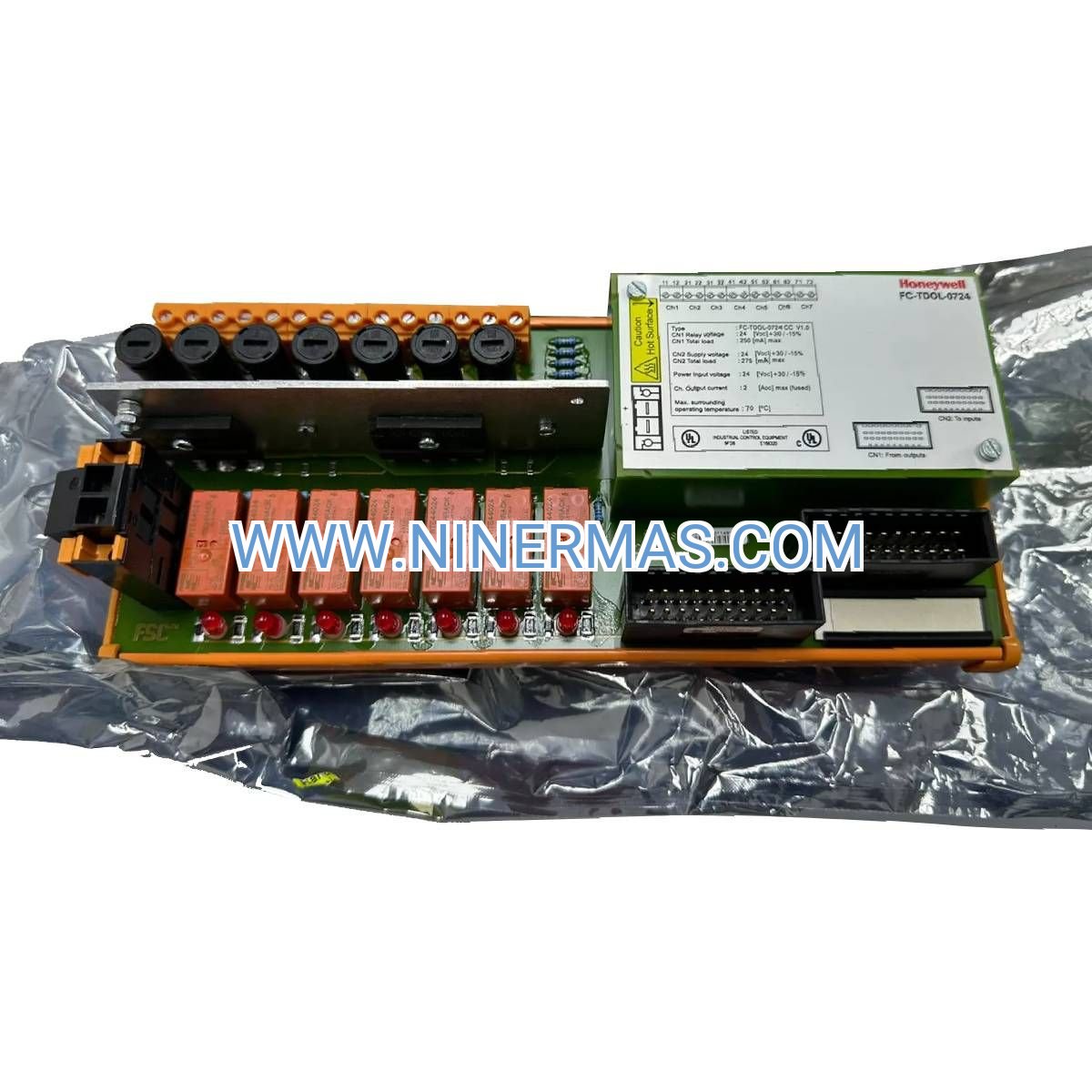

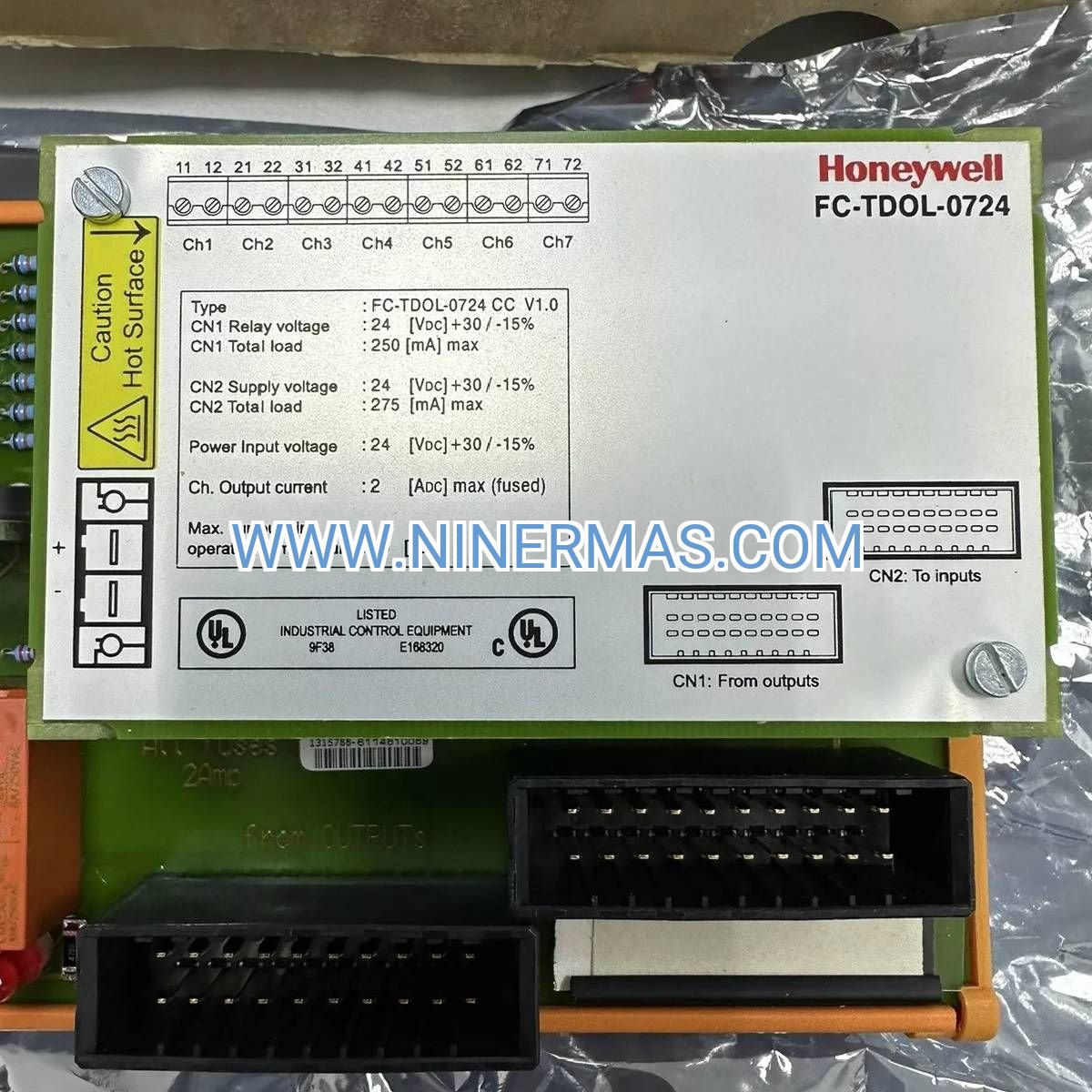

FC-TDOL-0724 Digital Output Module (Industrial-Grade 7-Channel Control Solution)

The FC-TDOL-0724 represents a breakthrough in industrial digital output technology, delivering seven independent 24VDC channels engineered for mission-critical process control environments. Designed for manufacturers who demand zero-compromise reliability, this module combines advanced fault diagnostics with rugged construction to ensure continuous operation in the harshest industrial settings.

Process engineers and automation specialists choose the FC-TDOL-0724 when system uptime directly impacts production revenue. Whether you're managing chemical dosing sequences, coordinating pneumatic actuators, or controlling safety-critical solenoid valves, this module provides the precision and dependability your operations require.

With built-in channel-level diagnostics and hot-swappable architecture, the FC-TDOL-0724 reduces mean time to repair (MTTR) by up to 40% compared to legacy output modules. Every channel features independent short-circuit protection, open-load detection, and real-time status monitoring—empowering your maintenance team to identify and resolve issues before they escalate into costly downtime.

Core Features & Benefits

✓ Real-Time Diagnostic Intelligence
Each of the seven output channels continuously monitors electrical parameters, instantly flagging short-circuits, open loads, and overcurrent conditions. This proactive fault detection enables predictive maintenance strategies and eliminates guesswork during troubleshooting sessions.

✓ Extreme Environment Resilience
Operating reliably from -40°C to +70°C, the FC-TDOL-0724 withstands temperature swings, vibration, and electrical noise common in heavy industrial facilities. Conformal coating options provide additional protection against moisture, dust, and corrosive atmospheres.

✓ Universal System Integration
Seamlessly interfaces with Honeywell Experion PKS, PlantCruise, and third-party DCS/PLC platforms via standard fieldbus protocols. Pre-configured device profiles accelerate commissioning and reduce engineering hours by 30%.

✓ Simplified Installation & Maintenance
Standard 35mm DIN rail mounting with spring-clamp terminals enables tool-free wire insertion and removal. Color-coded LED indicators provide instant visual confirmation of channel status, power supply health, and communication integrity.

✓ Enhanced Safety Compliance
Meets IEC 61508 SIL 2 requirements for safety-instrumented systems when properly configured. Built-in electrical isolation protects sensitive control circuits from field-side faults and ground loops.

✓ Scalable Architecture
Expand your I/O capacity by adding multiple FC-TDOL-0724 modules to the same backplane or remote I/O rack. Distributed control topologies reduce cabinet space requirements and wiring complexity in large-scale installations.

Typical Application Scenarios

→ Chemical Processing & Batch Manufacturing
Control pneumatic diaphragm valves, agitator motors, and material transfer pumps in pharmaceutical, specialty chemical, and food production facilities. The module's diagnostic capabilities ensure recipe integrity by detecting valve failures before they compromise batch quality.

→ Oil & Gas Production Facilities
Operate emergency shutdown (ESD) solenoid valves, wellhead control systems, and pipeline isolation equipment in upstream, midstream, and downstream operations. Intrinsically safe barrier compatibility enables deployment in hazardous area classifications.

→ Power Generation & Utilities
Manage circuit breaker trip coils, damper actuators, and auxiliary relay systems in coal, gas, nuclear, and renewable energy plants. Hot-swap capability allows module replacement during scheduled outages without full system shutdown.

→ Water & Wastewater Treatment
Drive chemical dosing pumps, clarifier scrapers, and UV disinfection systems in municipal and industrial treatment facilities. Corrosion-resistant terminals withstand exposure to chlorine, ozone, and other aggressive chemicals.

→ Metals & Mining Operations
Coordinate conveyor systems, crusher interlocks, and material handling equipment in ore processing and smelting operations. Vibration-resistant construction maintains connection integrity in high-shock environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FC-TDOL-0724 when your application requires sourcing-type outputs with individual channel diagnostics. For sinking outputs or higher current capacity (up to 5A), consider alternative models in the FSC family. Applications involving intrinsically safe circuits require approved barrier interfaces—consult our engineering team for zone-specific configurations.

Extended Functions

IoT & Remote Monitoring Integration: When paired with Honeywell's Experion PKS or third-party SCADA systems, the FC-TDOL-0724 enables cloud-based analytics and mobile diagnostics. Stream real-time channel status to predictive maintenance platforms, trigger automated work orders upon fault detection, and archive historical performance data for regulatory compliance.

Advanced Configuration Options: Customize output behavior through software-configurable parameters including pulse width modulation (PWM) for proportional valve control, programmable turn-on/turn-off delays to prevent inrush current spikes, and adjustable fault thresholds to accommodate varying load characteristics.

Redundancy & High-Availability Architectures: Deploy dual FC-TDOL-0724 modules in redundant configurations for safety-critical applications. Automatic failover logic ensures seamless transition to backup channels without process interruption, meeting stringent availability requirements in pharmaceutical and nuclear industries.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom configurations (conformal coating, extended temperature testing, factory calibration certificates) require 3-4 weeks. Expedited processing available for emergency shutdowns and unplanned outages.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty plans (24/36 months) available for critical infrastructure applications.

Technical Support: Unlimited access to our automation engineering team for installation guidance, troubleshooting assistance, and system optimization recommendations. Remote diagnostic services available via secure VPN connection to minimize on-site visits.

Documentation Package: Each module includes installation manual, wiring diagrams, device configuration files (GSD/EDS), and compliance certificates. CAD drawings and 3D STEP models available for download to streamline panel design.

Frequently Asked Questions

How does the FC-TDOL-0724 integrate with Allen-Bradley ControlLogix systems?
The module connects via standard DeviceNet or Modbus RTU interfaces using appropriate gateway modules. Pre-built Add-On Instructions (AOIs) for RSLogix 5000 simplify programming and reduce commissioning time by 50%.

What is the maximum cable length between the module and field devices?
For 24VDC loads, maintain cable runs under 100 meters using 18 AWG shielded twisted-pair wire. Longer distances require voltage drop calculations and may necessitate local power injection to ensure reliable switching.

Can this module control AC solenoid valves rated at 120VAC?
No, the FC-TDOL-0724 is designed exclusively for DC loads. For AC switching applications, use solid-state relay (SSR) interfaces or select an AC-rated output module from our catalog.

Does the diagnostic function detect gradual degradation of solenoid coils?
Yes, the module's current monitoring feature can identify increasing coil resistance indicative of insulation breakdown or mechanical wear. Trending this data over time enables condition-based maintenance strategies.

What happens to outputs during module hot-swap or power interruption?
All outputs default to the OFF state (de-energized) during power loss or module removal. Implement fail-safe valve designs (spring-return actuators) to ensure safe process states during maintenance activities.

Is the FC-TDOL-0724 suitable for SIL-rated safety instrumented functions?
When configured according to IEC 61508 guidelines and combined with certified safety controllers, the module achieves SIL 2 capability. SIL 3 applications require redundant architectures with 1oo2 or 2oo3 voting logic.

Optimize Your Control System

Ready to eliminate output module failures and reduce troubleshooting time? The FC-TDOL-0724 delivers the diagnostic intelligence and rugged reliability your critical processes demand. Contact our automation specialists today for application-specific recommendations, system integration support, and volume pricing on multi-module orders.

Request a quote now: Share your I/O requirements, environmental conditions, and project timeline to receive a customized proposal within 24 hours. Our team will recommend optimal module configurations, compatible accessories, and installation best practices tailored to your industry.
